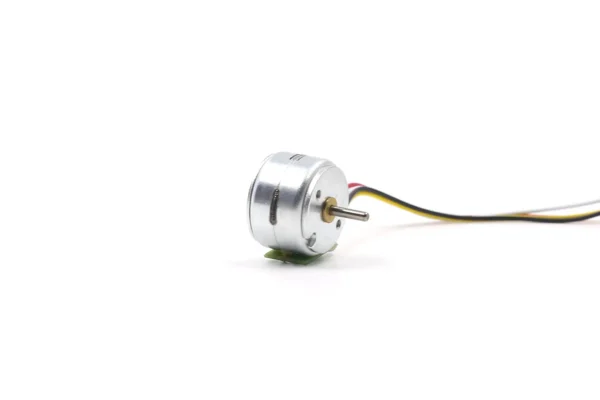

Buy 15mm 2 phase 4 wire micro stepper motor online

Rear view of 2 phase 4 wire micro stepper motor showing PCB terminal soldering joints

Rear flat face of 2 phase 4 wire micro stepper motor showing product model numbers

2 phase micro stepper motor mounting face

Ø15mm Micro PM Stepper Motor | TSL-SM15

$9.00

◆ Basic Info

- Brand: TSL
- Origin: China
- Motor Model: TSL-SM15
- Motor Type: PM Stepper Motor
- Voltage: DC 5V
- Step Angle:18° step angle
- Phase resistance:31 Ω/ 10 Ω
- Wiring:A- (red) A+(white) B- (Black) B+(brown)
- # More Specifications
- # Outline Drawing

Performance parameters are for reference only and can be customized according to customer requirements.

Download TSL-SM15 Specifications

◆ Typical Applications: lens, optical lens, surveillance, security monitoring, CCTV

Samples Pricing

Quantity	Unit Price	Savings
1 – 4	USD 9.00	—
5 – 9	USD 8.55	↓ 5%
10 – 24	USD 7.83	↓ 13%
25+	USD 7.02	↓ 22%

📞 Contact us for bulk production pricing

For higher (production) volumes, we offer highly competitive pricing, please Request a Quote. We response within 24h.

✈️ Global Shipping: free express shipping on orders over $150

Specification

Clear

Guaranteed Safe Checkout

| 2 Phase 4 Wire Micro Stepper Motor Datasheet

TSL-SM15, A Type

Motor Model:TSL-SM15
Rated Voltage	DC 5.0V
No.of Phases	2 Phases
Coil Resistance	10Ω±10%Phase
Rotation	CCW
Excitation Method	2 Phases Excitatioon
insulation class	F
Max Pull-out Frequency	1500Hz Min
Max Pull-in Frequency	100Hz Min
Pull-Out Torque	12g.cm(1000Hz) Min

Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

TSL-SM15, B Type

Parameter	Value
Rated Voltage	5V DC (Drive IC:6219)
Current Per Phase	160mA/Phase
Coil Resistance	31±7%Ω Phase (20°C)
No. Of Phases	2 Phases
Step Angle	18°/Step
Excitation Method	2 Phase Excitation
Drive Mode	Bipolar Drive
Insulation Class	Class E For Coils
Pull-Out Torque	≥8 gf-cm At 500pps
Insulation Strength	100 V AC For One Second
Max Response Frequency	≥1000PPS
Max Starting Frequency	≥700PPS
Insulation Resistance	100MΩ DC 500V
Operating Temperature	-20~+85°C (The dcw must not fall)

Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

| 2 Phase 4 Wire Micro Stepper Motor Mechanical Drawing

Unless otherwise stated, all dimensions are in millimeter.

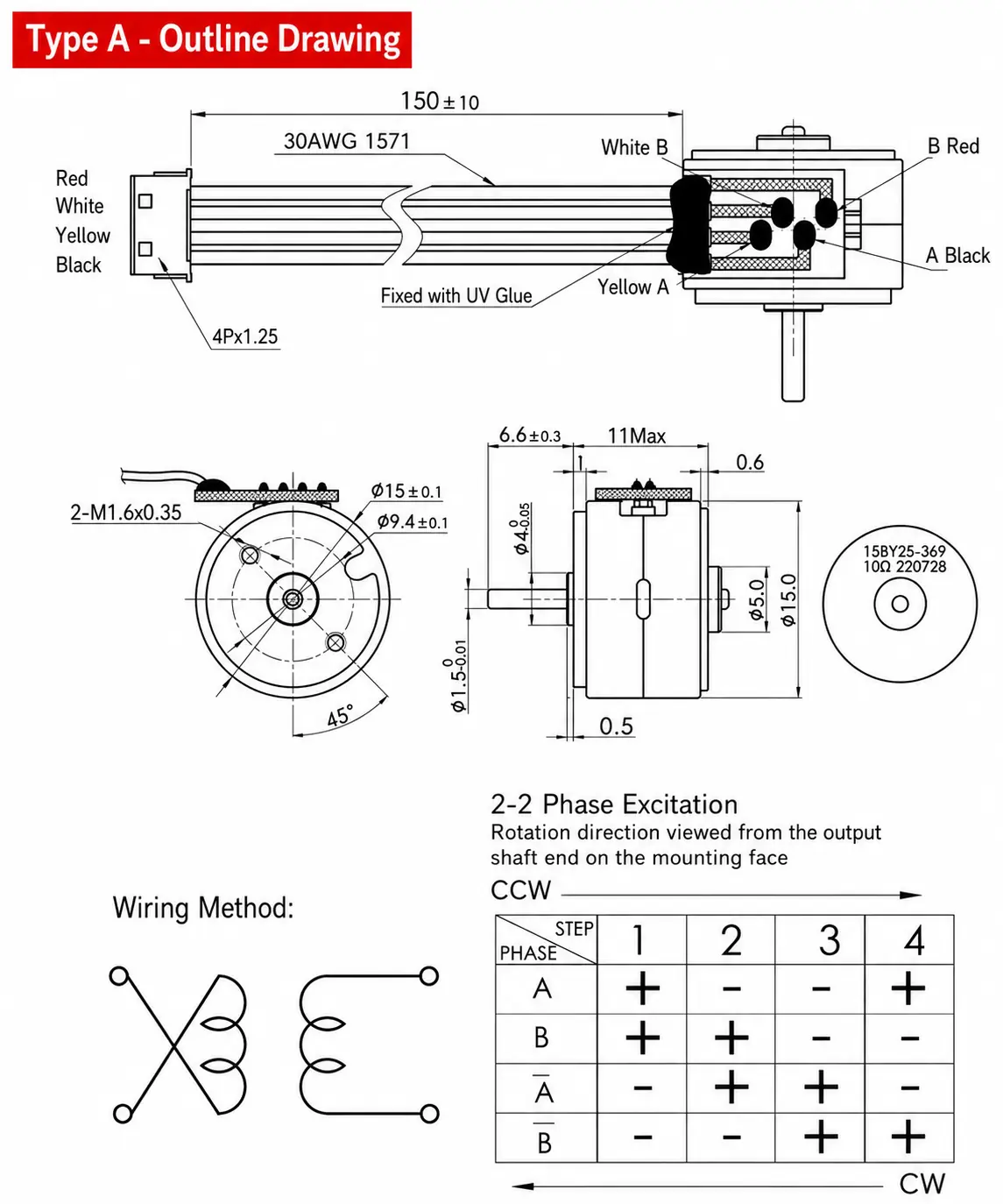

Type A technical blueprint and wiring diagram for 2 phase 4 wire micro stepper motor — 2 phase 4 wire micro stepper motor type a dimensions

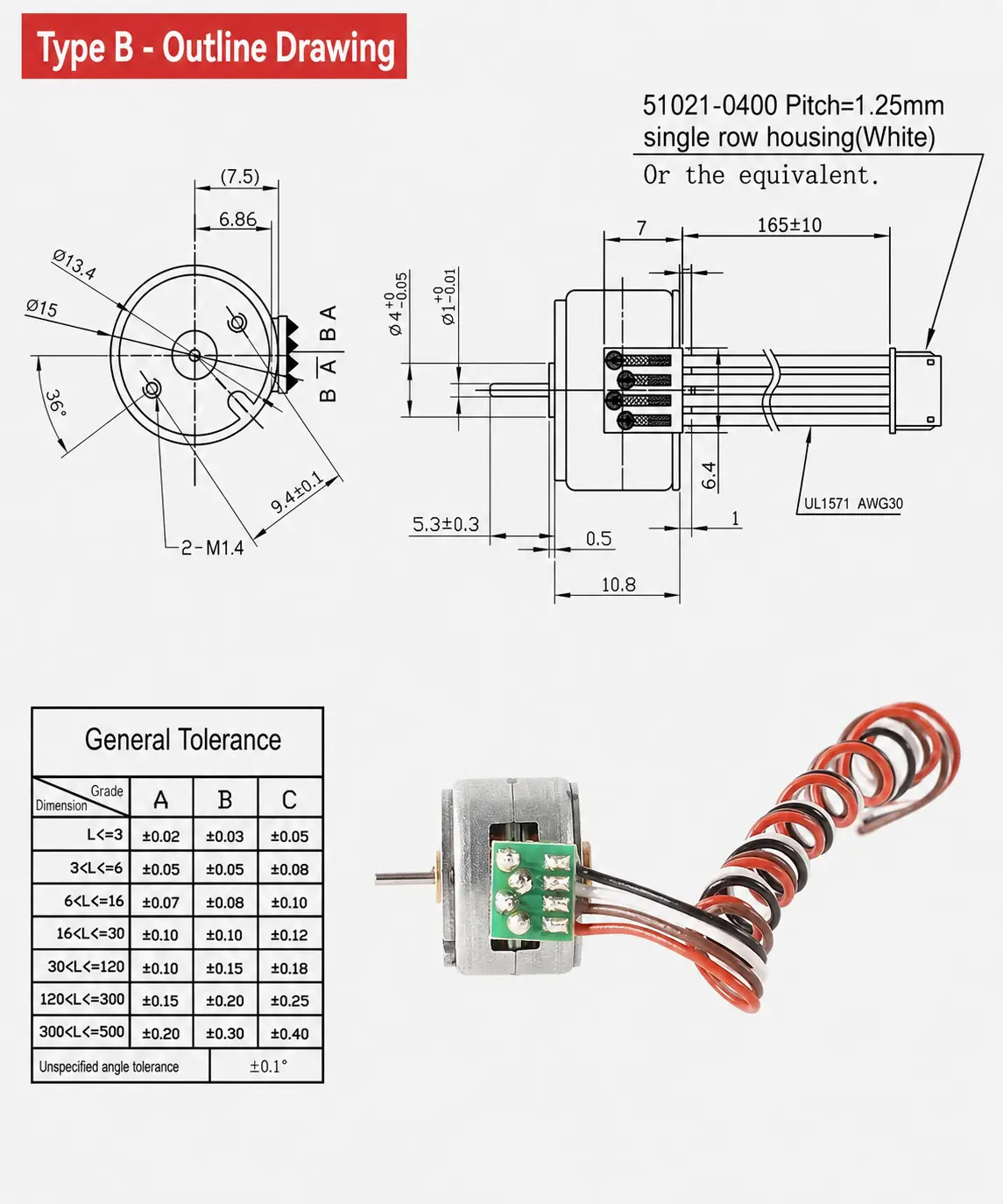

Type B dimension drawing and general tolerance table for micro stepper motor

| 2 Phase 4 Wire Micro Stepper Motor Wiring Sequence Description

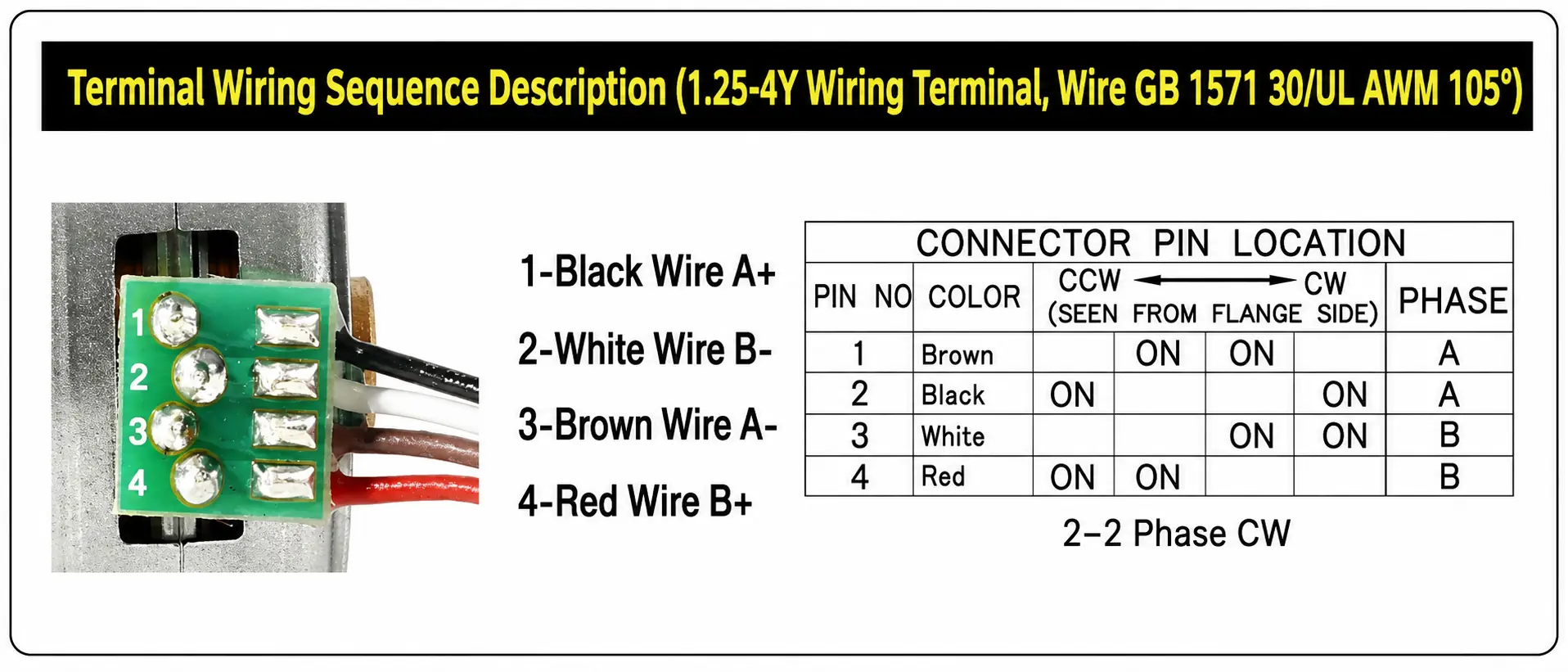

Terminal wiring sequence description and connector pin location for 2 phase 4 wire micro stepper motor

| 2 Phase 4 Wire Micro Stepper Motor Connection Diagram

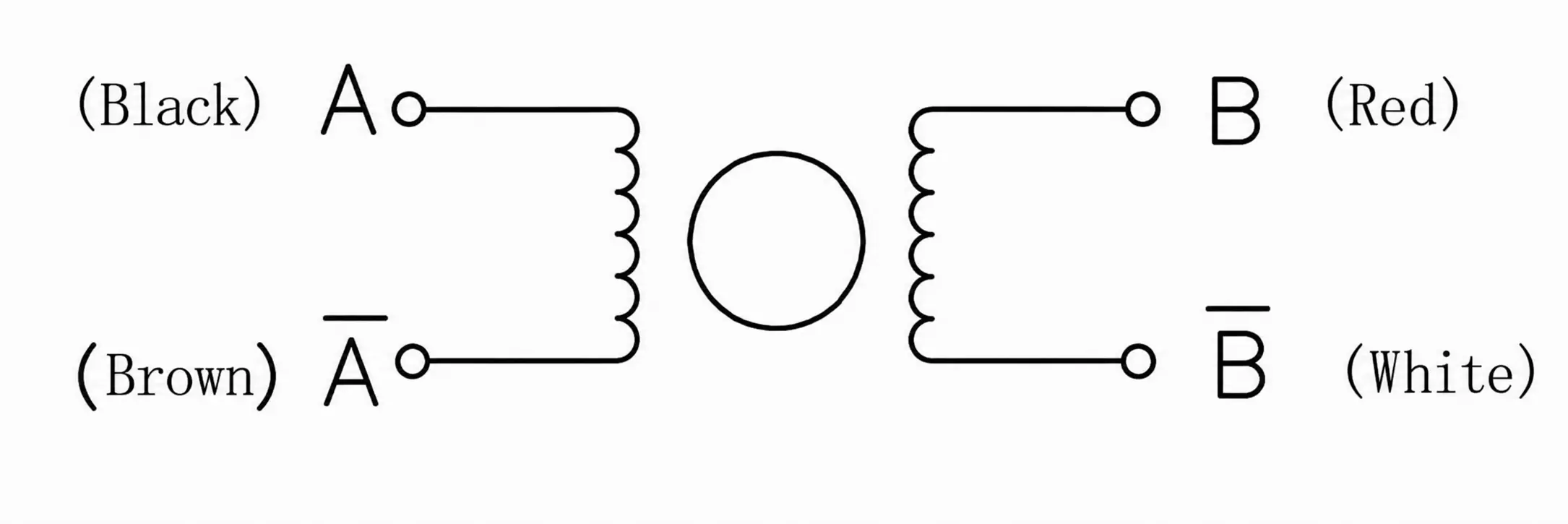

Internal coil schematic diagram for 2 phase 4 wire micro stepper motor

| SM15 Recommended Drive Parameters at Different Voltages

Motor Phase Resistance: 30Ω ±7%
Formula Followed: Voltage = Back EMF + Armature Current × Resistance

No.	Test Voltage	Recommended Drive Frequency	Recommended Drive Current
1	DC 12.0V	1000 PPS/HZ	≤0.25 A
2	DC 7.40V	1000 PPS/HZ	≤0.15 A
3	DC 6.00V	1000 PPS/HZ	≤0.10 A
4	DC 5.00V	1000 PPS/HZ	≤0.08 A
5	DC 3.70V	700 PPS/HZ	≤0.07 A

Remarks:
If the motor runs continuously for a long time, pay attention to the temperature rise of the motor.
If excessive temperature rise occurs, add a stop cooling program or adopt external auxiliary cooling treatment.
