Stepper Motor
Ø6mm-Ø35mm PM & NEMA 6-23 Hybrid Steppers, with Linear Actuators in External, Non-captive, Captive, and Slider designs.
Filter
Showing all 12 results
-
Ø15mm Micro PM Stepper Motor | TSL-SM15
$9.00 Select options This product has multiple variants. The options may be chosen on the product page -
Ø15mm PM Stepper Motor Linear Slide Module | TSL‑SM1519
-

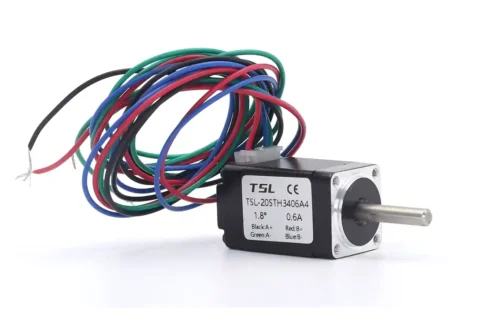

NEMA 08(20mm) Hybrid Stepper Motor Single Shaft | TSL-20STH A Series
Price range: $29.48 through $34.22 Select options This product has multiple variants. The options may be chosen on the product page -

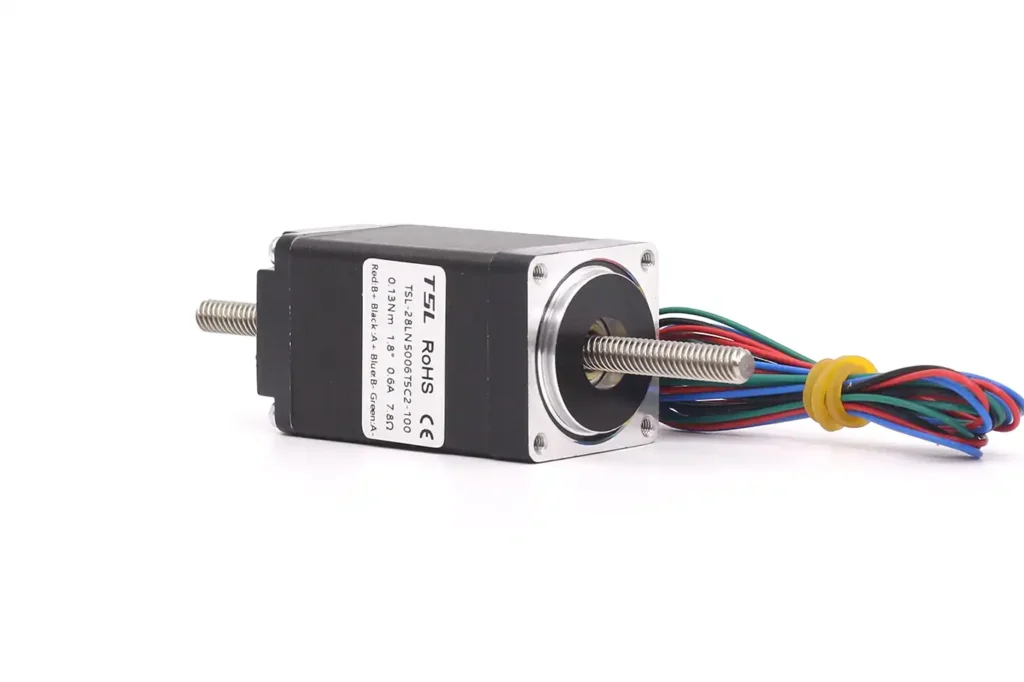

NEMA 11 (28mm) Non-captive Hybrid Linear Stepper Motor | TSL‑28LN Series
$91.05 Select options This product has multiple variants. The options may be chosen on the product page -
NEMA 11 (28mm) Hybrid Stepper Motor Linear Slide Module | TSL‑28LS Series
Price range: $48.88 through $120.28 Select options This product has multiple variants. The options may be chosen on the product page -
NEMA 11(28mm) External Nut Hybrid Linear Stepper Motor | TSL‑28LE32 Series
Price range: $81.60 through $147.85 Select options This product has multiple variants. The options may be chosen on the product page -
NEMA 11(28mm) Hybrid Stepper Motor Single Shaft | TSL-28STH A Series
Price range: $18.95 through $29.48 Select options This product has multiple variants. The options may be chosen on the product page -
NEMA 14(35mm) Hybrid Stepper Motor Single Shaft | TSL-35STH A Series
Price range: $14.74 through $25.79 Select options This product has multiple variants. The options may be chosen on the product page -
NEMA 17 (42mm) Non-captive Hybrid Linear Stepper Motor | TSL‑42LN Series
Price range: $95.17 through $103.00 Select options This product has multiple variants. The options may be chosen on the product page -
NEMA 17(42mm) External Nut Hybrid Linear Stepper Motor | TSL‑42LE Series
Price range: $71.20 through $147.85 Select options This product has multiple variants. The options may be chosen on the product page -
NEMA 17(42mm) Hybrid Stepper Motor Single Shaft | TSL-42STH A Series
Price range: $12.63 through $41.74 Select options This product has multiple variants. The options may be chosen on the product page -
NEMA 23(57mm) Hybrid Stepper Motor Single Shaft | TSL-57STH A Series
Price range: $28.95 through $45.17 Select options This product has multiple variants. The options may be chosen on the product page
We design and manufacture stepper motors:
Comprehensive frame sizes from Ø6mm to Ø35mm PM steppers and NEMA 6 to NEMA 23 hybrid steppers
- Versatile linear motion solutions featuring lead screws (T-type), high-precision ball screws, and heavy-duty planetary roller screws in external, non-captive, or captive designs.
- High-precision linear sliders featuring monolithic (one-piece) integrated structures or coupling-connected assemblies for maximum design flexibility.
- High-torque stepper gear motors with customizable gearbox options, including powder metallurgy, steel gears, and ultra-high precision gearheads.
- Integrated planetary and worm gearbox solutions, offering customizable ratios from 1:3 to 1:2000+ to meet specific speed and torque demands.
- Optional integrated or external drivers with encoder.
- Ready-to-ship inventory and 1-unit rapid customization support, accelerating your journey from initial prototype to volume production.
Custom mounting & transmission mechanisms
- Custom Mounting: Bespoke flanges, housings, and specialized mounting plates.
- Transmission: Integrated ball screw, lead screw, and belt-drive positioning.
- Bespoke Mechanisms: Custom levers, cams, and ground-up structural designs.
- Advanced Shaft Geometries: Options for hollow shafts for cable routing, double-ended shafts, or output shafts pre-integrated with gears or timing pulleys.
- Environmental Protection: Customizable sealing and construction to meet specific IP-rated waterproof and dustproof requirements for harsh environments.
Contact our application engineering team to discuss your project.

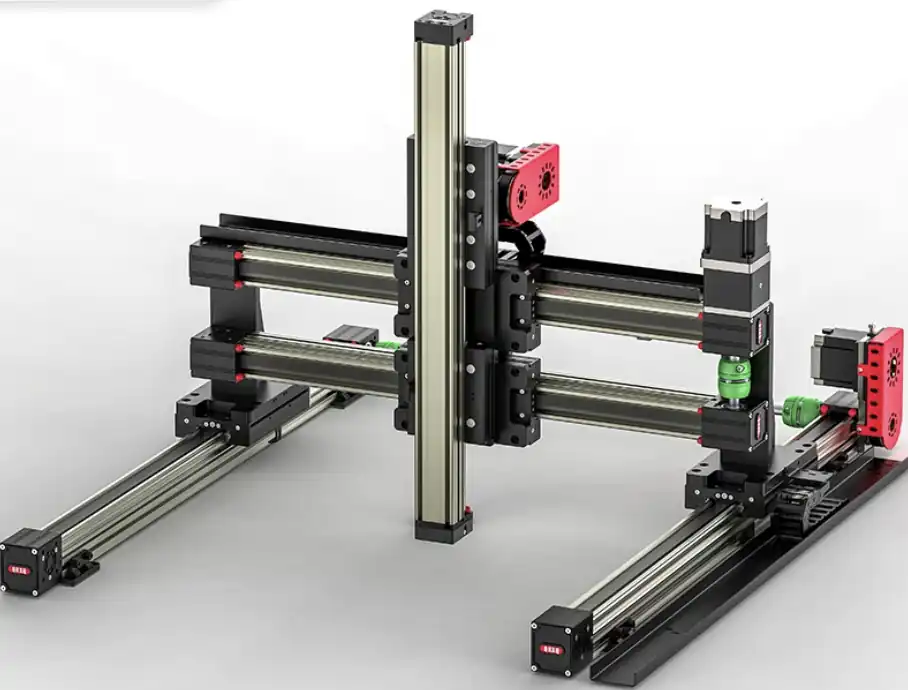

Multi-Axis Motion Integration Platform
From precision open-frame linear sliders to fully integrated multi-axis motion stages, we offer a comprehensive platform for your automation needs. Whether you require a standard XY-cross stage or a complex XYZ-gantry system, our modular components allow for rapid combination and deployment.

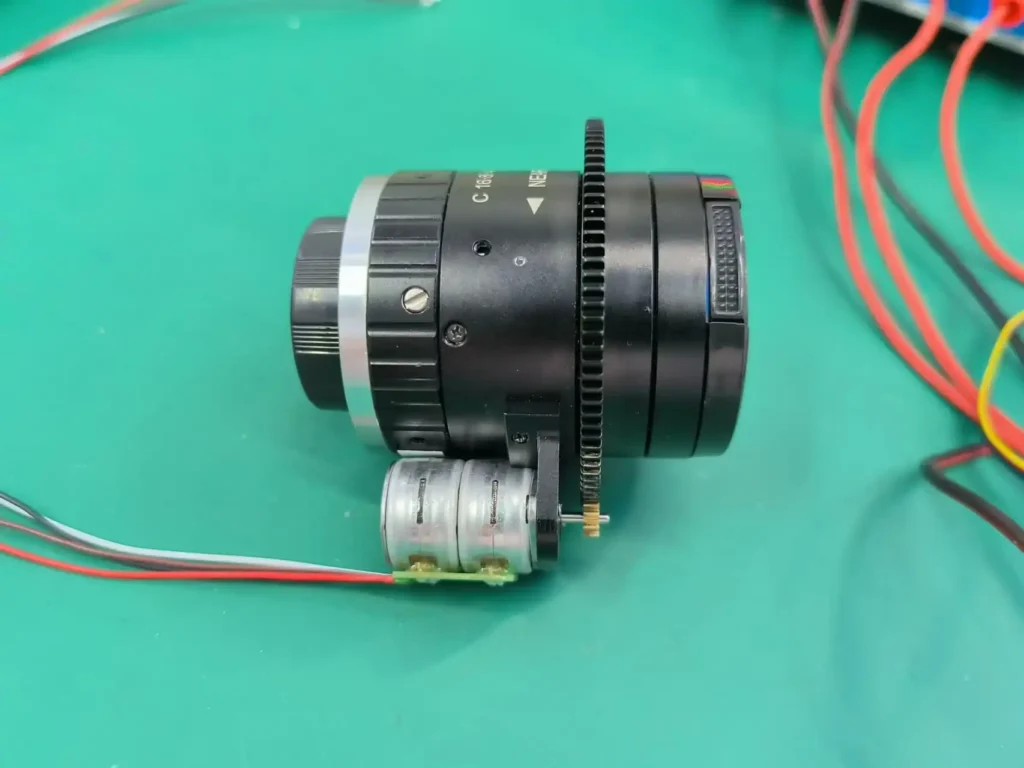

Preferred Partner for Optical Lens Innovation
We are the premier choice for precision motion in optical systems. Our ultra-miniature PM stepper motors are engineered for seamless integration into advanced lens designs—from driving high-speed auto-focus and zoom mechanisms to controlling ultra-fine iris and aperture adjustments.
MORE THAN A MOTOR SUPPLIER: YOUR ENGINEERING PARTNER
Integrated Motion Systems
We leverage our core motor expertise to simplify your system integration, mitigating design risks and lowering total costs through collaborative mechanical and electronic optimization.
Specialized Engineering & Manufacturing
Integrated Motor & Mechanism Design
We go beyond the motor, designing complex motion interfaces for Robotics and Medical applications. We specialize in converting motor rotation into specialized linear or rotary motion via worm gears, integrated lead screws, and planetary mechanisms.
Core Component & CNC Manufacturing
With our in-house winding workshop and advanced CNC centers , we achieve full vertical integration. This allows us to maintain 100% control over component quality, ensuring superior performance and extreme reliability for every custom gearbox and motor we produce.
Expert Testing & Sample Validation
Precision is guaranteed through rigorous testing. Every sample we provide is accompanied by a detailed inspection report, verified using our in-house dynamometers and environmental rigs to ensure it meets your exact performance requirements.
Engineering-Led Prototyping
Your prototypes are hand-built and calibrated by our senior engineers to ensure design integrity. Once validated, mass production is executed strictly according to these engineering-approved standards to guarantee consistency across all units.
Flexible Supply & Online Mall
We maintain stock for standard products to support rapid delivery and small-batch orders. For urgent requirements or low-volume purchases, you can order directly through our online mall for immediate global shipping.
Certified Quality & Compliance
As an ISO 9001 and IATF 16949 certified manufacturer, our products also comply with CE, FCC, and RoHS standards, ensuring our motion solutions meet the highest safety and quality regulations for international markets.
