Worm Gear Motor

Coreless, Iron-Core, Brushed, Brushless, or Stepper Motors with Multi-Material Gear Technologies

Filter

Showing all 7 results

We design and manufacture worm gear motors:

  • Versatile motor integration, featuring Coreless (Ø8mm–Ø22mm), Brushless (Ø8mm–Ø42mm), and Brushed (Ø8mm–Ø45mm) worm gear motor configurations.

  • Comprehensive Stepper series, ranging from ultra-miniature Ø4.6mm to high-torque 57mm (NEMA 23) stepper worm gear actuators.

  • Specialized Smart Lock Series, providing optimized worm gear solutions specifically engineered for high-reliability electronic door lock systems.

  • Multi-material gear technologies, offering modular combinations of Sintered Metal (Powder Metallurgy), Plastic, Machined Steel, and Brass gears.

  • Self-locking right-angle design, utilizing a compact 90-degree output to provide inherent braking and save installation space.

  • Integrated drive & feedback systems, with optional high-resolution encoders, electromagnetic brakes, and matching controller modules.

  • Advanced linear motion options, supporting integration with T-type lead screws and customized linear actuators for precision pushing/pulling.

  • Customizable mechanical interface, with tailored output shaft geometries and mounting plates to ensure seamless system integration.

Professional right-angle worm gear motors featuring coreless, iron-core, brushed, brushless, and stepper motor options with multi-material gearbox technologies for diverse industrial and automation needs
Bottom view of right-angle DC motor with lead screw showing M2 mounting holes

Custom mounting & transmission mechanisms

  • Custom Mounting: Bespoke flanges, housings, and specialized mounting plates.
  • Transmission: Integrated ball screw, lead screw, and belt-drive positioning.
  • Bespoke Mechanisms: Custom levers, cams, and ground-up structural designs.

Contact our application engineering team to discuss your project.

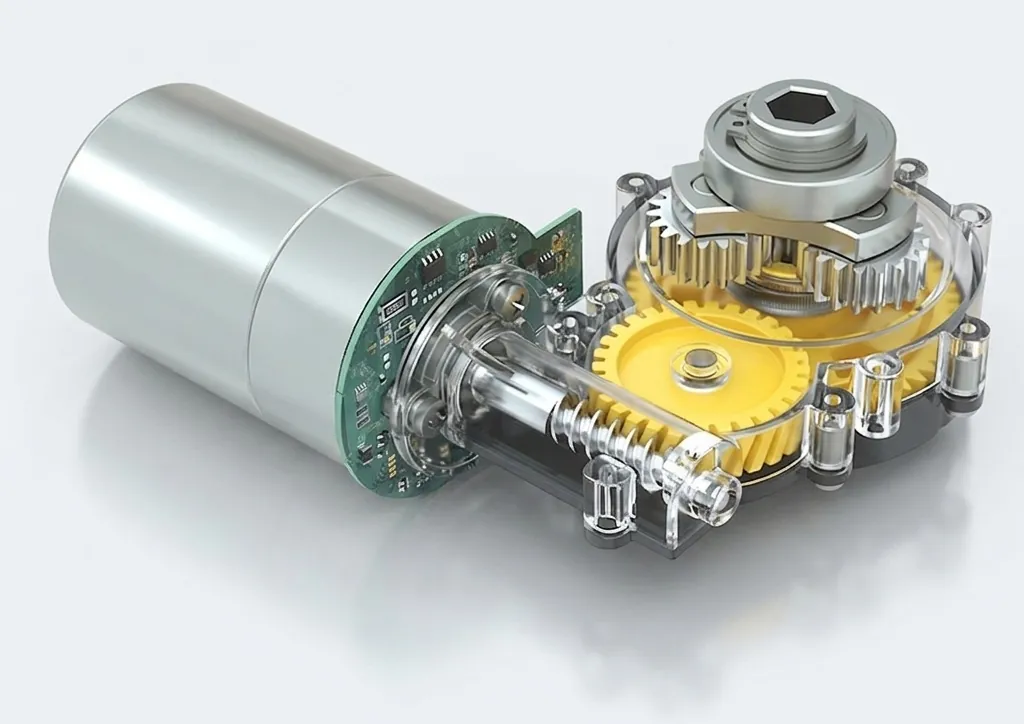

Metal–plastic integrated gear design

Through our in‑house design and development, we use a steel worm and a plastic worm wheel to create a new generation of brushless integrated drive‑control worm‑gear motors.

tsl new worm gearbox tech

MORE THAN A MOTOR SUPPLIER: YOUR ENGINEERING PARTNER

Integrated Motion Systems

We leverage our core motor expertise to simplify your system integration, mitigating design risks and lowering total costs through collaborative mechanical and electronic optimization.

Discuss Your Project

Specialized Engineering & Manufacturing

Integrated Motor & Mechanism Design

We go beyond the motor, designing complex motion interfaces for Robotics and Medical applications. We specialize in converting motor rotation into specialized linear or rotary motion via worm gears, integrated lead screws, and planetary mechanisms.

cnc machining process for precision motor parts (1)

With our in-house winding workshop and advanced CNC centers , we achieve full vertical integration. This allows us to maintain 100% control over component quality, ensuring superior performance and extreme reliability for every custom gearbox and motor we produce.

high precision dc gear motor manufacturing process

Precision is guaranteed through rigorous testing. Every sample we provide is accompanied by a detailed inspection report, verified using our in-house dynamometers and environmental rigs to ensure it meets your exact performance requirements.

tsinglin micro motors test

Your prototypes are hand-built and calibrated by our senior engineers to ensure design integrity. Once validated, mass production is executed strictly according to these engineering-approved standards to guarantee consistency across all units.

tsinglin 10mm coreless gear motor

We maintain stock for standard products to support rapid delivery and small-batch orders. For urgent requirements or low-volume purchases, you can order directly through our online mall for immediate global shipping.

tsinglin micro motors factory 2

As an ISO 9001 and IATF 16949 certified manufacturer, our products also comply with CE, FCC, and RoHS standards, ensuring our motion solutions meet the highest safety and quality regulations for international markets.
