Stepper Gear Motor

From Ø4.6mm–Ø42mm PM series to NEMA 6–NEMA 23 Hybrid solutions with optional closed-loop control

Filter

Showing all 4 results

We design and manufacture stepper gear motors:

  • Permanent Magnet (PM) stepper gear motors, available in diameters from Ø4.6mm to Ø42mm for compact and cost-effective motion.

  • Hybrid stepper gear motors, covering standard industrial frame sizes from NEMA 6 to NEMA 23 for high-torque precision.

  • Versatile gearbox material options, featuring high-precision machined steel, sintered metal, and engineering plastic gears.

  • Closed-loop control capability, with optional integrated encoders to ensure zero step loss and superior positioning accuracy.

  • Comprehensive drive solutions, including matching hybrid stepper drivers and specialized miniature PM stepper controllers.

  • Advanced linear motion options, including precision T-type lead screws, linear actuators, and high-load planetary roller screws

  • Precision planetary gearboxes, offering customizable reduction ratios to meet specific torque and velocity requirements.
Professional right-angle worm gear motors featuring coreless, iron-core, brushed, brushless, and stepper motor options with multi-material gearbox technologies for diverse industrial and automation needs

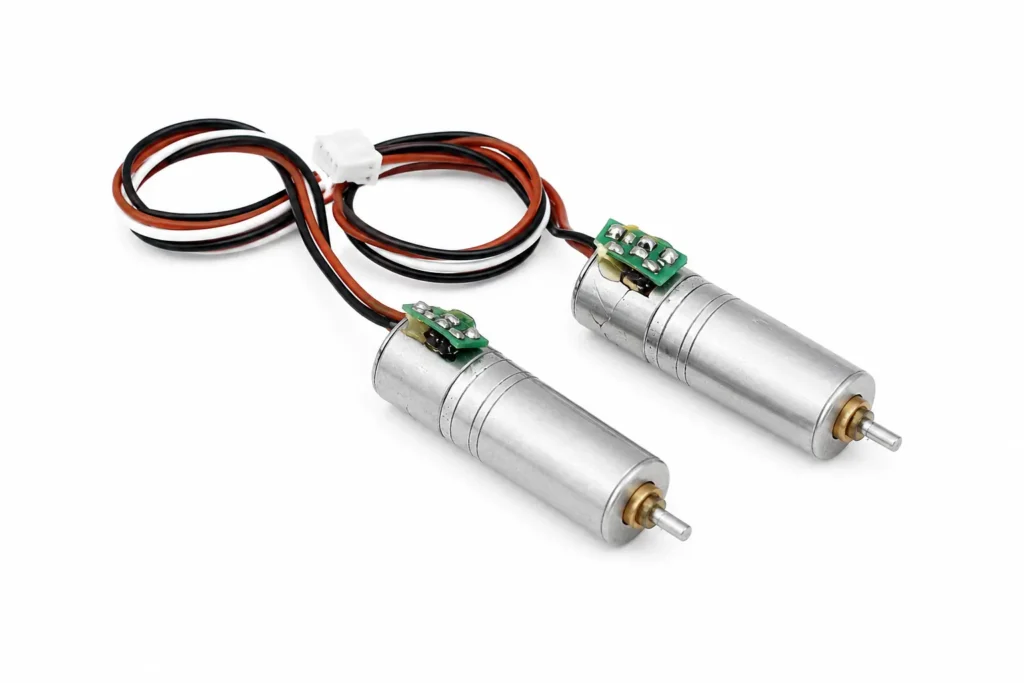

tsl pg8k64 sm08 micro planetary gear stepper motor

Custom mounting & transmission mechanisms

  • Custom Mounting: Bespoke flanges, housings, and specialized mounting plates.
  • Transmission: Integrated ball screw, lead screw, and belt-drive positioning.
  • Bespoke Mechanisms: Custom levers, cams, and ground-up structural designs.

Contact our application engineering team to discuss your project.

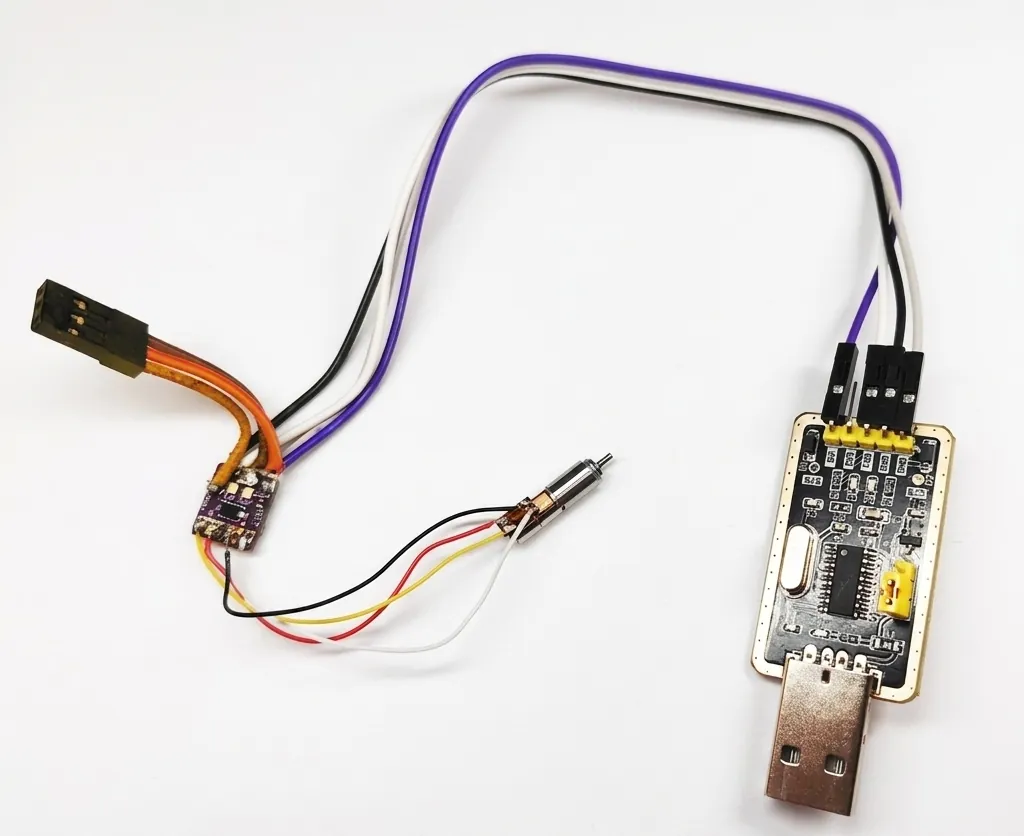

Integrated Micro Stepper Motor with Drive Control

We developed our own miniature driver board for permanent‑magnet stepper motors, enabling direct PC control through simple wiring. This significantly reduces development time for engineers.

tsl 4mm stepper gear motor drive control

MORE THAN A MOTOR SUPPLIER: YOUR ENGINEERING PARTNER

Integrated Motion Systems

We leverage our core motor expertise to simplify your system integration, mitigating design risks and lowering total costs through collaborative mechanical and electronic optimization.

Discuss Your Project

Specialized Engineering & Manufacturing

Integrated Motor & Mechanism Design

We go beyond the motor, designing complex motion interfaces for Robotics and Medical applications. We specialize in converting motor rotation into specialized linear or rotary motion via worm gears, integrated lead screws, and planetary mechanisms.

cnc machining process for precision motor parts (1)

With our in-house winding workshop and advanced CNC centers , we achieve full vertical integration. This allows us to maintain 100% control over component quality, ensuring superior performance and extreme reliability for every custom gearbox and motor we produce.

high precision dc gear motor manufacturing process

Precision is guaranteed through rigorous testing. Every sample we provide is accompanied by a detailed inspection report, verified using our in-house dynamometers and environmental rigs to ensure it meets your exact performance requirements.

tsinglin micro motors test

Your prototypes are hand-built and calibrated by our senior engineers to ensure design integrity. Once validated, mass production is executed strictly according to these engineering-approved standards to guarantee consistency across all units.

tsinglin 10mm coreless gear motor

We maintain stock for standard products to support rapid delivery and small-batch orders. For urgent requirements or low-volume purchases, you can order directly through our online mall for immediate global shipping.

tsinglin micro motors factory 2

As an ISO 9001 and IATF 16949 certified manufacturer, our products also comply with CE, FCC, and RoHS standards, ensuring our motion solutions meet the highest safety and quality regulations for international markets.
