Inrunner Brushless DC Motor
Ø8mm–Ø115mm Inrunner Brushless : Coreless & Iron-cored, Frameless Torque, and Integrated Servo Systems.
Filter
Showing all 6 results
-
Ø24 x 18mm Inrunner BLDC Motor | TSL-BLDC-2418
$16.00 Select options This product has multiple variants. The options may be chosen on the product page -
Ø24 x 30mm Inrunner BLDC Motor | TSL-BLDC-2430
Price range: $16.00 through $31.08 Select options This product has multiple variants. The options may be chosen on the product page -
Ø28 x 38mm Inrunner BLDC Motor | TSL-BLDC-2838
Price range: $35.27 through $48.96 Select options This product has multiple variants. The options may be chosen on the product page -
Ø36 x 25mm Inrunner BLDC Motor | TSL-BLDC-3625
Price range: $35.27 through $44.75 Select options This product has multiple variants. The options may be chosen on the product page -
Ø31 x 63mm Inrunner BLDC Motor | TSL-BLDC-3163A
-
Ø44 x 58mm Inrunner BLDC Motor | TSL-BLDC-4820
Price range: $28.00 through $90.00 Select options This product has multiple variants. The options may be chosen on the product page

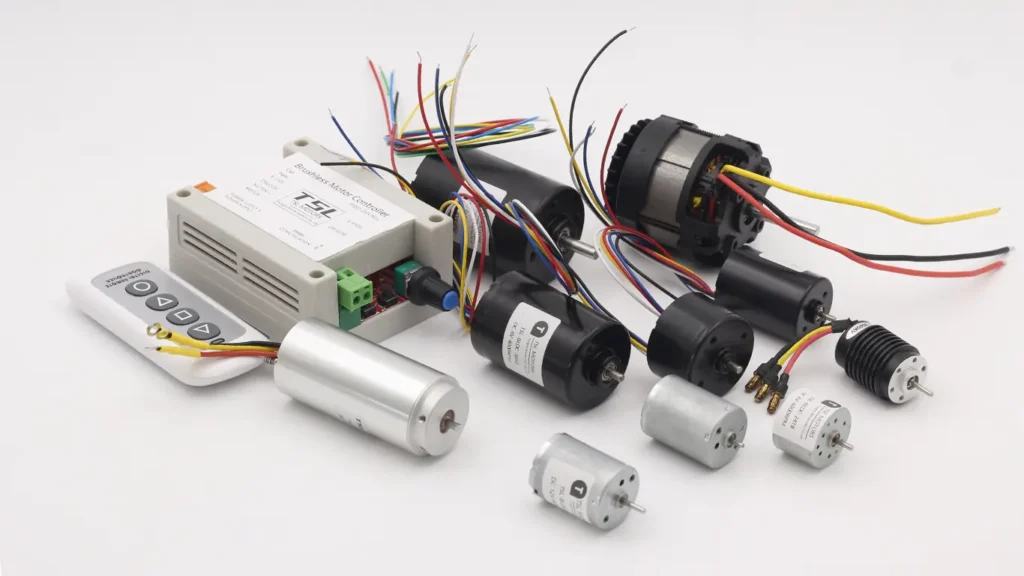

We design and manufacture inrunner brushless DC motors:
Frame diameters from Ø8mm to Ø57mm,
Frameless diameters from Ø25mm to Ø115mm,
Internal rotor (In-runner) designs available in both slotless (coreless) and slotted (iron core) configurations,
Winding voltages from 6V to 48V, with 12V and 24V windings available off-the-shelf for sampling,
A range of matching gearboxes with ratios from 1:4 to 1:3372,
A range of matching encoders providing ABN and UVW outputs, including dual-encoder configurations,
Integrated digital Hall sensors on frame diameters above Ø8mm,
Integrated electronic options including optional built-in driver boards,
System integration services including bespoke Host PC software and controller firmware development.
Custom mounting & transmission mechanisms
- Custom Mounting: Bespoke flanges, housings, and specialized mounting plates.
- Transmission: Integrated ball screw, lead screw, and belt-drive positioning.
- Bespoke Mechanisms: Custom levers, cams, and ground-up structural designs.
Contact our application engineering team to discuss your project.
Integrated Drive Solutions

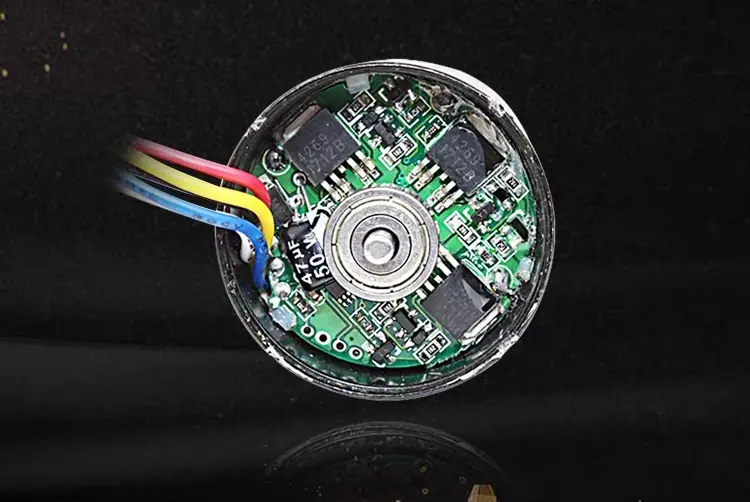

We provide integrated drive solutions. Our inrunner BLDC motors feature built-in Hall driver boards, allowing for direct power-on operation without external circuitry. We also offer full customization for wiring counts and pin definitions.

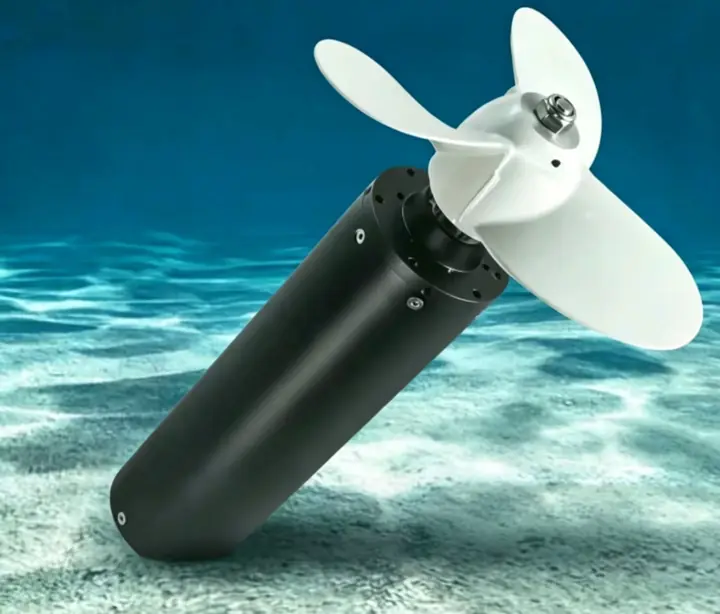

IP68 Waterproof
Utilizing a specialized external epoxy resin encapsulation process, our inrunner BLDC motors are hermetically sealed. This isolates the internal architecture from water and debris, preventing sediment ingress and ensuring long-term smooth operation.
MORE THAN A MOTOR SUPPLIER: YOUR ENGINEERING PARTNER
Integrated Motion Systems
We leverage our core motor expertise to simplify your system integration, mitigating design risks and lowering total costs through collaborative mechanical and electronic optimization.
Specialized Engineering & Manufacturing
Integrated Motor & Mechanism Design
We go beyond the motor, designing complex motion interfaces for Robotics and Medical applications. We specialize in converting motor rotation into specialized linear or rotary motion via worm gears, integrated lead screws, and planetary mechanisms.
Core Component & CNC Manufacturing
With our in-house winding workshop and advanced CNC centers , we achieve full vertical integration. This allows us to maintain 100% control over component quality, ensuring superior performance and extreme reliability for every custom gearbox and motor we produce.
Expert Testing & Sample Validation
Precision is guaranteed through rigorous testing. Every sample we provide is accompanied by a detailed inspection report, verified using our in-house dynamometers and environmental rigs to ensure it meets your exact performance requirements.
Engineering-Led Prototyping
Your prototypes are hand-built and calibrated by our senior engineers to ensure design integrity. Once validated, mass production is executed strictly according to these engineering-approved standards to guarantee consistency across all units.
Flexible Supply & Online Mall
We maintain stock for standard products to support rapid delivery and small-batch orders. For urgent requirements or low-volume purchases, you can order directly through our online mall for immediate global shipping.
Certified Quality & Compliance
As an ISO 9001 and IATF 16949 certified manufacturer, our products also comply with CE, FCC, and RoHS standards, ensuring our motion solutions meet the highest safety and quality regulations for international markets.
