Brushless DC Motor

Sub-Ø138 mm BLDC motors, ranging from frameless torque to gimbal designs, configurable with gearboxes and encoders for advanced UAV and robotic systems.

Filter

Showing 1–12 of 22 results

We design and manufacture brushless DC motors:

  • Frame diameters from Ø8mm to Ø57mm,

  • Frameless diameters from Ø15mm to Ø109mm,

  • Internal rotor (In-runner) designs available in both slotless (coreless) and slotted (iron core) configurations,

  • External rotor (Out-runner) slotted designs for high-torque applications,

  • Winding voltages from 6V to 48V, with 12V and 24V windings available off-the-shelf for sampling,

  • A range of matching  gearboxes with ratios from 1:4 to 1:3372,

  • A range of matching encoders providing ABN and UVW outputs, including dual-encoder configurations,

  • Integrated digital Hall sensors on frame diameters above Ø8mm,

  • Integrated electronic options including optional built-in driver boards,

  • System integration services including bespoke Host PC software and controller firmware development.

  •

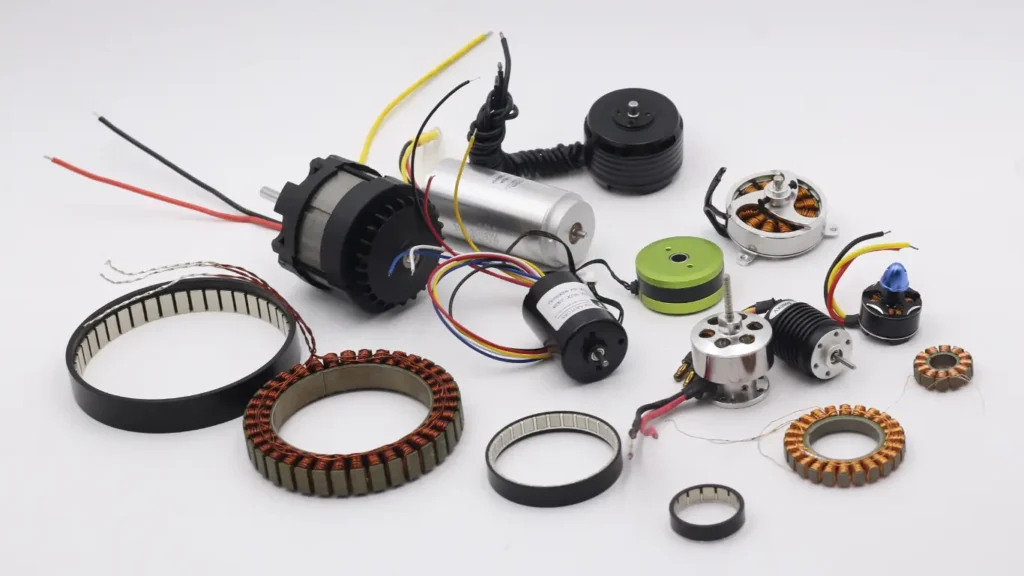

A collection of various brushless DC motors (BLDC) and components including stators, rotors, and custom motor solutions for industrial and robotic applications

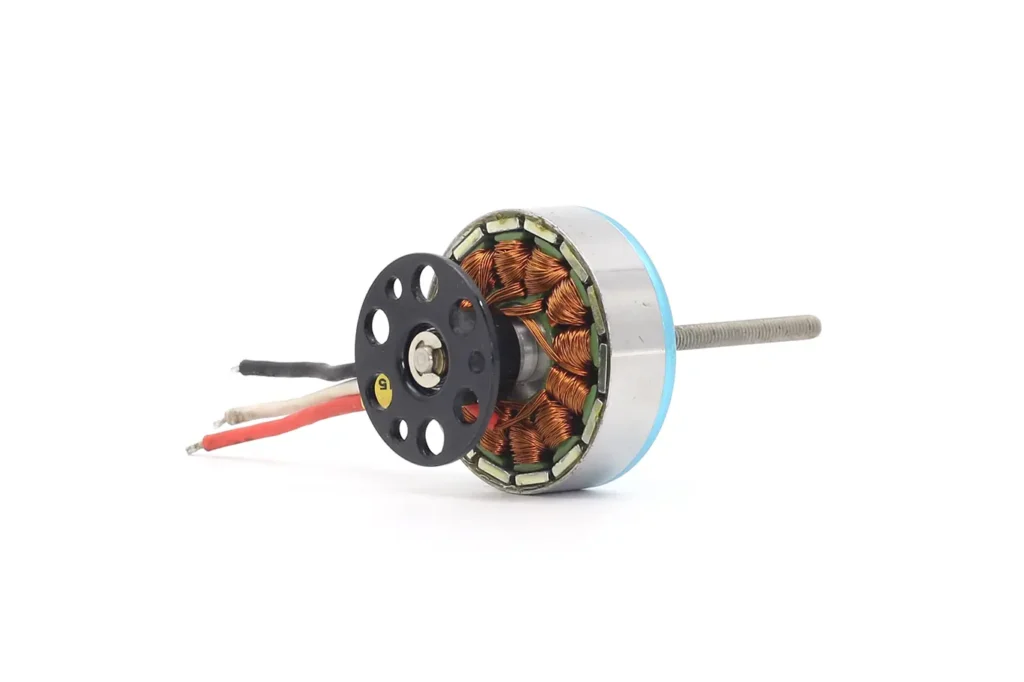

12N14P stator configuration and copper windings of TSL drone electric motor

Custom mounting & transmission mechanisms

  • Custom Mounting: Bespoke flanges, housings, and specialized mounting plates.
  • Transmission: Integrated ball screw, lead screw, and belt-drive positioning.
  • Bespoke Mechanisms: Custom levers, cams, and ground-up structural designs.

Contact our application engineering team to discuss your project.

Integrated Motion Systems

We specialize in high-performance motion solutions. Beyond our in-house manufactured motors and high-torque gearboxes, our self-developed encoders and drive control electronics are integrated directly into the housing.

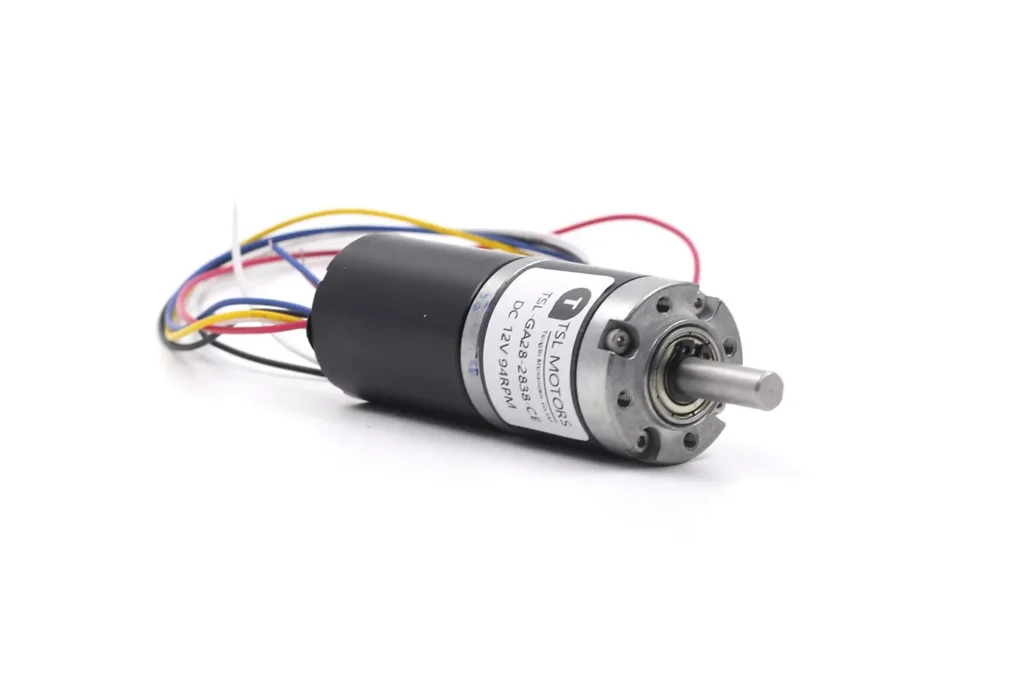

High torque BLDC motor with integrated 28mm planetary gearbox and front mounting holes

Full-System Collaboration

Our expertise extends beyond motor production to the design and manufacturing of complete transmission structures. We believe in the power of co-engineering. Taking underwater thrusters as an example, we work closely with clients to discuss design details and co-manufacture the entire subassembly.

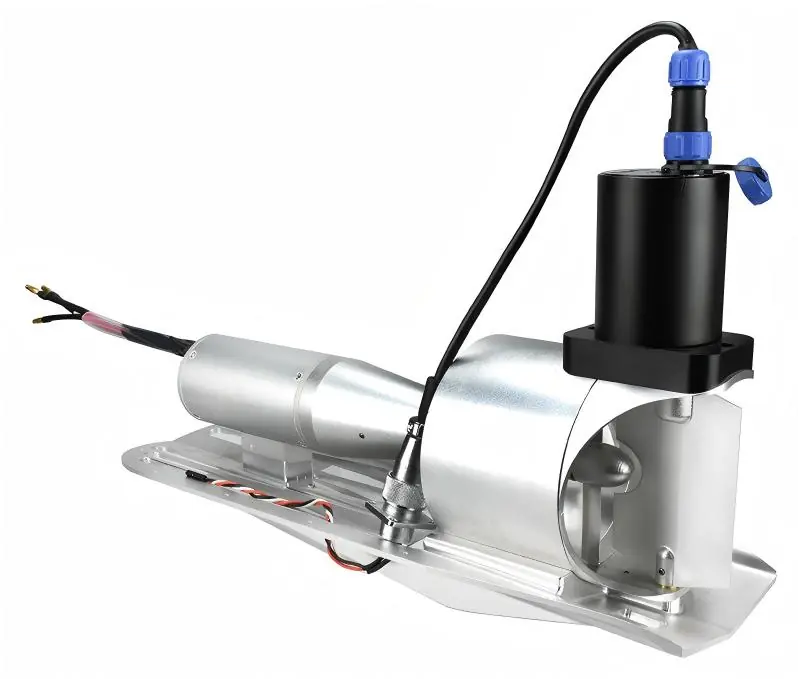

tsl custom project underwater thruster
tsl custom project underwater thruster

MORE THAN A MOTOR SUPPLIER: YOUR ENGINEERING PARTNER

Integrated Motion Systems

We leverage our core motor expertise to simplify your system integration, mitigating design risks and lowering total costs through collaborative mechanical and electronic optimization.

Discuss Your Project

Specialized Engineering & Manufacturing

Integrated Motor & Mechanism Design

We go beyond the motor, designing complex motion interfaces for Robotics and Medical applications. We specialize in converting motor rotation into specialized linear or rotary motion via worm gears, integrated lead screws, and planetary mechanisms.

cnc machining process for precision motor parts (1)

With our in-house winding workshop and advanced CNC centers , we achieve full vertical integration. This allows us to maintain 100% control over component quality, ensuring superior performance and extreme reliability for every custom gearbox and motor we produce.

high precision dc gear motor manufacturing process

Precision is guaranteed through rigorous testing. Every sample we provide is accompanied by a detailed inspection report, verified using our in-house dynamometers and environmental rigs to ensure it meets your exact performance requirements.

tsinglin micro motors test

Your prototypes are hand-built and calibrated by our senior engineers to ensure design integrity. Once validated, mass production is executed strictly according to these engineering-approved standards to guarantee consistency across all units.

tsinglin 10mm coreless gear motor

We maintain stock for standard products to support rapid delivery and small-batch orders. For urgent requirements or low-volume purchases, you can order directly through our online mall for immediate global shipping.

tsinglin micro motors factory 2

As an ISO 9001 and IATF 16949 certified manufacturer, our products also comply with CE, FCC, and RoHS standards, ensuring our motion solutions meet the highest safety and quality regulations for international markets.
