| 21V Inner Rotor BLDC Motor TSL-BLDC-3163A Datasheet
Looking for a reliable replacement or OEM motor for your garden tools? The inner rotor bldc motor is custom-tailored for 3.0cm electric pruning shears, providing a smooth, powerful, and rapid cutting experience.No custom power supply needed.
This 21V inner rotor bldc motor motor is fully compatible with standard market lithium batteries, making it the top choice for quick upgrades and seamless manufacturing integration.
Parameter Category
Parameter
Value
Unit
No Load
Speed
19700
Rpm
Current
1.400
Amp
Stall (Extrapolated)
Torque
955.236
m-Nm
Current
88.537
Amp
At Maximum Efficiency
Efficiency
83.63
%
Torque
106.702
m-Nm
Speed
17499
Rpm
Current
11.133
Amp
Output Power
195.535
Watts
At Maximum Power
Torque
477.618
m-Nm
Speed
9850
Rpm
Current
44.968
Amp
Output Power
492.658
Watts
Note:We are the original factory. For OEM/ODM cooperation, the parameters can be customized based on customer needs. The models listed above are our standard specifications.

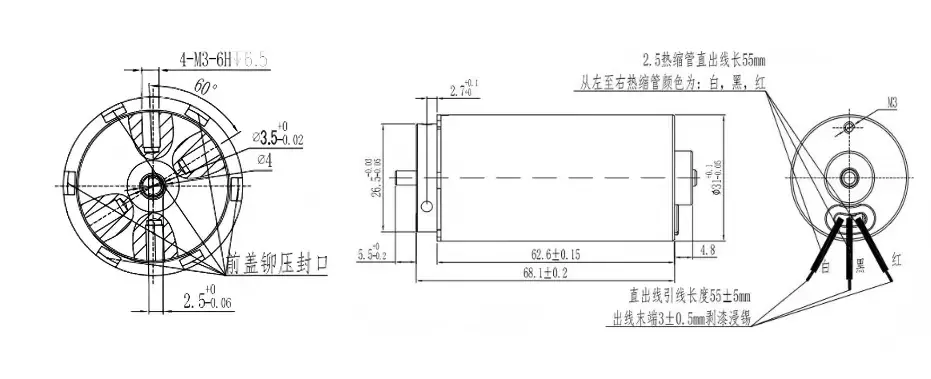

| Pruning Shear Inner Rotor BLDC Motor 3163A Mechanical Drawing
Unless otherwise stated, all inner rotor bldc motor dimensions are in millimeters.
Note:We can provide customization based on the customer’s requirements, such as output shaft options, bottom‑mount installation, housing‑mount installation, and motor waterproofing.

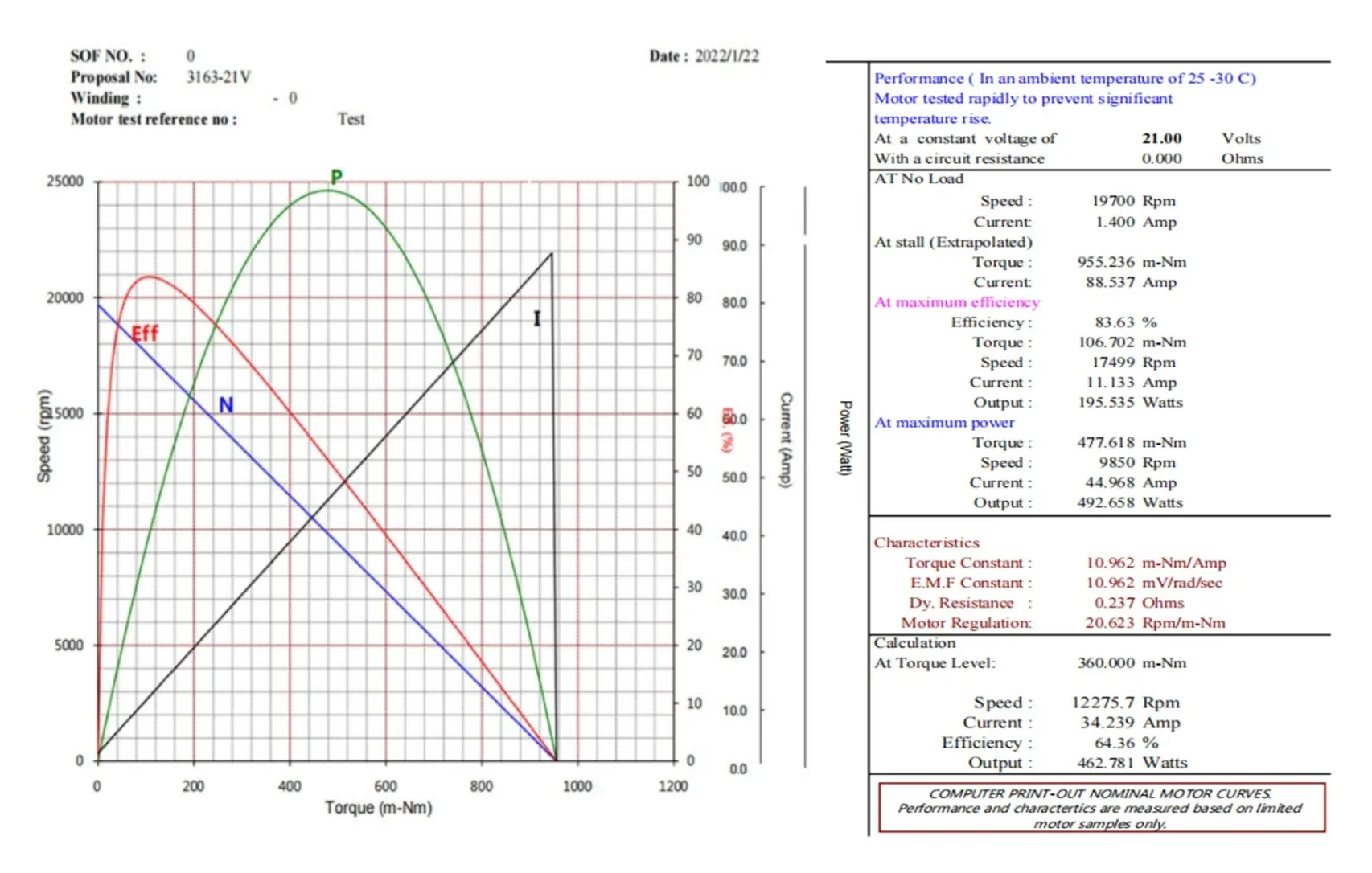

| Garden Equipment Inner Rotor BLDC Motor Performance Curve
The performance curves are the actual values measured by us.
tsl bldc 3163a motor performance curve chart
| Inner Rotor BLDC Motor 3163A Typical applications
Engineered specifically for high-efficiency cordless garden tools, the TSL-BLDC-3163A inner rotor bldc motor delivers the ultimate power and torque required for 3.0cm electric pruning shears.
Optimized for the mainstream market power standards, this high-RPM inner rotor bldc motor integrates flawlessly with standard 21V lithium battery packs to ensure stable voltage, lower heat generation, and an extended tool lifespan.
