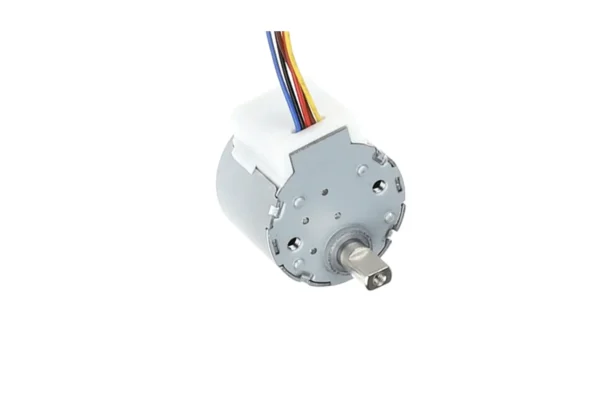

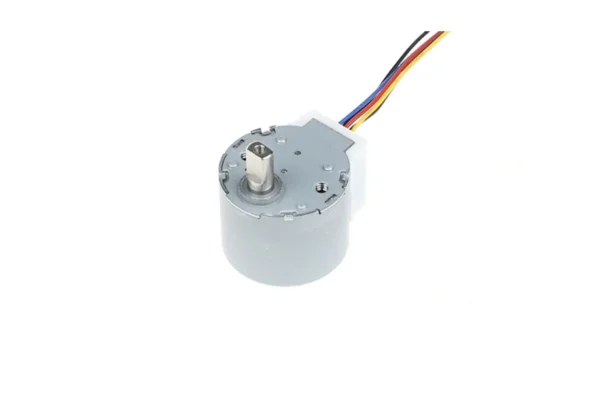

| 24BYJ48 5v Stepper Motor Datasheet
|
Motor Model |
TSL-24BYJ48-2010 |
|
Rated Voltage |
5 VDC |
|
Number of Phases |
4 |
|
Reduction Ratio |
1/64 |
|
Step Angle |
5.625° |
|

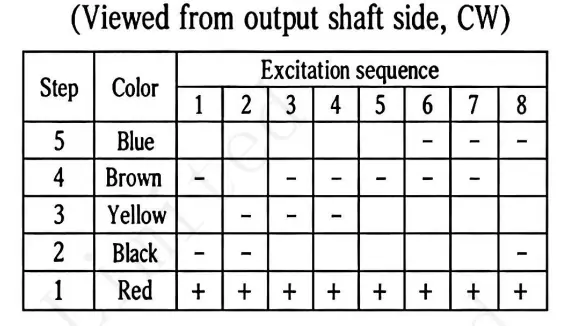

Drive Mode |
1-2 Phase Excitation |
|
DC Resistance |
20 Ω ± 10% (25℃) |
|
No-Load Pull-in Frequency |
≥ 500 Hz |
|
No-Load Pull-out Frequency |
≥ 1000 Hz |
|
Pull-in Torque |
≥ 80 mN.m (5 VDC, 400 Hz) |
|
Detent Torque |
≥ 70 mN.m |
|
Insulation Resistance |
≥ 50 MΩ (500V) |
|
Dielectric Strength |
600 VAC / 1 mA / 1 s |
|
Insulation Class |
Class B |
|
Temperature Rise |
< 60 K (100 Hz) |
|
Noise Level |
< 40 dB(A) (100 Hz, No Load, 10 cm distance) |
|

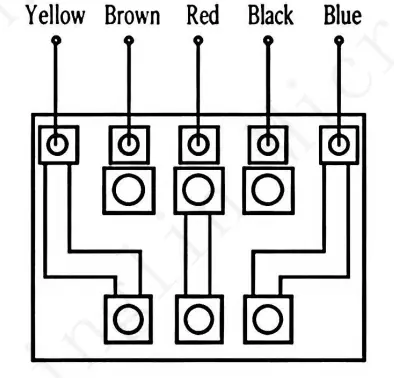

Terminal Lead Specification |
1.25 * 5P |
|
Output Shaft Perpendicularity |
90° ± 1° |
|
Axial Play |
0 ~ 0.3 mm |
|
Bracket Dimensions Note |
Reference dimensions in brackets; unnoted tolerances per GB/T 1804-m |
|
Friction Torque |
150 ~ 294 mN.m |
Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

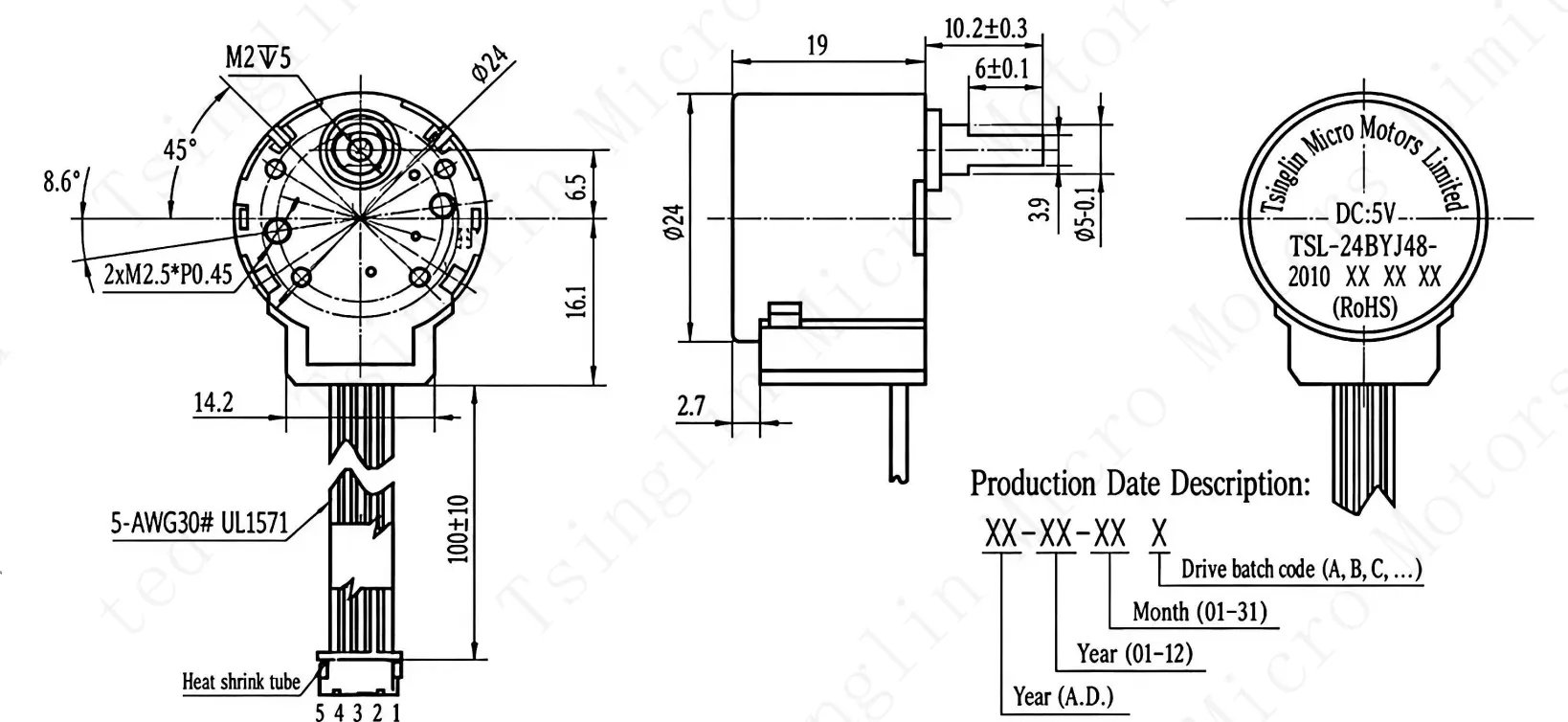

| 24BYJ48 5v DC Stepper Motor Mechanical Drawing
