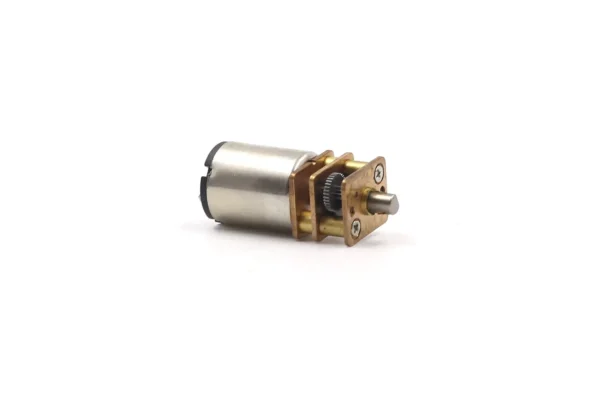

TSL-GM12-C1215R 12mm coreless brushed DC motor with micro metal spur gearbox

Close-up of the multi-stage metal spur gearbox on the 12mm coreless brushed DC motor

tsl gm12 c1215r dc motor terminals backview

micro dc spur geared motor tsl gm12 c1215r

Ø12 x 24mm Coreless Brushed Motor With Spur Gearbox | TSL-GM12-C1215R

$27.46

◆ Basic Info

- Brand: TSL MOTOR
- Origin: China
- Motor Model: TSL-GM12-C1215R
- Motor Type: Coreless Brushed Motor
- Gearbox Type:Spur Gearbox
- Rated Voltage: 3V/6V/12V
- Shaft Length:4.4mm/10mm
- No Load Speed:28-2150rpm
- # More Specifications
- # Outline Drawing

Performance parameters are for reference only and can be customized according to customer requirements.

Download TSL-GM12-C1215R Specifications

◆ Typical Applications: Medical devices, Smart locks, Electric screwdrivers, Micro pumps, RC models

Samples Pricing

Quantity	Unit Price	Savings
1 – 4	USD 27.46	—
5 – 9	USD 26.08	↓ 5%
10 – 24	USD 23.89	↓ 13%
25+	USD 21.41	↓ 22%

📞 Contact us for bulk production pricing

For higher (production) volumes, we offer highly competitive pricing, please Request a Quote. We response within 24h.

✈️ Global Shipping: free express shipping on orders over $150

Rated Voltage

Shaft Length

Ratio

Clear

Guaranteed Safe Checkout

| 12mm Coreless Brushed DC Geared Motor Datasheet

TSL-GM12-C1215R, 3V DC, 0.65W

Ratio	No Load		Rated Load			Stall
i : 1	Current	Speed	Current	Speed	Torque	Current	Torque
10:1	≤70mA	1750rpm	≤0.75A	870rpm	0.07kg.cm	≤1.6A	≥0.2kg.cm
20:1	≤70mA	870rpm	≤0.75A	430rpm	0.14kg.cm	≤1.6A	≥0.3kg.cm
30:1	≤70mA	580rpm	≤0.75A	290rpm	0.20kg.cm	≤1.6A	≥0.5kg.cm
50:1	≤70mA	350rpm	≤0.75A	174rpm	0.45kg.cm	≤1.6A	≥0.7kg.cm
100:1	≤70mA	175rpm	≤0.75A	87rpm	0.70kg.cm	≤1.6A	≥1.4kg.cm
150:1	≤70mA	115rpm	≤0.75A	58rpm	1.00kg.cm	≤1.6A	≤3.0kg.cm
210:1	≤70mA	83rpm	≤0.75A	40rpm	1.40kg.cm	≤1.6A	≤3.0kg.cm
298:1	≤70mA	58rpm	≤0.75A	29rpm	2.0kg.cm	≤1.6A	≤3.0kg.cm
380:1	≤70mA	46rpm	≤0.75A	23rpm	2.5kg.cm	≤1.6A	≤3.0kg.cm

Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

TSL-GM12-C1215R, 6V DC, 0.35W

Ratio	No Load		Rated Load			Stall
i : 1	Current	Speed	Current	Speed	Torque	Current	Torque
10:1	≤30mA	1050rpm	≤0.16A	600rpm	0.05kg.cm	≤0.45A	≥0.1kg.cm
20:1	≤30mA	530rpm	≤0.16A	300rpm	0.10kg.cm	≤0.45A	≥0.2kg.cm
30:1	≤30mA	360rpm	≤0.16A	200rpm	0.15kg.cm	≤0.45A	≥0.3kg.cm
50:1	≤30mA	210rpm	≤0.16A	120rpm	0.25kg.cm	≤0.45A	≥0.5kg.cm
100:1	≤30mA	107rpm	≤0.16A	60rpm	0.50kg.cm	≤0.45A	≥1.0kg.cm
150:1	≤30mA	70rpm	≤0.16A	40rpm	0.70kg.cm	≤0.45A	≥1.5kg.cm
210:1	≤30mA	50rpm	≤0.16A	28rpm	1.00kg.cm	≤0.45A	≥2.0kg.cm
298:1	≤30mA	36rpm	≤0.16A	20rpm	1.4kg.cm	≤0.45A	≥3.0kg.cm
380:1	≤30mA	28rpm	≤0.16A	15rpm	2.0kg.cm	≤0.45A	≥3.0kg.cm

Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

TSL-GM12-C1215R, 12V DC, 1.3W

Ratio	No Load		Rated Load			Stall
i : 1	Current	Speed	Current	Speed	Torque	Current	Torque
10:1	≤40mA	2150rpm	≤0.3A	1200rpm	0.1kg.cm	≤0.75A	≥0.2kg.cm
20:1	≤40mA	1050rpm	≤0.3A	600rpm	0.2kg.cm	≤0.75A	≥0.4kg.cm
30:1	≤40mA	720rpm	≤0.3A	400rpm	0.3kg.cm	≤0.75A	≥0.6kg.cm
50:1	≤40mA	430rpm	≤0.3A	240rpm	0.5kg.cm	≤0.75A	≥1.0kg.cm
100:1	≤40mA	215rpm	≤0.3A	120rpm	1.0kg.cm	≤0.75A	≥2.0kg.cm
150:1	≤40mA	140rpm	≤0.3A	80rpm	1.5kg.cm	≤0.75A	≤3.0kg.cm
210:1	≤40mA	100rpm	≤0.3A	57rpm	2.0kg.cm	≤0.75A	≤3.0kg.cm
298:1	≤40mA	72rpm	≤0.3A	50rpm	2.0kg.cm	≤0.75A	≤3.0kg.cm
380:1	≤40mA	56rpm	≤0.3A	45rpm	2.0kg.cm	≤0.75A	≤3.0kg.cm

Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

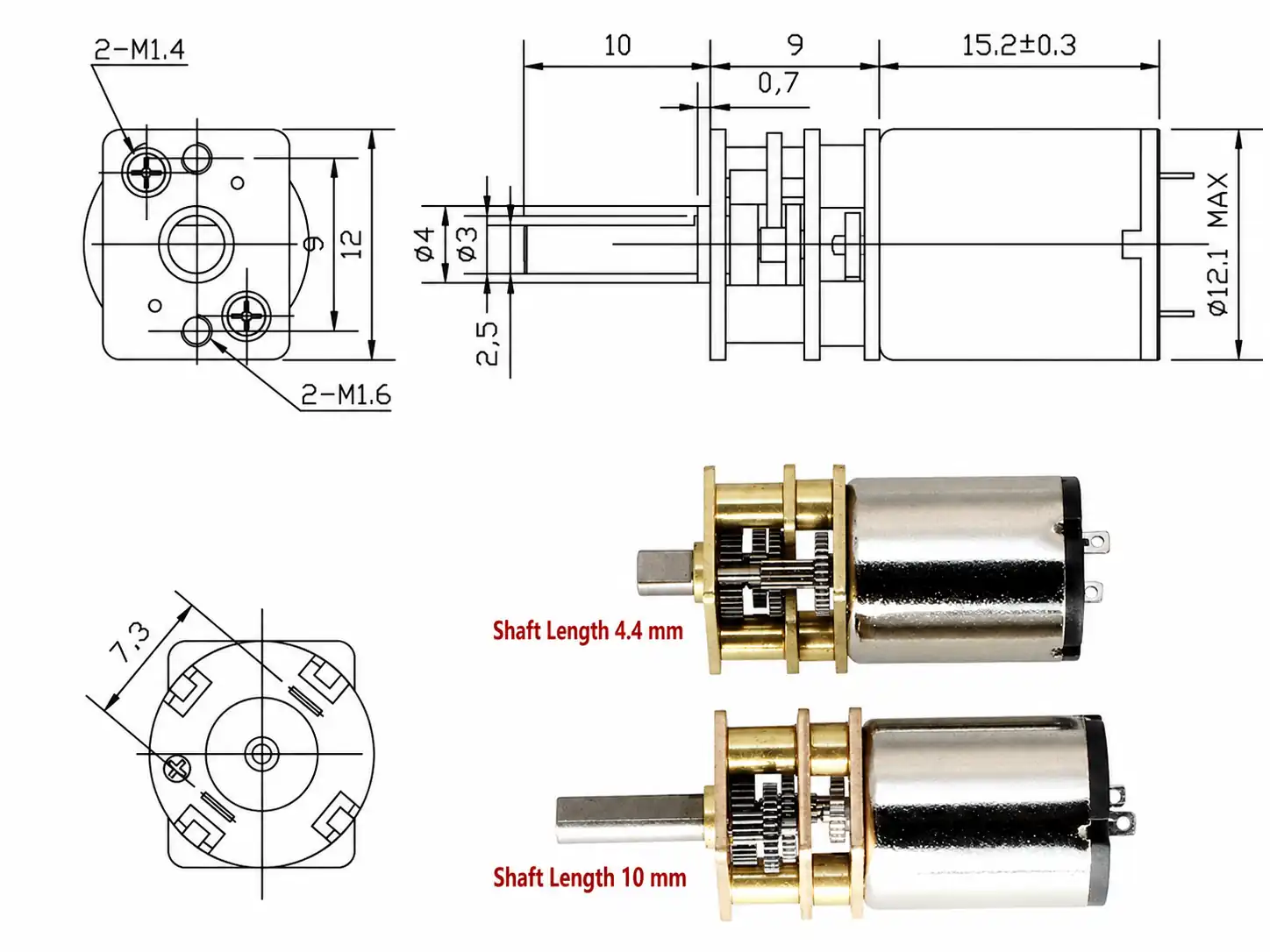

|12mm Coreless Brushed DC Geared Motor Mechanical Drawing

Unless otherwise stated, all dimensions are in millimeters.

Dimensional drawing of TSL-GM12-C1215R 12mm micro DC gear motor showing gearbox length and shaft options — tsl gm12 c1215r 12mm dc gear motor dimensional drawing
