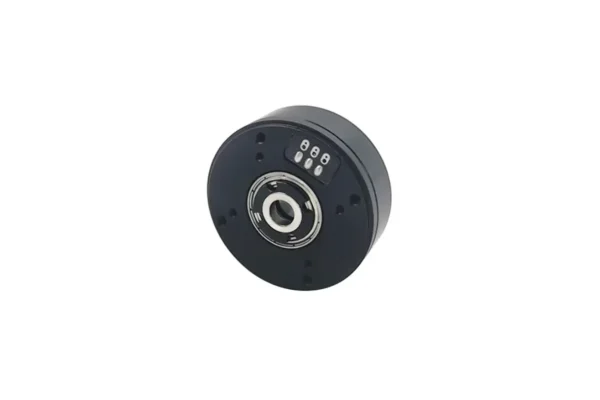

Ø40 x 16mm Brushless Gimbal Motor | TSL-GB3506
Price range: $42.64 through $69.81
◆ Basic Info
-
- Brand: TSL
- Origin: China
- Motor Model: TSL-GB3506
- Motor Type: Outrunner BLDC Motor/Gimbal Motor
- Rated Voltage: 12V DC
- Rated Current: 1.1A
- Peak Speed: 1610rpm
- Number of poles pairs: 11
- # More Specifications
- # Outline Drawing
- Performance parameters are for reference only and can be customized according to customer requirements.
◆ Typical Applications:Gimbal
Samples Pricing
| Quantity | Unit Price | Savings |
|---|---|---|
| 1 – 4 | USD 42.64 | — |
| 5 – 9 | USD 40.50 | ↓ 5% |
| 10 – 24 | USD 37.09 | ↓ 13% |
| 25+ | USD 33.25 | ↓ 22% |
📞 Contact us for bulk production pricing
For higher (production) volumes, we offer highly competitive pricing, please Request a Quote. We response within 24h.
✈️ Global Shipping: free express shipping on orders over $150
- Description
- Reviews (0)
- Payment & Shipping
- TSL MOTOR Shop Online Sample Request
- Notice Before Ordering
| Camera Gimbal Motor GB3506 Specifications
Engineered for ultimate precision and uncompromised stability. The TSL-GB3506 Gimbal Motor delivers smooth torque and lightning-fast response in a highly compact form factor. Whether you are building advanced drone gimbals or next-generation robotics, this motor provides the reliable power your innovation demands.
Proven reliability is backed by hard data. Explore the comprehensive technical specifications below to see how this motor fits perfectly into your design framework. For unique project needs, we also offer flexible customized options to match your exact performance requirements.
| Parameters | Unit | TSL-GB3506 |
| Rated voltage | V | 12 |
| Rated current | A | 1.1 |
| Rated torque | N.M | 0.09 |
| Rated Speed | RPM | 467 |
| Max Speed | RPM | 1610 |
| Stall torque | N.M | 0.15 |
| Stall current | A | 1.9 |
| Winding turns of motor | T | 40 |
| Phase resistance | Ω | 6.34 |
| Phase inductance | mH | 1.08 |
| Speed constant | rpm/v | 117 |
| Torque constant | N.M/A | 0.08 |
| Rotor inertia | gcm^2 | 56 |
| Number of pole pairs | Pairs | 11 |
| Motor weight without Encoder | g | 58.3 |
| Motor weight with Encoder | g | 71 |
| Encoder type | / | AS5048a/AS5600 |
| Working temperature | ℃ | 20～80 |
| Max demagnetize temperature | ℃ | 120 |
Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

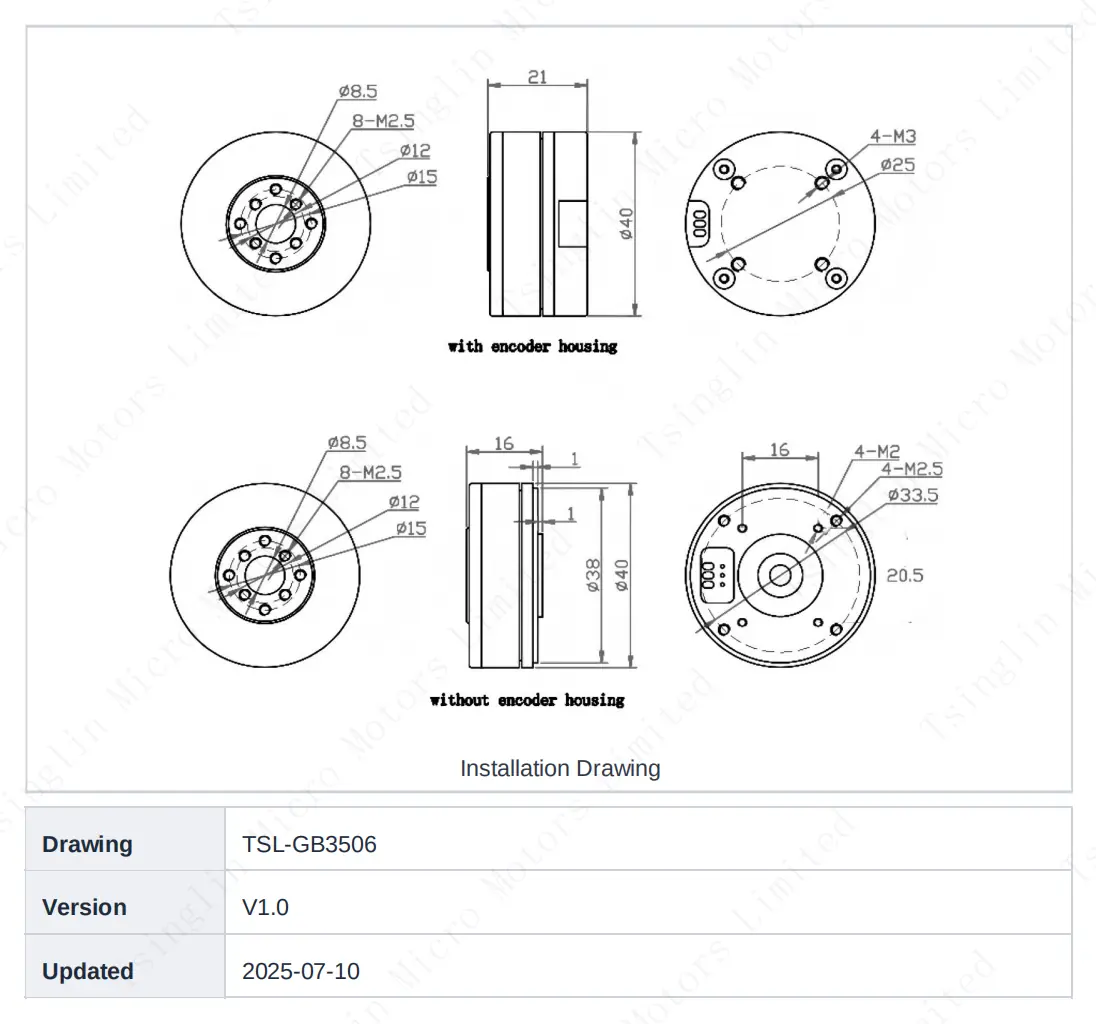

| Brushless Camera Gimbal Motor Hollow Shaft Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters.We offer multiple shaft lengths for optional ordering. We support non‑standard customization and have our own CNC machining center.
| AS5600 Encoder Specifications
| Pin Description | ||
| Name | Type | Description |
| GND | Supply | Ground |
| 5.0V | Supply | 5V DC power supply |
| PWM | Output | 460Hz PWM output |
| PGO | Input | Program option |
| SDA | Input/Output | I²C Data |
| SCL | Input | I²C Clock |
| DIR | Input | Direction polarity |
| AS5048A Encoder Specifications
| Pin Description | ||
| Name | Type | Description |
| GND | Power Supply | Ground (0V reference) |
| CSn | Input | Chip Select for SPI interface, active low |
| CLK | Input | SPI Serial Clock input |
| MOSI | Input/Output | SPI Master Out, Slave In data line |
| MISO | Input/Output | SPI Master In, Slave Out data line |
| VDD5V | Power Supply | 5V DC Power Supply input |
| PWM | Output | Pulse Width Modulation signal output |
