TSL-RS-310 micro DC motor with 24.4mm outer diameter and 2mm output shaft

Front face view of TSL-RS-310 micro motor showing 6-M2.0 mounting holes

Rear view of TSL-RS-310 micro DC motor showing positive and negative solder terminals

Ø24.4 x 18mm Brushed DC Motor | TSL-RS-310

$3.15

◆ Basic Info

Brand: TSL
Origin: China
Motor Model: TSL-RS-310
Motor Type: Brushed DC Motor
Rated Voltage: 12V DC
No Load Current: 0.045A
No Load Speed:9, 000rpm
# More Specifications
# Outline Drawing
# Downloads
Performance parameters are for reference only and can be customized according to customer requirements.

◆ Typical Applications: Smart blood pressure monitors, Electric shavers, Automatic window curtain motors, Portable massage guns, Electronic lock cylinder actuators

Samples Pricing

Quantity	Unit Price	Savings
1 – 4	USD 3.15	—
5 – 9	USD 2.99	↓ 5%
10 – 24	USD 2.74	↓ 13%
25+	USD 2.45	↓ 22%

📞 Contact us for bulk production pricing

For higher (production) volumes, we offer highly competitive pricing, please Request a Quote. We response within 24h.

✈️ Global Shipping: free express shipping on orders over $150

Guaranteed Safe Checkout

| 12V Brushed DC Motor TSL-RS-310 Datasheet

The TSL-RS-310 is a high-efficiency micro dc brush motor. It features a compact 24.4mm outer diameter and an 18mm body length. Designed for 12V DC operation, it delivers a no-load speed of up to 8090 RPM. With a maximum output power of 1.8W, it provides stable and reliable performance for precision drive systems.

This series features an optimized torque constant with a very low no-load current of 0.045A. It achieves a peak efficiency of 49%, perfectly balancing low power consumption with robust torque output. Highly responsive and smooth in CCW rotation, it is widely used in smart home appliances, personal care tools, and portable medical devices.

Parameter Item	Unit	Value
Motor Model	TSL-RS-310
Operating Voltage Range	V	9.0-14.0
Nominal Operating Voltage	V	12
No-Load Speed	r/min	9000
No-Load Current	A	0.045
Speed at Maximum Efficiency	r/min	6443
Current at Maximum Efficiency	A	0.176
Torque at Maximum Efficiency	g.cm	16.5
Output Power at Maximum Efficiency	W	1.04
Speed at Maximum Power	r/min	4610
Current at Maximum Power	A	0.32
Torque at Maximum Power	g.cm	40.6
Output Power at Maximum Power	W	1.8
Stall Torque	g.cm	81.3
Stall Current	A	0.689

Note:We are the original factory.The parameters can be customized based on customer needs. The models listed above are our standard specifications.

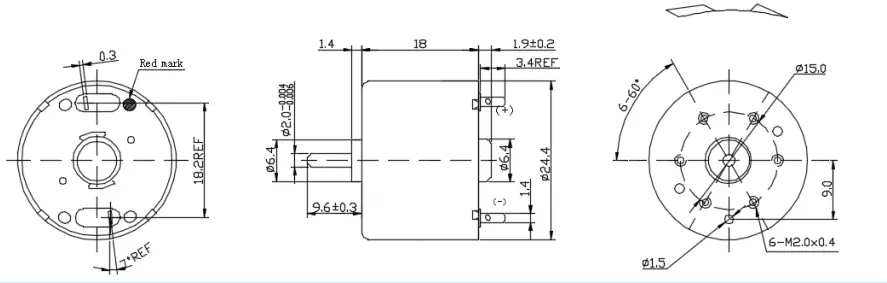

| Brushed DC Motor 310 Mechanical Drawing

Unless otherwise stated, all dimensions are in millimeters.

Technical 2D dimensions drawing of RK-310CA micro DC motor with 18mm body length

Note:We can provide customization based on the customer’s requirements, such as output shaft options, bottom‑mount installation, housing‑mount installation, and motor waterproofing.

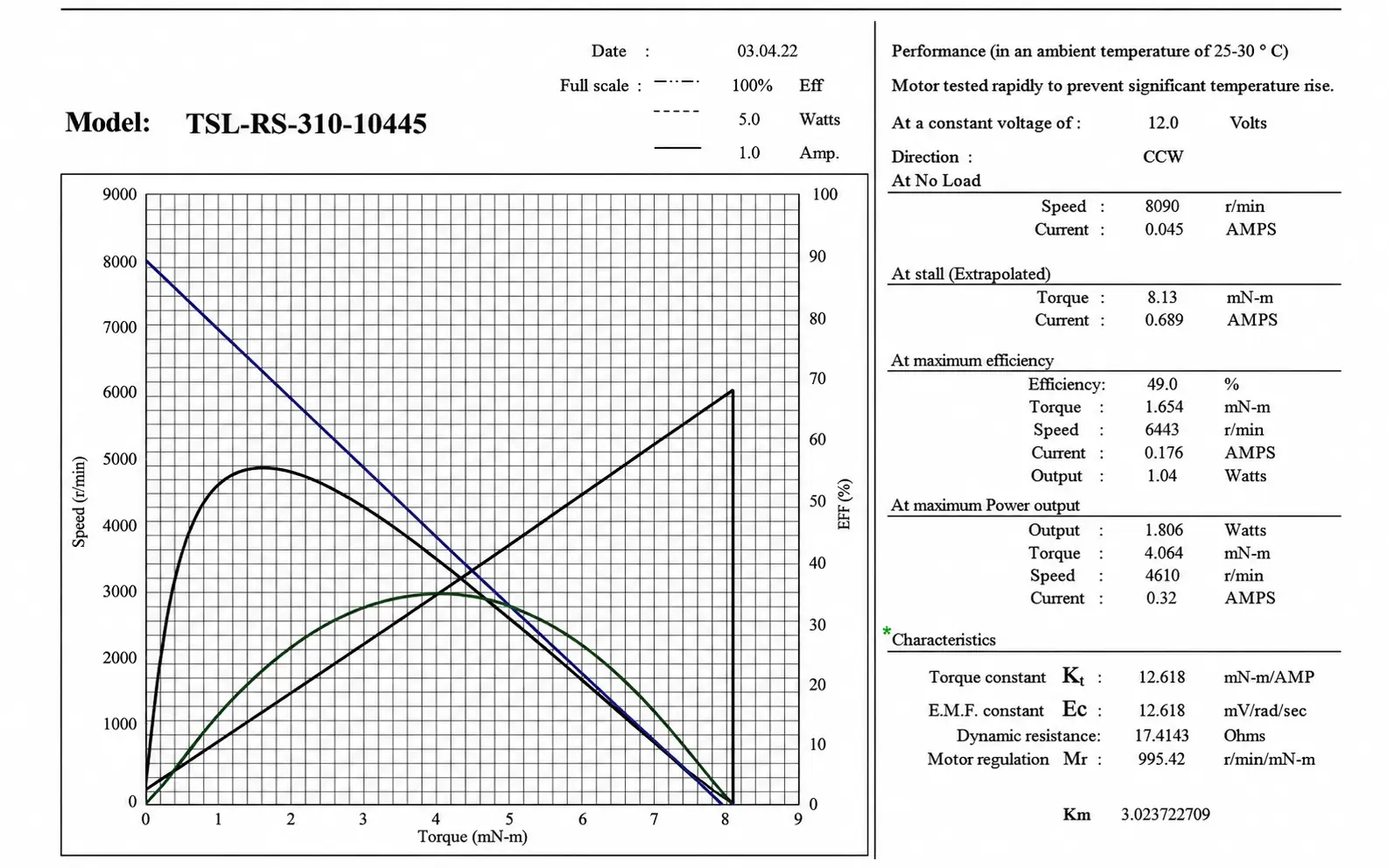

| Micro Brushed DC Motor 310 12V 9000RPM Performance Curve

The performance curves are the actual values measured by us.

310 10445 12V micro DC motor performance curve and torque speed chart
