13mm*12mm Metal Spur Gearbox | TSL-GM13
$9.19
◆ Basic Info
-
- Brand: TSL
- Origin: China
- Gearbox Type:Spur Gearbox
- # More Specifications
- # Outline Drawing
-
- Performance parameters are for reference only and can be customized according to customer requirements.
◆ Suitable for: 030,050 motors
Samples Pricing
| Quantity | Unit Price | Savings |
|---|---|---|
| 1 – 4 | USD 9.19 | — |
| 5 – 9 | USD 8.73 | ↓ 5% |
| 10 – 24 | USD 7.99 | ↓ 13% |
| 25+ | USD 7.16 | 2% |
📞 Contact us for bulk production pricing
For higher (production) volumes, we offer highly competitive pricing, please Request a Quote. We response within 24h.
✈️ Global Shipping: free express shipping on orders over $150
- Description
- Reviews (0)
- Payment & Shipping
- TSL MOTOR Shop Online Sample Request
- Notice Before Ordering
| Micro Spur Gearbox TSL-GM13 Datasheet
| Suitable for 030 and 050 motors | ||||
| Reduction Ratio | Number of Stages | Rated Torque | Instantaneous Allowable Torque | Noise |
| 3 | 2 | 200g.cm | 600g.cm | <60db |
| 7 | 2 | 200g.cm | 600g.cm | <60db |
| 10 | 2 | 200g.cm | 600g.cm | <60db |
| 16 | 2 | 300g.cm | 900g.cm | <60db |
| 17 | 4 | 300g.cm | 900g.cm | <60db |
| 20 | 4 | 300g.cm | 900g.cm | <60db |
| 30 | 4 | 300g.cm | 900g.cm | <60db |
| 35 | 4 | 300g.cm | 900g.cm | <60db |
| 50 | 4 | 400g.cm | 1200g.cm | <60db |
| 63 | 4 | 400g.cm | 1200g.cm | <60db |
| 70 | 4 | 500g.cm | 1500g.cm | <60db |
| 86 | 4 | 500g.cm | 1500g.cm | <60db |
| 115 | 5 | 600g.cm | 1800g.cm | <60db |
| 150 | 5 | 600g.cm | 1800g.cm | <50db |
| 210 | 5 | 700g.cm | 2100g.cm | <50db |
| 250 | 5 | 700g.cm | 2100g.cm | <50db |
| 360 | 5 | 800g.cm | 2400g.cm | <50db |
Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

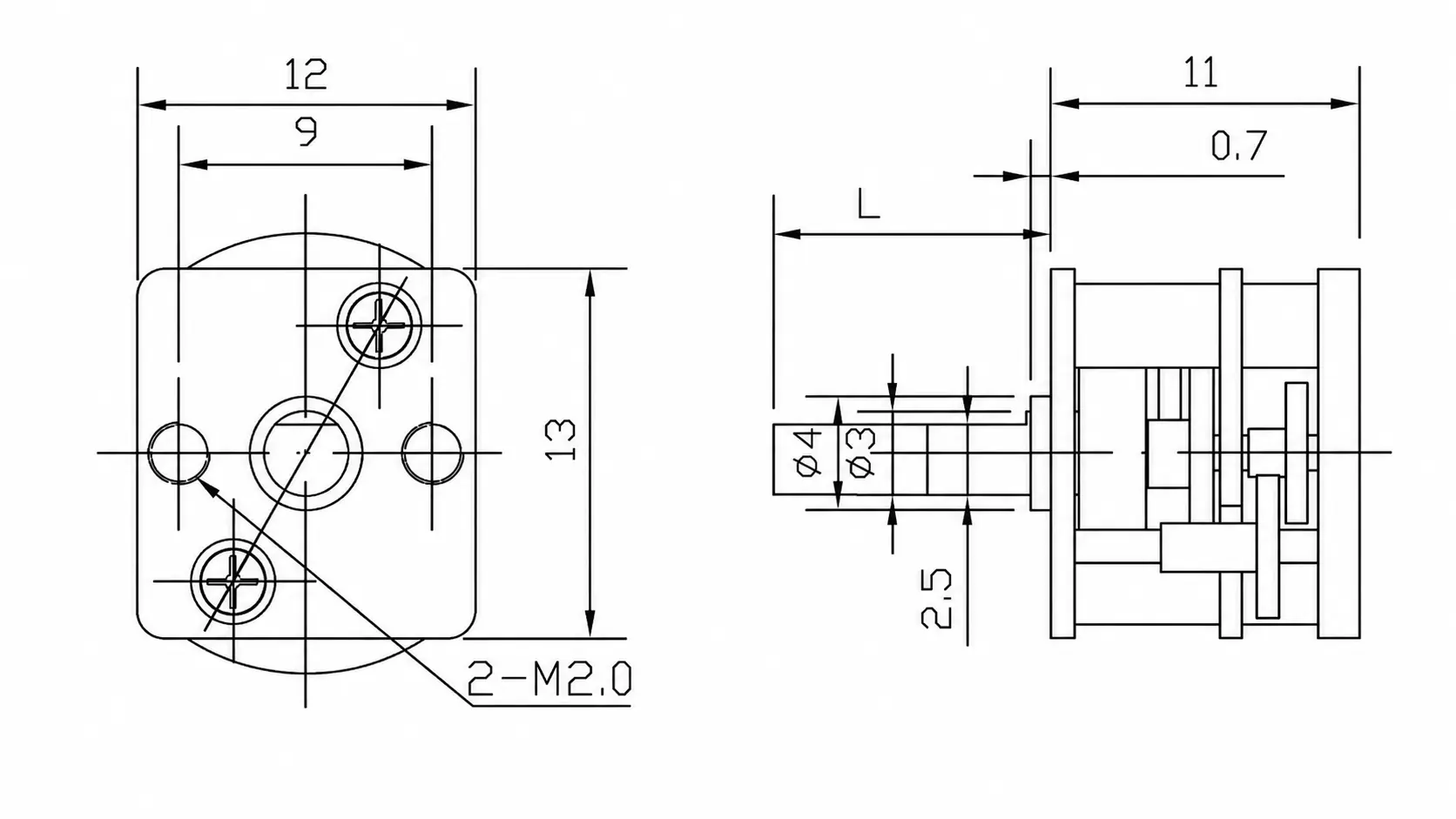

| Micro Spur Gearbox TSL-GM13 Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeter

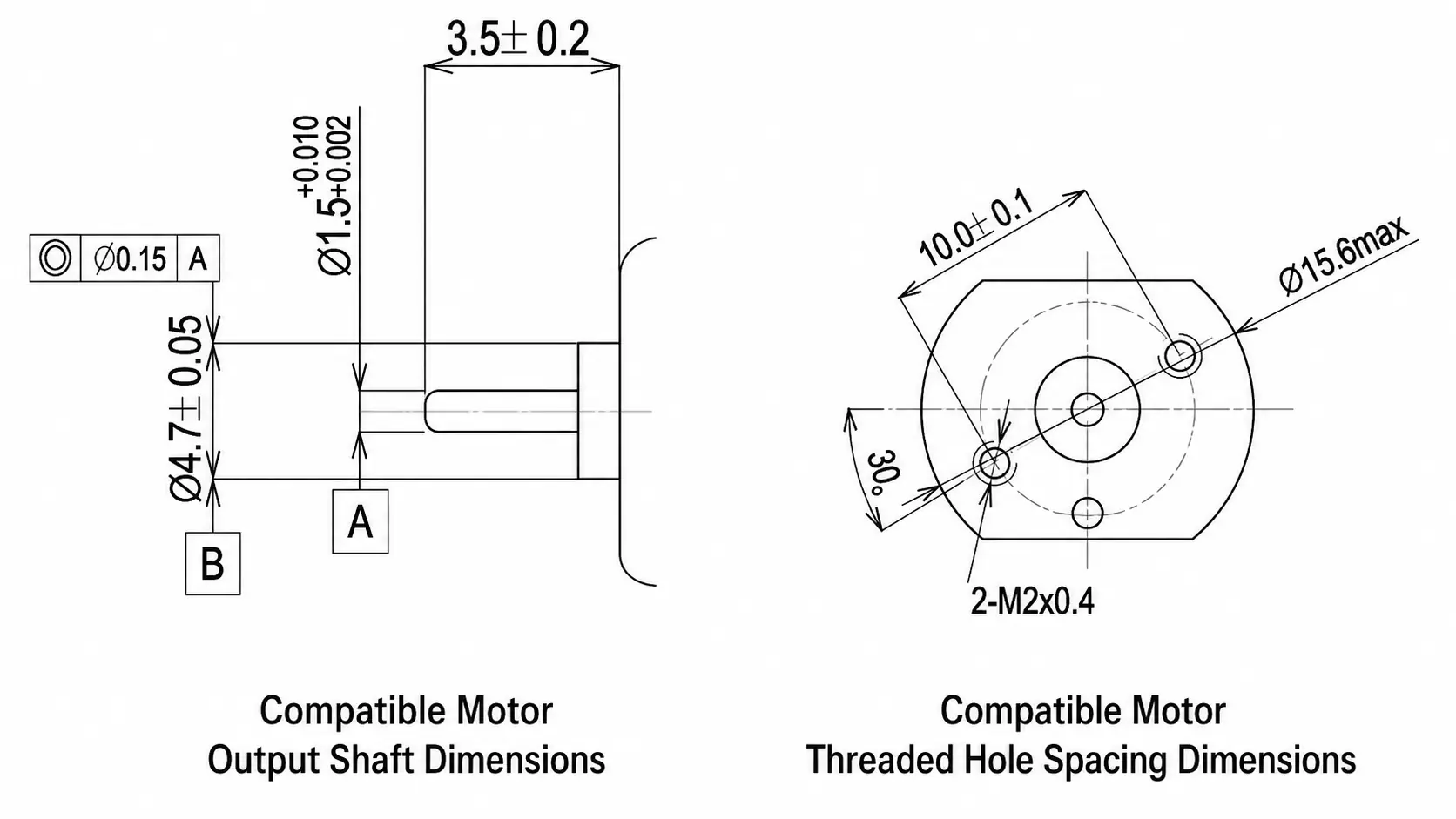

| Matches Motor Dimension Requirements
Unless otherwise stated, all inner rotor bldc motor dimensions are in millimeter

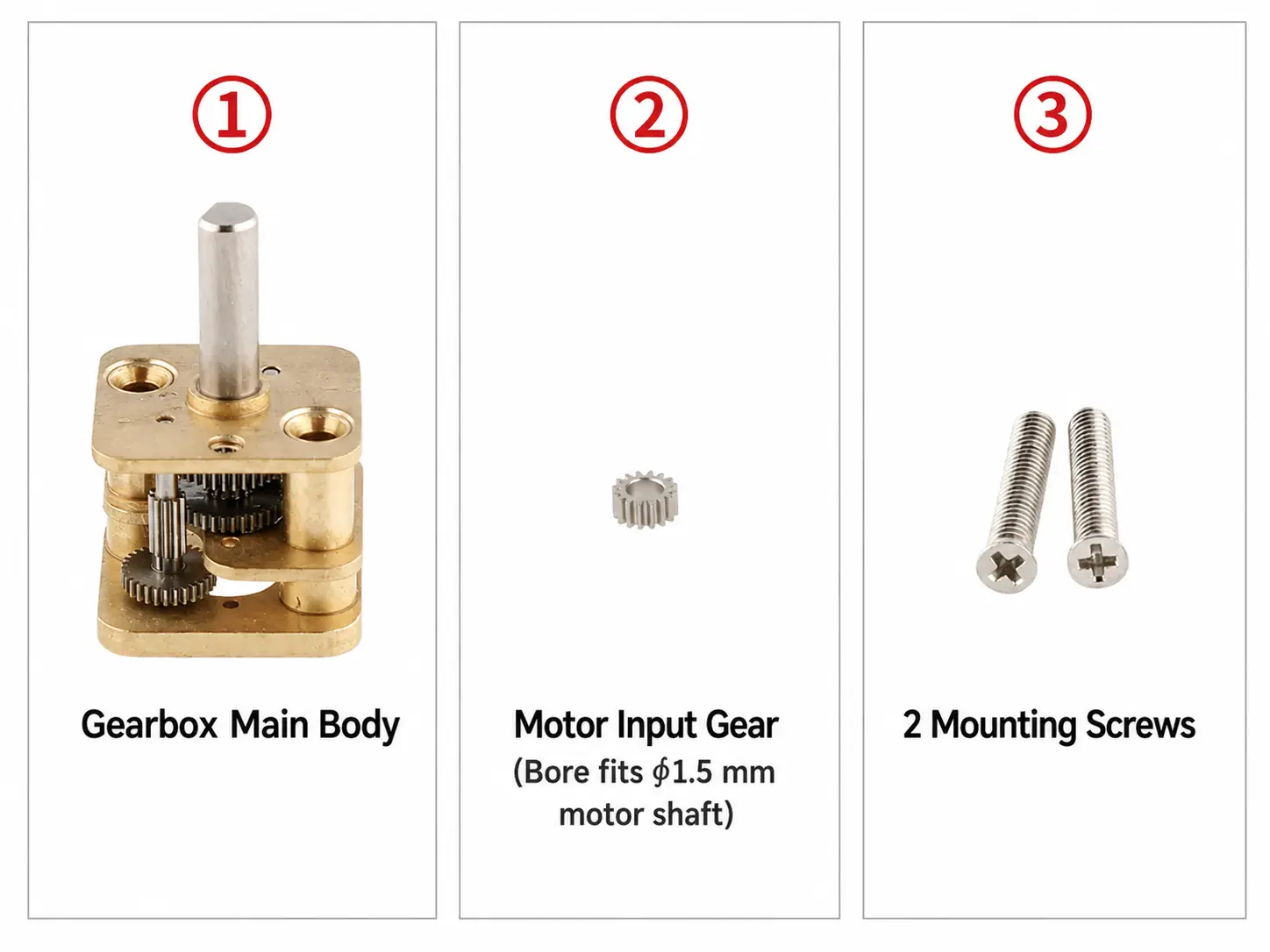

| Micro Spur Gearbox TSL-GM13 Shipping List
| Micro Spur Gearbox TSL-GM13 Installation Notes
- When installing the motor gear, be sure to use the corresponding fixture for assembly, and ensure that the gear is vertically mounted onto the motor shaft.
- When installing the motor gear, it is recommended to apply pressure to the rear shaft of the motor to avoid damaging the motor.
- For the assembly of the gearbox and the motor, please lock the fasteners in three separate steps to ensure the gearbox is assembled vertically and smoothly.
- For the reducer with pillar riveting structure, please handle the assembly with extra care, as it may easily fall apart if dropped.
