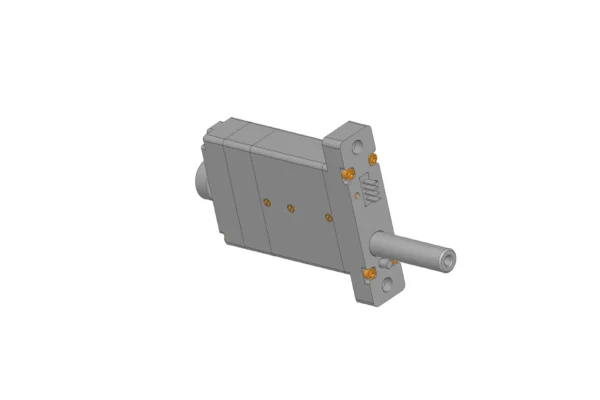

| Planetary Roller Screw Actuator SAG-1565-END Datasheet
Coreless DC Motor Parameters
|
Parameter |
Value |
|
Motor Type |
Coreless Brushed Motor |
|
Operating Voltage |
12V |
|
No-load Speed |
22000 ± 10% RPM |
|
No-load Current |
≤ 40mA |
|
Load Speed |
20000 ± 10% RPM |
|
Load Torque |
≥ 11g·cm |
|
Load Current |
≤ 0.3A |
|
Stall Torque |
≥ 120g·cm |
|
Stall Current |
≤ 3A |
|
Pole Pairs |
1 Pair |
|
Operating Temperature |
-40 ~ 85℃ |
|
Noise |
≤ 45dB |
|
Maximum Motor Efficiency |
75% |
Geared Motor Parameters
|
Parameter |
Value |
|
Operating Voltage |
12V |
|
No-load Speed |
60 ± 10% RPM |
|
No-load Current |
≤ 0.2A |
|
Load Speed |
50 ± 10% RPM |
|
Load Torque |
≥ 0.24N·m |
|
Load Current |
≤ 0.5A |
|
Operating Temperature |
-20 ~ 100℃ |
|
Gear Reduction Ratio |
1:371.425 (Planetary Gear Ratio: 1:25; Gear Ratio: 1:14.857) |
|
Noise |
≤ 55dB |
|
Gearbox Material |
Machined Solid Steel |
Linear Actuator Parameters
|
Parameter |
Value |
|
Rated Voltage |
12V |
|
Rated Current |
800mA |
|
Peak Current |
2A |
|
Operating Temperature |
-10 ~ 60℃ |
|
Actuator Stroke |
12mm |
|
Rated Push & Pull Force |
300N |
|
Maximum Push & Pull Force |
500N |
|
No-load Actuator Speed |
≥ 0.4mm/s |
|
Actuator Repeat Positioning Accuracy |
± 3μm |
|
With Absolute Value Feedback |
— |
|
Communication Interface |
RS485 |
|
Output Terminal Connector |
TF-A20M-4Pin-R1 |
Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

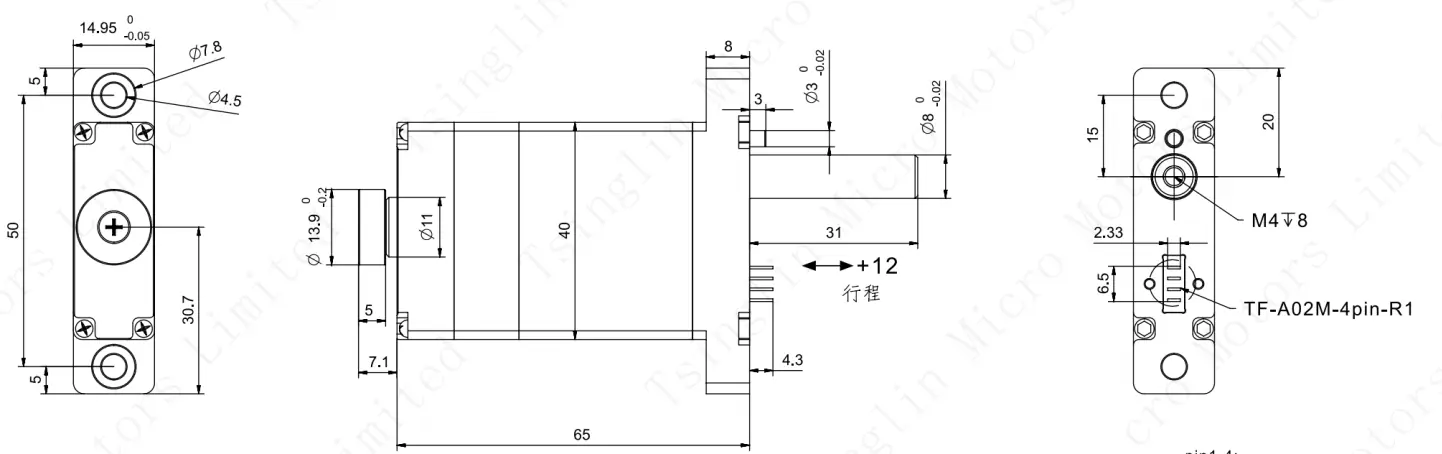

| Planetary Roller Screw Actuator SAG-1565-END Drawing
Unless otherwise stated, all dimensions are in millimeters.

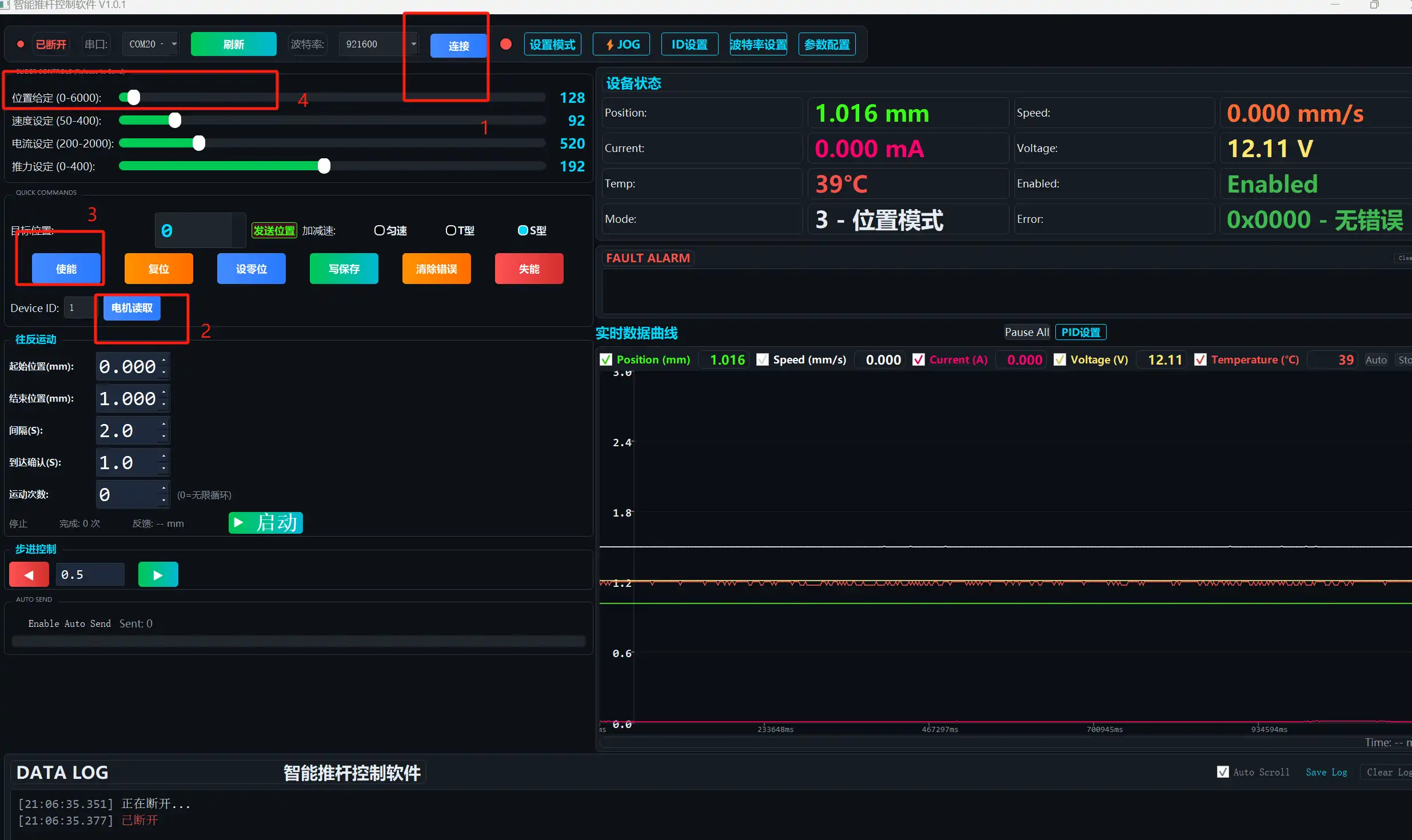

| Planetary Roller Screw Actuator SAG-1565-END Host‑computer Software
Contact us after placing the order to receive the host‑computer software.
