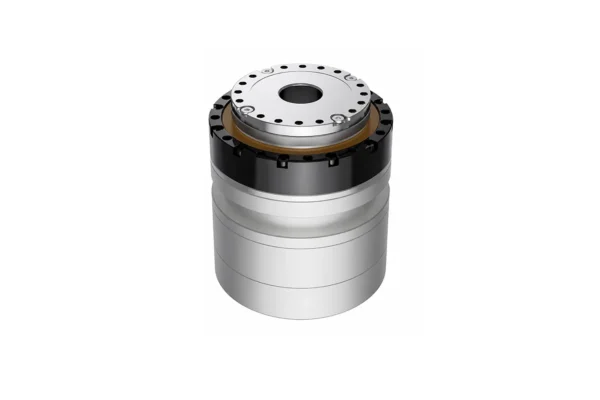

| 80mm Robot Joint Motor TSL-CRA-RI60-80 Datasheet
|
Motor Model |
TSL-CRA-RI60-80 |
|
Reduction Ratio |
- |
51 |
81 |
101 |
121 |
|
Start-Stop Peak Torque |
N.m |
42 |
53 |
66 |
66 |
|
Average Load Torque Capacity Maximum (Robot Scenario) |
N.m |
32 |
33 |
49 |
49 |
|
Rated Torque at 2000rpm/(Reduction Ratio) (Industrial Scenario) |
N.m |
19.80 |
27.50 |
30 |
30 |
|
Output Shaft Peak Speed |
rpm |
82 |
51 |
41 |
32 |
|
Rated Speed (with 1/2 Rated Torque) |
rpm |
68 |
43 |
34 |
24 |
|
Backlash |
arcsec |
20 |
20 |
10 |
10 |
|
Rated Power |
W |
230 |
|
Supply Voltage |
V |
24 - 48 |
|
Encoder Resolution |
bit |
16 |
|
Communication Bus |
- |
CAN |
|
Brake Torque (No Brake / With Brake) |
N.m |
0/1 |
|
Stiffness |
10^4 N/rad |
0.77 |
0.95 |
0.95 |
0.95 |
|
Radial Allowable Load |
KN |
16.30 |
|
Axial Allowable Load |
KN |
37.05 |
|
Allowable Bending Moment |
N.m |
124 |
|
Length (No Brake / With Brake) |
mm |
72.5±0.5/91.5±0.5 |
|
Through Hole |
mm |
18 |
|
Weight (No Brake / With Brake) |
Kg |
1.03/1.2 |
|
Inertia (No Brake / With Brake) |
g·cm² |
394.8/492 |
Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.
| 80mm Robot Joint Motor TSL-CRA-RI60-80 Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters.

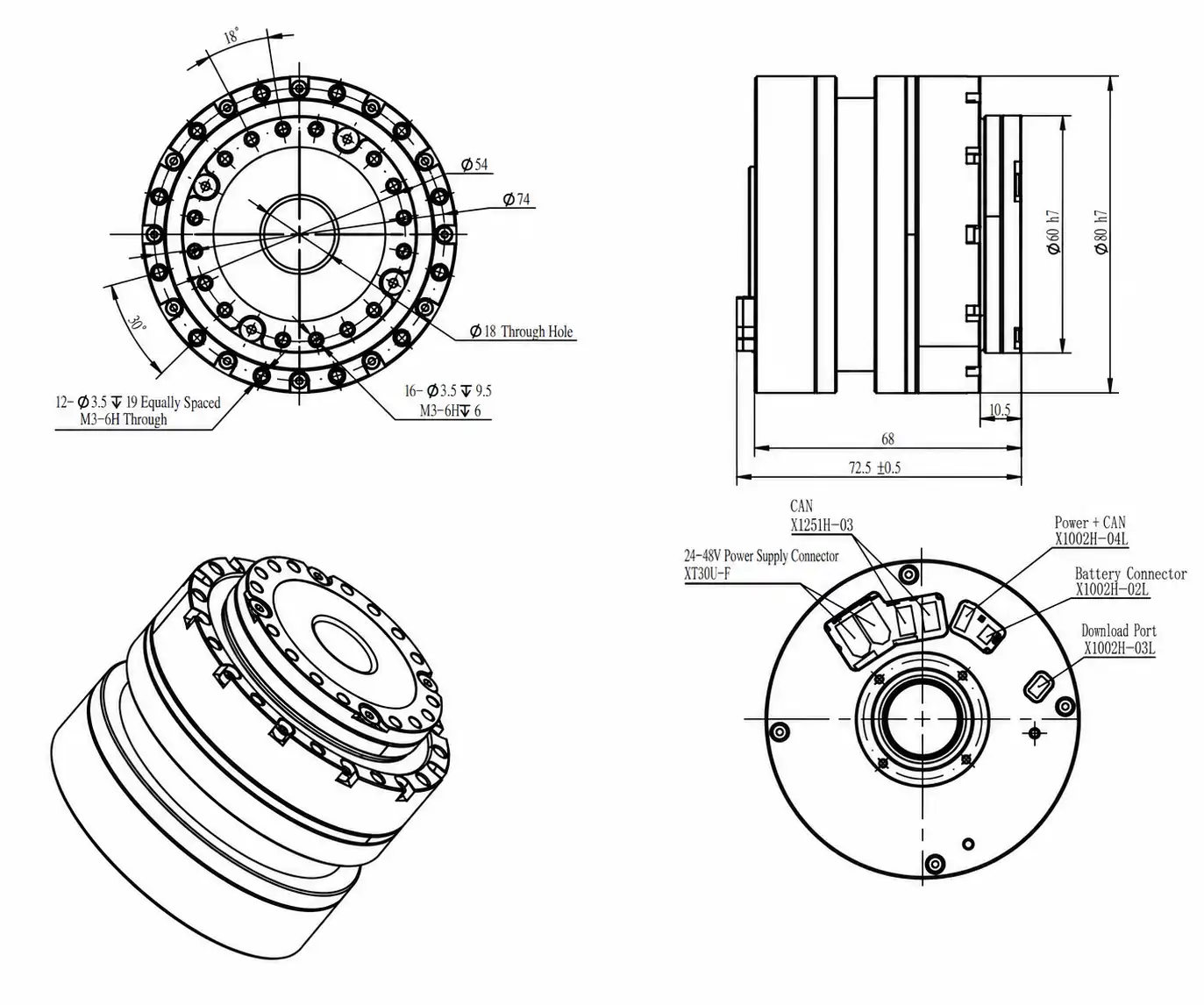

TSL-CRA-RI60-80 , Without brake

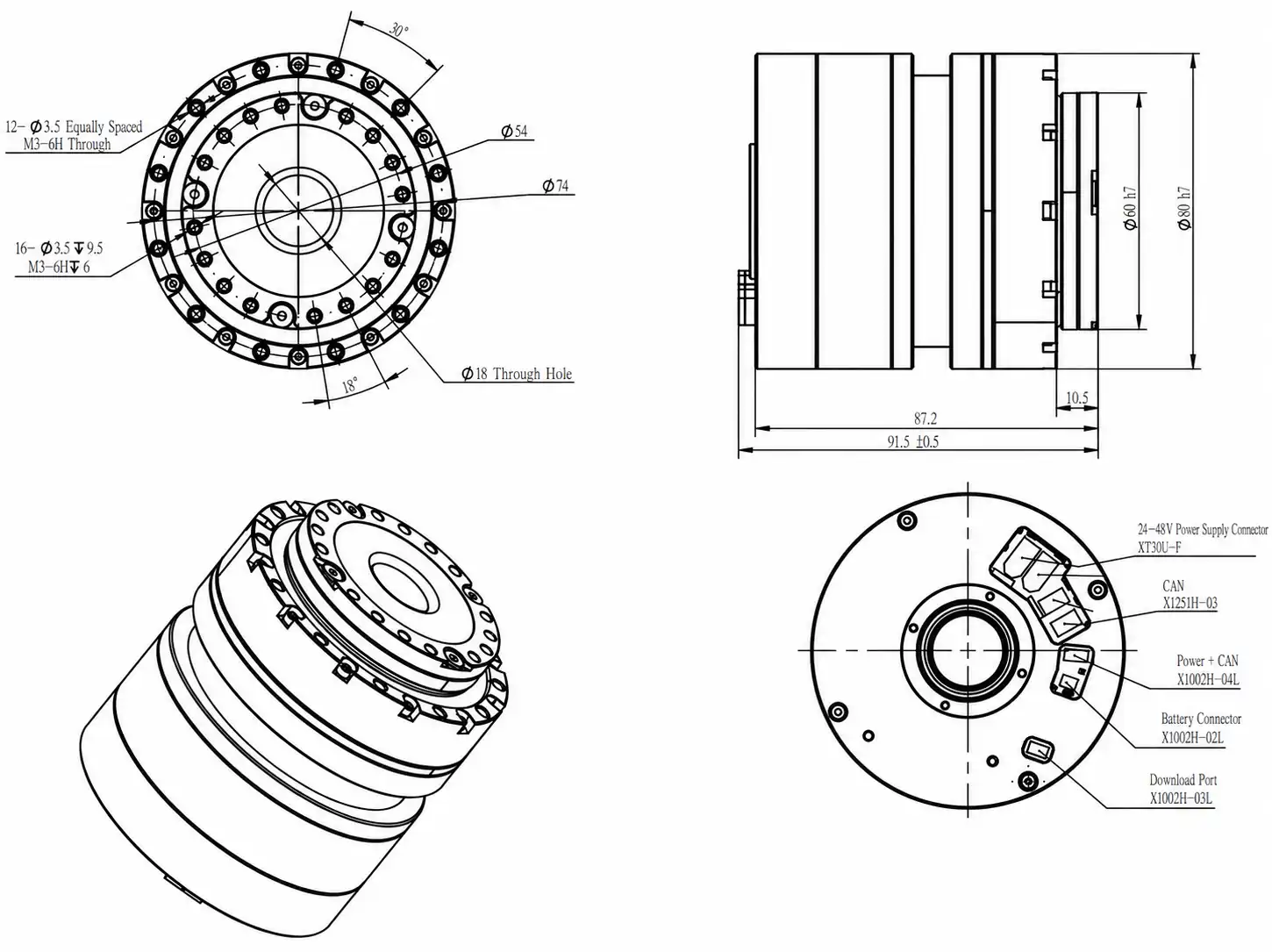

TSL-CRA-RI60-80 , With brake
