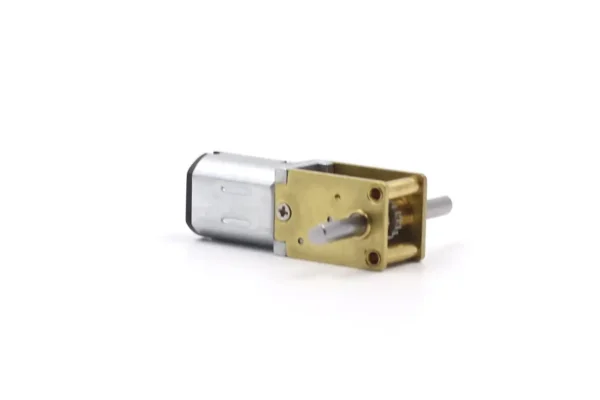

TSL-1218GW-N20-D miniature N20 worm gear DC motor with double output shaft

Internal view of the full metal gear train inside the N20 worm gear motor

Front view of TSL-1218GW-N20-D highlighting the 4mm dual output shafts

Ø12mm Brushed DC Motor With Worm Gearbox | TSL-1218GW-N20-D

$14.50

◆ Basic Info

- Brand: TSL
- Origin: China
- Motor Model: TSL-1218GW-N20-D
- Motor Type: Brushed DC Motor
- Gearbox Type:Worm Gearbox
- Rated Voltage: 3.7V / 6V/ 12V / 24V
- No Load Speed:10-508 rpm
- # More Specifications
- # Outline Drawing
- Performance parameters are for reference only and can be customized according to customer requirements.

Download TSL-1218GW-N20-D Specifications

◆ Typical Applications: Automation equipment, lifting mechanisms, valves, positioning systems, conveyor belts

Samples Pricing

Quantity	Unit Price	Savings
1 – 4	USD 14.50	—
5 – 9	USD 13.77	↓ 5%
10 – 24	USD 12.61	↓ 13%
25+	USD 11.31	↓ 22%

📞 Contact us for bulk production pricing

For higher (production) volumes, we offer highly competitive pricing, please Request a Quote. We response within 24h.

✈️ Global Shipping: free express shipping on orders over $150

Rated Voltage

Ratio

Clear

Guaranteed Safe Checkout

| Worm Gear N20 DC Motor Double Shaft Datasheet

TSL-1218GW-N20-D , 3.7V , 0.67W

Ratio	No Load		Rated Load			Stall
Ratio	Speed	Current	Speed	Current	Torque	Torque	Current
i:1	RPM±10%	A	RPM±10%	A	g.cm	g.cm	A
1016	10	0.02	3.2	0.18	1219.2	1824	0.3
603	17	0.02	5.5	0.18	844.2	1263	0.3
302	33	0.02	10.9	0.18	483.2	722	0.3
236	42	0.02	14	0.18	424.8	637	0.3
118	85	0.02	28	0.18	236	352	0.3
59	169	0.02	55.9	0.18	129.8	194	0.3

Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

TSL-1218GW-N20-D , 6V , 1.35W

Ratio	No Load		Rated Load			Stall
Ratio	Speed	Current	Speed	Current	Torque	Torque	Current
i:1	RPM±10%	A	RPM±10%	A	g.cm	g.cm	A
1016	15	0.022	7.4	0.23	1219.2	2401	0.45
603	25	0.022	12.4	0.23	844.2	1680	0.45
302	50	0.022	24.8	0.23	483.2	960	0.45
236	64	0.022	31.8	0.23	424.8	844	0.45
118	127	0.022	63.6	0.23	236	472	0.45
59	254	0.022	127.1	0.23	129.8	260	0.45

Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

TSL-1218GW-N20-D , 12V , 3.88W

Ratio	No Load		Rated Load			Stall
Ratio	Speed	Current	Speed	Current	Torque	Torque	Current
i:1	RPM±10%	A	RPM±10%	A	g.cm	g.cm	A
1016	30	0.075	18.1	0.32	1219.2	3070	0.85
603	50	0.075	30.5	0.32	844.2	2162	0.85
302	99	0.075	60.8	0.32	483.2	1254	0.85
236	127	0.075	77.9	0.32	424.8	1098	0.85
118	254	0.075	155.7	0.32	236	610	0.85
59	508	0.075	311.4	0.32	129.8	335	0.85

Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

TSL-1218GW-N20-D , 24V , 3.38W

Ratio	No Load		Rated Load			Stall
Ratio	Speed	Current	Speed	Current	Torque	Torque	Current
i:1	RPM±10%	A	RPM±10%	A	g.cm	g.cm	A
1016	23	0.03	13.3	0.14	1219.2	2887	0.34
603	38	0.03	22.4	0.14	844.2	2055	0.34
302	76	0.03	44.7	0.14	483.2	1173	0.34
236	97	0.03	57.2	0.14	424.8	1035	0.34
118	195	0.03	114.4	0.14	236	571	0.34
59	390	0.03	228.8	0.14	129.8	314	0.34

Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

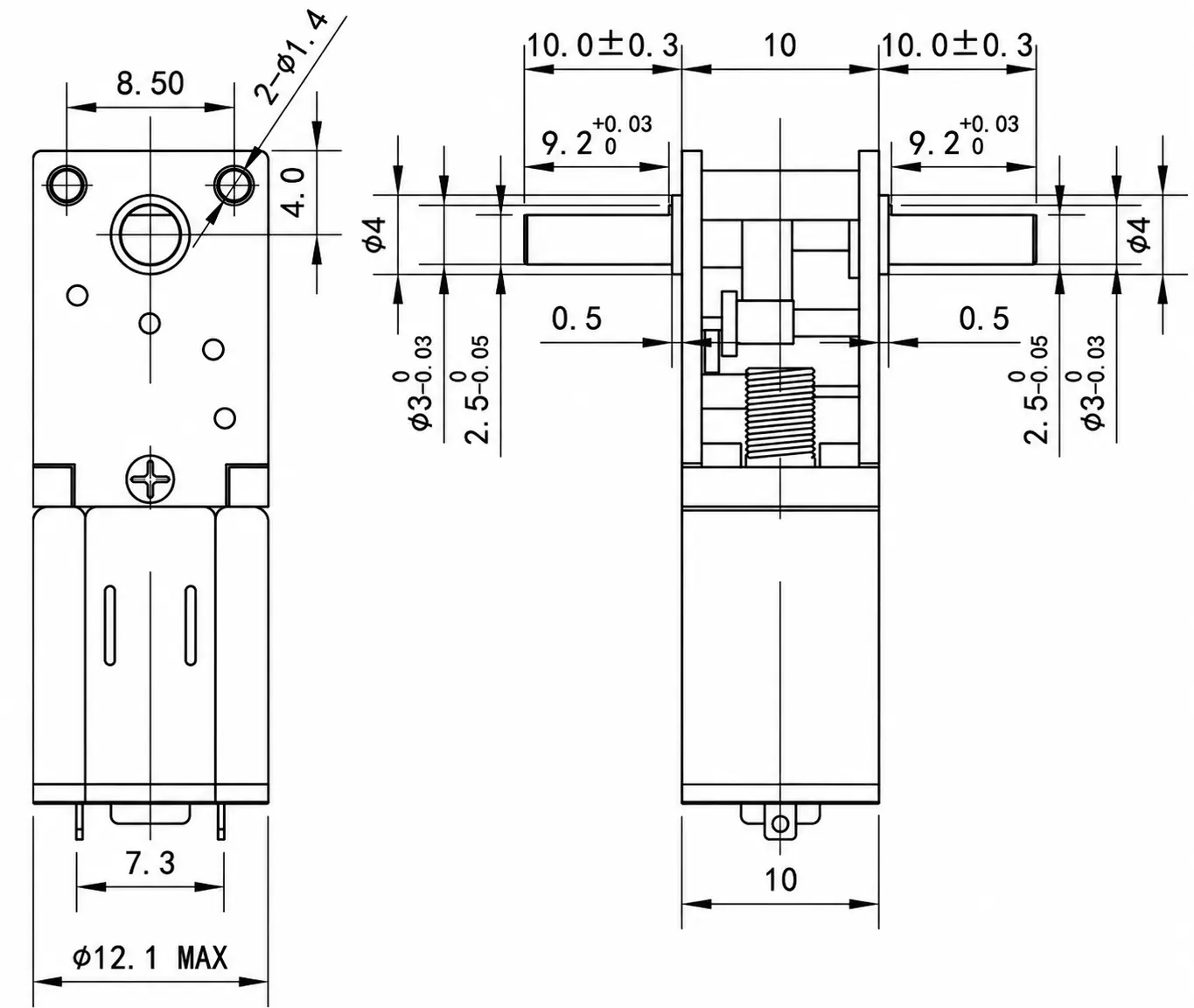

| Worm Gear N20 DC Motor Double Shaft Mechanical Drawing

Unless otherwise stated, all motor dimensions are in millimeters.

Technical dimensional drawing blueprint for the N20 double shaft worm gear motor — worm gear n20 dc motor dimensions drawing

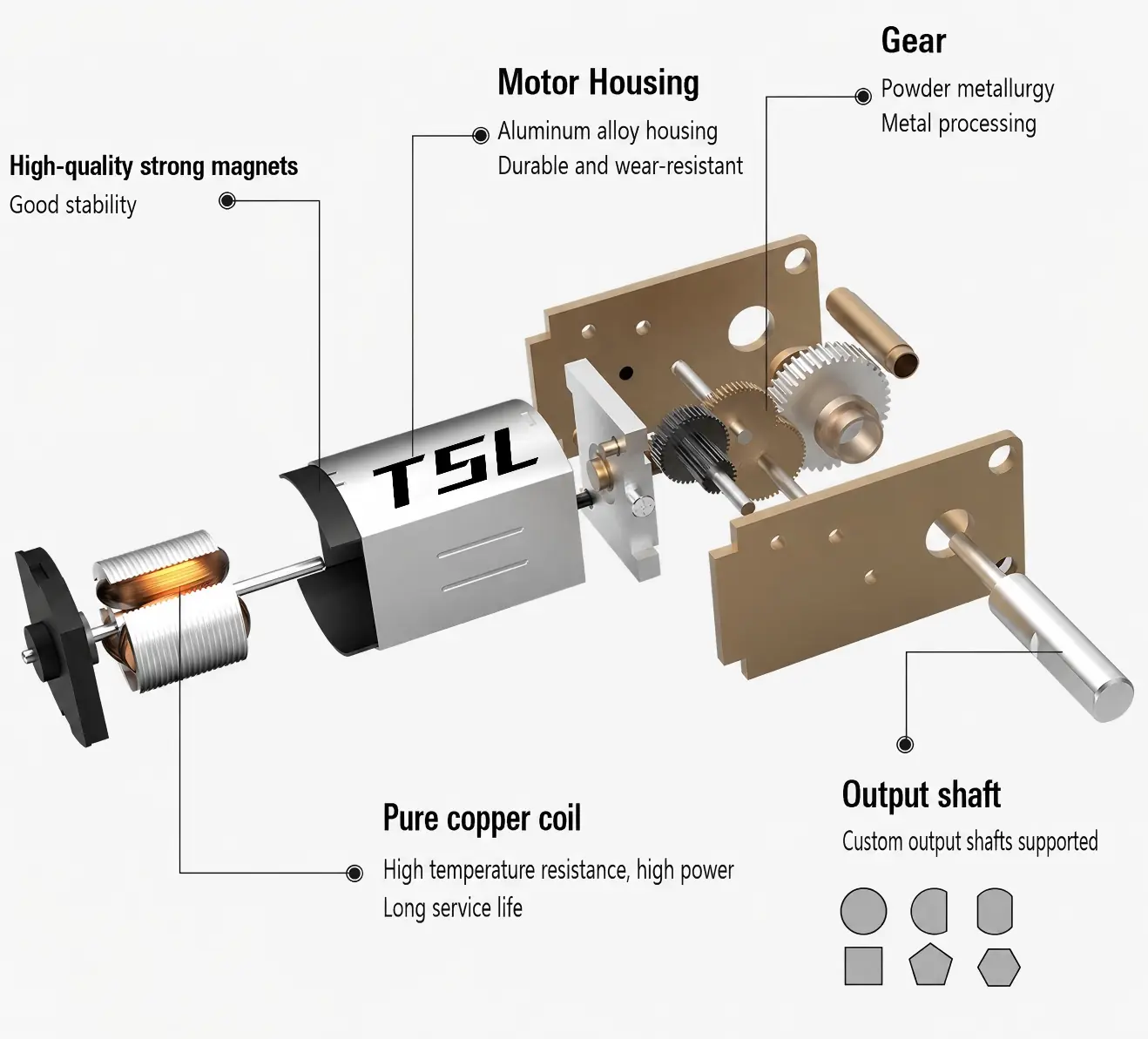

| Worm Gear N20 DC Motor Internal Structure

Exploded view diagram of TSL-1218GW-N20-D motor showing internal copper coil and magnets
