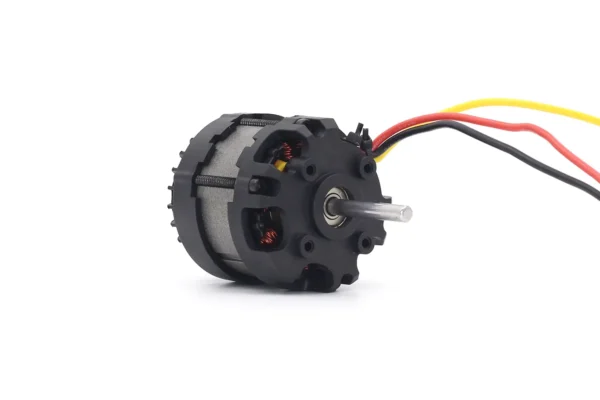

This premium 18v brushless dc motor delivers the massive torque and aggressive cutting power required to drive 6-inch and 8-inch mini electric chain saws through dense wood smoothly.
Tailored for standard 18V wireless tools, its low dynamic resistance (0.187 Ohms) ensures minimal heat buildup and maximum runtime under continuous heavy loads.
Item
Specification
Ambient Temperature
25-30 °C
Test Voltage
18.00 Volts
Circuit Resistance
0.092 Ohms
At No Load
Speed
18100 RPM
Current
1.400 Amp
At Stall (Extrapolated)
Torque
1041.601 m-Nm
Current
96.171 Amp
At Maximum Efficiency
Efficiency
90.81 %
Torque
112.143 m-Nm
Speed
16151 RPM
Current
11.603 Amp
Output Power
189.674 Watts
At Maximum Power
Torque
520.801 m-Nm
Speed
9050 RPM
Current
48.785 Amp
Output Power
493.570 Watts
Calculation at Torque Level: 200.000 m-Nm
Speed
14624.6 RPM
Current
19.597 Amp
Efficiency
86.83 %
Output Power
306.297 Watts
Note:We are the original factory. For OEM/ODM cooperation, the parameters can be customized based on customer needs. The models listed above are our standard specifications.

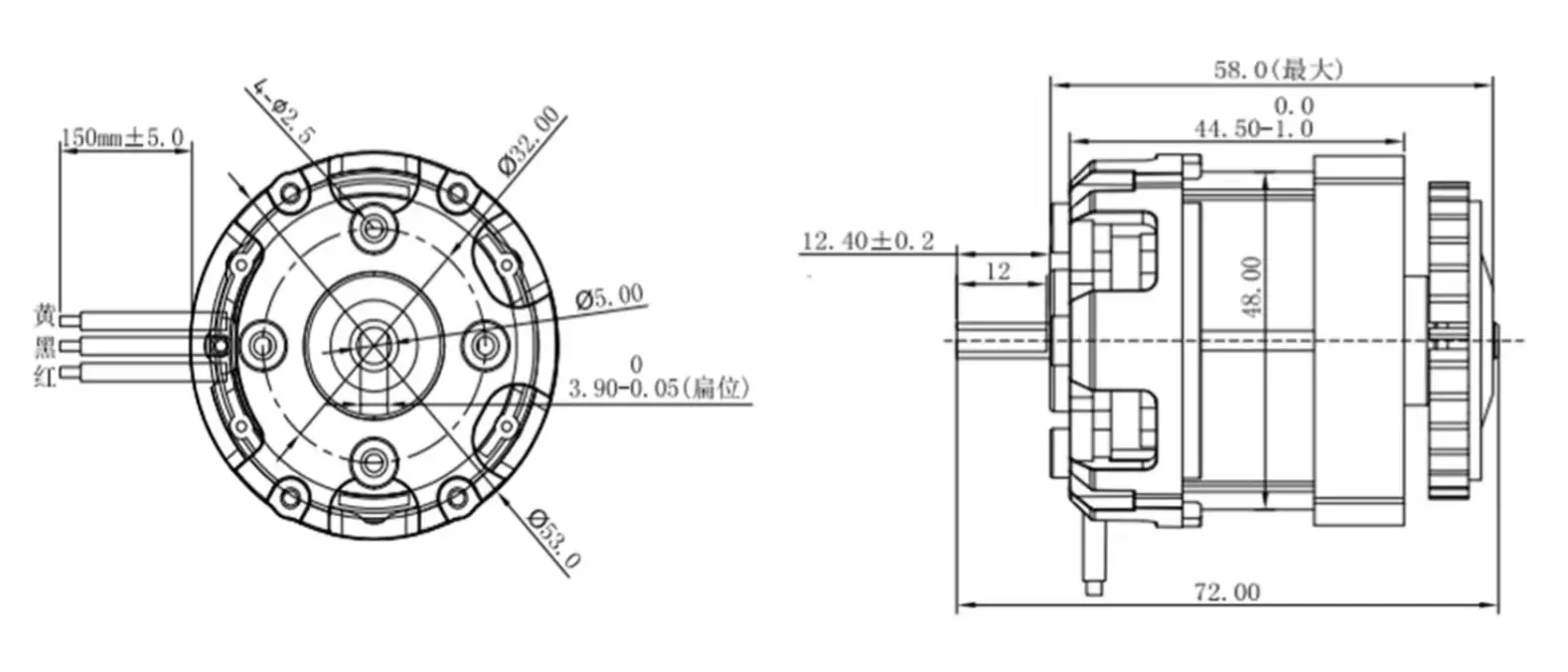

| 18V Electric Chainsaw Motor TSL-BLDC-4820 Mechanical Drawing
Unless otherwise stated, alldimensions are in millimeters.

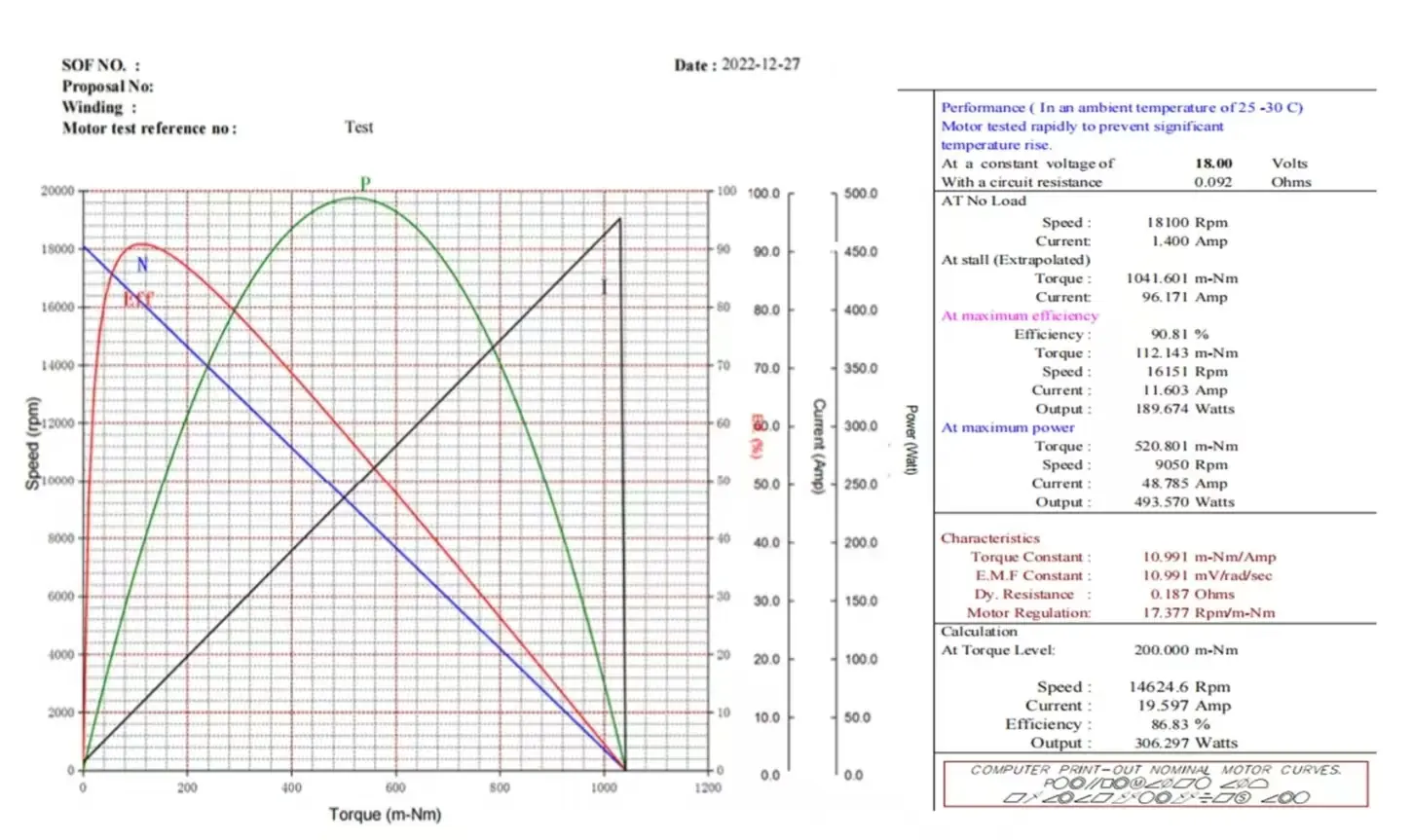

| 18V Brushless DC Motor TSL-BLDC-4820 Performance Curve
The performance curves are the actual values measured by us.
18v brushless dc motor tsl bldc 4820 performance curve

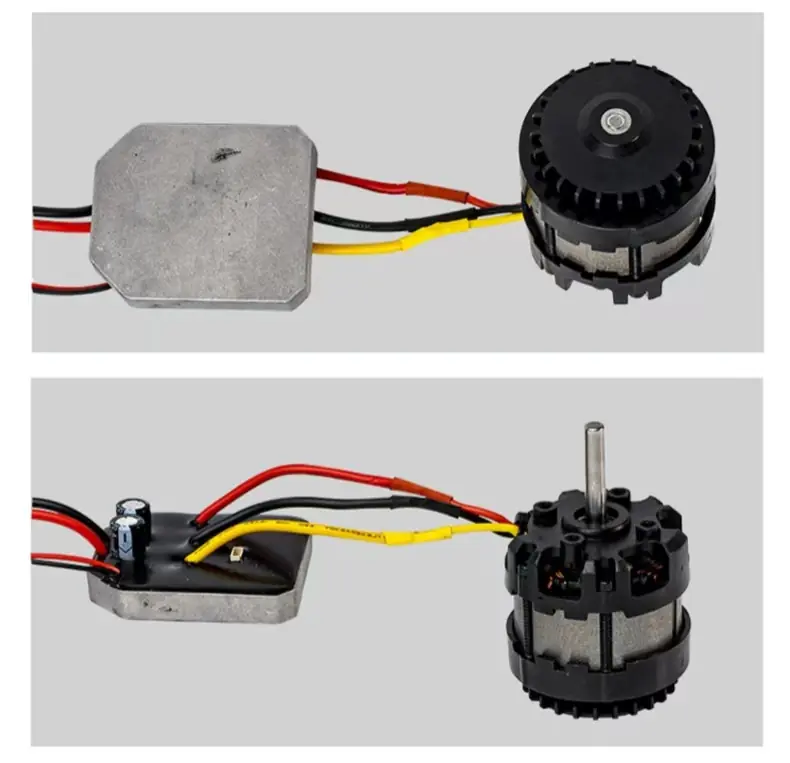

| 18V Brushless DC Motor TSL-BLDC-4820 Driver Specifications
🧠 Seamless 20A Intelligent Drive Calibration The paired controller features a 20A rated current and a 15,000 RPM speed loop, unleashing an incredible peak power of 493 Watts for rapid wood cutting.
🛡️ Full-Spectrum Overload & Tool Protection Pre-configured with a 45A current limit, quick brake (<180 MS), and dual MOS/Battery thermal sensors, it provides absolute anti-burnout safety.
Item
Specification
Rated Voltage
18 V
Rated Current
20 A
Stepless Speed Regulation
None
Gear Speed Regulation
None (x gears)
Speed Limit
15000±5% RPM
Forward/Reverse Control
None
Soft Start Time
Less than 500 MS
Brake Time
Less than 180 MS
Communication Function
None
Voltage Protection Parameters
Overvoltage Protection Value
31±1 V
Overvoltage Protection Delay
50±10 MS
Standby Undervoltage Protection Value
14±0.5 V
Standby Undervoltage Protection Delay
50±10 MS
Working Undervoltage Protection Value
28.0±0.5 V
Working Undervoltage Protection Delay
1000±150 MS
Undervoltage Recovery Voltage Value
31.0±0.5 V
Undervoltage Recovery Delay
50±10 MS
Overload Protection Parameters
Overload Protection Current
45 A
Current Limiting Protection Value
45±3 A
Short Circuit Protection Value
>150 A
Overload Protection Delay
50±10 MS
Stall Protection Delay
50±10 MS
Motor Low-Speed Operation Protection Parameters (All 3 conditions must be met simultaneously)
Speed Value
Less than 3000 RPM
Current Value
Greater than 15±3 A
Duration
500±50 MS
MOSFET Temperature Parameters (B3435)
Overtemperature Protection Value
90±5 °C
Overtemperature Protection Recovery Value
80±5 °C
Overtemperature Protection Delay
500±50 MS
Overtemperature Protection Recovery Delay
500±50 MS
Battery Pack Temperature Parameters (B3950)
Overtemperature Protection Value
N/A °C
Overtemperature Protection Delay
500±50 MS
Overtemperature Protection Recovery Delay
500±50 MS
| 18V Brushless DC Motor TSL-BLDC-4820 Driver Mechanical Drawing
