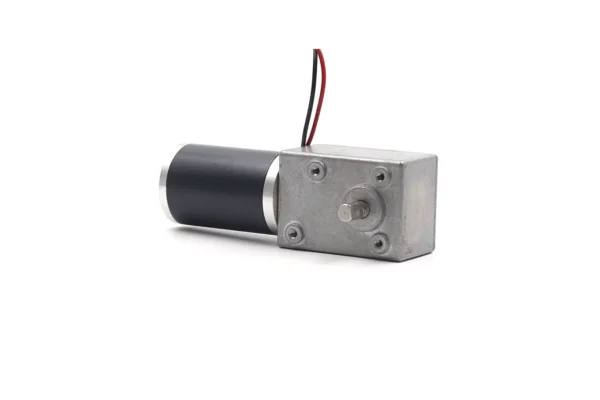

TSL-5882GW-50ZY high torque worm gear DC motor with single output shaft
high torque dc gear motor tsl 5882gw 50zy back wires
Side view of high torque worm gear DC motor TSL-5882GW-50ZY
high torque geared dc motor tsl 5882gw 50zy vertical
Rear diagonal view of TSL-5882GW-50ZY right angle geared motor
  1. TSL-5882GW-50ZY high torque worm gear DC motor with single output shaft
  2. high torque dc gear motor tsl 5882gw 50zy back wires
  3. Side view of high torque worm gear DC motor TSL-5882GW-50ZY
  4. high torque geared dc motor tsl 5882gw 50zy vertical
  5. Rear diagonal view of TSL-5882GW-50ZY right angle geared motor

Ø50mm Brushed DC Motor With Worm Gearbox | TSL-5882GW-50ZY

$79.20

◆ Basic Info

    • Brand: TSL
    • Origin: China
    • Motor Model: TSL-5882GW-50ZY
    • Motor Type: Brushed DC Motor
    • Gearbox Type:Worm Gearbox
    • Rated Voltage: 12V / 24V
    • No Load Speed:1.5-440 rpm
    • # More Specifications
    • # Outline Drawing
    • Performance parameters are for reference only and can be customized according to customer requirements.

◆ Typical Applications: Automation equipment, lifting mechanisms, valves, positioning systems, conveyor belts

Samples Pricing

Quantity Unit Price Savings
1 – 4 USD 79.20 —
5 – 9 USD 75.24 ↓ 5%
10 – 24 USD 68.90 ↓ 13%
25+ USD 61.77 ↓ 22%

📞 Contact us for bulk production pricing

For higher (production) volumes, we offer highly competitive pricing, please Request a Quote. We response within 24h.

✈️ Global Shipping: free express shipping on orders over $150
Guaranteed Safe Checkout

| High Torque Geared DC Motor​ TSL-5882GW-50ZY Datsheet

TSL-5882GW-50ZY,  12V DC
Reduction Ratio No Load Rated Load Stall
Speed Current Speed Current Torque Torque Current
i:1 RPM±10% A RPM±10% A Kg.cm Kg.cm A
16 440 2 280 8.5 10 25 16
16 310 1.2 185 6.3 10 20 12
32 190 2 126 6.5 20 40 16
48 150 2 99 6.4 30 60 14.5
48 120 1.5 83 5.5 35 50 13
89 80 2 58 6.5 50 110 19
89 68 1.8 45 5.8 60 100 15.5
169 42 1.7 30 5.3 70 180 16
169 35 1.5 26 5.2 80 160 15
225 24 1.5 18 6.2 120 Forbid Stall 17
392 18 2 14 6.5 180 16.5
510 12 1.7 8 6.2 200 17.5
694 9 2 6 5.8 200 17.5
1015 6 1.5 4 6 200 15.5
1015 3 0.3 2 1.5 200 5
1015 1.5 0.3 1 1 200 2
Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.
TSL-5882GW-50ZY,  24V DC
Reduction Ratio No Load Rated Load Stall
Speed Current Speed Current Torque Torque Current
i:1 RPM±10% A RPM±10% A Kg.cm Kg.cm A
16 440 1.2 295 4.2 10 30 12
16 310 0.6 205 3 12 25 8
32 190 1 135 3.8 25 50 13
48 150 1.1 105 6 40 140 16
48 120 0.9 86 4.5 50 100 12
89 90 1.2 65 5.5 55 180 16
89 70 0.8 51 3.5 70 160 12
169 50 0.9 42 6.2 110 Forbid Stall 18.5
169 35 0.9 26 3.2 140 11
225 24 0.7 17 4 150 12.5
392 18 0.9 13 3.5 200 13
510 12 0.7 8 3.6 200 12
694 9 0.9 6 3 200 13.5
1015 6 0.7 4 3.5 200 11.5
1015 3 0.4 2 1.3 200 13.5
1015 1.5 0.35 1 0.9 200 2
Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

| High Torque Geared DC Motor​ TSL-5882GW-50ZY Mechanical Drawing

Unless otherwise stated, all motor dimensions are in millimeters.

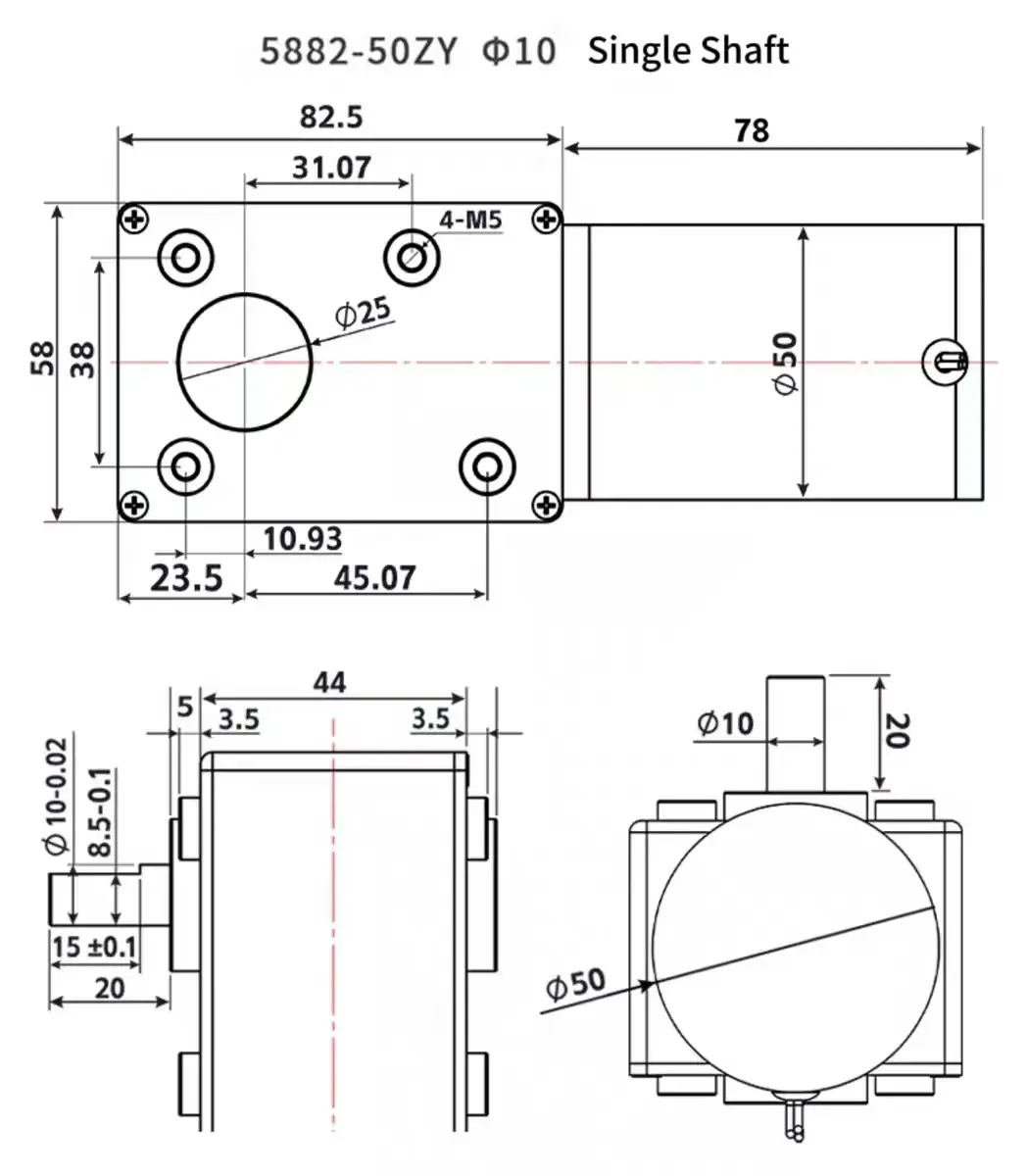

Mechanical dimension drawing for TSL-5882GW-50ZY single output shaft gear motor
tsl 5882gw 50zy single output shaft mechanical dimensions

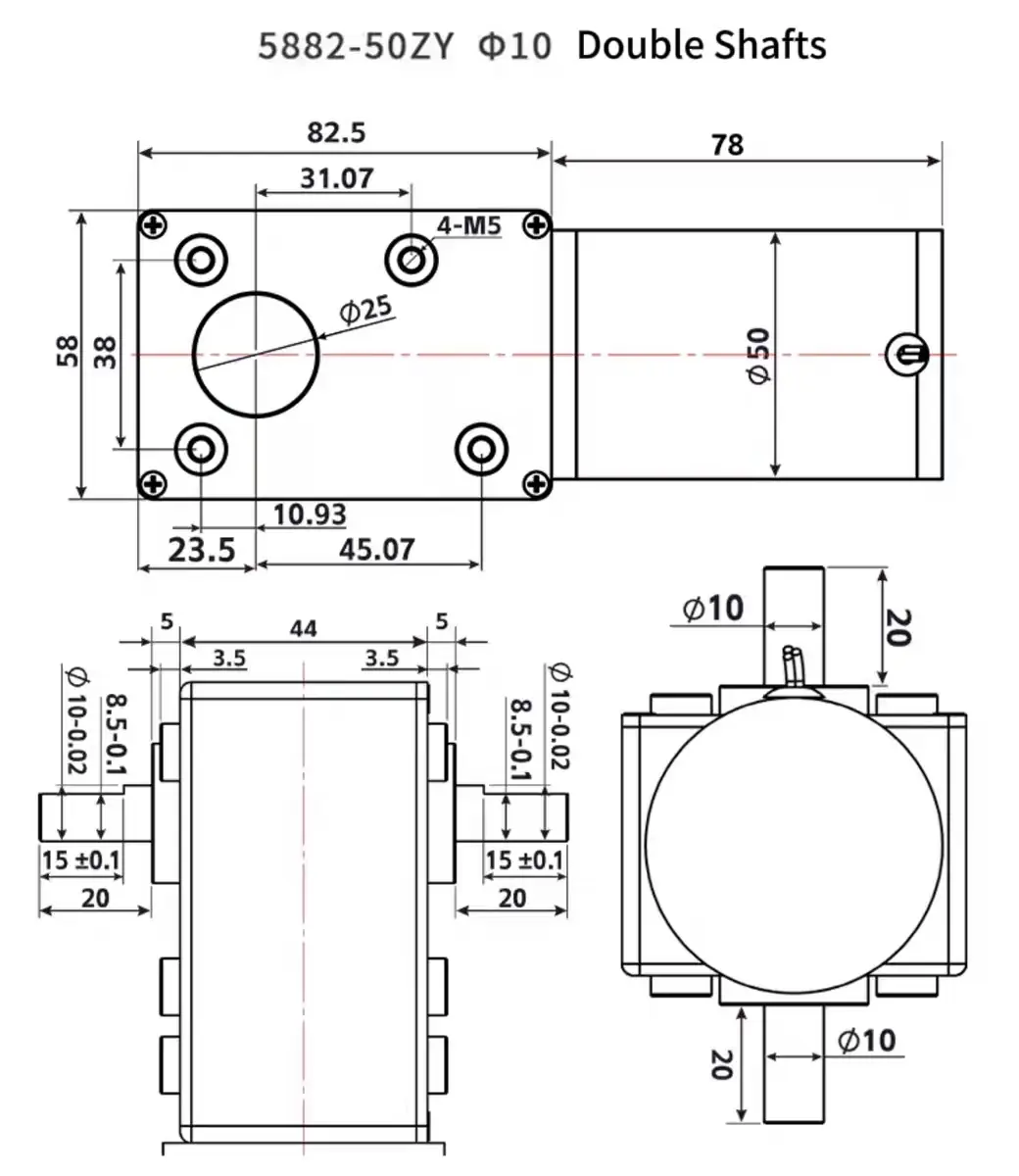

Dual output shaft mechanical dimensions diagram for TSL-5882GW-50ZY
tsl 5882gw 50zy dual output shaft dimensions drawing

| High Torque Geared DC Motor​ TSL-5882GW-50ZY Internal Structure

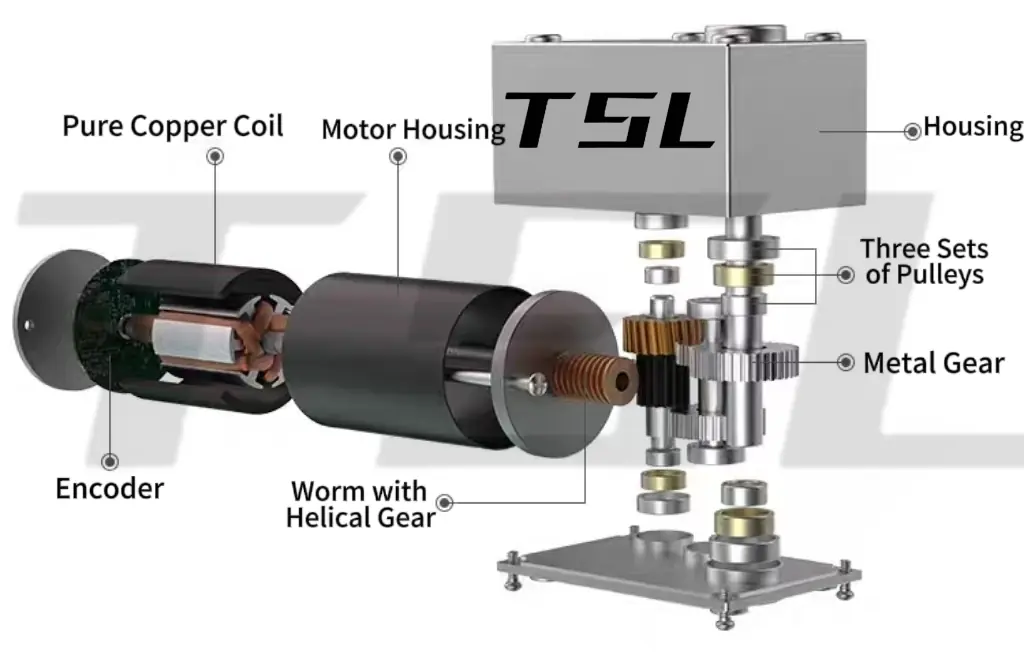

Exploded view of TSL-5882GW-50ZY motor showing internal copper coil and metal gears
