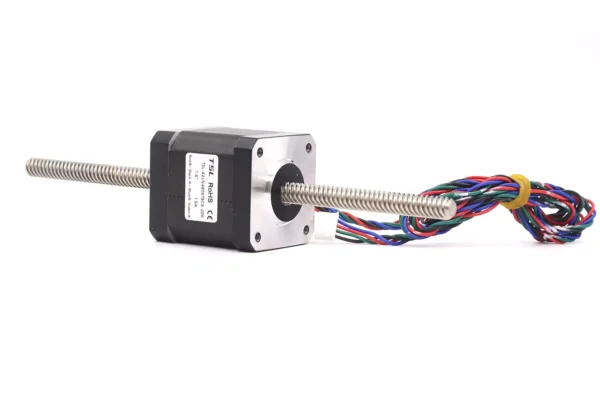

NEMA 17 (42mm) Non-captive Hybrid Linear Stepper Motor | TSL‑42LN Series

Price range: $95.17 through $103.00

◆ Basic Info

    • Brand: TSL
    • Origin: China
    • Motor Series: TSL‑28LN Series
    • Motor Type: Hybrid Stepper Motor
    • Thrust: 100N-295N
    • # More Specifications
    • # Outline Drawing
    • Performance parameters are for reference only and can be customized according to customer requirements.

◆ Typical Applications:Medical devices, 3D printers, CNC routers, Automated laboratory equipment, Linear stages

Samples Pricing(TSL-42LN3413T8C2-250)

Quantity Unit Price Savings
1 – 4 USD 95.17 —
5 – 9 USD 90.41 ↓ 5%
10 – 24 USD 82.79 ↓ 13%
25+ USD 74.23 ↓ 22%

📞 Contact us for bulk production pricing

For higher (production) volumes, we offer highly competitive pricing, please Request a Quote. We response within 24h.

✈️ Global Shipping: free express shipping on orders over $150
Guaranteed Safe Checkout

| 3D Printer Stepper Motor​ NEMA 17 Dtasheet

Motor Model Holding Torque Rated Current Motor Length Screw Length Screw Diameter Screw Lead Rated Thrust Horizontal Max. Load Vertical Max. Load
mNm A mm mm mm mm N Kg Kg
TSL-42LN3413T8C2-250 270 1.33 34 250 8 2 200N 10 4
TSL-42LN3413T8C8-250 270 1.33 34 250 8 8 100 6 2.5
TSL-42LN3413T8C4-300 270 1.33 34 300 8 4 140 8 3.5
TSL-42LN3413T8C8-300 270 1.33 34 300 8 8 100 6 2.5
TSL-42LN4816T8C4-155 500 1.68 42 155 8 4 295 17 8.5

If you need detailed specifications for hybrid stepper motors, feel free to contact us for free support.

💕The speed is calculated using the following formula: Speed (rpm) = Step Angle × Frequency × 60 ÷ 360.

💕The 3D Printer Stepper Motor​’s technical specifications are for guidance，we offer custom solutions upon request.

⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz1

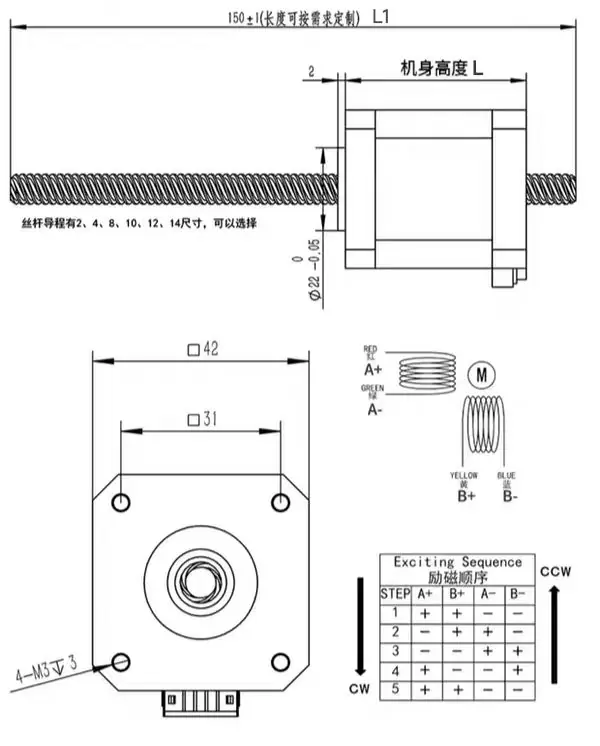

| 3D Printer Stepper Motor​​ Outline Drawing

Unless otherwise stated, all dimensions are in millimeters.

3d printer stepper motor tsl 42ln series outline drawing
3d printer stepper motor tsl 42ln series outline drawing
Note: The dimension “L“/”L1” refers to the nema 11 hybrid stepper motor length specified in the performance parameter table above. Custom lengths or tailored selections are available upon request; please contact our engineering team for optimized solutions.

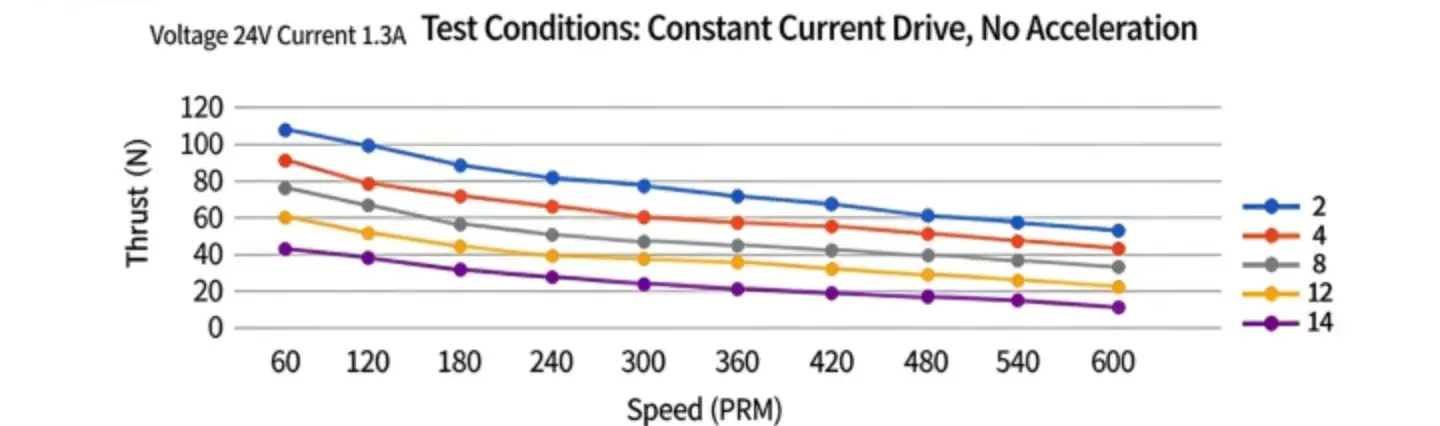

| NEMA 17 (42mm) Non-captive Hybrid 3D Printer Stepper Motor​ TSL-42LN Series Speed and Thrust Curves

These curves are obtained based on the test conditions of our company’s drive. The nema 11 hybrid linear stepper motor performance will vary under different drive conditions. To improve motor reliability and lifespan, it is recommended to control the load within 50% of the motor’s thrust.

3d printer stepper motor ntsl 42LN series speed and thrust curve

| Linear Stepper Motor Lead Screw Customization

Choose your end-machining style below (threaded, plain, or bespoke) and match it with our lead screw specification table. Please contact technical support to confirm precise dimensions based on the screw diameter.

Screw Specs Diameter（mm) Pitch(mm) Pitch(mm) Lead(mm)
T3.5*0.6096 3.5 0.6096 1 0.6096
T3.5*0.6096*2 3.5 0.6096 2 1.2192
T3.5*2.4384 3.5 1.2192 2 2.4384
T3.5*1 3.5 1 1 1
T4.76*1.27 4.76 1.27 1 1.27
T5.68 5.68 1.2912 8 10.3296
T6.35*0.635 6.35 0.635 1 0.635
T9.53*2.54 9.53 2.54 1 2.54
T5*1 5 1 1 1
T5*2 5 1 2 2
T5*4 5 1 4 4
T5*6 5 1 6 6
T6*2 6 1 2 2
T6*4 6 1 4 4
T6*6 6 1 6 6
T6*12 6 2 6 12
T8*1 8 1 1 1
T8*2 8 2 1 2
T8*4 8 2 2 4
T8*8 8 2 4 8
T8*10 8 2 5 10
T8*12 8 2 6 12
T8*14 8 2 7 14
T8*16 8 2 8 16
T8*20 8 2.5 8 20
T10*2 10 2 1 2
T10*4 10 2 2 4
T10*8 10 2 4 8
T10*10 10 2 5 10
T12*2 12 2 1 2
T12*4 12 2 2 4
T12*8 12 2 4 8
T12*12 12 2 6 12
T14*6 14 2 3 6

The specifications listed are standard references. All parameters—including diameter, lead, and especially screw length—can be fully customized to your requirements. Unsure about the selection? Contact Our Engineers for a bespoke solution.

| Custom Solutions for Linear Stepper Motor

We offer a wide range of standard and non-standard nut customizations to meet your specific load, precision, and space requirements. Our technical team can engineer bespoke nut geometries and materials to fit your unique design.

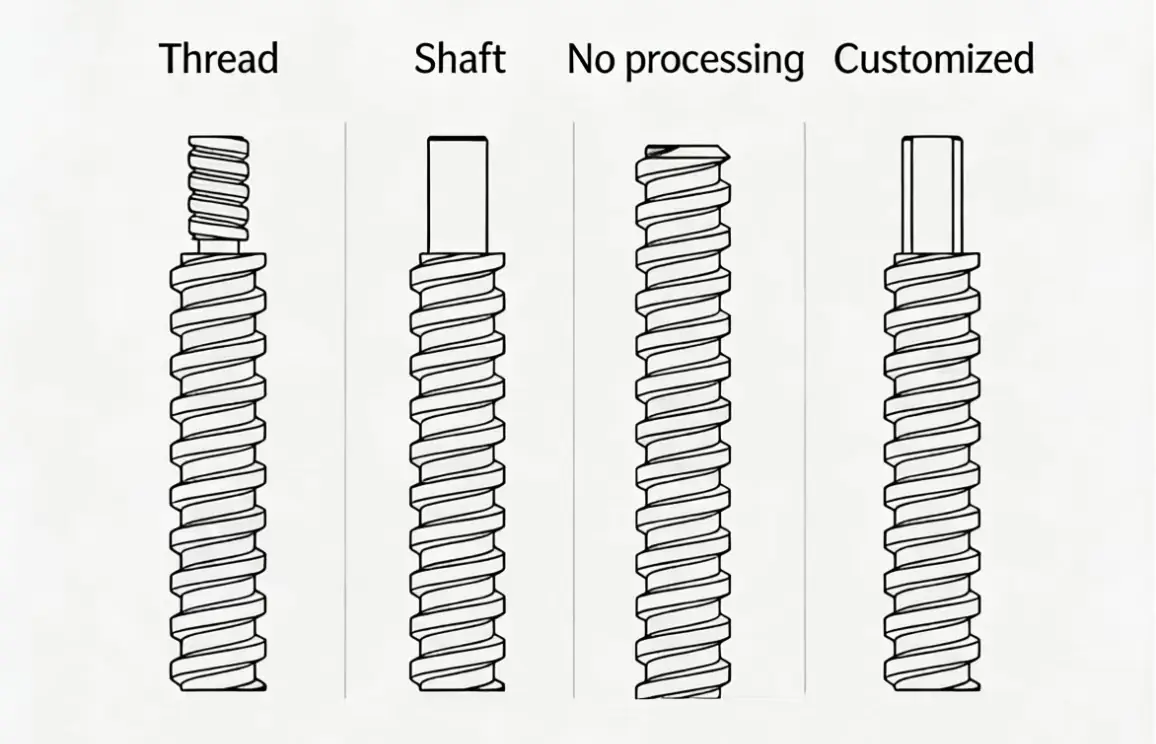

tsl linear screw stepper motor end machining style
