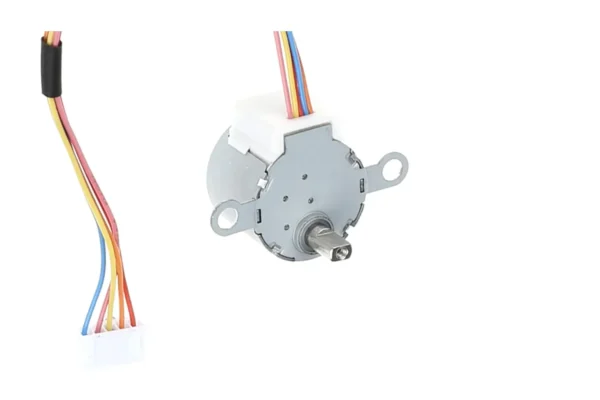

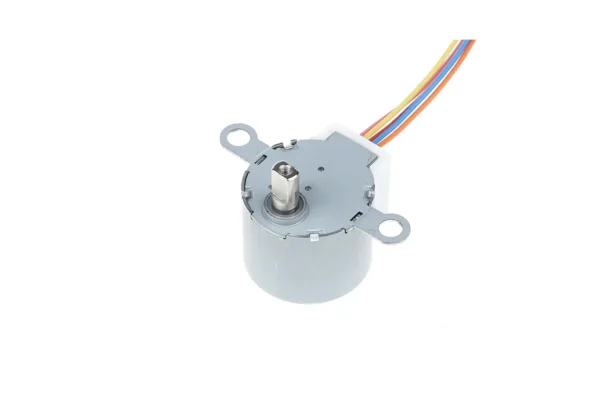

Front angle view of the 24byj48 12V DC motor showing its output shaft and multi-color wiring harness

Ø24mm PM Geared Stepper Motor (BYJ Series) | TSL-24BYJ48-2003

$4.50

◆ Basic Info

- Brand: TSL MOTOR
- Origin: China
- Motor Model: TSL-24BYJ48-2003
- Motor Type: PM Geared Stepper Motor
- Rated Voltage: 12V
- Ratio:64:1
- Step Angle:5.625°
- # More Specifications
- # Outline Drawing
- Performance parameters are for reference only and can be customized according to customer requirements.

Download TSL-24BYJ48-2003 Specifications

◆ Typical Applications: AC louver swing, toilet valve, automotive air conditioning damper adjustment, stage light, projector, medical equipment, laser light, monitoring system

Samples Pricing

Quantity	Unit Price	Savings
1 – 4	USD 4.50	—
5 – 9	USD 4.27	↓ 5%
10 – 24	USD 3.91	↓ 13%
25+	USD 3.51	↓ 22%

📞 Contact us for bulk production pricing

For higher (production) volumes, we offer highly competitive pricing, please Request a Quote. We response within 24h.

✈️ Global Shipping: free express shipping on orders over $150

Quantity	Discount (%)	Unit Price
1 - 4	—	$4.50
5 - 9	5.11%	$4.27
10 - 24	13.11%	$3.91
25+	22%	$3.51

Guaranteed Safe Checkout

| 24byj48 12V DC Motor Datasheet

Motor Model	TSL-24BYJ48-2003
Rated voltage	12 VDC
Number of phases	4
Reduction ratio	1/64
Step angle	5.625°
Drive method	1-2 phase excitation
DC resistance	75 Ω±10% (25°C)
No-load pull-in frequency	>500Hz
No-load pull-out frequency	>1000Hz
Pull-in torque	>110mN.m (12VDC, 400Hz)
Detent torque	>70mN.m
Insulation resistance	>50MΩ (500V)
Insulation withstand voltage	600VAC/1mA/1s
Insulation class	B
Temperature rise	<60K (100Hz)
Noise	<40dB (A) (100Hz, no load, 10cm)
Terminal pull-out force	2.54*5P
Output shaft verticality	90±1°
Axial play	0~0.3mm
Tolerance standard	The dimensions of the non-toleranced parts are for reference, with a tolerance grade of GB/T 1804-m.
Friction torque	150~294mN·m

Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

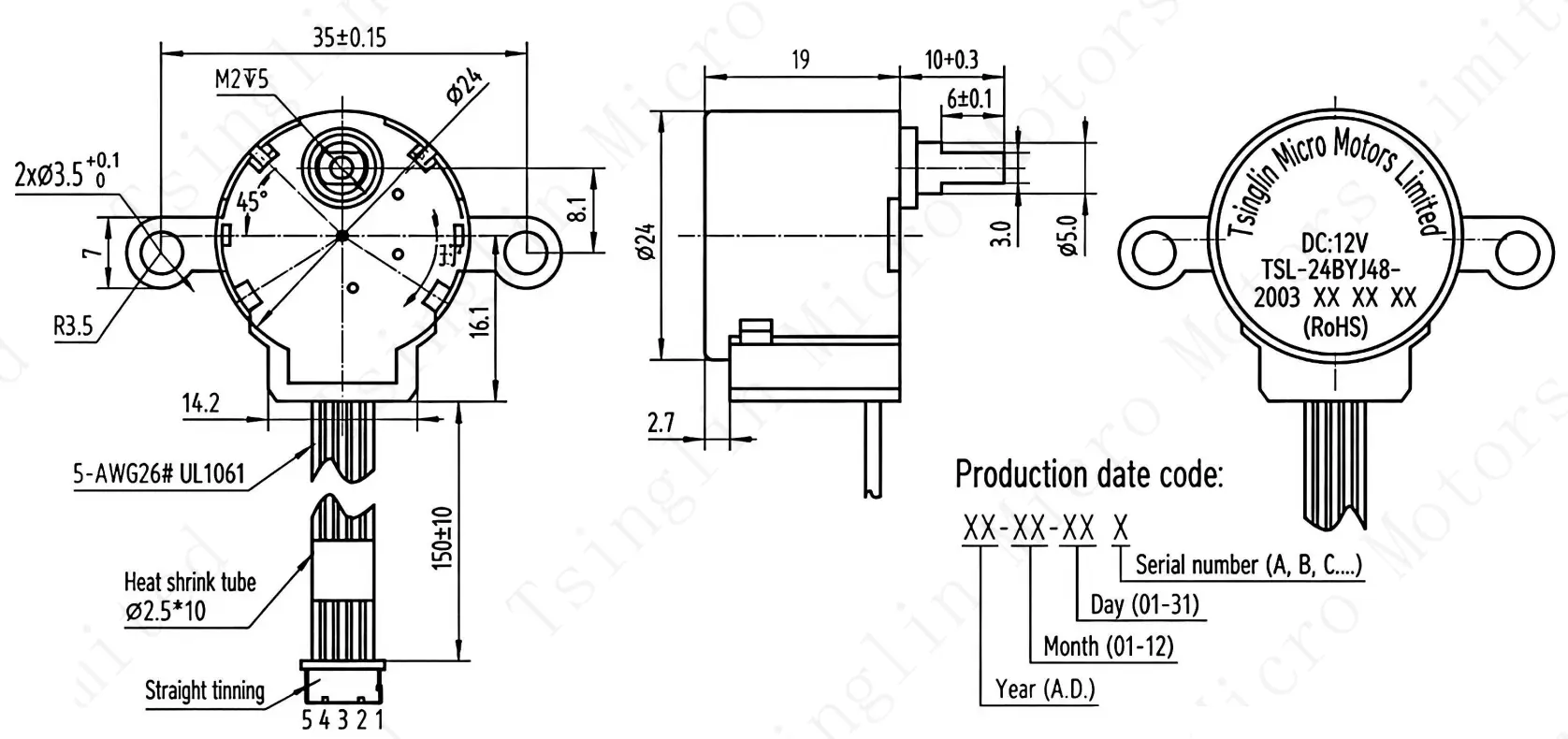

| 24byj48 12V DC Motor Mechanical Drawing

Unless otherwise stated, all motor dimensions are in millimeters.

Mechanical dimension outline drawing and technical specifications for the 24byj48 12V DC motor

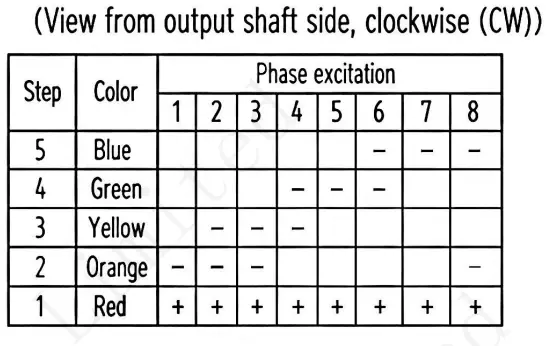

| 24byj48 12V DC Motor 1-2 Phase Excitation Sequence Table

Phase excitation sequence table for controlling clockwise rotation of the 24byj48 12V DC motor

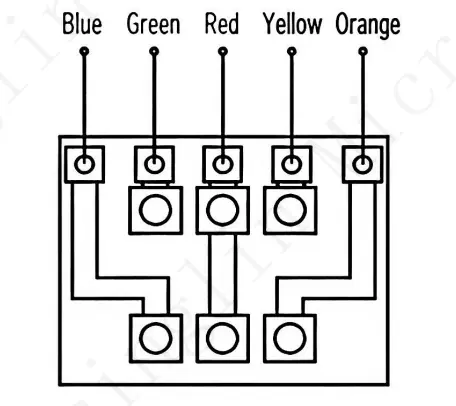

| 24byj48 12V DC Motor Wiring Diagram

Pinout and internal wiring schematic with color coding for the 24byj48 12V DC motor — Internal wiring and pin definition diagram for the 24byj48 12V DC motor, matching blue, green, red, yellow, and orange wire sequences
