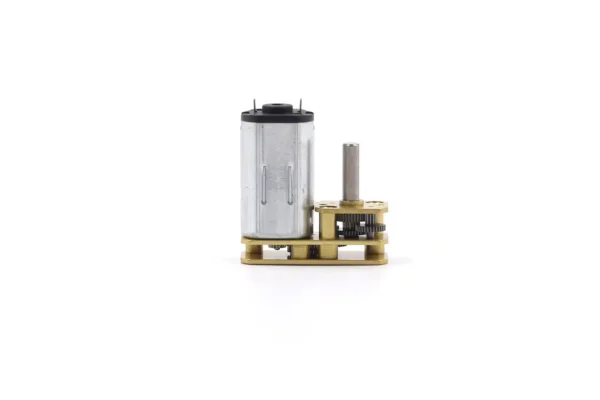

TSL-GM1024-N30VA N30 inverted DC gear motor with brass parallel reduction gearbox
n30 gear motor bottom mounting brass plate
Rear plastic end cap of N30 motor with dual solder terminals
Side view of 4mm D-shaft on the parallel micro gear motor
n30 miniature gear motor metal housing
  1. TSL-GM1024-N30VA N30 inverted DC gear motor with brass parallel reduction gearbox
  2. n30 gear motor bottom mounting brass plate
  3. Rear plastic end cap of N30 motor with dual solder terminals
  4. Side view of 4mm D-shaft on the parallel micro gear motor
  5. n30 miniature gear motor metal housing

Ø12mm Brushed DC Motor With Spur Gearbox | TSL-GM1024-N30VA

$14.50

◆ Basic Info

    • Brand: TSL
    • Origin: China
    • Motor Model: TSL-GM1024-N30VA
    • Motor Type: Brushed DC Motor
    • Gearbox Type:Spur Gearbox
    • Rated Voltage: 3.7V/ 5V / 12V
    • No Load Speed:6.7-536 rpm
    • # More Specifications
    • # Outline Drawing
    • Performance parameters are for reference only and can be customized according to customer requirements.

◆ Typical Applications: Electronic smart door locks, miniature robotics, automatic vending machines, precision medical equipment, smart home automation systems

Samples Pricing

Quantity Unit Price Savings
1 – 4 USD 14.50 —
5 – 9 USD 13.77 ↓ 5%
10 – 24 USD 12.61 ↓ 13%
25+ USD 11.31 ↓ 22%

📞 Contact us for bulk production pricing

For higher (production) volumes, we offer highly competitive pricing, please Request a Quote. We response within 24h.

✈️ Global Shipping: free express shipping on orders over $150
Guaranteed Safe Checkout

| N30 Gear Motor Inverted GM1024-N30VA Datasheet

TSL-GM1024-N30VA , 3.7 V
Ratio No Load Rated Load Stall
Speed Current Speed Current Torque Torque Current
i:1 RPM±10% A RPM±10% A g.cm g.cm A
1000 10 0.04 6.7 0.23 2500 7622 0.71
500 20 0.04 13.4 0.23 1250 3811 0.71
380 26 0.04 17.7 0.23 950 2896 0.71
250 40 0.04 26.9 0.23 625 1905 0.71
110 91 0.04 61.1 0.23 275 838 0.71
50 200 0.04 134.4 0.23 125 381 0.71
Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.
TSL-GM1024-N30VA , 5 V
Ratio No Load Rated Load Stall
Speed Current Speed Current Torque Torque Current
i:1 RPM±10% A RPM±10% A g.cm g.cm A
1000 25 0.06 21.6 0.34 2000 14706 2.6
500 50 0.06 43.2 0.34 1000 7353 2.6
380 66 0.06 56.842 0.34 760 5588 2.6
250 100 0.06 86.4 0.34 500 3676 2.6
110 227 0.06 196.36 0.34 220 1618 2.6
50 500 0.06 432 0.34 100 735 2.6

Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

TSL-GM1024-N30VA , 12 V
Ratio No Load Rated Load Stall
Speed Current Speed Current Torque Torque Current
i:1 RPM±10% A RPM±10% A g.cm g.cm A
1000 30 0.03 26.8 0.25 2500 23438 1.56
500 60 0.03 53.6 0.25 1250 11719 1.56
380 79 0.03 70.5 0.25 950 8906 1.56
250 120 0.03 107.2 0.25 625 5859 1.56
110 273 0.03 243.6 0.25 275 2578 1.56
50 600 0.03 536 0.25 125 1172 1.56
Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

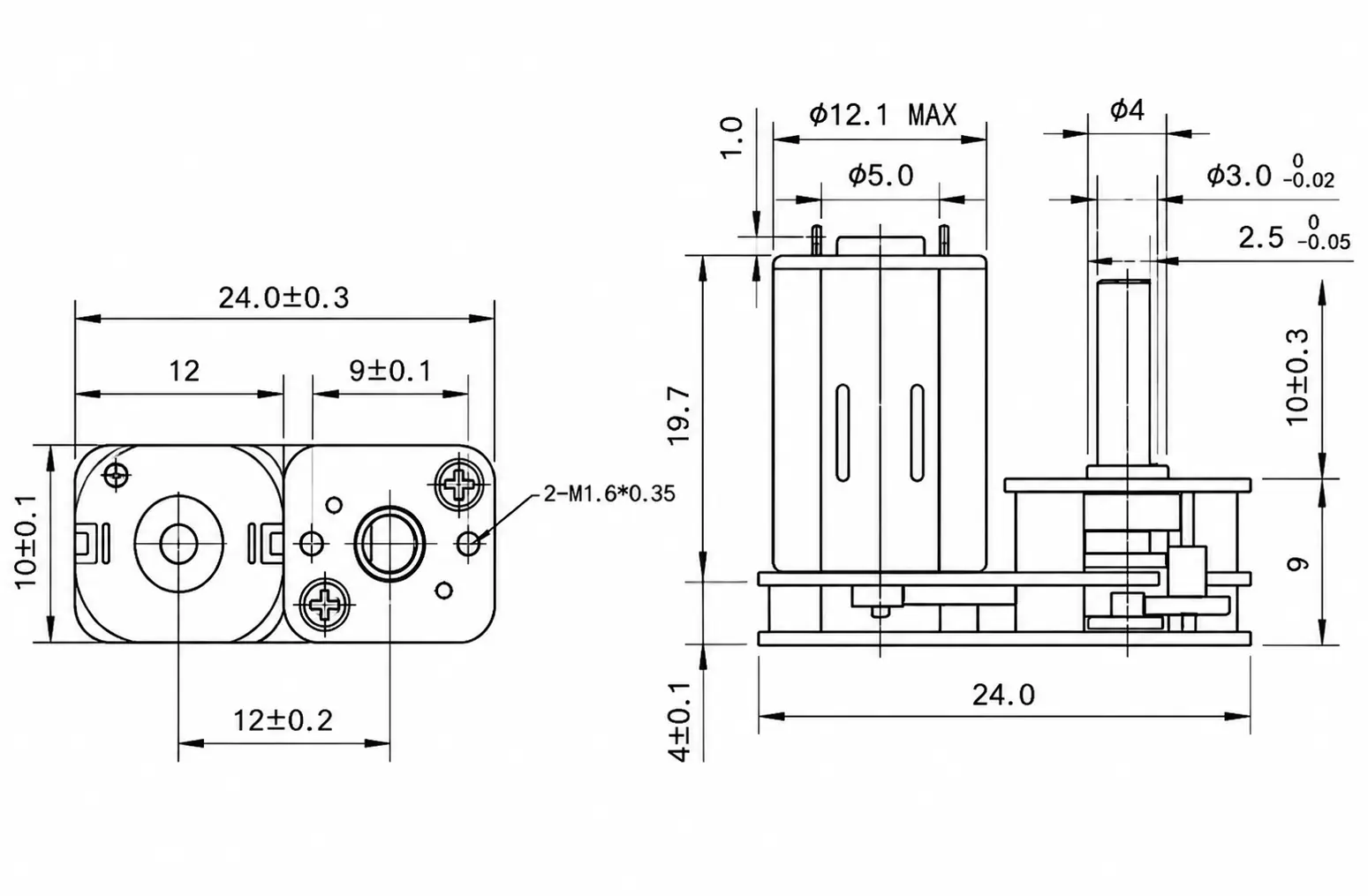

| N30 Gear Motor Inverted GM1024-N30VA Mechanical Drawing

Unless otherwise stated, all motor dimensions are in millimeters.

2D engineering schematic and dimensions diagram for TSL-GM1024-N30VA motor
n30 inverted gear motor dimensions blueprint
