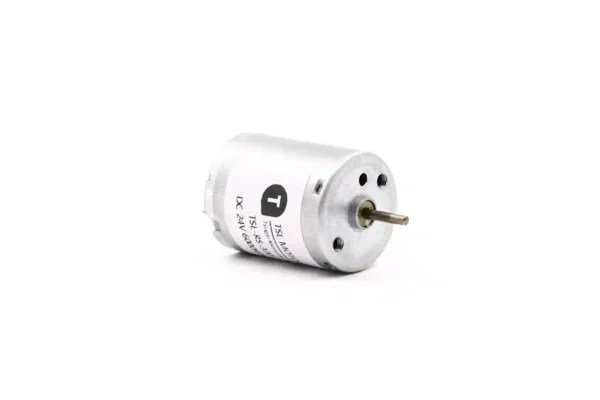

Ø24.4 x 30mm Brushed DC Motor | TSL-RS-370
Price range: $2.36 through $3.42
◆ Basic Info
- Brand: TSL
- Origin: China
- Motor Model: TSL-RS-370
- Motor Type: Brushed DC Motor
- Rated Voltage: 6V/12V /24VDC
- No Load Speed: 5017rpm
- # More Specifications
- # Outline Drawing
- # Downloads
- Performance parameters are for reference only and can be customized according to customer requirements.
◆ Typical Applications:Smart electronic locks, Mini electric shavers, Vending machine conveyor gearboxes, Beauty & massage devices, Smart home motorized curtains
Samples Pricing
| Specification | Quantity | Unit Price | Savings |
|---|---|---|---|
| TSL-RS-370( Single Shaft ) | 1 – 4 | USD 2.36 | — |
| TSL-RS-370( Single Shaft ) | 5 – 9 | USD 2.24 | ↓ 5% |
| TSL-RS-370( Single Shaft ) | 10 – 24 | USD 2.05 | ↓ 13% |
| TSL-RS-370( Single Shaft ) | 25+ | USD 1.84 | ↓ 22% |
| TSL-RS-370( Double Shaft ) | 1 – 4 | USD 3.42 | — |
| TSL-RS-370( Double Shaft ) | 5 – 9 | USD 3.24 | ↓ 5% |
| TSL-RS-370( Double Shaft ) | 10 – 24 | USD 2.97 | ↓ 13% |
| TSL-RS-370( Double Shaft ) | 25+ | USD 2.66 | ↓ 22% |
📞 Contact us for bulk production pricing
For higher (production) volumes, please Request a Quote. We response within 24h.
✈️ Global Shipping: free express shipping on orders over $150
- Description
- Reviews (0)
- Payment & Shipping
- TSL MOTOR Shop Online Sample Request
- Notice Before Ordering
| RS-370 DC Motor Datasheet
Engineered for high efficiency, low noise, and stable output, it’s the ultimate choice for smart home devices, robotics, and DIY projects. We support bulk wholesale, custom shafts, and fast global shipping—your reliable supply partner starts here!
Featuring high-speed operation and robust torque, this motor delivers industrial-grade reliability in a compact frame. Perfect for both global B2B sourcing (with strict QA/QC) and quick B2C retail orders—check our performance charts below to find your perfect match!
| Parameter Item | RS-370-24122 | RS-370-68500 | RS-370-17234 | RS-370-12475 | RS-370-20175 | RS-370-14350 | RS-370-24117 |
| Operating Voltage Range (V) | 3.0-6.0 | 3.0-6.0 | 9.0-14.0 | 14.5-26.0 | 9.0-14.0 | 14.5-26.0 | 9.0-14.0 |
| Nominal Voltage (V) | 6 | 6 | 12 | 24 | 12 | 24 | 12 |
| No-Load Speed (r/min) | 6000 | 8500 | 6000 | 6000 | 8500 | 8500 | 10000 |
| No-Load Current (A) | 0.082 | 0.158 | 0.042 | 0.025 | 0.062 | 0.04 | 0.12 |
| Speed at Maximum Efficiency (r/min) | 5302 | 7397 | 5090 | 5059 | 7371 | 7099 | 9951 |
| Current at Maximum Efficiency (A) | 0.438 | 0.855 | 0.235 | 0.134 | 0.405 | 0.203 | 0.583 |
| Torque at Maximum Efficiency (g.cm) | 31.18 | 43.46 | 39.3 | 45.9 | 43.6 | 42.4 | 42.3 |
| Output Power at Maximum Efficiency (W) | 1.73 | 3.41 | 1.38 | 1.58 | 2.38 | 2.38 | 3.43 |
| Speed at Maximum Power (r/min) | 3376 | 4693 | 3198 | 3215 | 4452 | 4595 | 6531 |
| Current at Maximum Power (A) | 1.13 | 2.23 | 0.64 | 0.35 | 1.29 | 0.49 | 1.36 |
| Torque at Maximum Power (g.cm) | 98.82 | 139.26 | 129 | 146.5 | 164.4 | 128.61 | 123.9 |
| Output Power at Maximum Power (W) | 3.263 | 6.467 | 3.69 | 4 | 7.58 | 5.69 | 7.78 |
| Stall Torque (g.cm) | 197.6 | 278.5 | 259.6 | 293.1 | 328.9 | 257.2 | 247.9 |
| Stall Current (A) | 2.337 | 4.622 | 1.31 | 0.723 | 2.651 | 1.027 | 2.83 |
Note:We are the original factory. The parameters can be customized based on customer needs. The models listed above are our standard specifications.

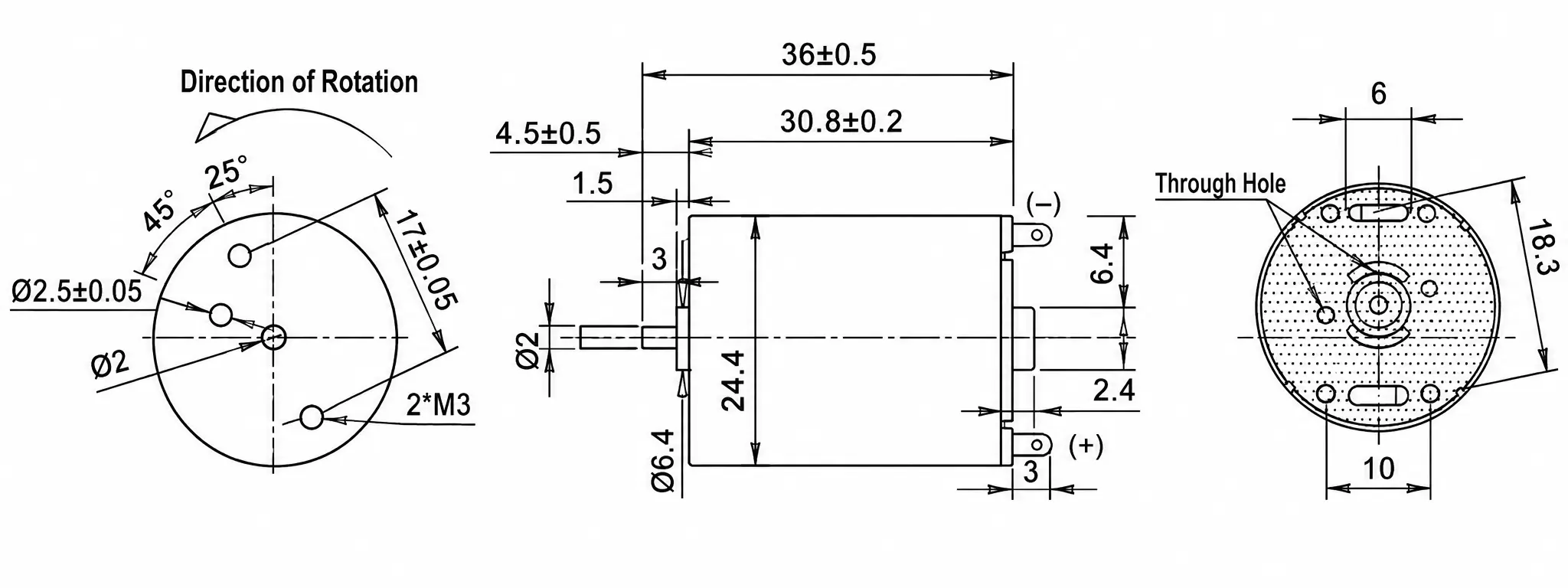

|RS-370 DC Motor Single Shaft Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters.We offer multiple shaft lengths for optional ordering. We support non‑standard customization and have our own CNC machining center.
Note:We can provide customization based on the customer’s requirements, such as output shaft options, bottom‑mount installation, housing‑mount installation, and motor waterproofing.

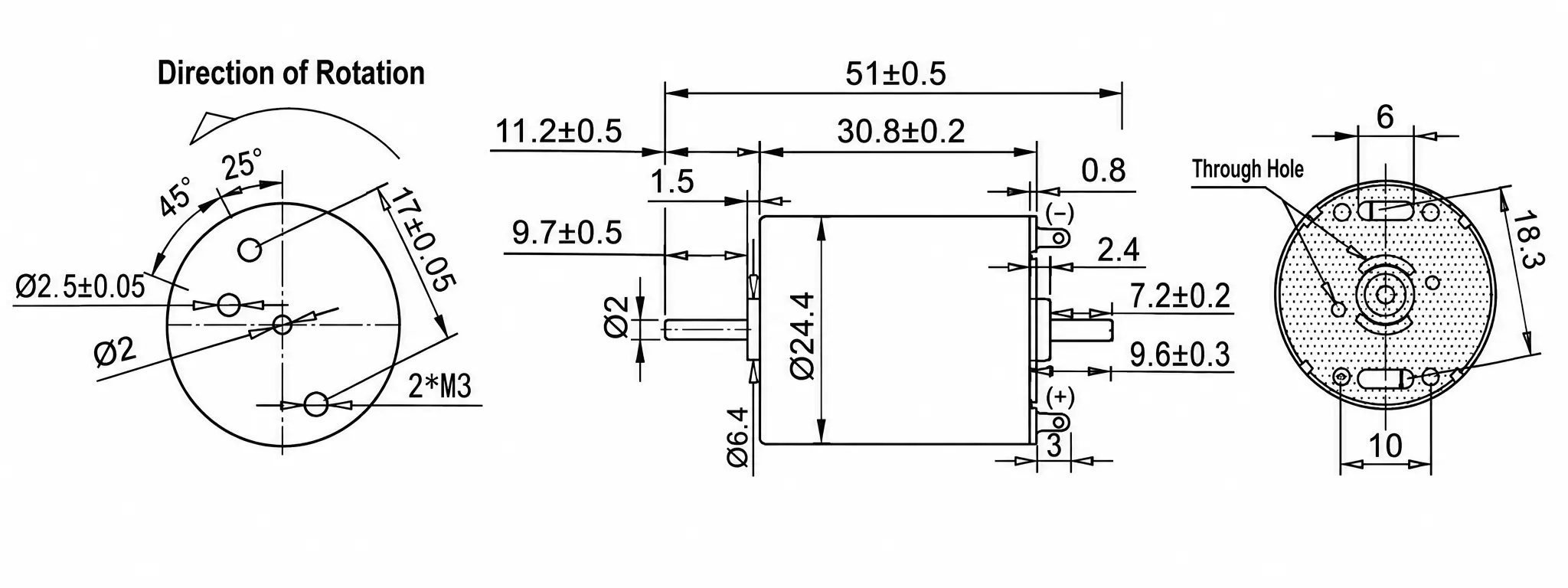

|RS-370 DC Motor Double Shaft Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters.We offer multiple shaft lengths for optional ordering. We support non‑standard customization and have our own CNC machining center.
Note:We can provide customization based on the customer’s requirements, such as output shaft options, bottom‑mount installation, housing‑mount installation, and motor waterproofing.

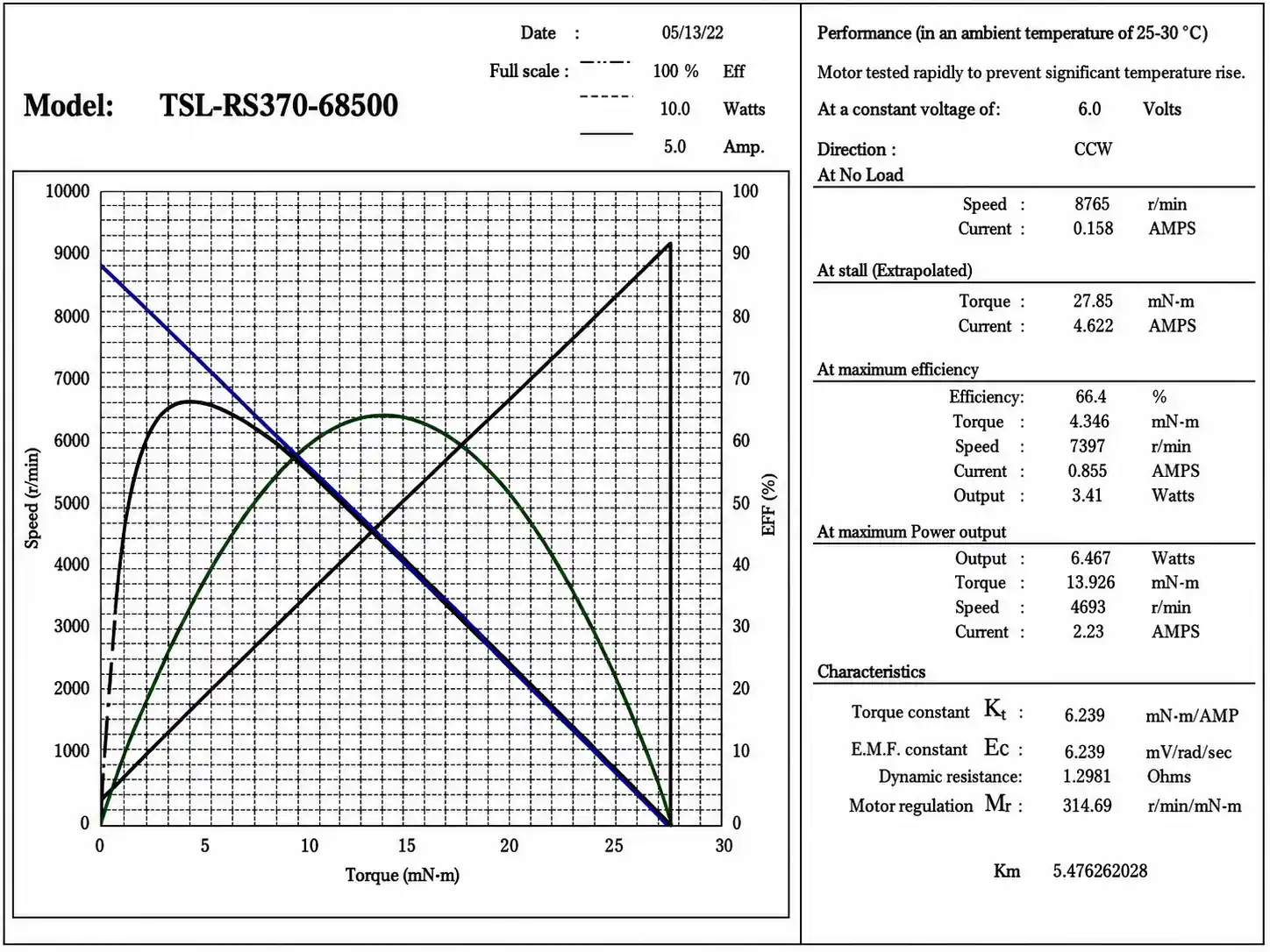

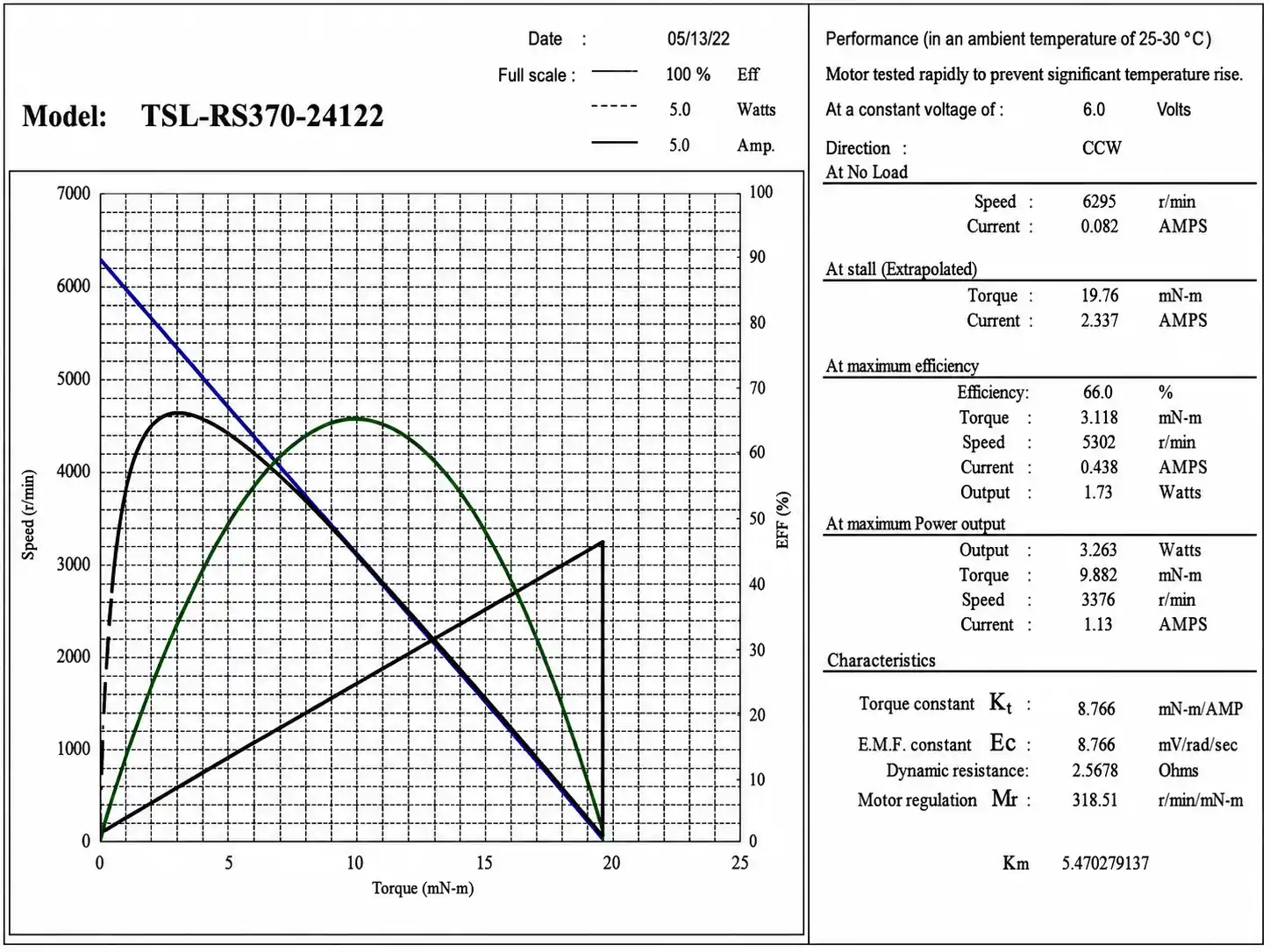

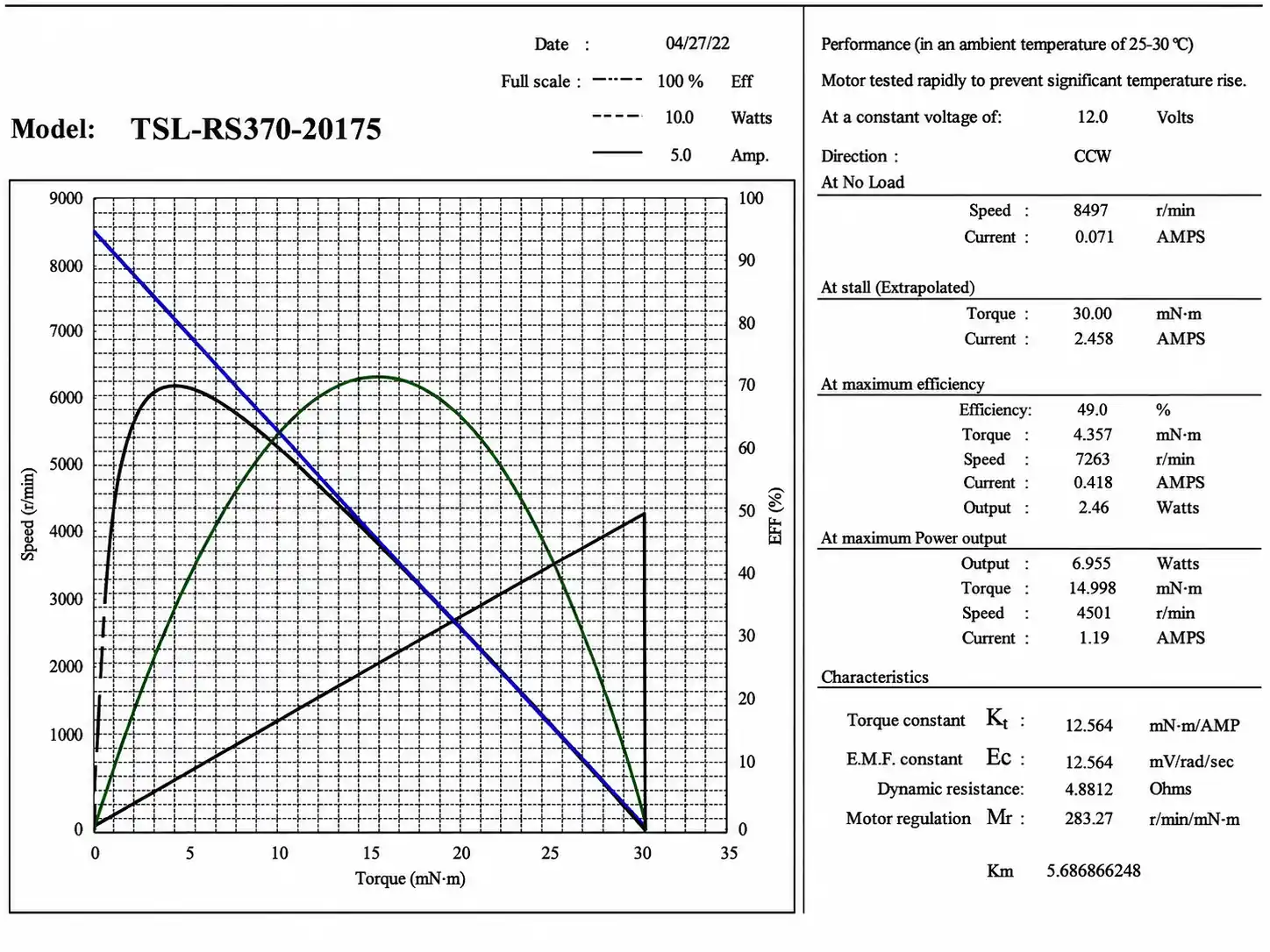

|RS-370 DC Motor Performance Curve
The performance curves are the actual values measured by us.
