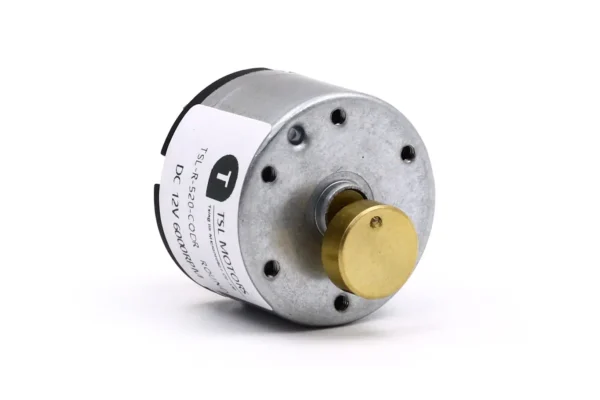

TSL-R-520-CODR 12V ERM vibration motor with dual copper eccentric weights and front mounting holes
Rear insulating end cap of a dual shaft ERM vibration motor showcasing soldering terminals
Close up view of the dual mass copper heads and motor terminals on a brushed DC ERM vibration motor
Side view of TSL industrial ERM vibration motor rated at 12V DC 6000RPM
heavy duty erm vibration motor body
  1. TSL-R-520-CODR 12V ERM vibration motor with dual copper eccentric weights and front mounting holes
  2. Rear insulating end cap of a dual shaft ERM vibration motor showcasing soldering terminals
  3. Close up view of the dual mass copper heads and motor terminals on a brushed DC ERM vibration motor
  4. Side view of TSL industrial ERM vibration motor rated at 12V DC 6000RPM
  5. heavy duty erm vibration motor body

Ø33 x 22.7mm DC Vibration Motor | TSL-R-520-CODR

$6.04

◆ Basic Info

  • Performance parameters are for reference only and can be customized according to customer requirements.

◆ Typical Applications: Massager,Game Controller

Samples Pricing

Quantity Unit Price Savings
1 – 4 USD 6.04 —
5 – 9 USD 5.73 ↓ 5%
10 – 24 USD 5.25 ↓ 13%
25+ USD 4.71 ↓ 22%

📞 Contact us for bulk production pricing

For higher (production) volumes, we offer highly competitive pricing, please Request a Quote. We response within 24h.

✈️ Global Shipping: free express shipping on orders over $150
Guaranteed Safe Checkout

| DC ERM Vibration Motor Specifications

Motor Model TSL-R-520-14385 TSL-R-520-10770 TSL-R-520-20230 TSL-R-520-14460
Voltage Operating Range 9.0-14.0 14.5-26.0 9.0-14.0 14.5-26.0
Voltage Nominal 12 24 12 24
No Load Speed (r/min) 6000 6000 10000 10000
No Load Current (A) 0.078 0.035 0.091 0.041
Max Efficiency Speed (r/min) 4897 4877 8730 8701
Max Efficiency Current (A) 0.347 0.152 0.541 0.264
Max Efficiency Torque (g.cm) 53.8 57.4 43.96 47.43
Max Efficiency Output (W) 2.04 1.79 4.5 4.52
Max Power Speed (r/min) 3318 3334 5395 5274
Max Power Current (A) 0.73 0.31 1.57 0.83
Max Power Torque (g.cm) 146.6 153.7 152.7 176.4
Max Power Output (W) 4.17 3.56 9.12 9.72
Stall Torque (g.cm) 293.3 307.5 305.5 352.9
Stall Current (A) 1.545 0.663 3.222 1.701
Note:We are the original factory.The parameters can be customized based on customer needs. The models listed above are our standard specifications.

|DC ERM Vibration Motor Mechanical Drawing

Unless otherwise stated, all dimensions are in millimeters.

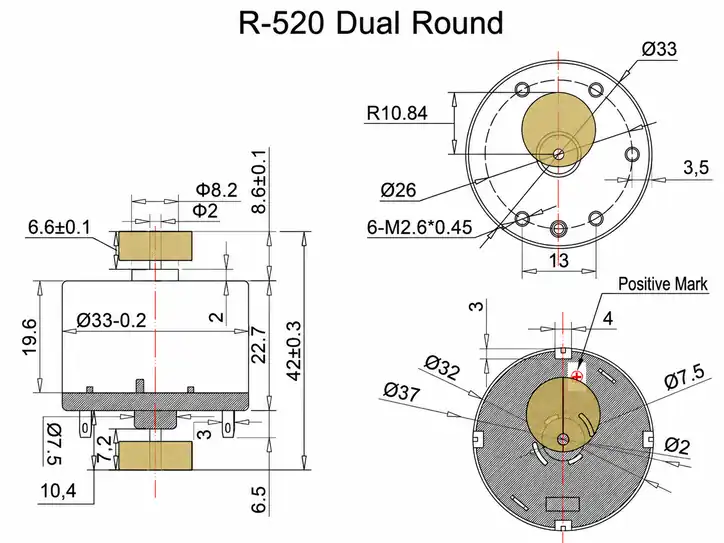

Mechanical dimension blueprint for R-520 dual round copper head ERM vibration motor

| 520 ERM Vibration Motor Performace Curve

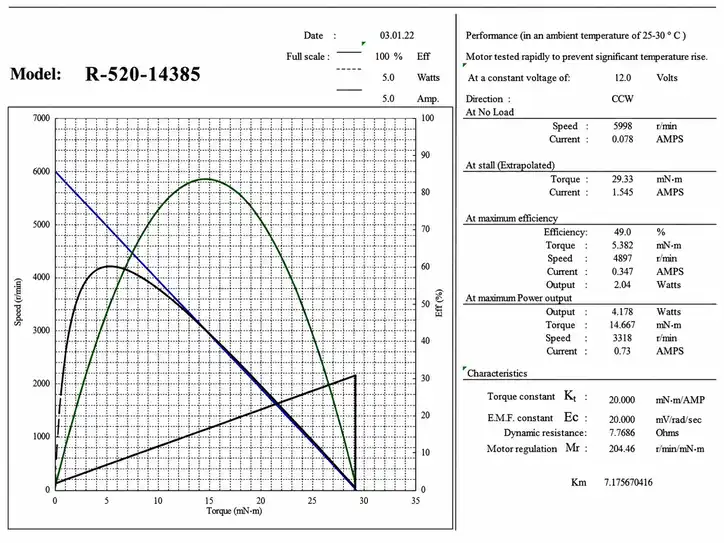

tsl r 520 12v 6000rpm performance curve
tsl r 520 12v 6000rpm performance curve

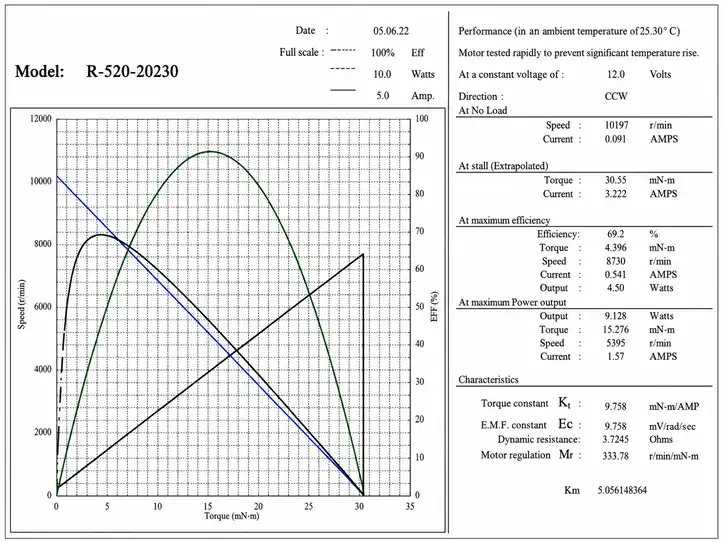

tsl r 520 12v 10000rpm performance curve
tsl r 520 12v 10000rpm performance curve

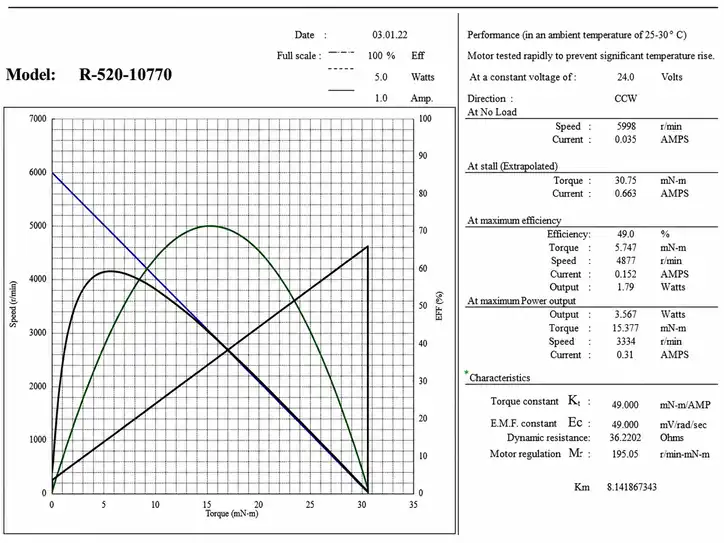

tsl r 520 24v 6000rpm performance curve
tsl r 520 24v 6000rpm performance curve

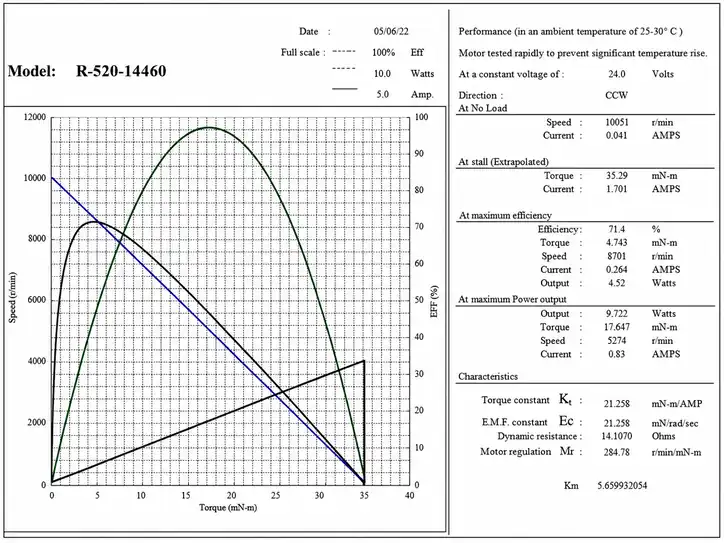

tsl r 520 24v 10000rpm performance curve
tsl r 520 24v 10000rpm performance curve
