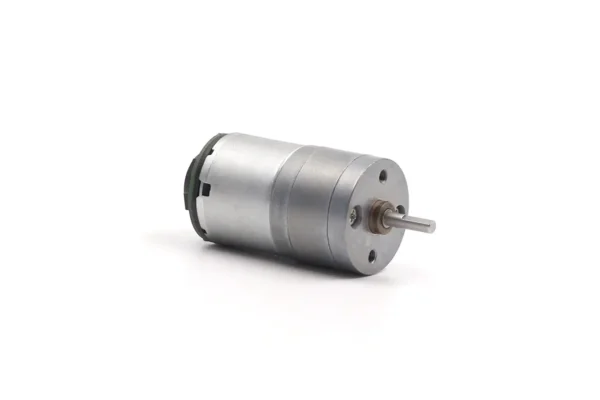

TSL-GM25-310-EN Ø25mm DC gear motor with encoder and multi-stage spur gearbox

Rear view of 25mm DC motor integrated with dual-channel Hall effect encoder and 6-pin terminal block

25mm dc gearbox motor mounting face shaft

Vertical upright view of 25mm brushed DC motor with spur gearbox and Hall encoder

Ø25mm Brushed DC Motor With Spur Gearbox And Encoder | TSL-GM25-310-EN

Price range: $15.04 through $15.90

◆ Basic Info

- Brand: TSL
- Origin: China
- Motor Model: TSL-GM25-310-EN
- Motor Type: Brushed DC Motor
- Gearbox Type:Spur Gearbox
- Rated Voltage: 7.4V
- No Load Speed:43-2100 rpm
- # More Specifications
- # Outline Drawing
- Performance parameters are for reference only and can be customized according to customer requirements.

Download TSL-GM25-310-ENSpecifications

◆ Typical Applications: Smart Balancing Car,Smart Self-Balancing Robot

Samples Pricing(Without Encoder Cover)

Quantity	Unit Price	Savings
1 – 4	USD 15.04	—
5 – 9	USD 14.28	↓ 5%
10 – 24	USD 13.08	↓ 13%
25+	USD 11.73	↓ 22%

📞 Contact us for bulk production pricing

For higher (production) volumes, we offer highly competitive pricing, please Request a Quote. We response within 24h.

✈️ Global Shipping: free express shipping on orders over $150

Specification

Ratio

Clear

Guaranteed Safe Checkout

| DC Gear Motor With Encoder TSL-GM25-310-EN Datasheet

Ratio	Operating Voltage	No Load		Rated			Stall
Ratio	Operating Voltage	Speed	Current	Speed	Current	Torque	Torque	Current
i:1	V DC	RPM±10%	A	RPM±10%	A	Kg.cm	Kg.cm	A
4.4	7.4	2100	≤200	1470	≤0.65	0.1	≥0.25	≤1.4
9.3	7.4	1000	≤200	700	≤0.65	0.2	≥0.5	≤1.4
15.46	7.4	600	≤180	420	≤0.65	0.3	≥0.8	≤1.4
20.41	7.4	450	≤180	325	≤0.65	0.4	≥1.0	≤1.4
34.01	7.4	275	≤180	190	≤0.65	0.7	≥1.5	≤1.4
44.9	7.4	205	≤180	145	≤0.65	0.9	≥2.0	≤1.4
74.83	7.4	125	≤180	110	≤0.65	1.5	≥3.5	≤1.4
98.78	7.4	95	≤180	80	≤0.65	2	≥5.0	≤1.4
164.63	7.4	56	≤180	40	≤0.65	3	≥7.5	≤1.4
217.31	7.4	43	≤180	30	≤0.65	4	can't exceed 9.0Kg.cm	≤1.4
362.18	7.4	25	≤180	18	≤0.65	7		≤1.4
478.08	7.4	19	≤180	14	≤0.65	9		≤1.4

Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

| DC Gear Motor With Encoder TSL-GM25-310-EN Mechanical Drawing

Unless otherwise stated, all motor dimensions are in millimeters.

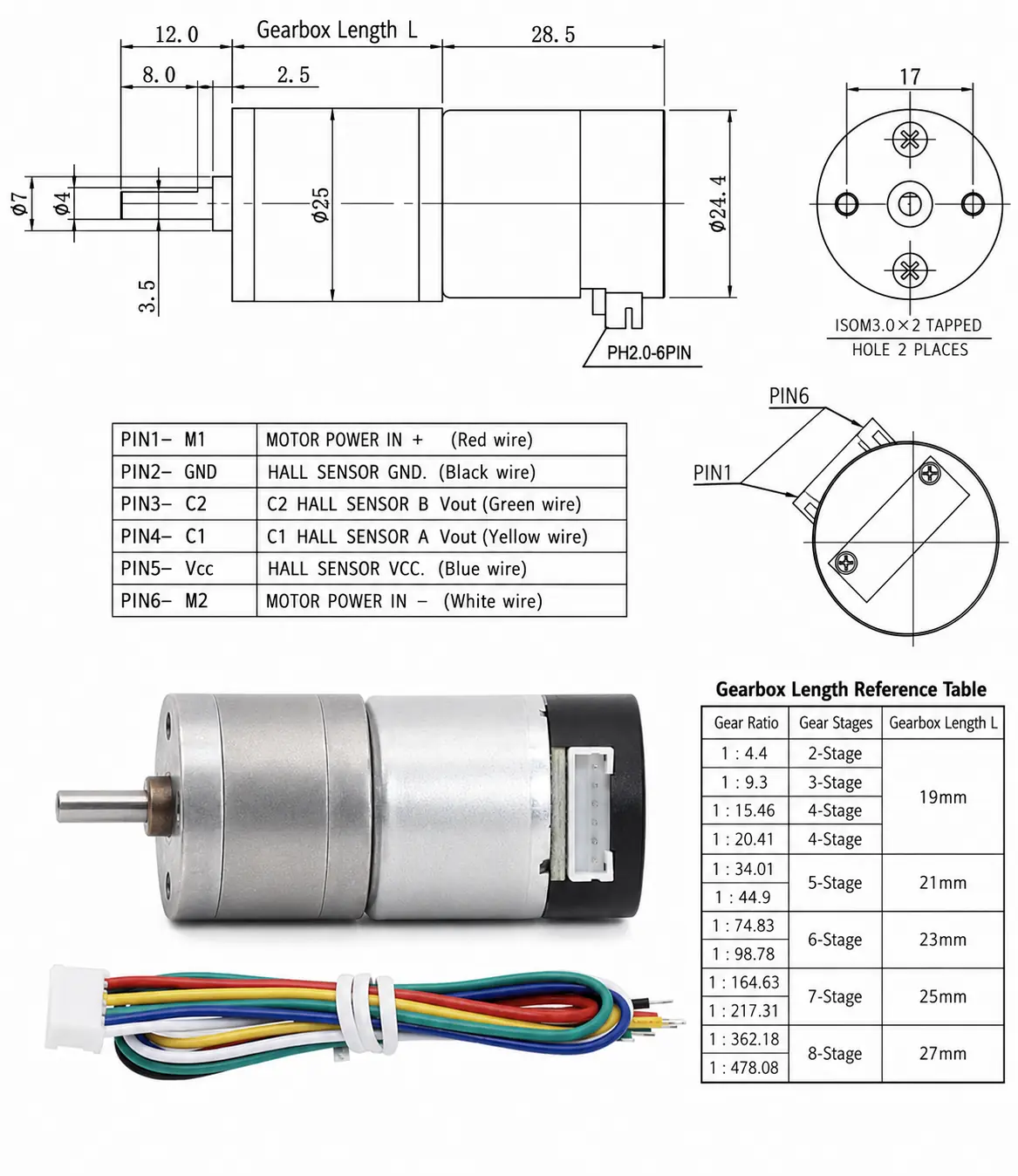

2D mechanical drawing and dimensional specifications for encoder DC motor with standard protective rear cover — 25mm encoder dc gear motor with rear cover dimensions

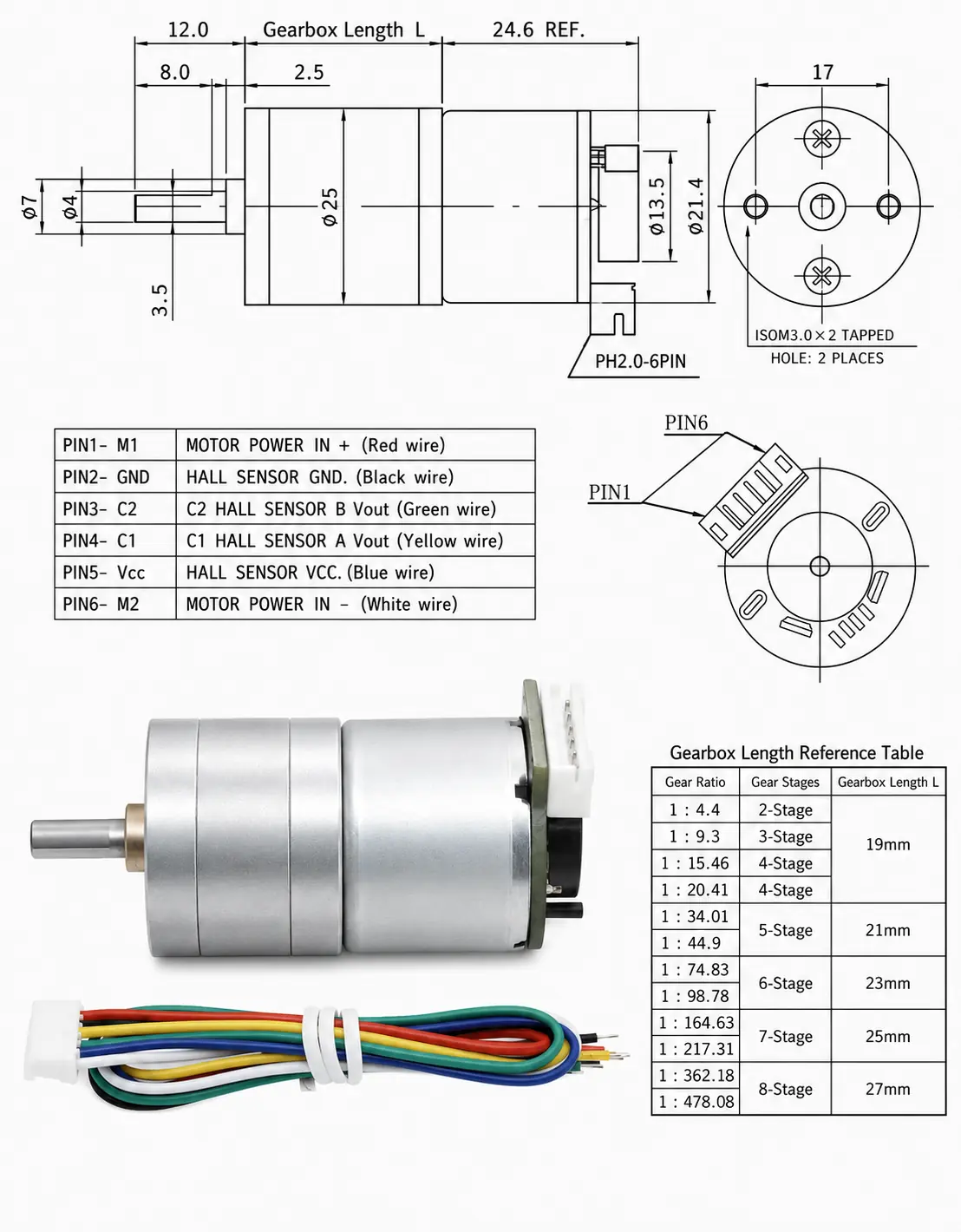

2D structural schematic and dimension layout for encoder DC gear motor variant without rear cover — 25mm encoder dc gear motor without rear cover dimensions

| TSL-GM25-310-EN Encoder Datasheet

Type	AB Dual-Phase Incremental Magnetic Hall Encoder
Line Speed	Basic Pulse 11 PPR x Gear Reduction Ratio
Supply Voltage	DC 3.3V / DC 5.0V
Basic Function	Built-in Pull-up Shaping Resistor, Directly Connectable to Microcontroller
Interface Type	PH2.0-6PIN (Standard Connecting Cable Included)
Output Signal Type	Square Wave AB Phase
Response Frequency	100KHz
Basic Pulse Count	11 PPR x Gear Reduction Ratio
Magnetic Ring Trigger Pole Count	22 Poles (11 Pole Pairs)

| DC Gear Motor With Encoder TSL-GM25-310-EN Connection Mode

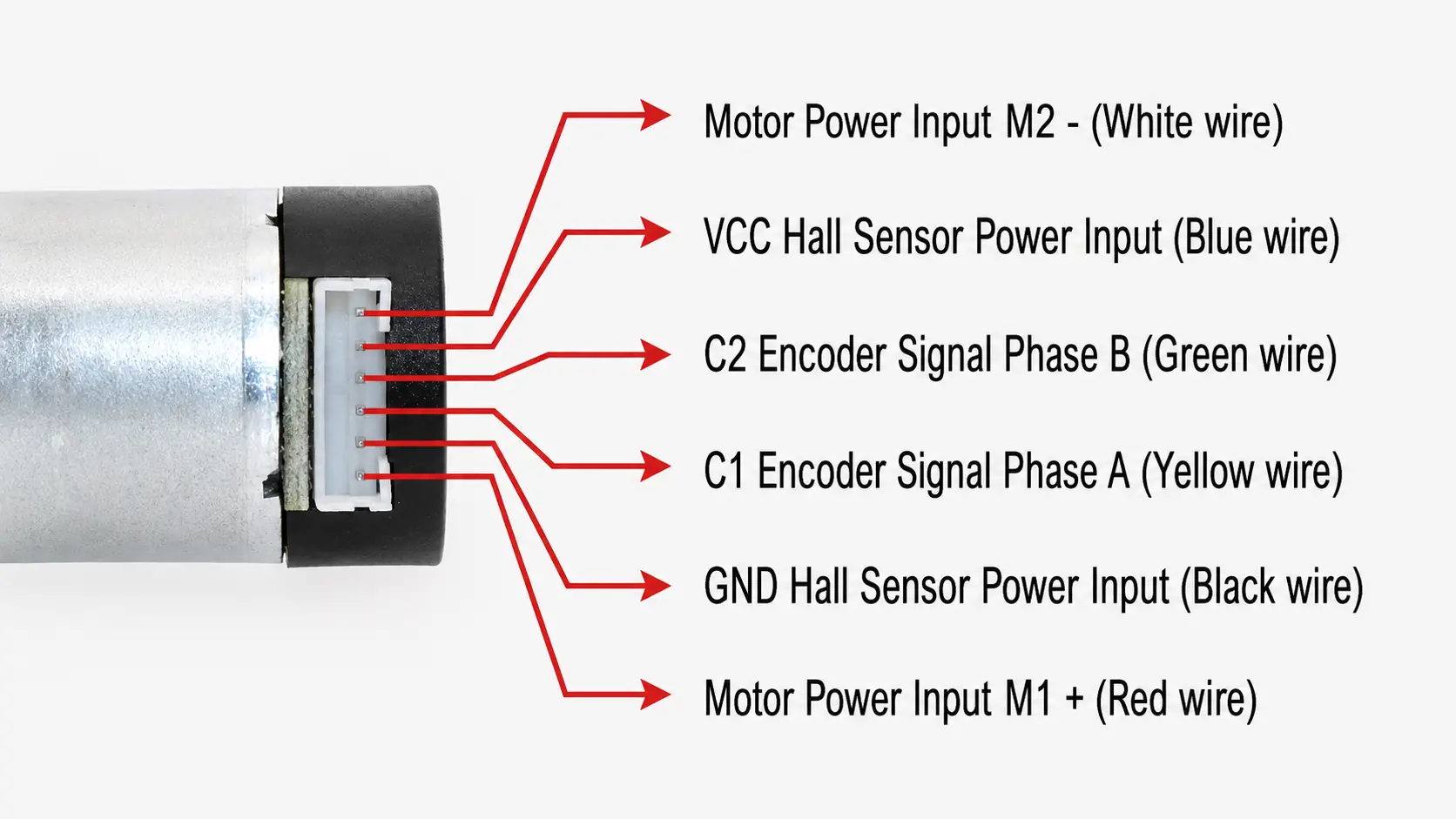

Color-coded pinout description and terminal wire layout schematic for 6-pin Hall sensor encoder connection — ph2 0 6pin hall encoder terminal wiring diagram
