| 36mm Planetary Gear Motor TSL-36GP-555 Datasheet
TSL-36GP-555 , 12V
|
Ratio |
No-Load |
Rated Load |
Stall |
|
Rated Voltage |
Speed |
Current |
Speed |
Current |
Torque |
Torque |
Current |
|
V |
RPM±10% |
A |
RPM±10% |
A |
Kg.cm |
Kg.cm |
A |
|
3.7 |
12 |
2160 |
0.52 |
1850 |
1.3 |
0.74 |
4.75 |
6 |
|
5.18 |
12 |
1544 |
0.53 |
1270 |
1.325 |
1 |
8 |
6 |
|
19 |
12 |
421 |
0.45 |
370 |
1.125 |
3.4 |
16.5 |
6 |
|
27 |
12 |
296 |
0.49 |
260 |
1.225 |
4.9 |
28.5 |
6 |
|
50 |
12 |
160 |
0.43 |
130 |
1.075 |
8.2 |
50 |
6 |
|
71 |
12 |
112 |
0.39 |
90 |
0.975 |
11.6 |
70 |
6 |
|
100 |
12 |
80 |
0.39 |
61 |
0.975 |
16.4 |
93 |
6 |
|
139 |
12 |
57 |
0.43 |
40 |
1.075 |
22.8 |
107 |
6 |
|
189 |
12 |
42 |
0.51 |
33 |
1.275 |
27.6 |
128 |
6 |
|
262 |
12 |
30 |
0.55 |
25 |
1.375 |
38.3 |
160 |
6 |
|
369 |
12 |
21 |
0.5 |
17 |
1.275 |
53.9 |
180 |
6 |
|
516 |
12 |
15 |
0.48 |
12 |
1.2 |
75.4 |
225 |
6 |
|
721 |
12 |
11 |
0.42 |
9 |
1.05 |
100 |
300 |
6 |
Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.
TSL-36GP-555 , 24V
|
Ratio |
No-Load |
Rated Load |
Stall |
|
Rated Voltage |
Speed |
Current |
Speed |
Current |
Torque |
Torque |
Current |
|
V |
RPM±10% |
A |
RPM±10% |
A |
Kg.cm |
Kg.cm |
A |
|
3.7 |
24 |
2160 |
0.2 |
1845 |
0.7 |
0.86 |
4.3 |
7 |
|
5.18 |
24 |
1544 |
0.25 |
1290 |
0.75 |
1.2 |
7.6 |
7 |
|
19 |
24 |
421 |
0.21 |
378 |
0.7 |
4 |
18.5 |
7 |
|
27 |
24 |
296 |
0.25 |
266 |
0.75 |
5.6 |
28.7 |
7 |
|
50 |
24 |
160 |
0.32 |
140 |
0.82 |
9.4 |
53 |
7 |
|
71 |
24 |
112 |
0.33 |
91 |
0.82 |
13.4 |
72.5 |
7 |
|
100 |
24 |
80 |
0.21 |
70 |
0.7 |
18.9 |
90 |
7 |
|
139 |
24 |
57 |
0.3 |
50 |
0.75 |
26.3 |
102 |
7 |
|
189 |
24 |
42 |
0.31 |
37 |
0.75 |
31.9 |
150 |
7 |
|
262 |
24 |
30 |
0.25 |
26 |
0.75 |
44.2 |
175 |
7 |
|
369 |
24 |
21 |
0.26 |
18 |
0.75 |
62.3 |
200 |
7 |
|
516 |
24 |
15 |
0.24 |
12 |
0.75 |
87.2 |
250 |
7 |
|
721 |
24 |
11 |
0.29 |
8 |
0.75 |
100 |
300 |
7 |
Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

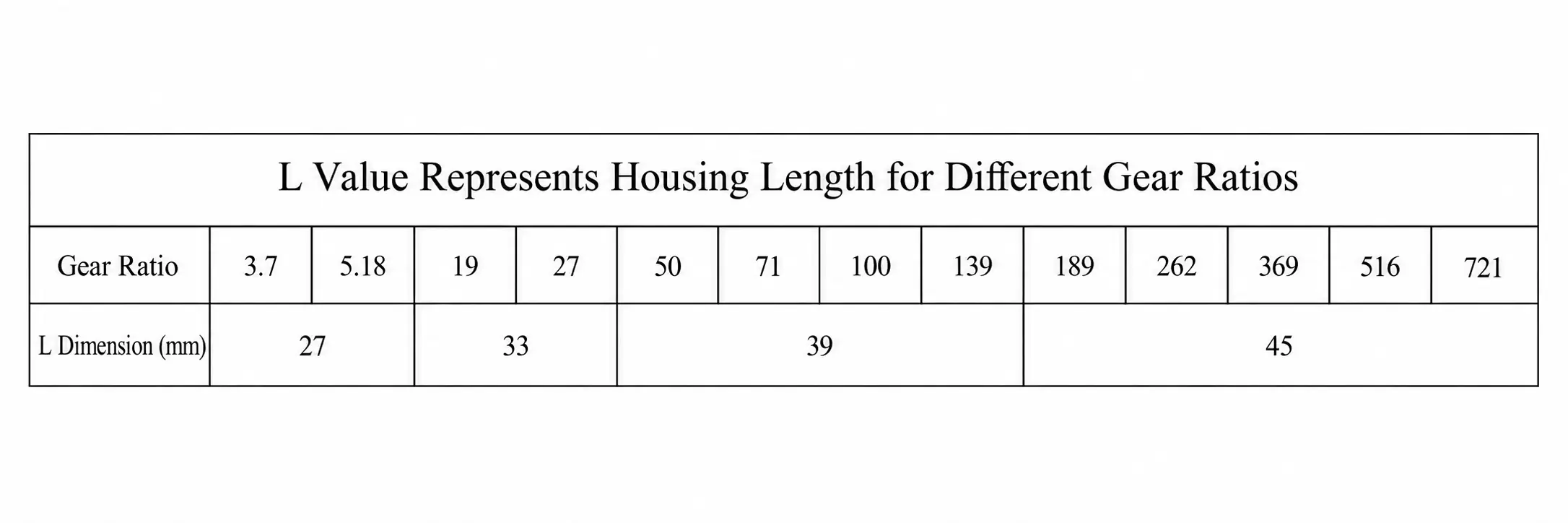

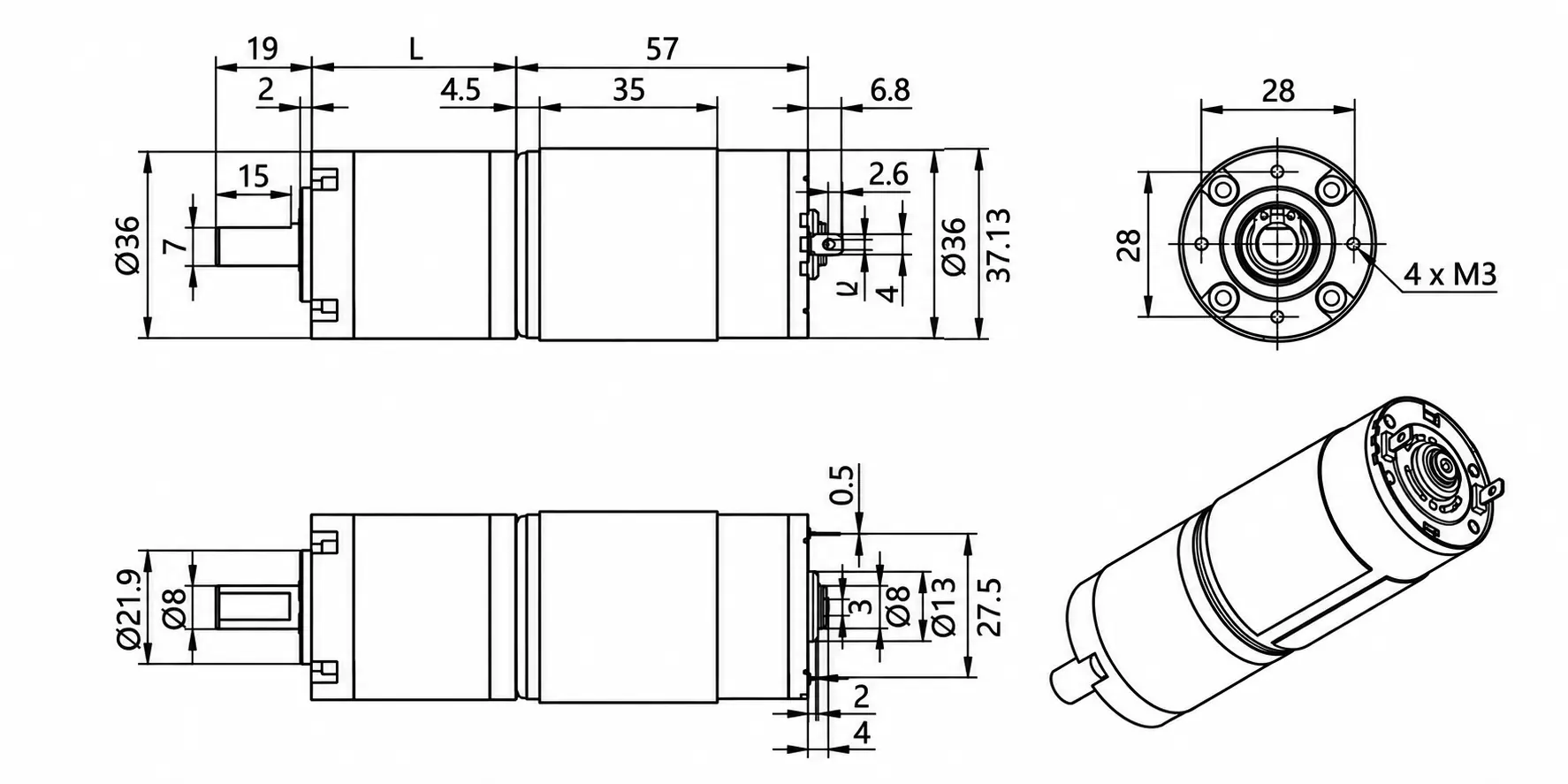

| 36mm Planetary Gear Motor TSL-36GP-555 Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters.
