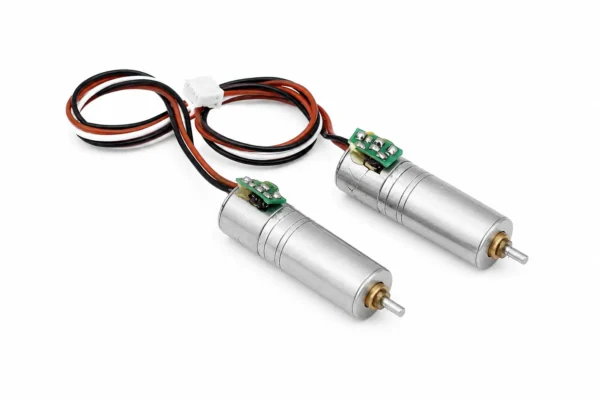

Ø08mm PM Stepper Motor With Planetary Gearbox | TSL-PG8K64-SM08
$320.00
◆ Basic Info
-
- Brand: TSL
- Origin: China
- Motor Model: TSL-PG8K64-SM08
- Motor Type: PM Stepper Motor
- Gearbox Type:Steel Planetary Gearbox
- Rated Voltage: 5V
- Gear Ratio:64:1
- Step Angle:18°/64 Degrees
- Output Torque:≥230 gf·cm (22.5 mN·m) @ 500Hz(PPS)
- # More Specifications
- # Outline Drawing
- Performance parameters are for reference only and can be customized according to customer requirements.
◆ Typical Applications: precision instruments
Samples Pricing
| Quantity | Unit Price | Savings |
|---|---|---|
| 1 – 4 | USD 320 | — |
| 5 – 9 | USD 304 | ↓ 5% |
| 10 – 24 | USD 278.4 | ↓ 13% |
| 25+ | USD 249.6 | ↓ 22% |
📞 Contact us for bulk production pricing
For higher (production) volumes, we offer highly competitive pricing, please Request a Quote. We response within 24h.
✈️ Global Shipping: free express shipping on orders over $150
- Description
- Reviews (0)
- Payment & Shipping
- TSL MOTOR Shop Online Sample Request
- Notice Before Ordering
| 8mm Micro Geared Stepper Motor Datasheet
| Motor Model | TSL-PG8K64-SM08 |
| Rated Voltage | 5.0 VDC |
| Coil Resistance (±10%) | 16.3 Ohms |
| Phase Current | 0.31 A |
| Drive Method | 2-2 PHASE |
| Gear Ratio | 64:1 |
| Drive Circuit | BIPOLAR |
| Output Torque | More than 230 gf·cm (22.5 mN·m) @ 500Hz(PPS) |
| Output Speed | 23.4 RPM @ 500Hz(PPS) |
| Step Angle | 18°/64 Degrees |
| Number of Steps per Rotation | 20*64 |
| Max Response Frequency | At least 1600 Hz(PPS) |
| Type of Gearbox | Planetary |
| Transmission Efficiency | 60%~70% |
| Customized Output Shaft | Available |
| Material of Gears | Metal |
| Material of Gearbox Housing | Metal |
| Operating Temperature | -20°C to +85°C (-4°F to +122°F) |
| Insulation Strength | 100V - 1S VAC |
| Insulation Class | E, 120°C |
| Motor Weight | 8.6 grams |
| Wiring | AWG#30, UL1570 |
Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

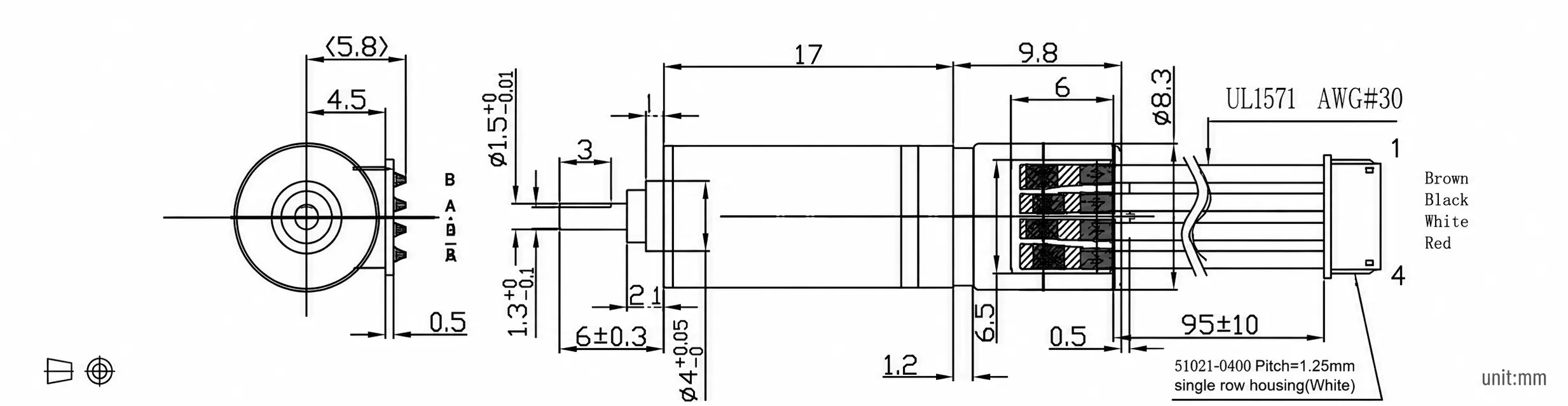

| 8mm Micro Geared Stepper Motor Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters.

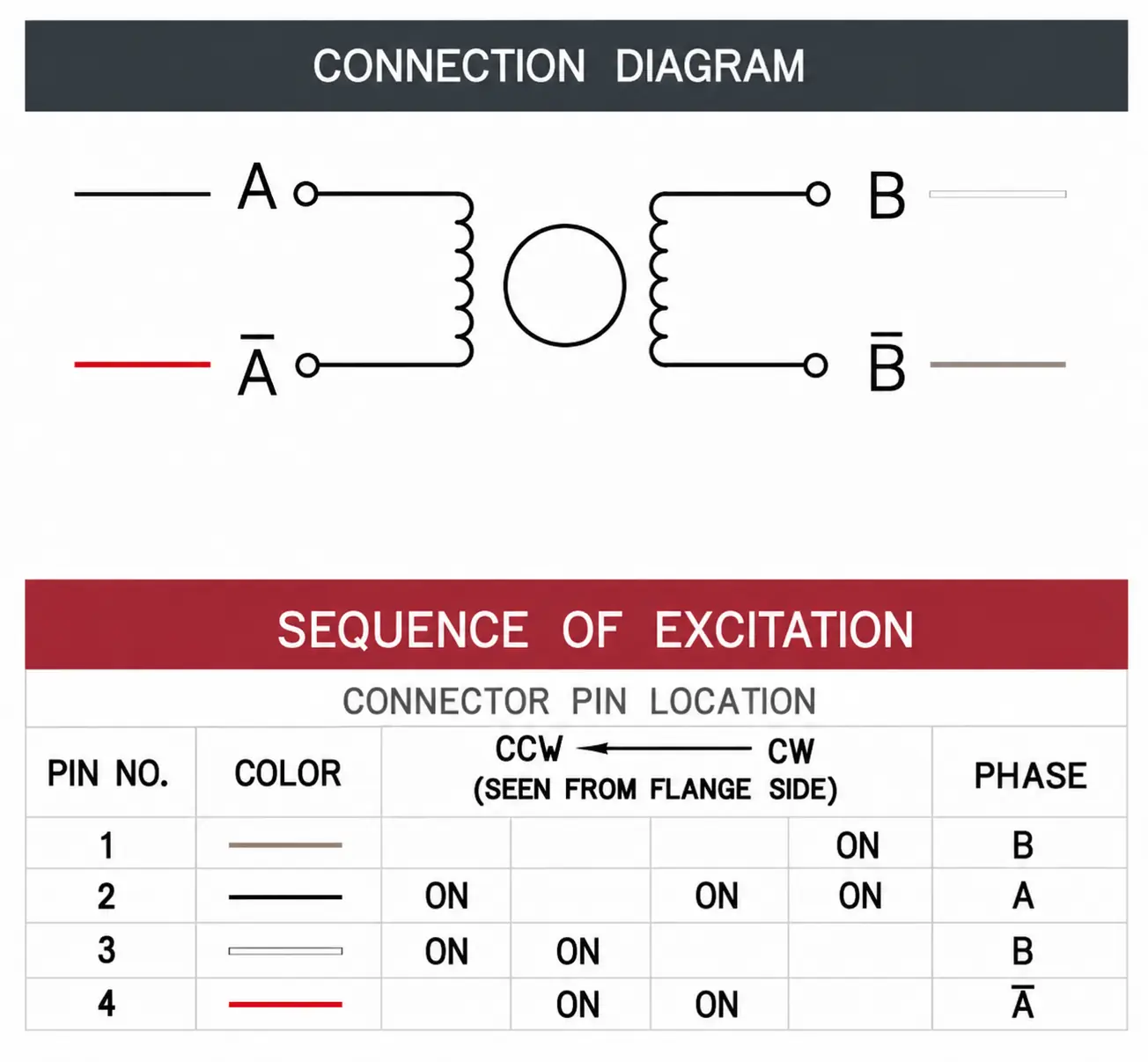

| 8mm Micro Geared Stepper Motor Circuit Diagram
