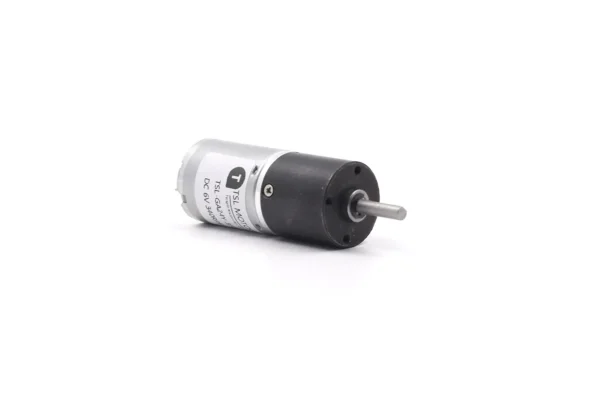

24GAY-370 6V 340RPM brushed DC planetary gear motor with D-cut shaft side view

Rear view of 24GAY-370 brushed planetary gear motor showing electrical solder terminals

tsl 24gay 370 planetary gearbox front view

TSL Motors 24GAY-370 DC 6V 340RPM brushed planetary gear motor label

Ø24mm Brushless DC Motor With Planetary Gearbox | TSL-24GAY-370

$12.00

◆ Basic Info

- Brand: TSL MOTOR
- Origin: China
- Motor Model: TSL-24GAY-370
- Motor Type: Brushed DC Motor
- Gearbox Type:Planetary Gearbox
- Rated Voltage: 6V /12V / 24V
- No Load Speed:9.5-2125 rpm
- # More Specifications
- # Outline Drawing

Performance parameters are for reference only and can be customized according to customer requirements.

Download TSL-24GAY-370 Specifications

◆ Typical Applications: Medical liquid pumps, Peristaltic pumps, Motorized valve control, Automated vending systems, Commercial coffee machines

Samples Pricing

Quantity	Unit Price	Savings
1 – 4	USD 12	—
5 – 9	USD 11.4	↓ 5%
10 – 24	USD 10.44	↓ 13%
25+	USD 9.36	↓ 22%

📞 Contact us for bulk production pricing

For higher (production) volumes, we offer highly competitive pricing, please Request a Quote. We response within 24h.

✈️ Global Shipping: free express shipping on orders over $150

Rated Voltage

Ratio

Clear

Guaranteed Safe Checkout

| Brush Planetary Gear Motor TSL-24GAY-370 Datasheet

TSL-24GAY-370 , 6V , 60 Type

Ratio	No-Load			Rated Load			Stall
	Rated Voltage	Speed	Current	Speed	Current	Torque	Torque	Current
	V	RPM±10%	A	RPM±10%	A	Kg.cm	Kg.cm	A
4	6	1500.0	0.20	1100.0	0.80	0.08	0.30	4.00
16	6	375.0	0.20	275.0	0.80	0.40	1.00	4.00
25	6	240.0	0.20	176.0	0.80	0.50	1.70	4.00
64	6	94.0	0.20	68.0	0.80	1.40	4.40	4.00
88	6	68.0	0.20	50.0	0.80	1.90	6.00	4.00
110	6	54.0	0.20	40.0	0.80	2.40	7.70	4.00
125	6	48.0	0.20	35.0	0.80	2.70	8.70	4.00
138	6	43.0	0.20	32.0	0.80	3.00	9.50	4.00
256	6	23.0	0.20	17.0	0.80	5.50	18.00	4.00
320	6	19.0	0.20	14.0	0.80	7.00	22.00	4.00
400	6	15.0	0.20	11.0	0.80	8.50	28.00	4.00
500	6	12.0	0.20	8.5	0.80	11.00	35.00	4.00
625	6	9.5	0.20	7.0	0.80	13.00	43.00	4.00
Note: Motors with reduction ratio above 400 are prohibited from stall operation.

Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

TSL-24GAY-370 , 6V , 85 Type

Ratio	No-Load			Rated Load			Stall
	Rated Voltage	Speed	Current	Speed	Current	Torque	Torque	Current
	V	RPM±10%	A	RPM±10%	A	Kg.cm	Kg.cm	A
4	6	2125.0	0.30	1650.0	1.20	0.10	0.40	6.50
16	6	531.0	0.30	415.0	1.20	0.40	1.50	6.50
25	6	340.0	0.30	264.0	1.20	0.50	2.00	6.50
64	6	133.0	0.30	103.0	1.20	1.50	5.50	6.50
88	6	96.0	0.30	75.0	1.20	2.00	7.50	6.50
110	6	77.0	0.30	60.0	1.20	2.50	10.00	6.50
125	6	68.0	0.30	53.0	1.20	3.00	11.00	6.50
138	6	61.0	0.30	48.0	1.20	3.50	12.00	6.50
256	6	33.0	0.30	26.0	1.20	6.50	23.00	6.50
320	6	26.0	0.30	20.0	1.20	8.00	28.00	6.50
400	6	21.0	0.30	16.0	1.20	10.00	35.00	6.50
500	6	17.0	0.30	13.0	1.20	13.00	45.00	6.50
625	6	13.0	0.30	10.0	1.20	16.00	55.00	6.50
Note: Motors with reduction ratio above 400 are prohibited from stall operation.

Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

TSL-24GAY-370 , 12V , 60 Type

Ratio	No-Load			Rated Load			Stall
	Rated Voltage	Speed	Current	Speed	Current	Torque	Torque	Current
	V	RPM±10%	A	RPM±10%	A	Kg.cm	Kg.cm	A
4	12	1500.0	0.15	1100.0	0.50	0.08	0.30	2.00
16	12	375.0	0.15	275.0	0.50	0.40	1.00	2.00
25	12	240.0	0.15	176.0	0.50	0.50	1.70	2.00
64	12	94.0	0.15	68.0	0.50	1.40	4.40	2.00
88	12	68.0	0.15	50.0	0.50	1.90	6.00	2.00
110	12	54.0	0.15	40.0	0.50	2.40	7.70	2.00
125	12	48.0	0.15	35.0	0.50	2.70	8.70	2.00
138	12	43.0	0.15	32.0	0.50	3.00	9.50	2.00
256	12	23.0	0.15	17.0	0.50	5.50	18.00	2.00
320	12	19.0	0.15	14.0	0.50	7.00	22.00	2.00
400	12	15.0	0.15	11.0	0.50	8.50	28.00	2.00
500	12	12.0	0.15	8.5	0.50	11.00	35.00	2.00
625	12	9.5	0.15	7.0	0.50	13.00	43.00	2.00
Note: Motors with reduction ratio above 400 are prohibited from stall operation.

Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

TSL-24GAY-370 , 12V , 85 Type

Ratio	No-Load			Rated Load			Stall
	Rated Voltage	Speed	Current	Speed	Current	Torque	Torque	Current
	V	RPM±10%	A	RPM±10%	A	Kg.cm	Kg.cm	A
4	12	2125.0	0.25	1650.0	0.80	0.10	0.40	4.00
16	12	531.0	0.25	415.0	0.80	0.40	1.50	4.00
25	12	340.0	0.25	264.0	0.80	0.50	2.00	4.00
64	12	133.0	0.25	103.0	0.80	1.50	5.50	4.00
88	12	96.0	0.25	75.0	0.80	2.00	7.50	4.00
110	12	77.0	0.25	60.0	0.80	2.50	10.00	4.00
125	12	68.0	0.25	53.0	0.80	3.00	11.00	4.00
138	12	61.0	0.25	48.0	0.80	3.50	12.00	4.00
256	12	33.0	0.25	26.0	0.80	6.50	23.00	4.00
320	12	26.0	0.25	20.0	0.80	8.00	28.00	4.00
400	12	21.0	0.25	16.0	0.80	10.00	35.00	4.00
500	12	17.0	0.25	13.0	0.80	13.00	45.00	4.00
625	12	13.0	0.25	10.0	0.80	16.00	55.00	4.00
Note: Motors with reduction ratio above 400 are prohibited from stall operation.

Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

TSL-24GAY-370 , 24V , 60 Type

Ratio	No-Load			Rated Load			Stall
	Rated Voltage	Speed	Current	Speed	Current	Torque	Torque	Current
	V	RPM±10%	A	RPM±10%	A	Kg.cm	Kg.cm	A
4	24	1500.0	0.10	1100.0	0.40	0.08	0.30	1.00
16	24	375.0	0.10	275.0	0.40	0.40	1.00	1.00
25	24	240.0	0.10	176.0	0.40	0.50	1.70	1.00
64	24	94.0	0.10	68.0	0.40	1.40	4.40	1.00
88	24	68.0	0.10	50.0	0.40	1.90	6.00	1.00
110	24	54.0	0.10	40.0	0.40	2.40	7.70	1.00
125	24	48.0	0.10	35.0	0.40	2.70	8.70	1.00
138	24	43.0	0.10	32.0	0.40	3.00	9.50	1.00
256	24	23.0	0.10	17.0	0.40	5.50	18.00	1.00
320	24	19.0	0.10	14.0	0.40	7.00	22.00	1.00
400	24	15.0	0.10	11.0	0.40	8.50	28.00	1.00
500	24	12.0	0.10	8.5	0.40	11.00	35.00	1.00
625	24	9.5	0.10	7.0	0.40	13.00	43.00	1.00
Note: Motors with reduction ratio above 400 are prohibited from stall operation.

Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

TSL-24GAY-370 , 24V , 85 Type

Ratio	No-Load			Rated Load			Stall
	Rated Voltage	Speed	Current	Speed	Current	Torque	Torque	Current
	V	RPM±10%	A	RPM±10%	A	Kg.cm	Kg.cm	A
4	24	2125.0	0.15	1650.0	0.60	0.10	0.40	2.20
16	24	531.0	0.15	415.0	0.60	0.40	1.50	2.20
25	24	340.0	0.15	264.0	0.60	0.50	2.00	2.20
64	24	133.0	0.15	103.0	0.60	1.50	5.50	2.20
88	24	96.0	0.15	75.0	0.60	2.00	7.50	2.20
110	24	77.0	0.15	60.0	0.60	2.50	10.00	2.20
125	24	68.0	0.15	53.0	0.60	3.00	11.00	2.20
138	24	61.0	0.15	48.0	0.60	3.50	12.00	2.20
256	24	33.0	0.15	26.0	0.60	6.50	23.00	2.20
320	24	26.0	0.15	20.0	0.60	8.00	28.00	2.20
400	24	21.0	0.15	16.0	0.60	10.00	35.00	2.20
500	24	17.0	0.15	13.0	0.60	13.00	45.00	2.20
625	24	13.0	0.15	10.0	0.60	16.00	55.00	2.20
Note: Motors with reduction ratio above 400 are prohibited from stall operation.

Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

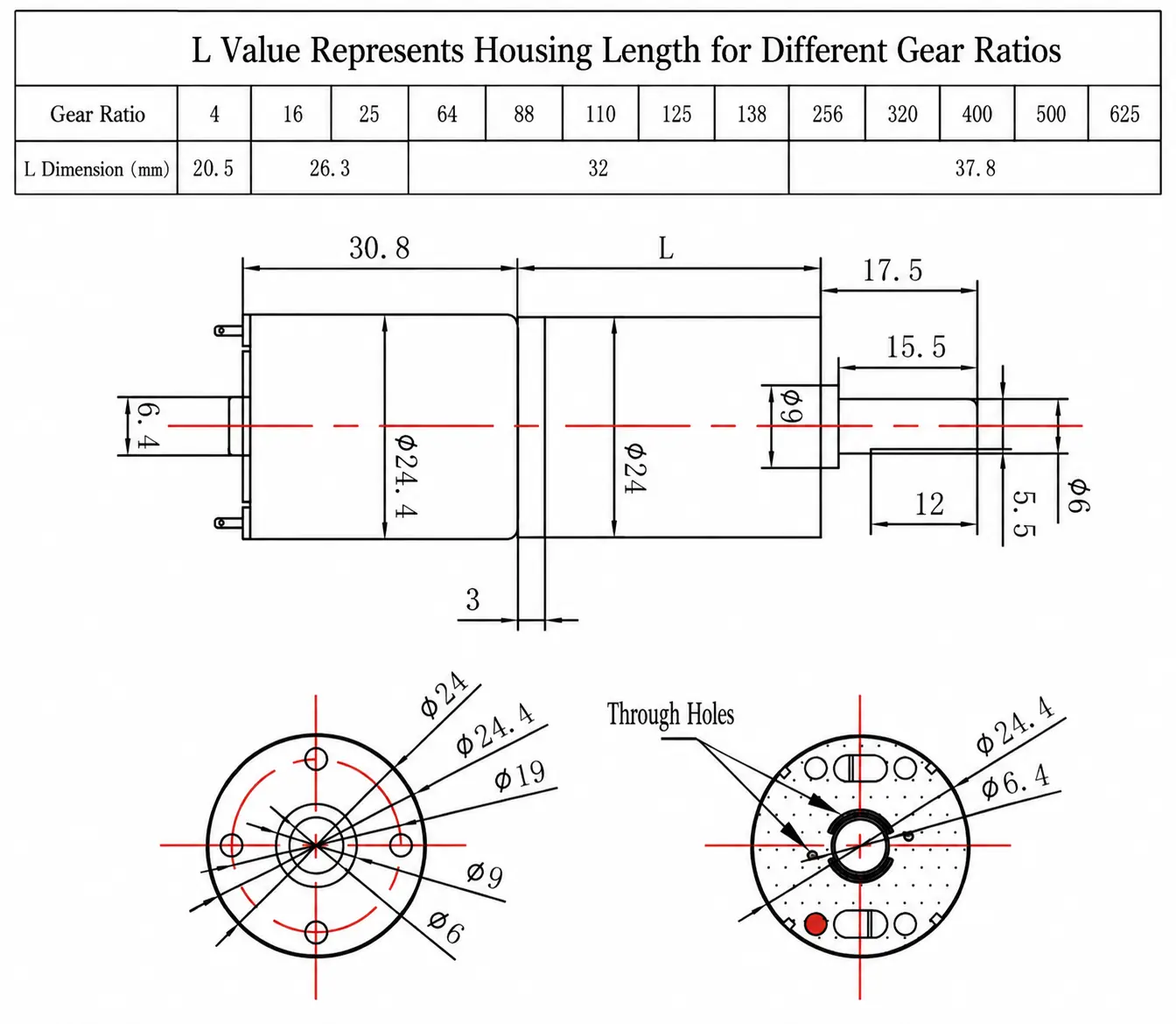

| Brush Planetary Gear Motor TSL-24GAY-370 Mechanical Drawing

Unless otherwise stated, all dimensions are in millimeters.

Dimension technical drawing and gear ratio length table for 24GAY-370 motor
