TSL-BLDC-WKU2510 hollow shaft frameless brushless motor on white background

Ø25 x 10.9mm Frameless Inrunner Torque Motor​ | TSL-BLDC-WKU2510

$103.18

◆ Basic Info

  • Brand: TSL
  • Origin: China
  • Motor Model: TSL-BLDC-WKU2510
  • Motor Type: Inrunner Frameless Torque Motor
  • Rated Voltage: 24V DC
  • Rated Output Power: 15.7
  • Peak Speed: 8000rpm
  • Number of poles pairs(2P): 7
  • # More Specifications
  • # Outline Drawing
  • # Downloads
  • Performance parameters are for reference only and can be customized according to customer requirements.

◆ Typical Applications: Robot-joint, Exoskeleton, End-effector, Lidar, Gimbal

Samples Pricing

Quantity Unit Price Savings
1 – 4 USD 103.18 —
5 – 9 USD 98.02 ↓ 5%
10 – 24 USD 89.76 ↓ 13%
25+ USD 80.48 ↓ 22%

📞 Contact us for bulk production pricing

For higher (production) volumes, we offer highly competitive pricing, please Request a Quote. We response within 24h.

✈️ Global Shipping: free express shipping on orders over $150
Guaranteed Safe Checkout

| Frameless Inrunner Torque Motor​ WKU2510 Datasheet

Compact Frameless Design. Maximum Space Savings. Only 25mm in diameter, yet packs a powerful 15.7W output. Perfect for tight spaces in surgical robots, micro-grippers, and high-end automation.

High Torque Density. Instantaneous Response. Delivers up to 0.075N·m peak torque with ultra-low inertia. Review the comprehensive U25 series specifications below to find your perfect fit:

Motor Model TSL-BLDC-WKU2510
Main Parameters Unit -
Voltage (VDC) V 24
Rated Output Power W 15.7
Rated Torque N.m 0.025
Instantaneous Peak Torque N.m 0.075
Rated Current A 2
Instantaneous Peak Current A 6
Rated Speed rpm 6000
Maximum Speed rpm 8000
Torque Constant Nm/A 0.0125
Rotor Moment of Inertia kg.cm² 0.002
Back EMF Constant V/Krpm 0.85
Phase Resistance Ω 0.72
Phase Inductance mH 0.13
Number of Pole Pairs (2P) Pairs 7
Motor Weight kg 0.02
Cogging Torque mN.m 0.45 (Reference Value)
L1 (Core Height) mm 6.3
L2 (Rotor Height) mm 7.3
L3 (Overall Height) mm 10.9

Note:We are the original factory. The parameters can be customized based on customer needs. The models listed above are our standard specifications.

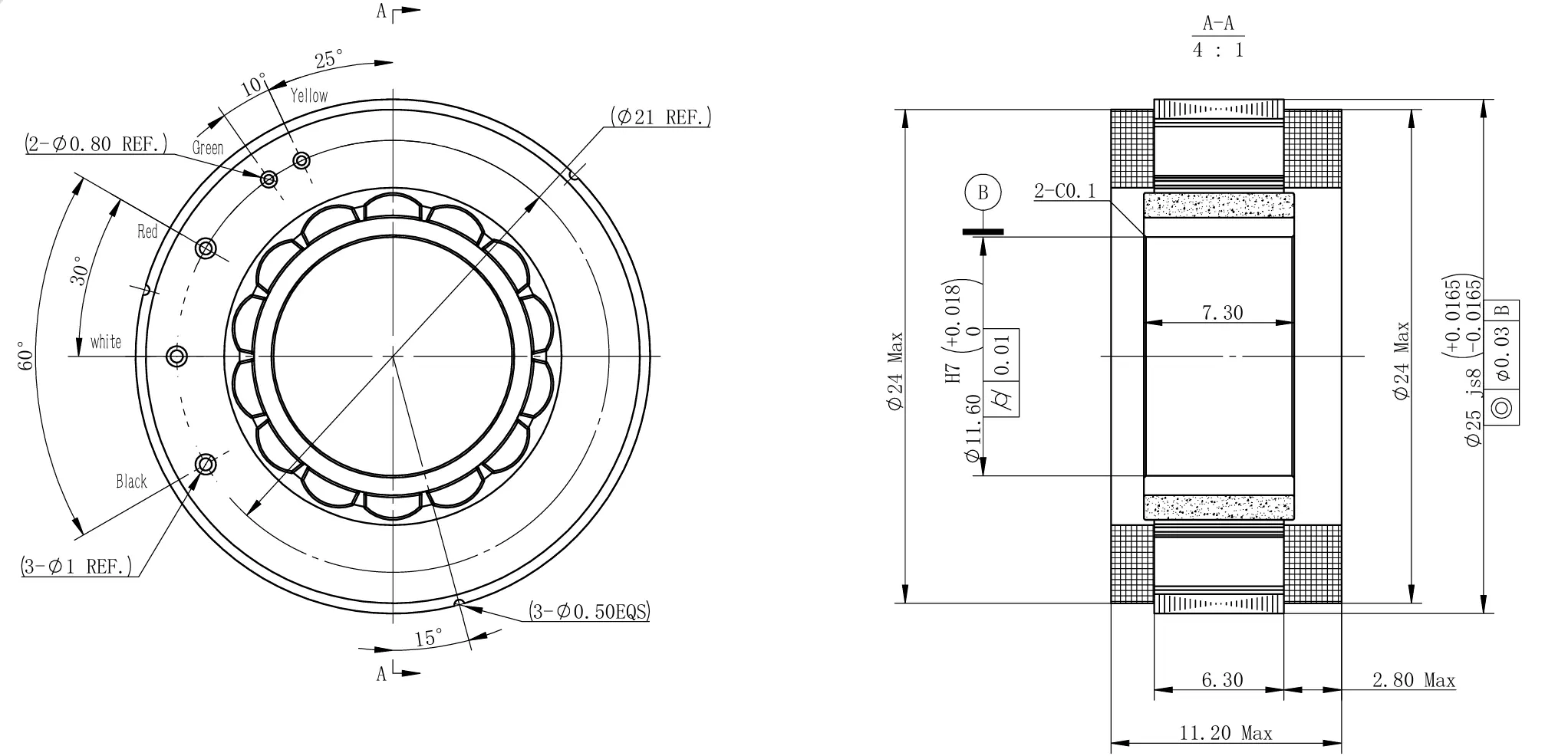

| Frameless Inrunner Torque Motor​ WKU2510 Drawing

Unless otherwise stated, all dimensions are in millimeters.We offer multiple shaft lengths for optional ordering. We support non‑standard customization and have our own CNC machining center.

Engineering 2D CAD blueprint and pinout diagram for TSL-BLDC-U2510 frameless motor
