Ø14.9 x 6mm Frameless Outrunner Torque Motor | TSL-BLDC-WK1105

$14.21

◆ Basic Info

Brand: TSL
Origin: China
Motor Model: TSL-BLDC-WK1105
Motor Type: Outrunner Frameless Torque Motor
Rated Voltage: 12V DC
Rated Current: 0.59A
Peak Speed: 18057rpm
Number of poles pairs: 6
# More Specifications
# Outline Drawing
# Downloads
Performance parameters are for reference only and can be customized according to customer requirements.

◆ Typical Applications: Robot Dexterous Hand, Surgical Robotic Tool, Drone Gimbal Pod, Miniature LiDAR Scanner, Rehabilitation Exoskeleton

Samples Pricing

Quantity	Unit Price	Savings
1 – 4	USD 14.21	—
5 – 9	USD 13.49	↓ 5%
10 – 24	USD 12.36	↓ 13%
25+	USD 11.08	↓ 22%

📞 Contact us for bulk production pricing

For higher (production) volumes, we offer highly competitive pricing, please Request a Quote. We response within 24h.

✈️ Global Shipping: free express shipping on orders over $150

Specification

Clear

Guaranteed Safe Checkout

| Micro Frameless Outrunner Torque Motor Datasheet

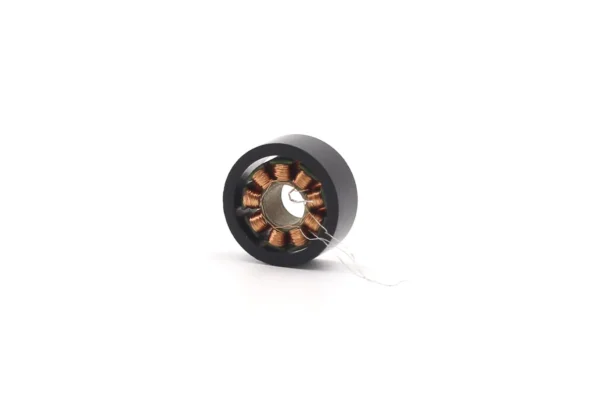

The TSL-BLDC-WK1105 is an outer rotor frameless torque motor engineered for high-precision and weight-sensitive applications. Featuring an ultra-compact outer diameter of just 14.9 mm and a weight of only 6g, it delivers a remarkable peak speed of up to 18,057 RPM. This exceptional blend of high power density and a micro-footprint provides the ultimate core driving force for your precision devices.

Utilizing an advanced magnetic ring version frameless structure, this motor eliminates traditional housing constraints to maximize your mechanical design freedom and overall system integration. All electrical and mechanical parameters listed in the table below are provided for reference and can be fully customized to match your specific application needs, ensuring your product stands out in the market.

Parameters	Unit	TSL-BLDC-WK1105CH-12
Rated voltage	V	12
Rated current	A	0.59
Rated torque	N·m	0.01
Rated speed	RPM	850
Peak speed	RPM	18057
Peak torque (Stall torque)	N·m	0.01
Peak current (Stall current)	A	0.92
Winding turns of motor	T	50
Interphase resistance	Ω	12.5
Interphase inductance	mH	1.15
Speed constant	rpm/V	1505
Torque constant	N·m/A	0.01
Rotor inertia	g·cm²	1.00
Number of pole pairs	Pairs	6.00
Motor weight	g	6
Working temperature	°C	-20~80
Peak demagnetize temperature	°C	120
Inner diameter of the stator	mm	5
Motor size	mm	Ø14.9*6.25

Note:We are the original factory. For OEM/ODM cooperation, the parameters can be customized based on customer needs. The models listed above are our standard specifications.

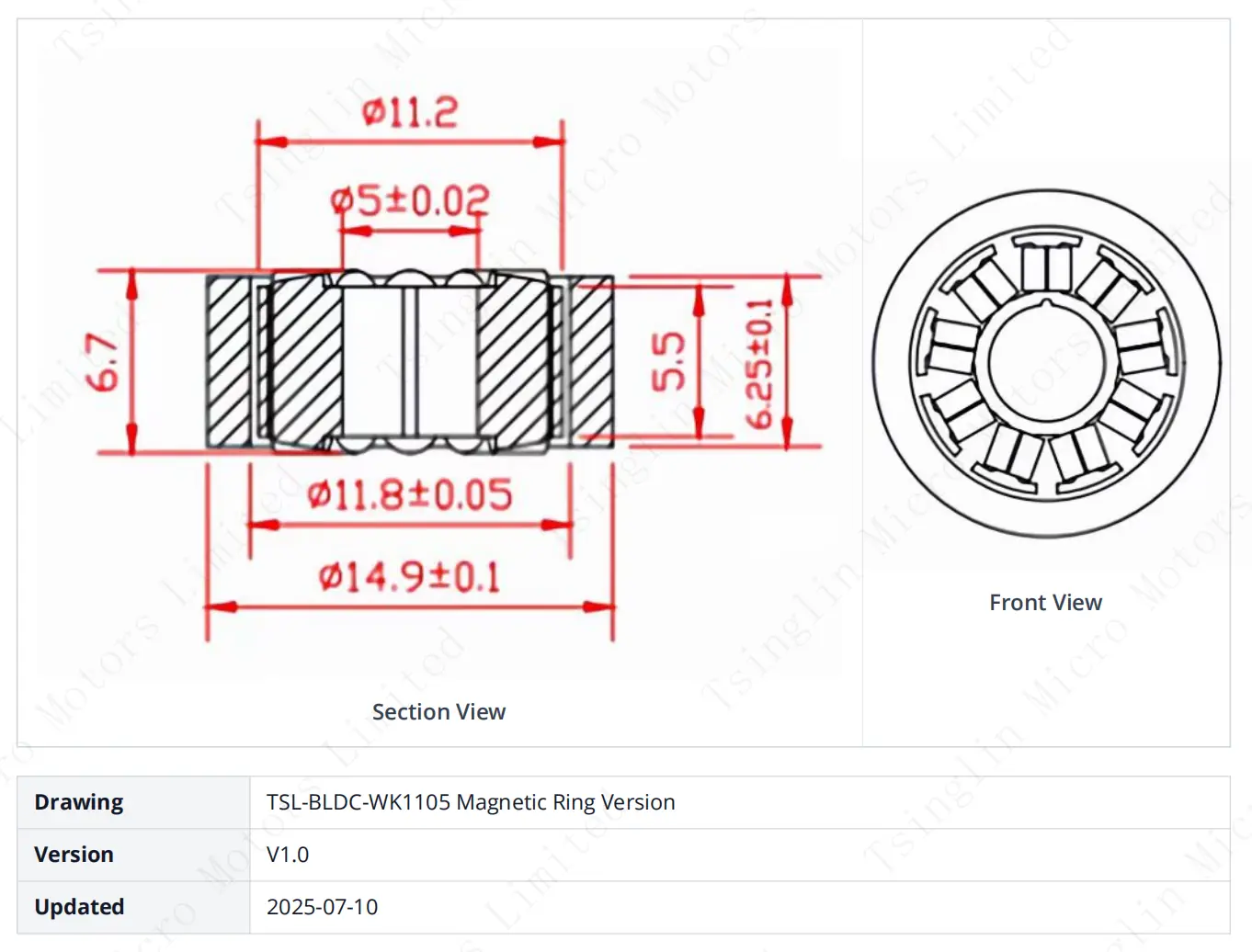

| Mini Frameless Outrunner Torque Motor 1105 Mechanical Drawing

Unless otherwise stated, all dimensions are in millimeters.We offer multiple shaft lengths for optional ordering. We support non‑standard customization and have our own CNC machining center.

TSL-BLDC-WK1105 Frameless Torque Motor Specifications — micro frameless outrunner torque motor tsl bldc wk1105 drawing
