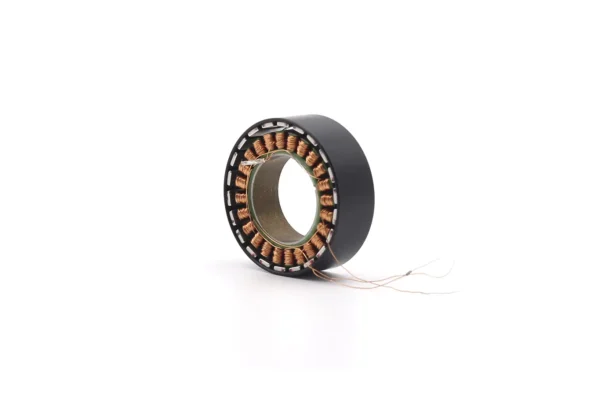

Ø40 x 13.7mm Frameless Outrunner Torque Motor | TSL-BLDC-WK3510

Price range: $22.82 through $25.67

◆ Basic Info

Brand: TSL
Origin: China
Motor Model: TSL-BLDC-WK3510
Motor Type: Outrunner Frameless Torque Motor
Rated Voltage: 12V DC
Rated Current: 0.53A
Peak Speed:965rpm
Number of poles pairs: 11
# More Specifications
# Outline Drawing
# Downloads
Performance parameters are for reference only and can be customized according to customer requirements.

◆ Typical Applications:

Humanoid dexterous hands
Surgical robotics
Precision micro gimbals
Drone camera stabilizers
Exoskeleton joint modules

Performance parameters are for reference only and can be customized according to customer requirements.

Samples Pricing

Specification	Quantity	Unit Price	Savings
TSL-BLDC-WK3510CH-9( Magnetic Ring Version )	1 – 4	USD 22.82	—
TSL-BLDC-WK3510CH-9(( Magnetic Ring Version )	5 – 9	USD 21.67	↓ 5%
TSL-BLDC-WK3510CH-9(( Magnetic Ring Version )	10 – 24	USD 19.85	↓ 13%
TSL-BLDC-WK3510CH-9(( Magnetic Ring Version )	25+	USD 17.79	↓ 22%
TSL-BLDC-WK3510CP-9( Magnetic Plate Version )	1 – 4	USD 25.67	—
TSL-BLDC-WK3510CP-9(( Magnetic Plate Version )	5 – 9	USD 24.38	↓ 5%
TSL-BLDC-WK3510CP-9( Magnetic Plate Version )	10 – 24	USD 22.33	↓ 13%
TSL-BLDC-WK3510CP-9( Magnetic Plate Version )	25+	USD 20.02	↓ 22%

📞 Contact us for bulk production pricing

For higher (production) volumes, we offer highly competitive pricing, please Request a Quote. We response within 24h.

✈️ Global Shipping: free express shipping on orders over $150

Specification

Clear

Guaranteed Safe Checkout

| High Torque Frameless Outrunner Motor WK3510 Datasheet

The TSL-BLDC-3510 is a high-torque frameless outrunner motor consisting purely of a compact stator and rotor. By eliminating traditional housings and bearings, this outrunner configuration allows for direct structural integration, offering engineers maximum torque density and exceptional space savings in a micro form factor.

Optimized for 12V systems, this 11-pole-pair motor delivers up to 0.16 N·m of peak torque. It is available in two configurations to balance weight and power: the high-torque WK3510CP-9 (magnetic sheet) and the ultra-lightweight WK3510CH-9 (magnetic ring), making it the ideal frameless outrunner motor for robotic joints, gimbals, and precision automation.

Motor Model		TSL-BLDC-WK3510CP-9	TSL-BLDC-WK3510CH-9
Parameters	Unit	Value
Rated voltage	V	12	12
Rated current	A	0.53	0.53
Rated torque	N.M	0.11	0.06
Rated Speed	RPM	363	363
Peak Speed	RPM	965	965
Peak torque	N.M	0.16	0.08
Peak current	A	0.80	0.80
Winding turns of motor	T	40	40
Interphase resistance	Ω	8.53	8.53
Interphase inductance	mH	1.90	1.90
Speed constant	rpm/v	80	80
Torque constant	N.M/A	0.20	0.10
Rotor inertia	gcm^2	76.00	33.00
Number of pole pairs	Pairs	11.00	11.00
Motor weight	g	47	36
Working temperature	℃	-20 ~ 80	-20 ~ 80
Peak demagnetize temperature	℃	120	120
Inner diameter of the stator	mm	22	22
Motor Size	mm	Ø40*13.7	Ø38.4*13

Note:We are the original factory. The parameters can be customized based on customer needs. The models listed above are our standard specifications.

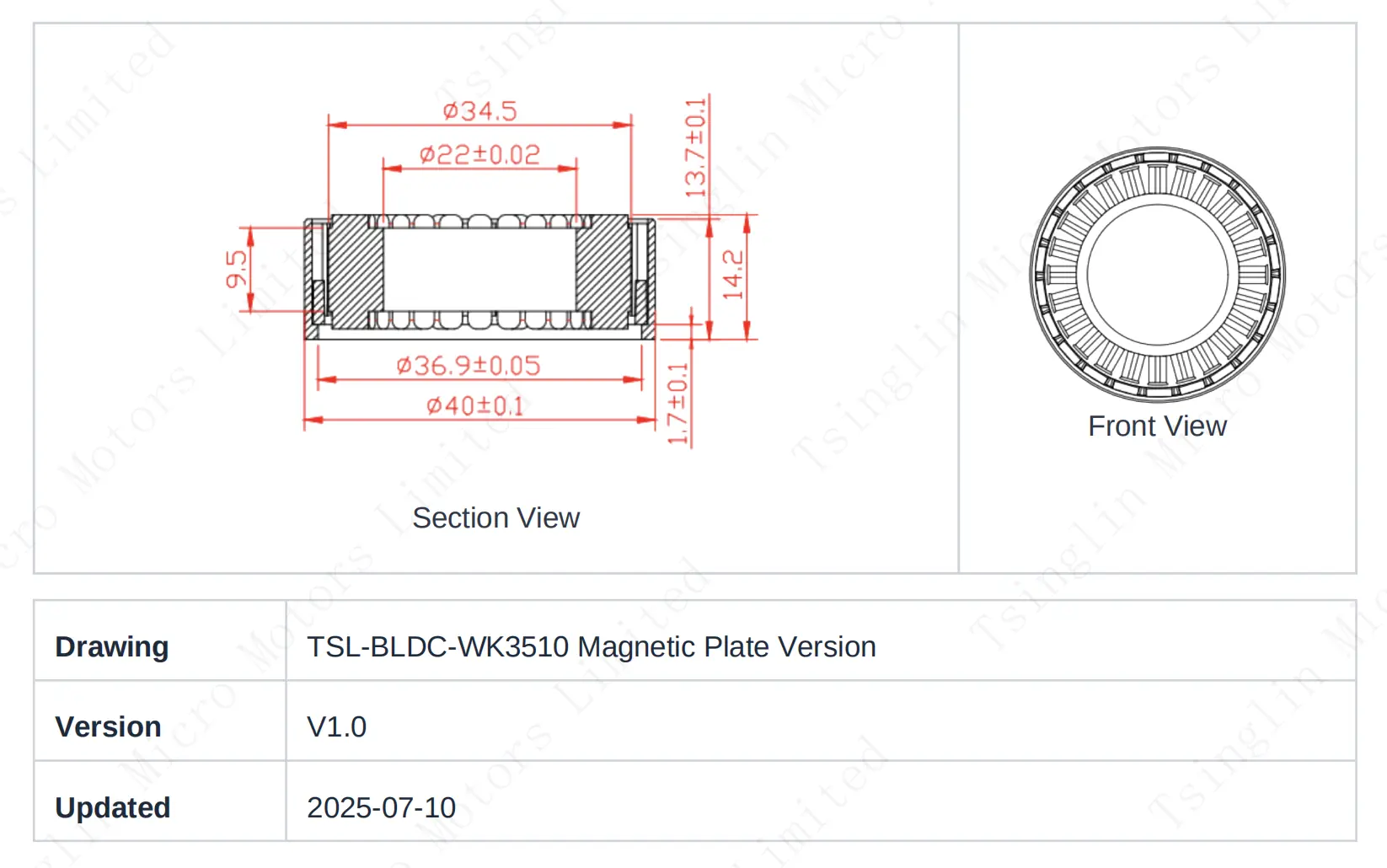

| Frameless Outrunner Motor WK3510CP-9 Magnetic Plate Version Drawing

Unless otherwise stated, all dimensions are in millimeters.We offer multiple shaft lengths for optional ordering. We support non‑standard customization and have our own CNC machining center.

tsl bldc 3510 magnetic plate motor dimensions

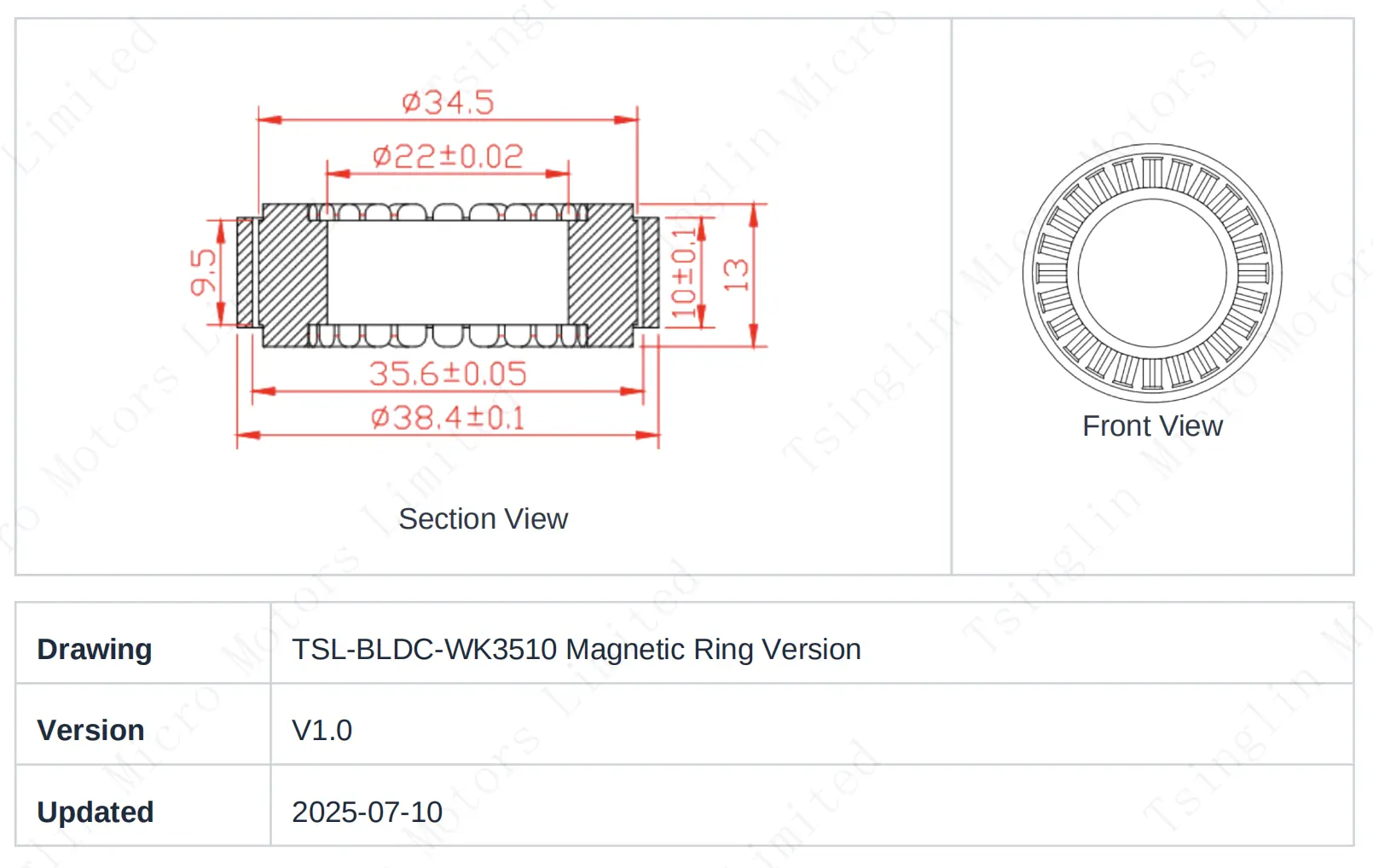

| Frameless Outrunner Motor WK3510 Magnetic Ring Version Drawing

Unless otherwise stated, all dimensions are in millimeters.We offer multiple shaft lengths for optional ordering. We support non‑standard customization and have our own CNC machining center.

TSL-BLDC-3510-WK3510CH-9 magnetic ring frameless outrunner motor specifications drawing
