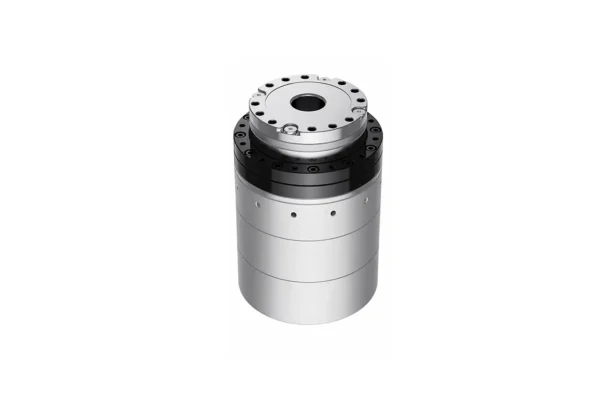

| 60mm Harmonic Drive Servo Motor Datasheet
|
Motor Model |
TSL-CRA-RI50-60 |
|
Reduction Ratio |
- |
51 |
81 |
101 |
|
Start-Stop Peak Torque |
N·m |
23 |
29 |
34 |
|
Maximum Allowable Average Load Torque (Robot Scenario) |
N·m |
8.60 |
13.50 |
13.50 |
|
Rated Torque at 2000rpm/(Reduction Ratio) (Industrial Scenario) |
N·m |
6.60 |
9.60 |
9.60 |
|
Output Peak Speed |
rpm |
97 |
61 |
49 |
|
Rated Speed (with 1/2 Rated Torque) |
rpm |
75 |
46 |
37 |
|
Backlash |
arcsec |
20 |
20 |
10 |
|
Rated Power |
W |
85 |
|
Supply Voltage |
V |
24-48 |
|
Encoder Resolution |
bit |
16 |
|
Communication Bus |
- |
CAN |
|
Brake Torque (No Brake/With Brake) |
N·m |
0/0.03 |
|
Stiffness |
10^4 N/rad |
0.32 |
0.45 |
0.45 |
|
Radial Allowable Load |
kN |
6.80 |
|
Axial Allowable Load |
kN |
15.40 |
|
Allowable Bending Moment |
N·m |
146 |
|
Length (No Brake/With Brake) |
mm |
63±0.5/81.5±0.5 |
|
Through Hole |
mm |
12 |
|
Weight (No Brake/With Brake) |
kg |
0.45/0.58 |
|
Inertia (No Brake/With Brake) |
g·cm² |
158.8/228.8 |
Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.
| 60mm Harmonic Drive Servo Motor Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters.

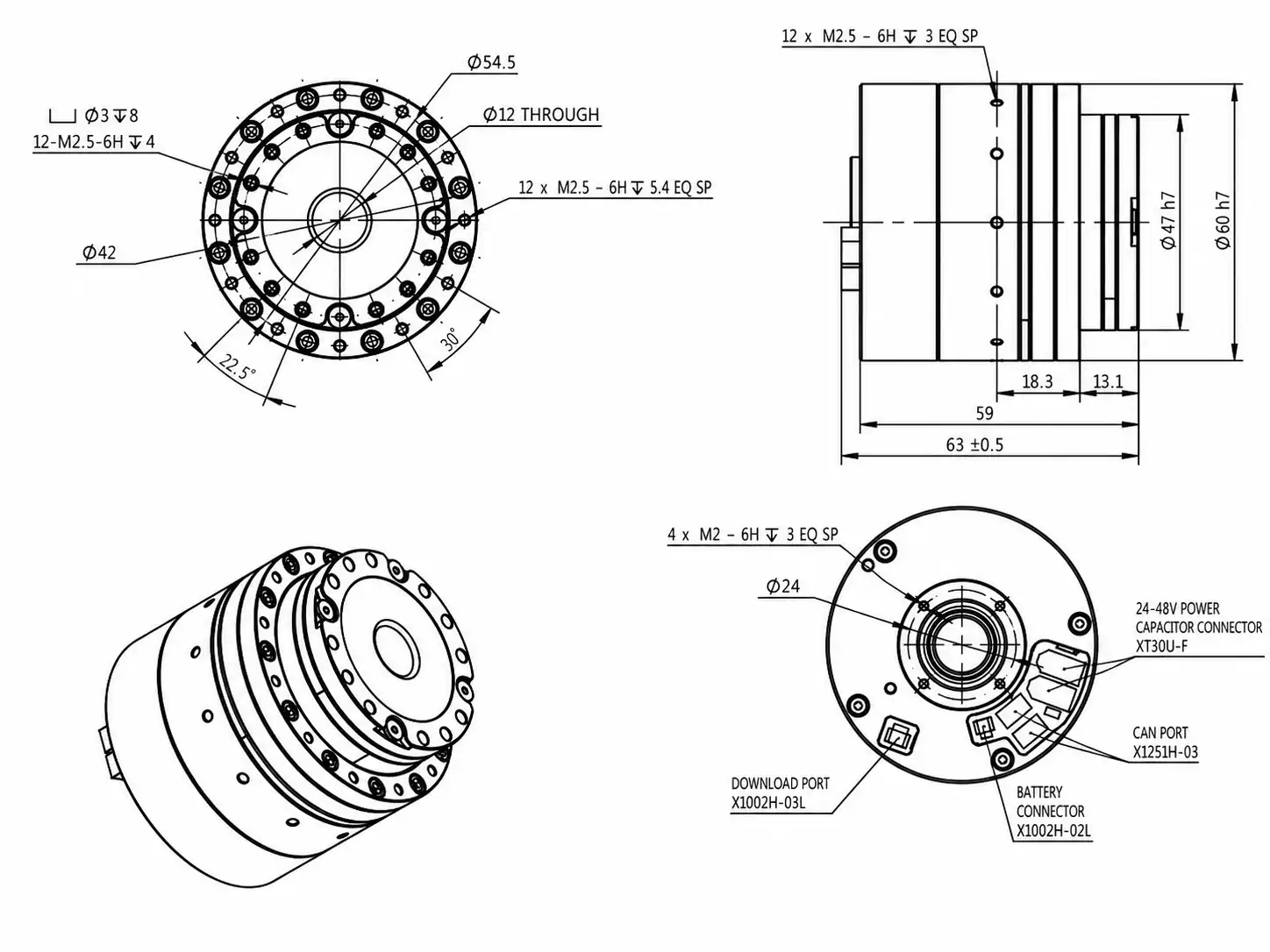

TSL-CRA-RI50-60 , Without brake

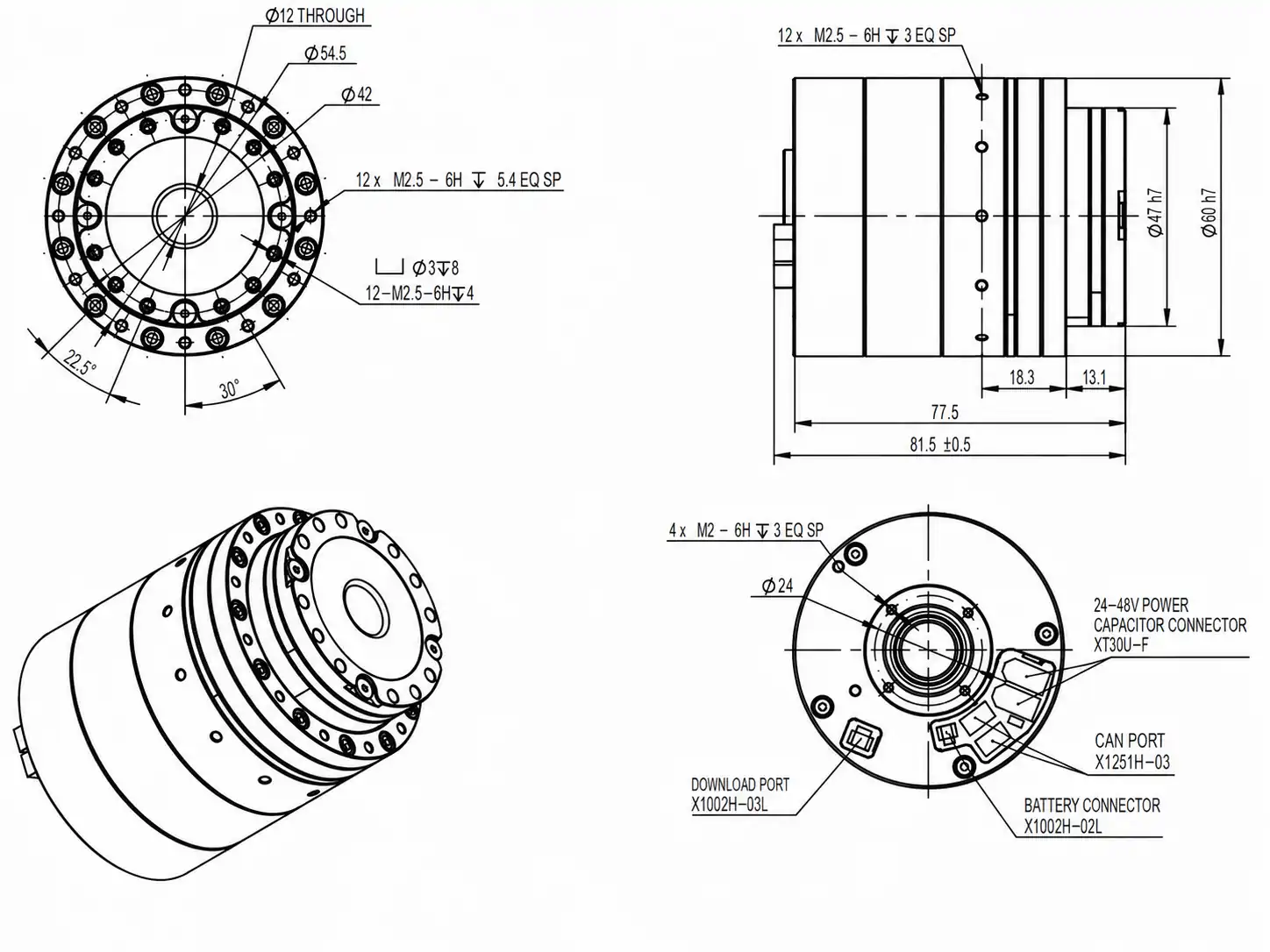

TSL-CRA-RI50-60 , With brake
