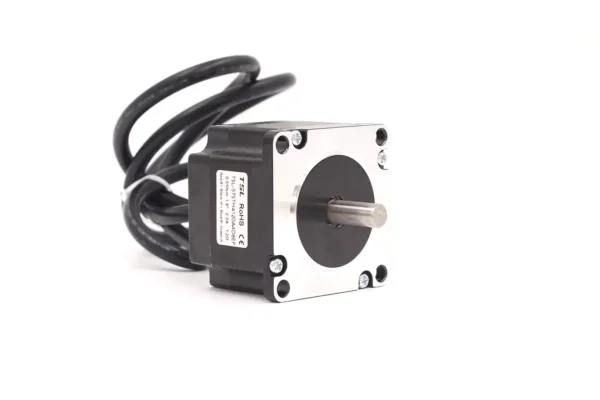

Front perspective of a 2-phase 57mm stepper motor showing the heavy-duty lead wire protection sleeve and wiring output
Side profile view of NEMA 23 hybrid stepper motor illustrating the motor body length and the 6.35 mm diameter D-cut shaft
Top-down view of NEMA 23 stepper motor with product specification label showing model TSL-57STH4120A4D8EP, 0.55Nm holding torque, and 2.0A rated current
57mm stepper motor rear end cap mounting
  1. NEMA 23 hybrid stepper motor with 57mm square flange and D-cut output shaft, manufactured by TSL Motor
  2. Front perspective of a 2-phase 57mm stepper motor showing the heavy-duty lead wire protection sleeve and wiring output
  3. Side profile view of NEMA 23 hybrid stepper motor illustrating the motor body length and the 6.35 mm diameter D-cut shaft
  4. Top-down view of NEMA 23 stepper motor with product specification label showing model TSL-57STH4120A4D8EP, 0.55Nm holding torque, and 2.0A rated current
  5. 57mm stepper motor rear end cap mounting

NEMA 23(57mm) Hybrid Stepper Motor​ Single Shaft | TSL-57STH A Series

Price range: $28.95 through $45.17

◆ Basic Info

    • Brand: TSL
    • Origin: China
    • Motor Series: TSL-57STH A Series
    • Motor Type: Hybrid Stepper Motor
    • Step Agle: 1.8°
    • Rated Current: 0.4A-4.2A
    • Holding Torque: 0.4-3 Nm
    • # More Specifications
    • # Outline Drawing
    • Performance parameters are for reference only and can be customized according to customer requirements.

◆ Typical Applications:3D printers, CNC routers, robotic arms, laser engravers, automated conveyor systems

Samples Pricing(Model:TSL-57STH4120A4D8EP)

Quantity Unit Price Savings
1 – 4 USD 28.95 —
5 – 9 USD 27.50 ↓ 5%
10 – 24 USD 25.18 ↓ 13%
25+ USD 22.58 ↓ 22%

📞 Contact us for bulk production pricing

For higher (production) volumes, we offer highly competitive pricing, please Request a Quote. We response within 24h.

✈️ Global Shipping: free express shipping on orders over $150
Guaranteed Safe Checkout

| NEMA 23 Stepper Motor TSL-57STH A Series Datasheet

Series Model Step Angle (°) Rated Current (A) Phase Resistance (Ω) Phase Inductance (mH) Holding Torque (N.m) Detent Torque (N.cm) Rotor Inertia (g.cm2) Motor Length (mm) Lead Wire (NO.) Motor Weight (g)
TSL-57STH4110A6 1.8 1 5.2 5.5 0.4 2.5 150 41 6 470
TSL-57STH4106A4 1.8 0.62 12 24 0.55 2.5 150 41 4 470
TSL-57STH4120A4 1.8 2 1.2 2.5 0.55 2.5 150 41 4 470
TSL-57STH4506A4 1.8 0.62 12 26 0.8 2.8 190 45 4 520
TSL-57STH4525A4 1.8 2.5 1 2.2 0.8 2.8 190 45 4 520
TSL-57STH5106A4 1.8 0.62 13 28 1.1 2.8 190 51 4 520
TSL-57STH5125A4 1.8 2.5 1.2 3.2 1.1 2.8 190 51 4 520
TSL-57STH5108A6 1.8 0.8 6.8 9.2 0.62 3 230 51 6 590
TSL-57STH5615A4 1.8 1.5 3.2 5.5 1.2 3.5 280 56 4 680
TSL-57STH5625A4 1.8 2.5 1.3 4.2 1.2 3.5 280 56 4 680
TSL-57STH5630A4 1.8 3 0.8 2.4 1.2 3.5 280 56 4 680
TSL-57STH5642A4 1.8 4.2 0.4 1.2 1.2 3.5 280 56 4 680
TSL-57STH6410A4 1.8 1 7.5 20 1.5 5 380 64 4 850
TSL-57STH6425A4 1.8 2.5 1.5 4.5 1.5 5 380 64 4 850
TSL-57STH6430A4 1.8 3 0.8 2.3 1.5 5 380 64 4 850
TSL-57STH6442A4 1.8 4.2 0.55 1.2 1.5 5 380 64 4 850
TSL-57STH7615A6 1.8 1.5 4.5 7.8 1.4 6 440 76 6 1050
TSL-57STH7625A4 1.8 2.5 1.8 6.5 1.8 6 440 76 4 1050
TSL-57STH7630A4 1.8 3 1 3.5 1.8 6 440 76 4 1050
TSL-57STH7642A4 1.8 4.2 0.6 1.8 1.8 6 440 76 4 1050
TSL-57STH8430A4 1.8 3 1.2 4.6 2.2 8 580 84 4 1200
TSL-57STH10030A4 1.8 3 1.4 5.5 2.5 10 680 100 4 1250
TSL-57STH10042A4 1.8 4.2 0.8 3 2.5 10 680 100 4 1250
TSL-57STH11230A4 1.8 3 1.6 6.8 3 12 800 112 4 1400
TSL-57STH11242A4 1.8 4.2 0.9 3.8 3 12 800 112 4 1400

Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

| NEMA 17 Stepper Motor TSL-42STH A Series Single Shaft Mechanical Drawing

Unless otherwise stated, all dimensions are in millimeters.We offer multiple shaft lengths for optional ordering. We support non‑standard customization and have our own CNC machining center.

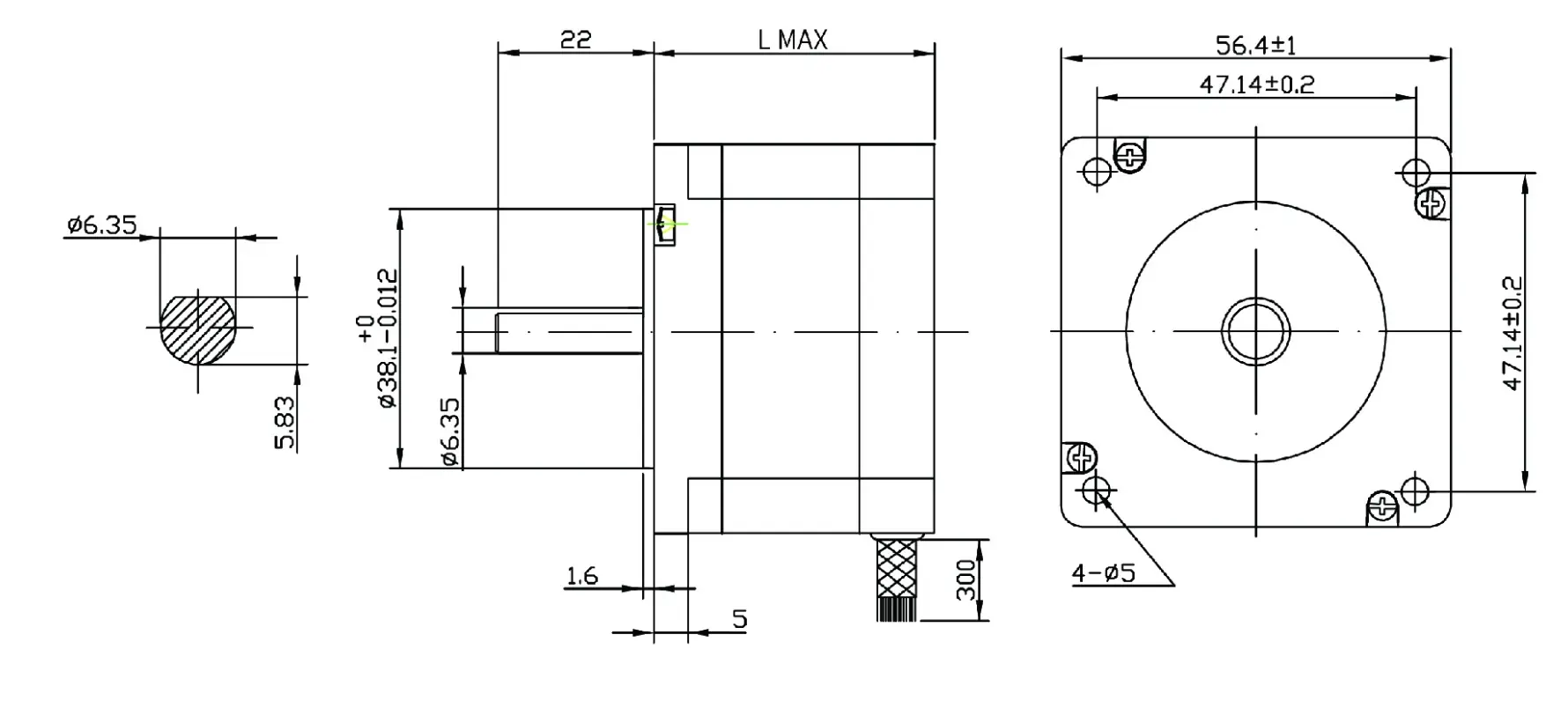

Mechanical dimension drawing for NEMA 23 stepper motor, showing the 56.4 mm frame size, 47.14 mm hole spacing, and 6.35 mm D-cut shaft specifications
