| NEMA 8 Stepper Geared Motor Steel Gear Planetary Series TSL-20PXG-20STH2806A4 Datasheet
TSL-20PXG-20STH2806A4 , Stepper Motor Electrical Specifications
|
Motor Model |
TSL-20PXG-20STH2806A4 |
|
STEP ANGLE |
1.8° |
|
HOLDING TORQUE |
1.4 N.cm |
|
Motor Length |
28±1 mm |
|
CURRENT |
0.6 A |
|
RESISTANCE |
3.2 Ω |
|
INDUCTANCE |
0.9 mH |
|
Motor Weght |
0.05Kg |
Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.
TSL-20PXG-20STH2806A4 , Gearbox Specifications
|
Gearbox Stages |
Reduction Ratio |
Gearbox Length (mm) |
Rated Torque (N.cm) |
Max Torque (N.cm) |
Weight (kg) |
|
1-Stage |
3.7 / 5.2 |
24.4 |
10 |
30 |
0.046 |
|
2-Stage |
14 / 19 / 27 |
33.0 |
30 |
90 |
0.051 |
|
3-Stage |
51 / 71 / 100 / 139 |
41.5 |
40 |
120 |
0.058 |
|
4-Stage |
189 / 264 / 369 / 516 / 720 |
49.8 |
50 |
150 |
0.065 |
–The speed is calculated using the following formula: Speed (rpm) = Step Angle × Frequency × 60 ÷ 360.
Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

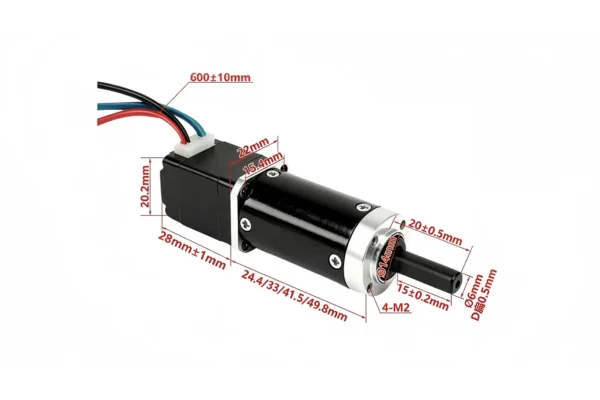

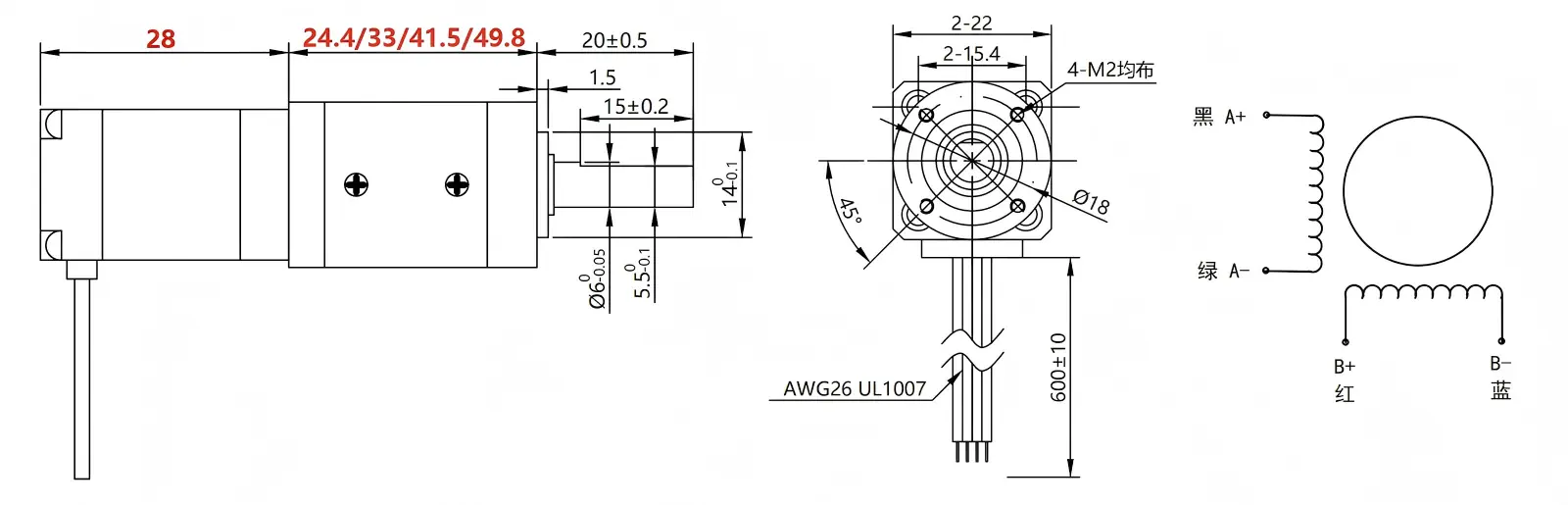

| NEMA 8 Stepper Geared Motor Steel Gear Planetary Series TSL-20PXG-20STH2806A4 Mechanical Drawing
Unless otherwise stated, all motor dimensions are in millimeters.
