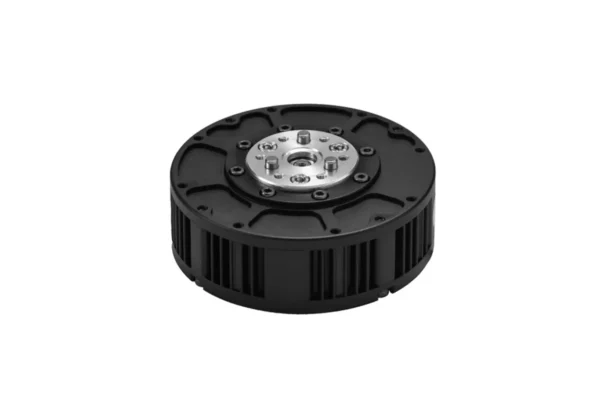

|Robot Actuator Motor TSL-GIM6010-8 Datasheet
|
Motor Model : TSL-GIM6010-8 |
|
Rated Voltage |
V |
24 |
48 |
48 |
|
Model of Driver Board |
/ |
GDS68 |
GDS68 |
GDZ468H |
|
Operating Voltage Range |
V |
12~48 |
12~48 |
12~48 |
|
Rated Power |
W |
70 |
134 |
138 |
|
Rated Torque |
N.M |
4.60 |
4.60 |
4.20 |
|
Peak Torque |
N.M |
13.12 |
17.91 |
11.27 |
|
Rated Speed after Reduction |
RPM |
82 |
200 |
220 |
|
Maximum Speed after Reduction |
RPM |
140 |
280 |
553 |
|
Rated Current |
A |
2.90 |
2.80 |
2.87 |
|
Peak current |
A |
10.36 |
17.19 |
20.02 |
|
Phase Resistance |
Ω |
1.45 |
1.45 |
0.44 |
|
Phase Inductance |
mH |
0.82 |
0.82 |
0.23 |
|
Speed Constant |
rpm/v |
11.54 |
5.83 |
11.52 |
|
Torque Constant |
N.M/A |
1.20 |
1.20 |
0.65 |
|
Number of Pole Pairs |
Pairs |
14 |
14 |
14 |
|
Gear Rate |
/ |
8:1 |
8:1 |
8:1 |
|
Gearbox type |
/ |
Planetary |
Planetary |
Planetary |
|
Gear Material |
/ |
STEEL |
STEEL |
STEEL |
|
Gear Backlash |
arcmin |
15 |
15 |
15 |
|
Motor Weight (without driver) |
g |
370.0 |
370.0 |
370.0 |
|
Motor Weight (with integrated driver) |
g |
388.0 |
388.0 |
388.0 |
|
Motor Dimensions (without driver) |
mm |
Ø80*29.5 |
Ø80*29.5 |
Ø80*29.5 |
|
Motor Dimensions (with integrated driver) |
mm |
Ø80*40 |
Ø80*40 |
Ø80*40 |
|
Maximum Axial Load |
N |
200 |
200 |
200 |
|
Maximum Radial Load |
N |
800 |
800 |
800 |
|
Noise |
dB |
＜60 |
＜60 |
＜60 |
|
Communication Protocol |
/ |
CAN |
CAN |
CAN & 485 |
|
Secondary Encoder Support (Yes/No)(on the output shaft) |
/ |
YES |
YES |
YES |
|
Ingress Protection (IP) Rating |
/ |
IP54 |
IP54 |
IP54 |
|
Operating Temperature Range |
℃ |
‘-20~+80 |
‘-20~+80 |
‘-20~+80 |
|
Onboard Encoder Resolution |
Bit |
16bit |
16bit |
16bit |
|
Stand-alone Encoder Support (Yes/No) |
/ |
NO |
NO |
NO |
|
Customizable Brake Support (Yes/No) |
/ |
YES |
YES |
YES |
Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.
|Robot Actuator Motor TSL-GIM6010-8 Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters.

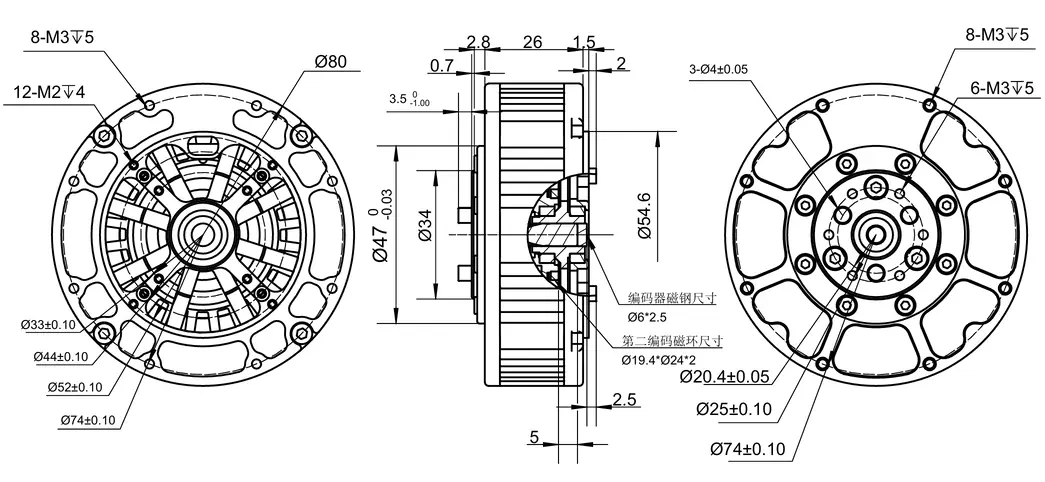

TSL-GIM6010-8 without Driver

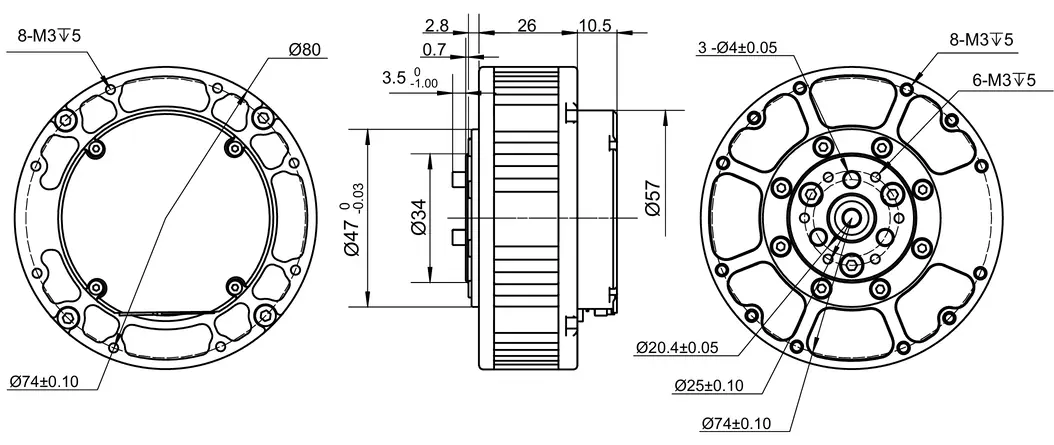

TSL-GIM6010-8 with Driver

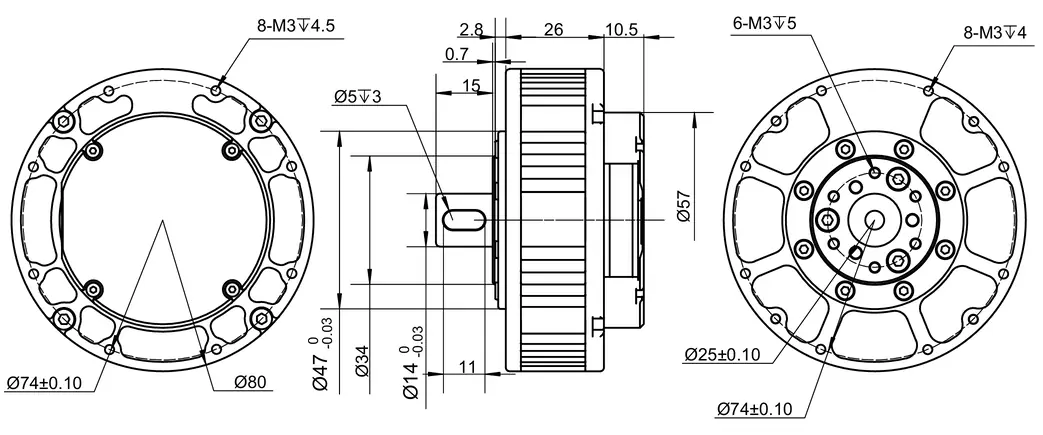

TSL-GIM6010-8 with Output Shaft

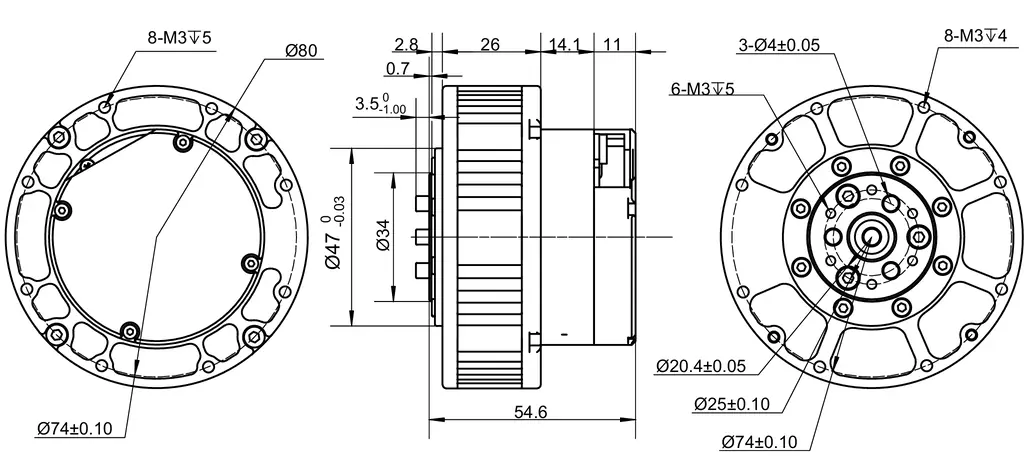

TSL-GIM6010-8 with Brake

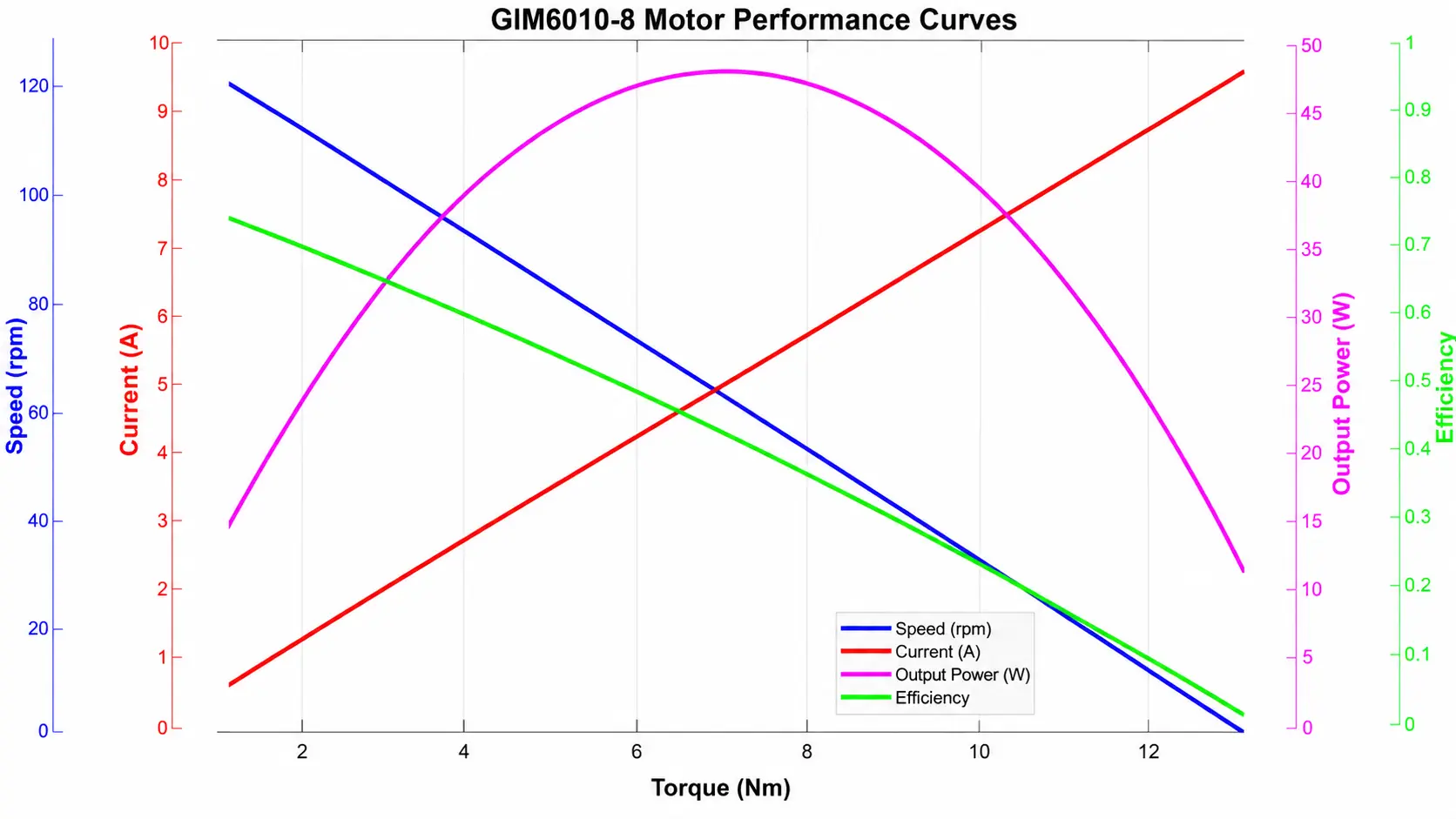

|Robot Actuator Motor TSL-GIM6010-8 Performance Curve
