Ø22 x 8.5mm Frameless Outrunner Torque Motor | TSL-BLDC-WK1806
Price range: $14.21 through $18.42
◆ Basic Info
- Brand: TSL
- Origin: China
- Motor Model: TSL-BLDC-WK1806
- Motor Type: Outrunner Frameless Torque Motor
- Rated Voltage: 12V DC
- Rated Current: 0.66A
- Peak Speed: 5017rpm
- Number of poles pairs: 7
- # More Specifications
- # Outline Drawing
- # Downloads
- Performance parameters are for reference only and can be customized according to customer requirements.
◆ Typical Applications:
- Humanoid dexterous hands
- Surgical robotics
- Precision micro gimbals
- Drone camera stabilizers
- Exoskeleton joint modules
Performance parameters are for reference only and can be customized according to customer requirements.
Samples Pricing
| Specification | Quantity | Unit Price | Savings |
|---|---|---|---|
| TSL-BLDC-WK1806CH-6( Magnetic Ring Version ) | 1 – 4 | USD 14.21 | — |
| TSL-BLDC-WK1806CH-6( Magnetic Ring Version ) | 5 – 9 | USD 13.49 | ↓ 5% |
| TSL-BLDC-WK1806CH-6( Magnetic Ring Version ) | 10 – 24 | USD 12.35 | ↓ 13% |
| TSL-BLDC-WK1806CH-6( Magnetic Ring Version ) | 25+ | USD 11.08 | ↓ 22% |
| TSL-BLDC-WK1806CP-6( Magnetic Plate Version ) | 1 – 4 | USD 18.42 | — |
| TSL-BLDC-WK1806CP-6( Magnetic Plate Version ) | 5 – 9 | USD 17.49 | ↓ 5% |
| TSL-BLDC-WK1806CP-6( Magnetic Plate Version ) | 10 – 24 | USD 15.65 | ↓ 13% |
| TSL-BLDC-WK1806CP-6( Magnetic Plate Version ) | 25+ | USD 14.36 | ↓ 22% |
📞 Contact us for bulk production pricing
For higher (production) volumes, please Request a Quote. We response within 24h.
✈️ Global Shipping: free express shipping on orders over $150
- Description
- Reviews (0)
- Payment & Shipping
- TSL MOTOR Shop Online Sample Request
- Notice Before Ordering
| China BLDC Frameless Motor WK1806 Datasheet

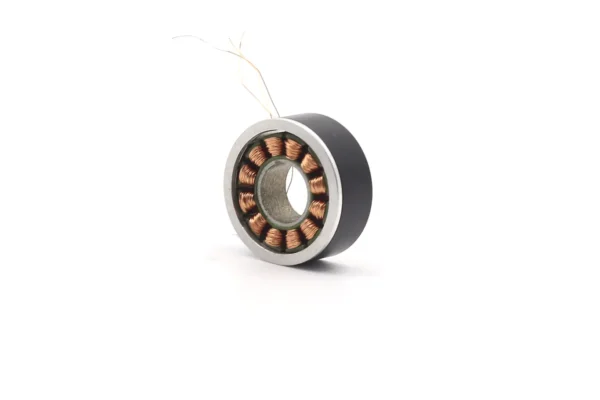

The TSL-BLDC-WK1806 is a high-performance china bldc frameless motor engineered for extreme space-constrained applications. Featuring a compact unhoused design with an outer diameter of 22 mm and a thickness of just 8.5 mm, this ultra-lightweight 12 g motor delivers exceptional torque density and a peak speed of up to 5,017 RPM.
As a premium quality china bldc frameless motor, this model is available in both Magnetic Plate (Segmented) and Magnetic Ring versions, offering maximum integration flexibility to match your structural requirements. Its signature large hollow-bore structure with a 9 mm stator inner diameter allows for effortless pass-through cabling and axial nesting, making it the ideal drive solution for humanoid dexterous robot hands, surgical robotics, and high-precision micro gimbals.
| Motor Model | TSL-BLDC-WK1806CP-6 | |
| Parameters | Unit | Value |
| Rated voltage | V | 12 |
| Rated current | A | 0.66 |
| Rated torque | N.M | 0.03 |
| Rated Speed | RPM | 800 |
| Peak Speed | RPM | 5017 |
| Peak torque | N.M | 0.06 |
| Peak current | A | 1.00 |
| Winding turns of motor | T | 45 |
| Interphase resistance | Ω | 5.64 |
| Interphase inductance | mH | 1.06 |
| Speed constant | rpm/v | 418 |
| Torque constant | N.M/A | 0.06 |
| Rotor inertia | gcm^2 | 6.00 |
| Number of pole pairs | Pairs | 7.00 |
| Motor weight | g | 12 |
| Working temperature | ℃ | -20~80 |
| Peak demagnetize temperature | ℃ | 120 |
| Inner diameter of the stator | mm | 9 |
| Motor Size | mm | Ø22*8.5 |
Note:We are the original factory. For OEM/ODM cooperation, the parameters can be customized based on customer needs. The models listed above are our standard specifications.

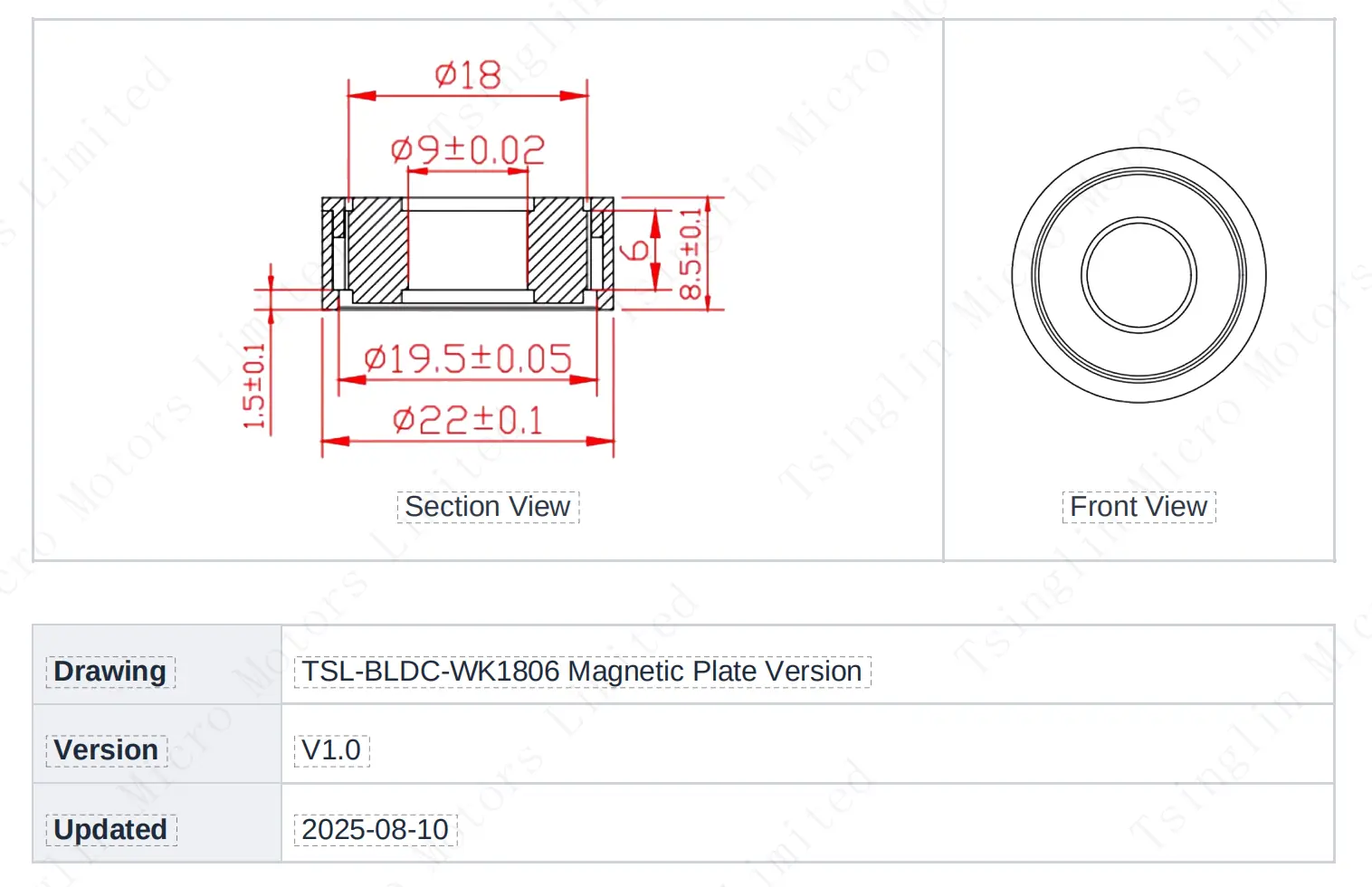

| Micro China BLDC Frameless Motor WK1806 Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters.We offer multiple shaft lengths for optional ordering. We support non‑standard customization and have our own CNC machining center.
