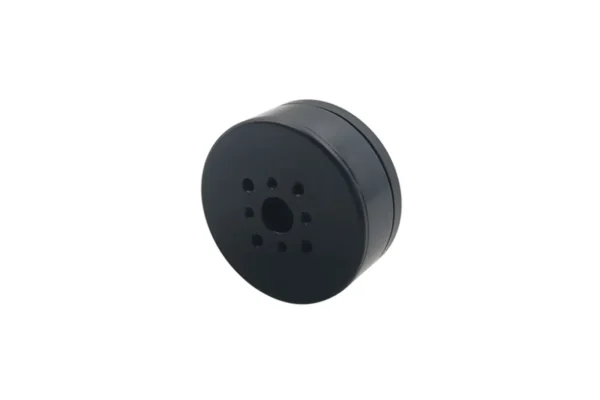

Engineered for precision. This premium brushless gimbal motor delivers exceptional torque, low cogging, and ultra-smooth rotation for stable aerial and robotic applications. Ideal for both individual makers and high-volume commercial production.
Maximize your control precision. This motor supports optional integration with high-accuracy AS5048A or AS5600 magnetic encoders. Choose the perfect configuration to match your closed-loop feedback and position tracking needs.
Parameters
Unit
TSL-GB2806
Rated voltage
V
12
Rated current
A
0.81
Rated torque
N.M
0.06
Rated Speed
RPM
950
Max Speed
RPM
2335
Stall torque
N.M
0.09
Stall current
A
1.22
Winding turns of motor
T
60
Phase resistance
Ω
5
Phase inductance
mH
1.51
Speed constant
rpm/v
121
Torque constant
N.M/A
0.07
Rotor inertia
gcm^2
51
Number of pole pairs
Pairs
7
Motor weight without Encoder
g
45.4
Motor weight with Encoder
g
55.4
Encoder type
/
AS5048a/AS5600
Working temperature
℃
20~80
Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

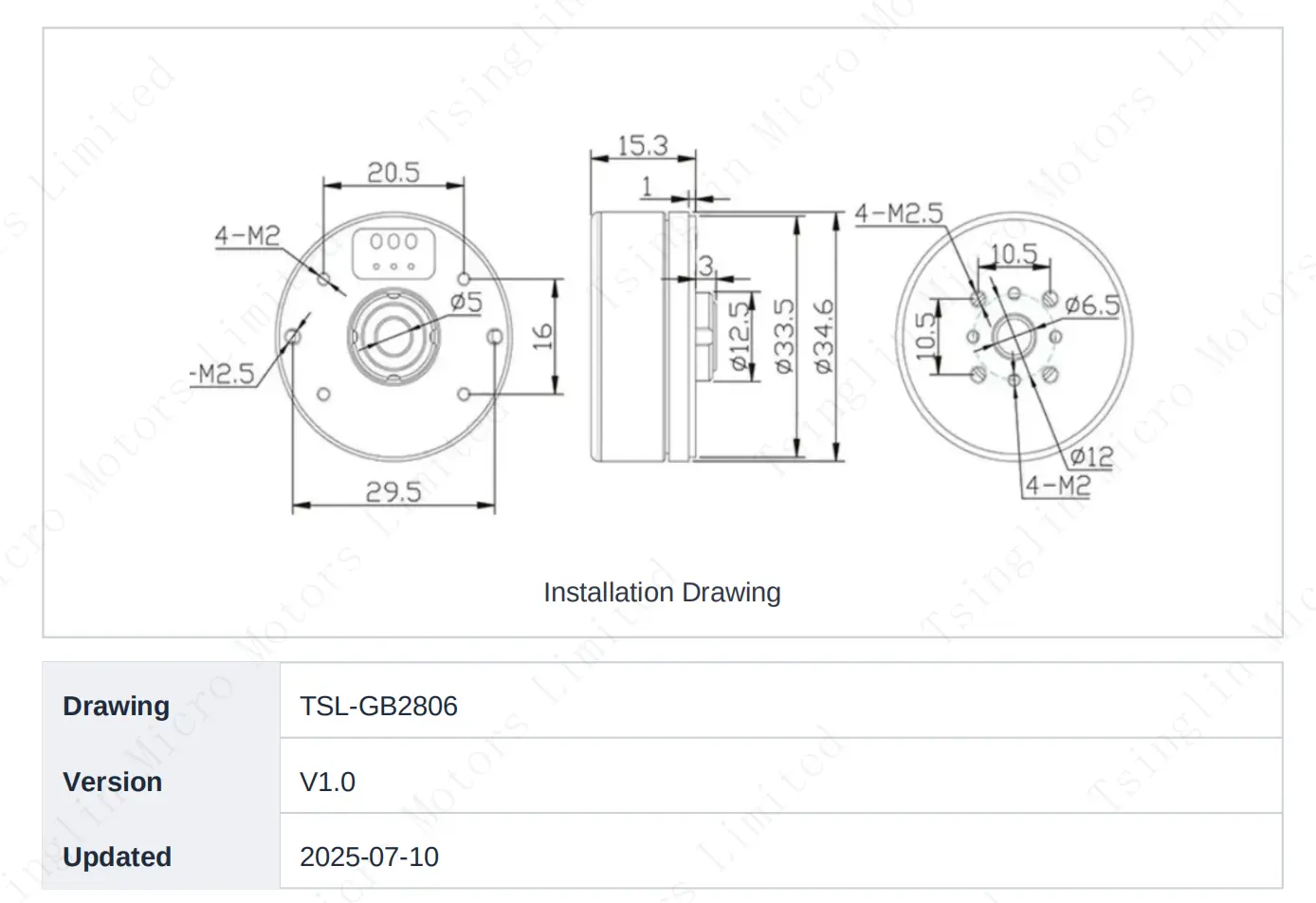

| Micro Brushless Gimbal Motor Mechanical Drawing
Unless otherwise stated, alldimensions are in millimeters.We offer multiple shaft lengths for optional ordering. We support non‑standard customization and have our own CNC machining center.
tsl gb2806 brushless gimbal motor dimensions drawing
| AS5600 Encoder Specifications
Pin Description
Name
Type
Description
GND
Supply
Ground
5.0V
Supply
5V DC power supply
PWM
Output
460Hz PWM output
PGO
Input
Program option
SDA
Input/Output
I²C Data
SCL
Input
I²C Clock
DIR
Input
Direction polarity
| AS5048A Encoder Specifications
Pin Description
Name
Type
Description
GND
Power Supply
Ground (0V reference)
CSn
Input
Chip Select for SPI interface, active low
CLK
Input
SPI Serial Clock input
MOSI
Input/Output
SPI Master Out, Slave In data line
MISO
Input/Output
SPI Master In, Slave Out data line
VDD5V
Power Supply
5V DC Power Supply input
PWM
Output
Pulse Width Modulation signal output
