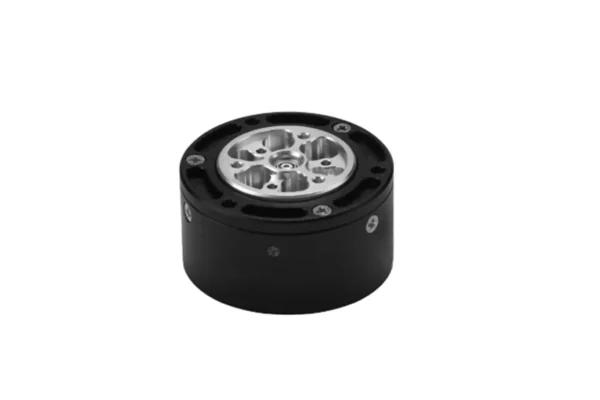

| Robot Dog Actuator TSL-GIM3505-8 Datasheet
|
Motor Model |
TSL-GIM3505-8 |
|
Rated Voltage |
V |
24 |
|
Model of Driver Board |
/ |
GDZ34 |
|
Operating Voltage Range |
V |
12~40 |
|
Rated Power |
W |
37 |
|
Rated Torque |
N.M |
0.67 |
|
Peak Torque |
N.M |
1.79 |
|
Rated Speed after Reduction |
RPM |
230 |
|
Maximum Speed after Reduction |
RPM |
400 |
|
Rated Current |
A |
1.53 |
|
Peak current |
A |
3.99 |
|
Phase Resistance |
Ω |
5.47 |
|
Phase Inductance |
mH |
0.48 |
|
Speed Constant |
rpm/v |
16.67 |
|
Torque Constant |
N.M/A |
0.44 |
|
Number of Pole Pairs |
Pairs |
11 |
|
Gear Rate |
/ |
8:1 |
|
Gearbox type |
/ |
Planetary |
|
Gear Material |
/ |
ALU |
|
Gear Backlash |
arcmin |
15 |
|
Motor Weight (without driver) |
g |
84.0 |
|
Motor Weight (with integrated driver) |
g |
97.0 |
|
Motor Dimensions (without driver) |
mm |
Ø43*23.6 |
|
Motor Dimensions (with integrated driver) |
mm |
Ø43*28.8 |
|
Maximum Axial Load |
N |
75 |
|
Maximum Radial Load |
N |
300 |
|
Noise |
dB |
＜60 |
|
Communication Protocol |
/ |
CAN&485 |
|
Secondary Encoder Support (Yes/No)(on the output shaft) |
/ |
NO |
|
Ingress Protection (IP) Rating |
/ |
IP54 |
|
Operating Temperature Range |
℃ |
‘-20~+80 |
|
Onboard Encoder Resolution |
Bit |
14bit |
|
Stand-alone Encoder Support (Yes/No) |
/ |
YES |
|
Customizable Brake Support (Yes/No) |
/ |
YES |
Note:The parameters can be customized based on customer needs. The models listed above are our standard specifications.

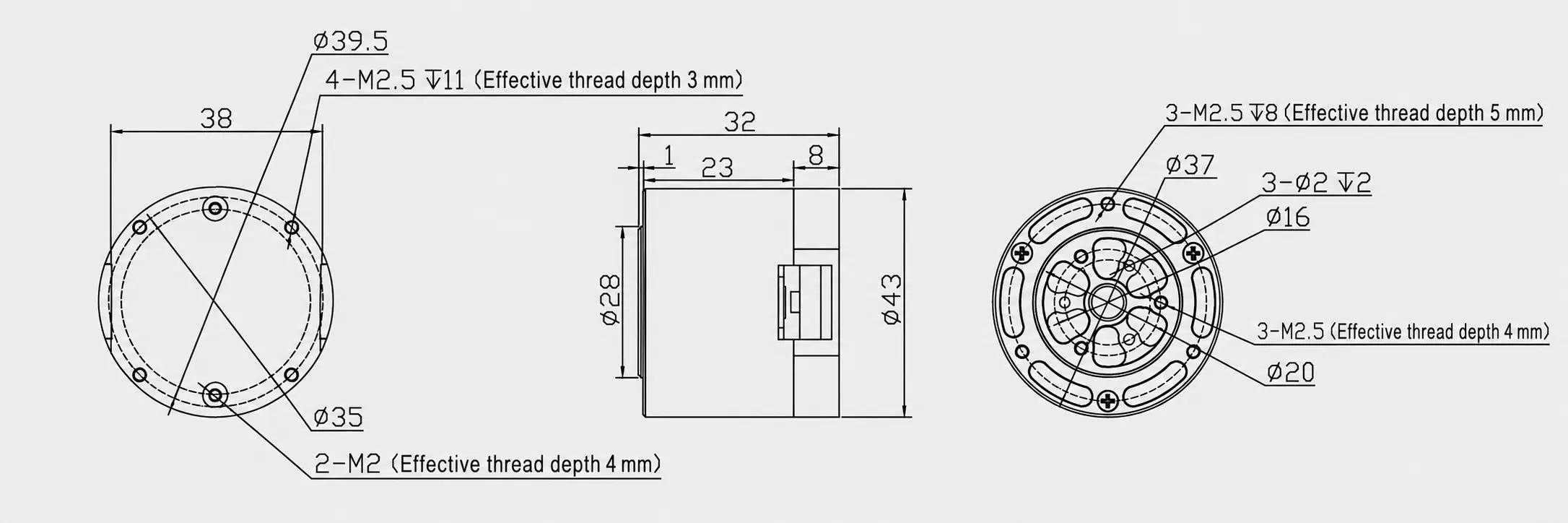

| Robot Dog Actuator TSL-GIM3505-8 Mechanical Drawing
Unless otherwise stated, all dc motor dimensions are in millimeter

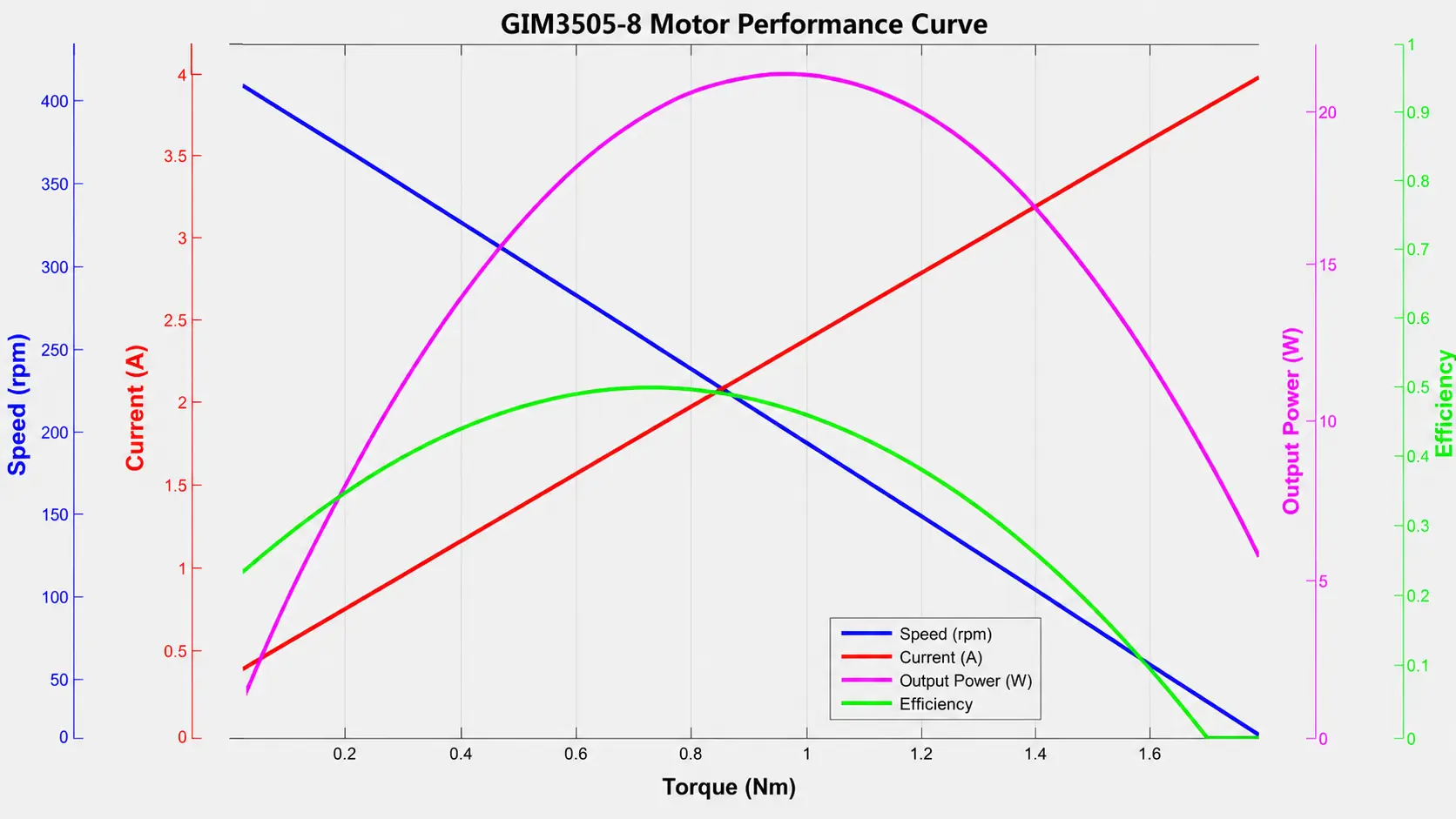

| Robot Dog Actuator TSL-GIM3505-8 Performance Curve
