| Miniature Spur Gear Motor TSL-GF13-030 Datasheet
TSL-GF13-030 , 3V , 10000 Type
|
Ratio |
No-Load |
Rated Load |
Stall |
|
Rated Voltage |
Speed |
Current |
Speed |
Current |
Torque |
Torque |
Current |
|
V |
RPM±10% |
A |
RPM±10% |
A |
g.cm |
g.cm |
A |
|
20 |
3V |
500 |
0.07 |
400.00 |
0.26 |
50 |
250 |
1.10 |
|
50 |
3V |
200 |
0.07 |
160.00 |
0.26 |
125 |
625 |
1.10 |
|
100 |
3V |
100 |
0.07 |
80.00 |
0.26 |
250 |
1250 |
1.10 |
|
158 |
3V |
63 |
0.07 |
50.6 |
0.26 |
395 |
1975 |
1.10 |
|
300 |
3V |
33 |
0.07 |
26.7 |
0.26 |
750 |
3750 |
1.10 |
|
360 |
3V |
28 |
0.07 |
22.2 |
0.26 |
900 |
4500 |
1.10 |
Note:The parameters can be customized based on customer needs. The models listed above are our standard stock specifications.
TSL-GF13-030 , 6V , 12000 Type
|
Ratio |
No-Load |
Rated Load |
Stall |
|
Rated Voltage |
Speed |
Current |
Speed |
Current |
Torque |
Torque |
Current |
|
V |
RPM±10% |
A |
RPM±10% |
A |
g.cm |
g.cm |
A |
|
20 |
6V |
600 |
0.055 |
495.00 |
0.16 |
50 |
286 |
0.75 |
|
50 |
6V |
240 |
0.055 |
198.00 |
0.16 |
125 |
714 |
0.75 |
|
100 |
6V |
120 |
0.055 |
99.00 |
0.16 |
250 |
1429 |
0.75 |
|
158 |
6V |
76 |
0.055 |
62.7 |
0.16 |
395 |
2257 |
0.75 |
|
300 |
6V |
40 |
0.055 |
33.00 |
0.16 |
750 |
4286 |
0.75 |
|
360 |
6V |
33 |
0.055 |
27.5 |
0.16 |
900 |
5143 |
0.75 |
Note:The parameters can be customized based on customer needs. The models listed above are our standard stock specifications.
TSL-GF13-030 , 12V , 15000 Type
|
Ratio |
No-Load |
Rated Load |
Stall |
|
Rated Voltage |
Speed |
Current |
Speed |
Current |
Torque |
Torque |
Current |
|
V |
RPM±10% |
A |
RPM±10% |
A |
g.cm |
g.cm |
A |
|
20 |
12V |
750 |
0.060 |
640.00 |
0.090 |
50 |
341 |
0.61 |
|
50 |
12V |
300 |
0.060 |
256.00 |
0.090 |
125 |
852 |
0.61 |
|
100 |
12V |
150 |
0.060 |
128.00 |
0.090 |
250 |
1705 |
0.61 |
|
158 |
12V |
95 |
0.060 |
81.00 |
0.090 |
395 |
2693 |
0.61 |
|
300 |
12V |
50 |
0.060 |
42.7 |
0.090 |
750 |
5114 |
0.61 |
|
360 |
12V |
42 |
0.060 |
35.6 |
0.090 |
900 |
6136 |
0.61 |
Note:The parameters can be customized based on customer needs. The models listed above are our standard stock specifications.

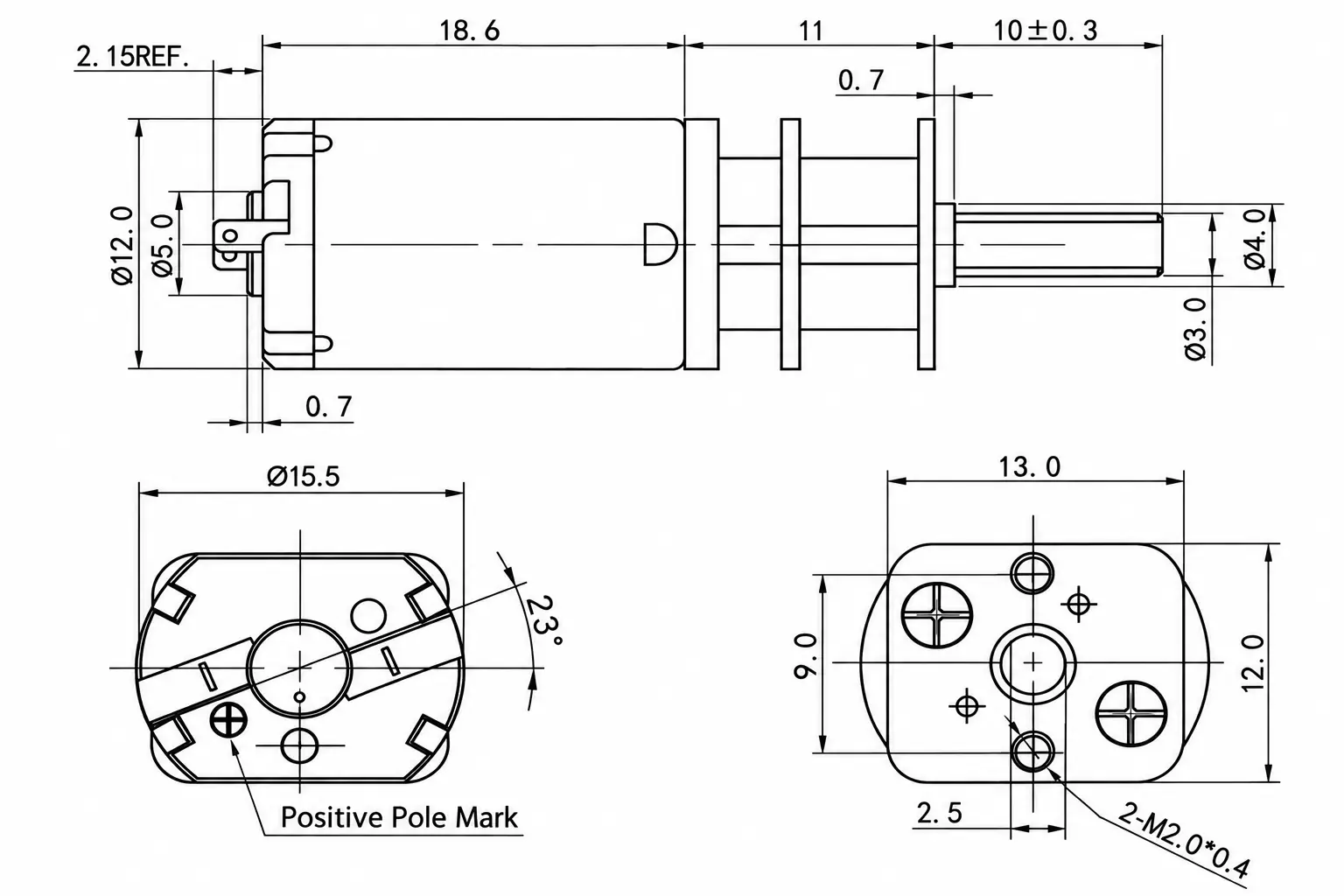

| Miniature Spur Gear Motor TSL-GF13-030 Mechanical Drawing
Unless otherwise stated, all motor dimensions are in millimeters.
