As global specialty coffee culture continues to spread, demand for home, portable, and small commercial coffee grinders keeps rising. Grind uniformity, quiet operation, service life, and portable battery life have become key indicators. Global consumers and equipment makers use these indicators to judge a grinder’s core competitiveness.

The drive motor is the core power component of a coffee grinder. It directly determines grinding stability, particle-size consistency, machine noise, and reliable operation across the full product life cycle.

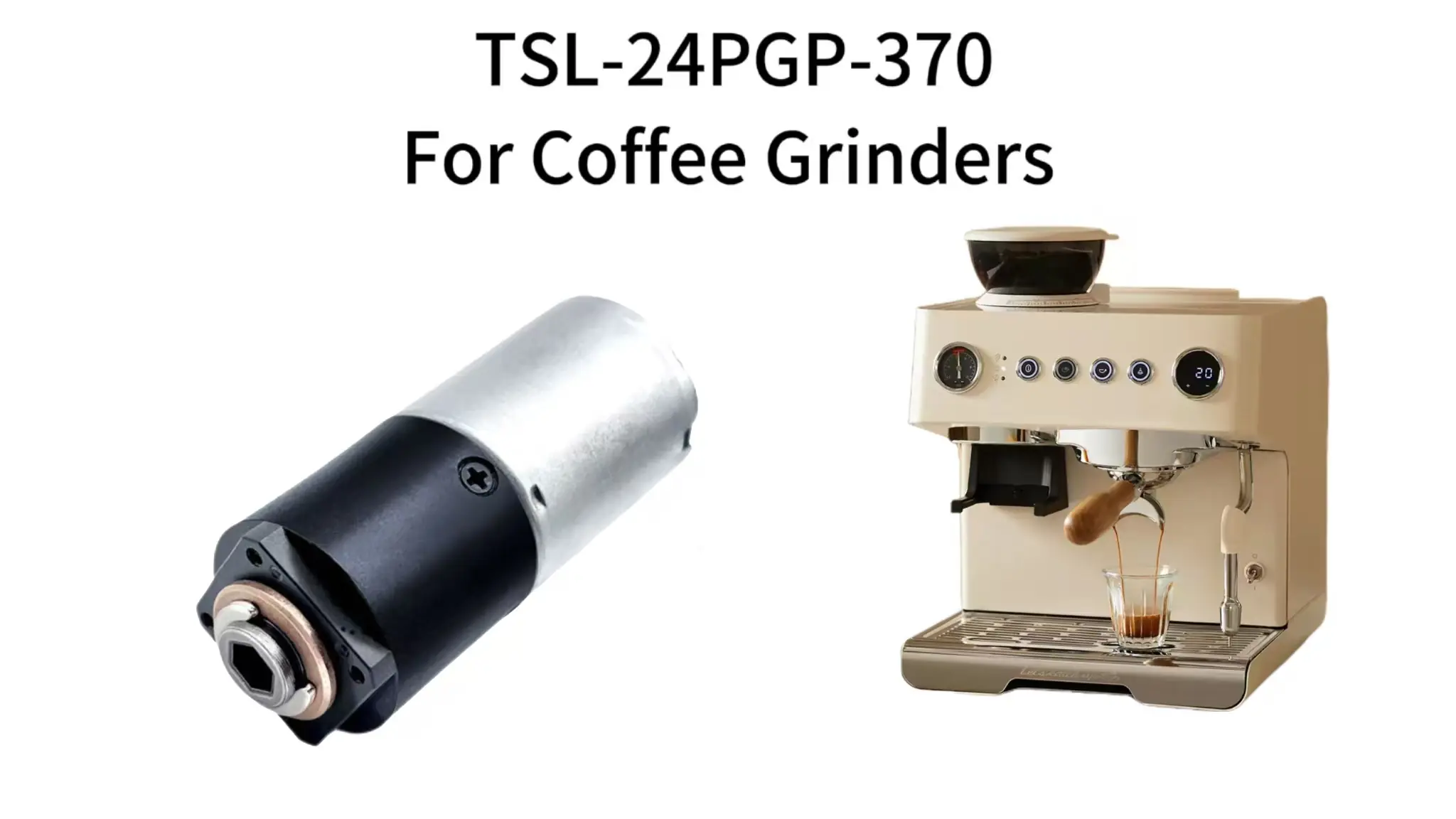

The TSL-24PGP-370 plastic planetary gear motor is deeply developed for coffee grinders and handheld coffee equipment. It provides global coffee equipment manufacturers with a drive solution that is highly adaptable, cost-effective, and reliable.

Key Takeaways

1. The TSL-24PGP-370 integrates a 370 DC motor with a 24mm plastic planetary gearbox.
2. A compact 24mm outer diameter fits perfectly inside slim, handheld, and portable grinder bodies.
3. High torque output up to 7.0 kg-cm easily crushes dense, light-roasted coffee beans.
4. An internal hex output shaft connects directly to burrs, eliminating shaft alignment errors.
5. Whisper-quiet operation (<55dB) removes harsh gear grinding noise at the source.
6. High transmission efficiency (71%) optimizes and extends portable lithium battery life.
7. Self-lubricating engineering plastics guarantee a long, dust-resistant, maintenance-free service life.

Core Working Principle of Coffee Grinders

A coffee grinder is a core coffee-preparation device. It integrates power drive, transmission, grind adjustment, and intelligent control. Its core function is to cut coffee beans into uniform coffee grounds. The particle size must meet extraction requirements. It supports pour-over, espresso, French press, and other brewing methods.

After the user sends a grinding command through a button, touch panel, or smart program, the main control module sends an operation signal to the TSL-24PGP-370 plastic planetary gear motor. The motor starts after power is supplied.

Power is transmitted through the motor’s standard internal hex output shaft. It connects directly with the grinder burr transmission mechanism. This removes mounting clearance and power loss in traditional transmission structures. It drives the moving burr to rotate coaxially with high precision relative to the fixed burr.

Coffee beans enter the preset gap between the two burrs through the feed channel. They are ground evenly by continuous and stable cutting force. The coffee grounds are finally discharged through the outlet with the required particle size.

The motor can also be integrated with Hall sensors. These sensors monitor motor speed, running turns, and load changes in real time. With the main control module, they enable intelligent functions. These include quantitative grinding, multi-level grind-size adjustment, stall protection, and overload shutdown. They protect grinding consistency and device safety throughout the process.

Core Requirements of Coffee Grinders for Drive Motors

Coffee grinders are used in homes, portable office settings, and small commercial environments. They are also high-frequency devices. They therefore have clear and strict performance requirements for drive motors.

Stable and Balanced Torque Output

The grinding load changes in real time with the roast level, hardness, and feed volume of coffee beans. Light-roasted beans are harder. They require higher cutting torque.

Fine grinding for espresso requires extremely stable burr operation. The motor must deliver stable and balanced torque across the full speed range and under different load conditions. There must be no sudden speed drop. There must be no jamming or shaking. This keeps particle size uniform. It avoids excessive fines and uneven grounds. It also protects the flavor stability of coffee extraction.

Low Noise and Low Vibration

Strict noise control is required in all use cases. This includes morning use at home, portable office use, and operation in offline coffee shops.

The motor must maintain low-vibration and low-noise operation under full load. There should be no abnormal gear-meshing noise. There should be no electromagnetic noise. Operating noise must stay within a reasonable range. This avoids disturbance in the use environment and improves user experience.

Long Service Life

Coffee grinders are high-frequency devices. In home use, annual grinding cycles can reach several thousand times. Small commercial devices face even higher frequency and longer continuous operation.

The core transmission parts of the motor must have excellent wear resistance, fatigue resistance, and self-lubricating performance. The structure should have no easily worn parts. It must maintain stable performance under long-term continuous operation. This greatly reduces device failure rates and after-sales maintenance costs. It covers the full product life-cycle requirements.

Compact Design

The main development trend for home and portable coffee grinders is lightweight and compact design. Internal installation space is extremely limited. Handheld portable grinders have especially strict limits on motor outer diameter and body length.

The motor must use a compact integrated body design. It can be embedded directly inside the device cavity. It does not take extra installation space. It supports the structural design of grinders with different specifications. It also helps equipment manufacturers integrate the motor quickly.

Wide Voltage Compatibility

Portable coffee grinders mostly use lithium battery power. Home devices also need to match grid-voltage standards in different regions. The motor must support a wide voltage range. It must operate stably from 3.0V to 24.0V.

It must also offer excellent low-power performance. It should reduce power loss at the same grinding efficiency. It should extend the single-charge runtime of portable devices. It must adapt to power standards in different global markets.

High Cost Performance

To support grinder products from different brands and market positions, the motor must use standard industry mounting dimensions and output specifications. It can directly replace models with the same specifications. No major structural change is needed. This effectively shortens the product development cycle for equipment manufacturers.

The matching cost must also be controllable. While ensuring performance, the motor must support mass production for home and commercial equipment.

Why Choose a Plastic Planetary Gear Motor

A plastic planetary gear motor integrates a DC motor body with a plastic planetary gearbox. It is now a mainstream choice for home, portable, and small commercial coffee grinders worldwide.

Comparison with Spur Gear Motors

Spur gear motors have a simple structure and low production cost. However, their transmission efficiency is low. With a large reduction ratio, the motor body becomes much longer. This cannot meet the compact installation space of grinders, especially portable devices.

At the same time, spur gears have large meshing clearance. Vibration and noise are obvious during operation. Backlash control is weak. They cannot support smooth burr start-stop or precise speed control. After long-term use, the gears wear quickly. Abnormal noise, grinding jamming, and uneven grounds may occur. They cannot meet the core requirements of grinders for quiet operation and service life.

Comparison with Worm Gear Motors

Worm gear motors offer a large reduction ratio and good self-locking performance. However, their transmission efficiency is extremely low. Under heavy load, power loss is high. This greatly shortens the battery life of portable coffee grinders and increases the burden on the power system.

Their structure also creates axial force. After long-term continuous operation, the worm wheel wears severely. Return clearance may increase. Transmission failure may occur. The motor body is also relatively large. It cannot be integrated into compact grinder cavities. Device adaptability is poor. It is hard to meet the high-frequency use needs of coffee grinders.

Comparison with Metal Planetary Gear Motors

Metal planetary gear motors offer high strength and high torque. However, they are heavy. This does not match the trend toward lightweight and portable grinders. Rigid collision between metal gears can create obvious vibration and noise. This makes it hard to meet strict quiet-operation requirements in home and office settings.

At the same time, metal gears have high material and processing costs. This increases the matching cost of the device. The cost performance for mass production is insufficient. During long-term dry operation, metal gears require better lubrication. Increased wear and operating jamming may occur. Their environmental adaptability and maintenance convenience are weaker than plastic planetary structures.

Advantages of the TSL-24PGP-370 Plastic Planetary Gear Motor

The TSL-24PGP-370 series plastic planetary gear motor is deeply optimized for coffee grinder applications. It fully meets the strict drive requirements of all types of coffee grinding equipment.

Integrated Design

The motor uses a miniaturized body with a 24mm outer diameter. It integrates the 370 DC motor body with a plastic planetary gearbox. The structure is compact and small. It can be embedded directly inside home and portable coffee grinder cavities. No extra installation space is required.

It is equipped with a standard internal hex output shaft. It can connect seamlessly with the grinder burr transmission structure. This removes installation error and return clearance in traditional transmission structures.

The motor greatly improves transmission precision and response speed. It supports grinder structures with different specifications. It helps equipment manufacturers integrate the product quickly.

High Torque

The motor uses high-performance permanent magnetic materials. It works with an optimized electromagnetic design. It supports a wide operating voltage range from 3.0V to 24.0V. The motor body supports speeds up to 13000rpm. With optional reduction ratios from 17.22 to 1176.5, it can deliver rated torque up to 7.0kg-cm.

It can easily handle grinding needs for coffee beans with different roast levels. It supports all grind settings from pour-over to espresso. Under different load conditions, the product maintains stable speed and torque output. There is no startup shock.

There is no load jamming. This keeps burr operation smooth throughout grinding. It also keeps coffee particle size uniform and protects the flavor stability of coffee extraction.

Low Noise

The motor uses a high-precision plastic planetary gear transmission pair. It works with an optimized tooth profile design. This effectively reduces rigid collision and vibration during gear meshing. It greatly reduces abnormal noise during operation.

No-load operating noise can be controlled within 55dB. The product maintains smooth and quiet operation across the full speed range and full load range. It solves gear-meshing noise from traditional metal gear motors at the source. It is well suited to noise-sensitive use cases such as homes, offices, and coffee shops. It greatly improves user experience.

Long Service Life

The core transmission parts use high-strength, wear-resistant engineering plastics. They offer excellent wear resistance, fatigue resistance, and self-lubricating performance. The design has no easily worn parts such as brushes. With precision manufacturing, it can meet tens of thousands of use cycles. It fully covers the life-cycle needs of coffee grinders.

The product can operate stably in a wide temperature range. It offers excellent resistance to dust and moisture. It can handle coffee powder dust and humid environments in coffee grinding applications. It greatly reduces device failure rates and later maintenance costs.

Low Power Consumption

The motor uses optimized electromagnetic and transmission design. It has very high transmission efficiency. The total efficiency of two-stage reduction can reach 71%. Under the same grinding load, it can effectively reduce power loss. It greatly extends the single-charge runtime of portable lithium-battery coffee grinders.

The product also supports wide voltage input from 3.0V to 24.0V. It can match grid standards in different regions worldwide. It also supports home plug-in power and portable lithium battery power. It covers diverse power-supply needs in global markets.

Standardization

The motor uses standard industry mounting dimensions and interface designs. It can directly replace grinder drive motors with the same specifications on the market. No major change is required to the machine structure or transmission design. This effectively shortens the product development cycle and reduces development and modification costs for equipment manufacturers.

While meeting the performance requirements of all coffee grinder scenarios, the product also keeps matching cost controllable. It is well suited to mass production of home and commercial coffee grinders.

Overview of the TSL-24PGP-370 Plastic Planetary Gear Motor

The TSL-24PGP-370 plastic planetary gear motor is a high-precision miniature gear motor. It is designed for coffee grinders, handheld coffee equipment, smart home products, and related applications. It can meet the drive needs of home, portable, and small commercial coffee grinders from different brands and market positions worldwide.

Customization Services and Technical Support

To meet the diverse and differentiated product development needs of global coffee equipment manufacturers, we provide full-dimensional customization and full-process technical support for the TSL-24PGP-370 series plastic planetary gear motor. We help customers shorten the product development cycle and quickly achieve product launch and global market deployment.

Structural customization: We can customize reduction ratio, gearbox length, and output shaft specifications according to the structural design needs of customer grinders. Options include internal hex size, shaft diameter, keyway, flat position, spline, and other machining forms.

Electrical performance customization: We can customize motor winding parameters, rated voltage, rated current, rated speed, and holding torque according to the customer’s power system and control logic. We can also customize lead length, wiring method, interface type, Hall sensor integration, forward and reverse rotation control, and other functions.

Material and environmental adaptability customization: For different use cases and regional environments, we can customize gear materials, wear-resistance levels, and high- and low-temperature performance. We can also upgrade motor waterproof and dustproof ratings.

Structural adaptation customization: We support flexible customization of body length, mounting flange, fixing-hole position, housing material, and other mechanical structures.

We provide global customers with full-cycle technical support from early selection and solution matching to later mass-production maintenance. We have built a global technical service network. We can provide multilingual technical support. We respond quickly to customer development and after-sales needs.

We strictly follow the ISO quality management system for full-process product quality control. We also provide product maintenance, troubleshooting, technical upgrades, and other life-cycle services. This ensures stable supply for customers’ mass-produced products and global markets.

Industry Development Trends and Future Outlook

As global specialty coffee culture continues to expand, the home coffee equipment market keeps growing. Portable coffee equipment and small commercial smart grinders have become core growth tracks. Consumers continue to demand higher grinding precision, quieter operation, longer portable battery life, and smarter control from coffee grinders.

In the future, compact high integration, low-noise quiet operation, high reliability and long life, low power consumption and long battery life, and intelligent closed-loop control will become the core development directions of coffee grinder drive systems.

We will continue to focus on drive technology upgrades for small coffee equipment. We will keep optimizing the integration performance of plastic planetary gear motors. We will improve product performance in transmission precision, operating smoothness, torque density, quietness, environmental adaptability, and intelligent control.

We will also keep improving our customized product system and global technical service network. We will strictly follow international quality management standards. We will launch drive solutions that better meet the needs of next-generation smart coffee grinders. We will provide continuous and stable power support for the upgrading of the global coffee equipment industry.

Conclusion

The TSL-24PGP-370 series plastic planetary gear motor offers key advantages. These include an integrated and compact design, stable and balanced torque output, low-vibration and low-noise operation, high reliability and long service life, excellent low-power performance, and standardized easy integration.

It can fully meet the drive needs of all types of coffee grinding equipment. This includes portable handheld grinders, small home grinders, and small commercial smart grinders.

While ensuring grinding uniformity, operating stability, and long-term reliability, this series effectively reduces development, integration, and matching costs for equipment manufacturers. It is an ideal choice for coffee grinder drive systems.

As the global specialty coffee industry continues to develop and coffee equipment becomes smarter and more portable, we will continue to deepen our work in miniature high-precision gear motors. We will strictly follow international quality standards. We will provide stable, reliable, and highly adaptable drive solutions for global coffee equipment manufacturers. We will help drive innovation and upgrading across the global coffee equipment industry.

FAQ

Q1:Why use plastic planetary gears instead of metal gears in a coffee grinder?

A1:Metal gears create rigid, high-frequency vibrations that result in loud grinding noise. High-precision engineering plastics absorb vibration, dropping the motor’s operating noise below 55dB. This ensures a quiet environment, which is highly valued for early morning home brewing or quiet office settings.

Q2:Can this miniature motor handle hard, light-roasted espresso beans?

A2:Yes. While light-roasted beans require significant cutting force, the planetary reduction mechanism acts as a torque multiplier. With a maximum rated torque of up to 7.0 kg-cm, it easily maintains a steady RPM without stalling or slowing down, preventing a buildup of uneven coffee fines.

Q3:How does this motor design improve grind consistency?

A3:The TSL-24PGP-370 features an integrated standard internal hex output shaft that connects coaxially and seamlessly with the grinder’s burr mechanism. By eliminating the couplings and mounting clearances found in traditional setups, it stops burr wobble, ensuring an identical gap distance for highly uniform coffee grounds.
