With the deep development of the global smart home industry, yard care is becoming more intelligent. Smart lawn mower robots have moved from exclusive equipment for high-end yards in Europe and America. They are now becoming mainstream yard care equipment for homes and commercial sites worldwide.
As the core actuator of a smart lawn mower robot, the drive motor directly determines walking accuracy, mowing performance, battery life, and full lifecycle stability.

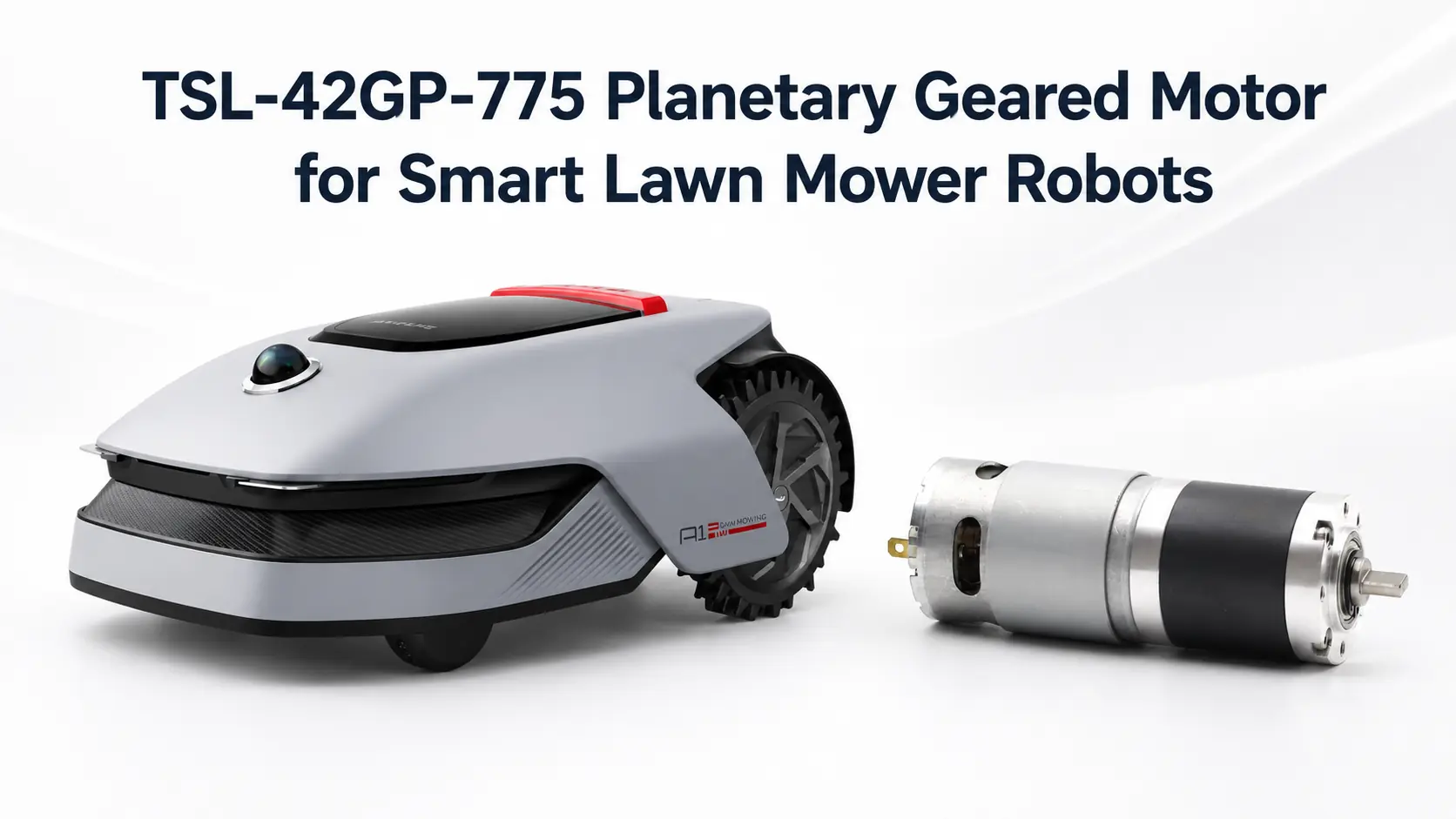

The TSL-42GP-775 planetary geared motor is designed for smart lawn mower robots and other outdoor intelligent mobile equipment. It provides global equipment manufacturers and solution providers with a cost-effective and highly adaptable drive solution for smart lawn mower robots.
Table of Contents
Key Takeaways
- The TSL-42GP-775 pairs a rugged brushed DC 775 motor with a 42 mm metal planetary gearbox.
- High starting torque ensures smooth blade acceleration and prevents stalling in overgrown lawns.
- The inline 42 mm cylindrical profile embeds directly inside compact, low-profile cutting decks.
- A heavy-duty metal gear train absorbs high-impact shocks from stones, roots, and debris.
- Excellent speed rigidity eliminates RPM drops to guarantee a perfectly uniform, even lawn trim.
- High transmission efficiency directly extends lithium-battery runtime and area coverage.
- Integrated Hall sensor compatibility allows real-time load tracking for adaptive stall protection.
Working Principle of Smart Lawn Mower Robots
A smart lawn mower robot is an intelligent outdoor working device. It integrates environmental sensing, path planning, drive execution, and safety protection. It can independently complete lawn mowing, obstacle avoidance, boundary recognition, automatic recharging, and other core functions. It does not require full manual intervention.
The drive system of a smart lawn mower robot includes two core units. One is the walking drive. The other is the mowing execution drive. The TSL-42GP-775 planetary geared motor is the core power source of the mowing actuator.
After the user presets the mowing path, cutting height, working time, and other parameters through a terminal device, the main control unit sends action commands to the mowing drive system.
After power is supplied, the TSL-42GP-775 planetary geared motor starts running. It converts the high-speed rotation of the rotor through the planetary gearbox. It reduces speed and increases torque. It outputs low-speed and high-torque stable power suitable for blade disc operation.
The power is directly transmitted to the mowing actuator. It drives the blade disc to rotate at high speed and with stability. Together with the height adjustment mechanism of the complete machine, it enables even and precise trimming of lawns at different heights.
At the same time, the motor can be used with Hall sensors. These sensors monitor speed, running current, and load changes in real time. Together with the main control system, the motor can quickly feed back signals when it encounters thick weeds, dense vegetation, foreign-object blockage, or jamming.
It can realize dynamic speed adjustment, overload protection, stop-on-blocking, and reverse operation. This ensures mowing performance under extreme conditions. It also prevents motor damage caused by stalling. The whole process ensures operating safety and equipment stability.
Core Requirements of Smart Lawn Mower Robots for Blade Disc Drive Motors
Outdoor yard conditions are complex and changeable. The blade disc is the core working unit of a smart lawn mower robot. It works for a long time under continuous load and strong load fluctuation. Therefore, it has strict and clear performance requirements for the drive motor.
High Torque
During mowing, the blade disc continuously faces sudden changes in weed density, thick-root vegetation, grass root winding, and small foreign-object impact. The load may fluctuate sharply in an instant.
The motor must have very high starting torque and instant overload capacity. It must start smoothly under load. The speed must not drop sharply when the load changes suddenly. This ensures continuous and stable blade disc operation. It also prevents missed cutting, grass pulling, and uneven trimming.
Stability
The uniformity of lawn trimming mainly depends on the stability of blade disc speed. The motor must maintain constant speed output within the rated load fluctuation range. The speed must not fluctuate greatly due to load changes. This ensures consistent cutting height across the entire lawn. There should be no height difference and no missed cutting. It meets the fine trimming needs of different lawns.
Low Power Consumption
Most smart lawn mower robots use lithium battery wireless power supply. Battery life is a core competitive factor. The blade disc is the main power consumption unit of the whole machine. Therefore, the drive motor must have very high transmission efficiency.
No-load and load losses must be low. Under the same battery capacity, it effectively extends single-operation time. It reduces automatic recharging frequency. It improves lawn coverage efficiency.
Strong Environmental Adaptability
The mowing blade disc directly contacts the lawn surface. During operation, it continuously faces harsh outdoor conditions. These include flying grass clippings, mud and water erosion, dust pollution, high temperature, low temperature, and sunlight exposure.
The motor must have excellent sealing and protection performance. It must support high-grade waterproof and dustproof design. Core parts must resist corrosion, aging, and impact. The motor must operate stably for a long time in complex outdoor environments. It must not jam, short-circuit, or fail due to grass clippings or mud water entering the motor.
Low Noise
Residential yard scenarios have strict noise control requirements. Excessive motor vibration also affects the accuracy of navigation and obstacle avoidance sensors.
The motor must run smoothly across the full working speed range. Operating noise must be low. There should be no abnormal gear meshing noise and no electromagnetic noise.
It must comply with residential noise control standards in global regions. It must also avoid interference with the sensing system caused by vibration. This ensures accurate autonomous operation.
Long Service Life
The seasonal working time of a smart lawn mower robot can reach hundreds of hours. The blade disc drive motor operates under continuous load for a long time. It has frequent starts and stops. Load fluctuation is large.
The motor must not have easily worn structures. Core transmission parts must have excellent wear resistance, fatigue resistance, and self-lubricating performance. This greatly reduces after-sales failure rates and maintenance costs. It also meets the full lifecycle use requirements of the complete machine.
Compact Design
The internal space of a smart lawn mower robot is limited. Space must be reserved for the battery, main control unit, navigation module, and walking drive unit.
The motor must have a small outer diameter and a compact structure. It can be directly embedded inside the mowing actuator cavity. It does not occupy extra installation space. It supports the design trend of smaller and lighter complete machines.
High Adaptability
The motor must work with the complete machine to realize safety functions. These include overload protection, stall protection, and emergency handling of foreign-object jamming. Therefore, the motor must support PWM speed regulation and forward-reverse control. It can also work with Hall sensors to provide real-time feedback of speed, load, and position signals.
At the same time, it must have excellent EMC electromagnetic compatibility. It must run without electromagnetic interference. It must not affect the normal operation of navigation, sensing, and other electronic systems. It must comply with global safety certification standards.
Why Choose a Planetary Geared Motor
In the blade disc drive scenario of smart lawn mower robots, the TSL-42GP-775 achieves the best balance among power performance, impact resistance, transmission efficiency, environmental adaptability, control convenience, and overall cost. It is a mainstream high-reliability option for mowing drive systems in smart lawn mower robots worldwide.
Compared with Spur Gear Motors
Spur gear motors have a simple structure and lower cost. However, their transmission efficiency is relatively low. Their load adaptability is poor. When the load changes suddenly, the speed fluctuates greatly. They cannot ensure stable blade disc speed. The mowing uniformity is poor.
At the same time, the gear meshing clearance is large. Running vibration and noise are obvious. After long-term outdoor high-load operation, gears wear quickly. Abnormal noise and jamming may occur easily.
Under a large reduction ratio, the motor body length increases significantly. It cannot fit the compact installation space of lawn mower robots. It cannot meet the service life and NVH requirements of mowing operation.
Compared with Worm Gear Motors
Worm gear motors have a large reduction ratio and self-locking performance. However, their transmission efficiency is very low. Under load, power loss is very high. This seriously shortens the battery life of lawn mower robots. It cannot meet the low-power requirements of lithium battery wireless equipment.
At the same time, the structure has axial force. Under long-term continuous high-load and high-impact operation, wear is serious. Problems such as increased backlash and transmission failure may occur easily. Its resistance to grass clippings and dust pollution is weak. It is very easy to jam due to foreign objects entering. It cannot adapt to the harsh working conditions of the blade disc.
Compared with High-Speed Brushed DC Motors
High-speed brushed DC motors are commonly used in low-end lawn mower robots as blade disc drive solutions. Their structure is very simple. Their cost is very low. They directly drive the blade disc through high-speed motor operation.
However, they have no speed reduction and torque increase structure. Their low-speed torque is very poor. Their loaded starting ability is weak. When they encounter thick weeds, they are very likely to stall, stop the blade, pull grass, or miss cutting.
At the same time, to ensure cutting force, they must maintain very high speed. This greatly increases no-load and load power consumption. It seriously reduces battery life. It also produces very high operating noise and vibration. It does not meet the use requirements of residential scenarios.

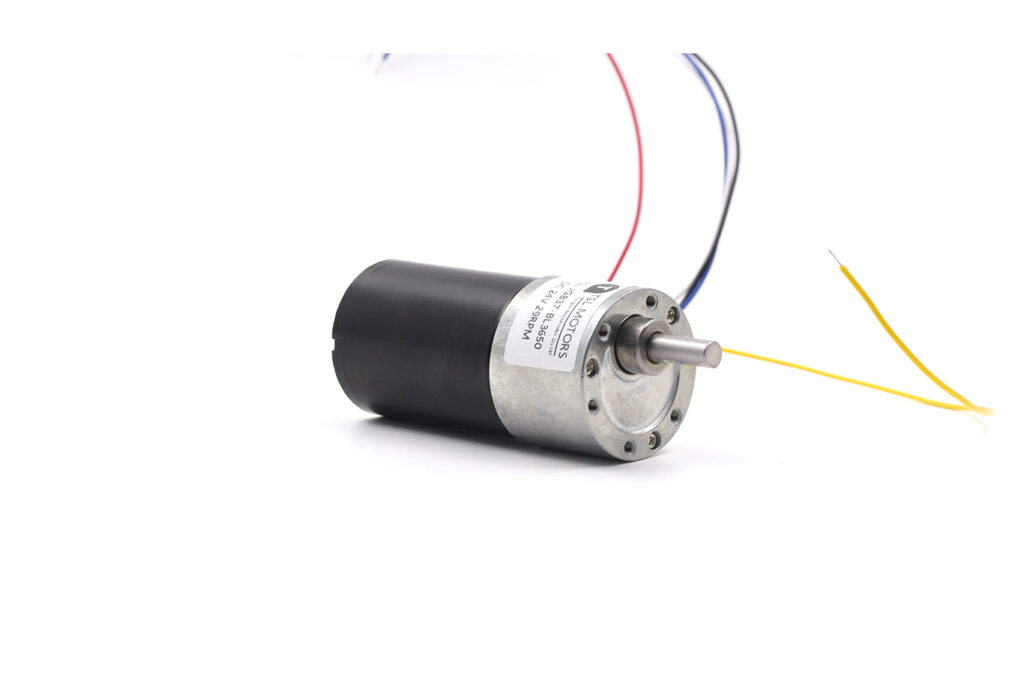

Compared with Brushless DC Motors (BLDC) with Spur Gearboxes
A brushless DC motor with a spur gearbox is an optional solution for mid-to-high-end lawn mower robots. It has the advantages of no brush wear and a theoretically long service life. However, it has clear shortcomings in scenario adaptation.
This solution requires a dedicated brushless motor driver and complex control algorithms. Development is difficult. Complete machine supporting costs increase significantly. Its cost-effectiveness for large-scale mass production is insufficient.
At the same time, the spur gear reduction structure has weak impact resistance. When the blade disc is jammed or impacted by foreign objects, the gears are prone to tooth breakage and damage.
In addition, speed response is delayed when the load changes suddenly. It cannot quickly adapt to load fluctuations in mowing conditions. Its mowing uniformity is weaker than that of a planetary reduction solution.
In outdoor humid and dusty environments, the Hall elements of brushless motors are easily disturbed or damaged. This places very high requirements on the protection level of the complete machine. It further increases development cost.
| Comparison Dimension | Spur Gear Motor | Worm Gear Motor | High-Speed Brushed DC Motor without Gearbox | Brushless DC Motor + Spur Gear Reduction Solution | Metal Planetary Gearbox + Brushed DC Motor (TSL-42GP-775) |
| Transmission Efficiency | Medium | Low | Medium | High | High |
| Speed Stability | Poor | Medium | Very Poor | Medium | Excellent |
| Impact and Overload Resistance | Medium | Medium | Poor | Medium | Excellent |
| Space Integration | Low | Medium | High | Medium | High |
| Operating Noise | High | Medium | Very High | Medium | Low |
| Service Life | Medium. Gears wear easily. | Medium. Worm gear wears easily. | Short. Brushes wear quickly. | Long | Long |
| Control Difficulty | Low | Low | Low | High | Low |
| Outdoor Protection Adaptability | Weak | Weak | Medium | Weak | Strong |
| Overall Cost | Medium | Medium | Low | High | Moderate |
| Blade Disc Suitability | Poor. Speed is unstable. Cutting accuracy is insufficient. Space adaptability is poor. | Poor | Very Poor | Average | Best |
Core Product Advantages of the TSL-42GP-775 Planetary Geared Motor
The TSL-42GP-775 series planetary geared motor is deeply optimized for the blade disc drive scenario of smart lawn mower robots. It uses a metal planetary gearbox with a brushed DC 775 motor. It fully meets the strict working requirements of outdoor mowing operation.
Integrated Design
The motor uses a miniaturized body with an outer diameter of φ42 mm. It integrates the 775 brushed DC motor body with the metal planetary gearbox. The structure is compact. The size is small. It can be directly embedded inside the mowing actuator cavity of a smart lawn mower robot.
It uses industry-standard mounting dimensions and interface design. It can connect seamlessly with the blade disc transmission structure. It eliminates installation errors and backlash in traditional transmission structures. It greatly improves transmission accuracy and power response speed. It helps complete machine manufacturers achieve fast integration and model adaptation.
High Torque Output
The motor uses high-performance sintered NdFeB permanent magnet material. It works with an optimized electromagnetic design and a high-precision metal planetary gearbox. It provides strong power performance and overload capacity.
The high-strength gear structure of the metal planetary gearbox can withstand instant heavy load impact. It will not suffer from gear tooth breakage or deformation. Even under extreme load conditions such as dense weeds and thick-root vegetation, it can maintain stable power output. There will be no blade disc stop, grass pulling, or missed cutting. It ensures continuous and even mowing performance.
High Speed Stability
The motor uses high-precision metal planetary gear transmission. It works with optimized tooth profile design and electromagnetic design. It has excellent speed rigidity. Within the rated load fluctuation range, it can maintain constant speed output. It will not show large speed fluctuation due to changes in weed density or sudden load changes.
High Adaptability
The motor supports PWM stepless speed regulation and forward-reverse control. It can also integrate Hall sensors. It provides real-time feedback of motor speed, operating current, load changes, and position signals.
At the same time, the product has excellent EMC electromagnetic compatibility. It generates no electromagnetic interference during operation. It will not affect the normal operation of navigation, sensing, and other electronic systems in the complete machine. It complies with safety standards and certification requirements for global electronic components.
Overview of the TSL-42GP-775 Planetary Geared Motor
The TSL-42GP-775 is a high-precision metal planetary geared motor designed for the blade disc actuator of smart lawn mower robots. It uses a standardized 42 mm outer diameter body. Its core configuration is a metal planetary gearbox with a brushed DC 775 motor. Its performance fully covers all mowing conditions of smart lawn mower robots from household models to commercial models.
Customization Services and Technical Support
To meet the diverse and differentiated product development needs of global smart lawn mower robot manufacturers, we provide full-dimensional customization services and full-process technical support for the TSL-42GP-775 series planetary geared motor. We help customers shorten product development cycles. We also help them quickly launch products and expand into global markets.
Transmission structure customization: We can customize the reduction ratio, metal gearbox length, and output shaft specifications according to the design needs of the customer’s mowing actuator. Shaft options include shaft diameter, keyway, D-cut, spline, connecting flange, and other machining forms.
Electrical performance customization: We can customize the winding parameters, rated voltage, rated current, rated speed, rated torque, and overload protection threshold of the 775 motor according to the complete machine power supply system and intelligent control logic. We can also customize wire length, wiring method, interface type, Hall sensor integration, and other functions.
Environmental adaptability customization: For different regional climates and outdoor working conditions, we can customize gear materials, wear resistance levels, and high-low temperature performance. We can also upgrade the waterproof, dustproof, and corrosion-resistant sealing level of the motor.
Structural adaptation customization: We support flexible customization of body length, mounting flange, fixing hole positions, housing material, and other mechanical structures. The motor can fully match the cavity design of the customer’s mowing actuator. It achieves seamless integration. It does not require major changes to the complete machine structure. It shortens the customer’s development cycle.
We provide global customers with full-cycle technical support. This covers early-stage selection, solution matching, prototype testing, and later mass-production maintenance. We have established a global technical service network. We can provide multilingual technical support and quickly respond to customer needs.
We strictly follow international quality management systems for product quality control. We have established a full-process quality inspection system. Every stage is inspected, from incoming raw materials to finished product delivery. This ensures stable performance and batch consistency of every product.
At the same time, we provide product maintenance, troubleshooting, technical upgrades, and other full-lifecycle services. This ensures stable support for customers’ mass-produced models. It helps customers deepen their presence in the global smart yard equipment market.
Industry Development Trends and Future Outlook
With the rapid development of the global smart home industry, intelligent yard care has become a core growth track in the global home market.
With advantages such as autonomous operation, time saving, labor saving, even trimming, energy saving, and environmental protection, smart lawn mower robots have gradually expanded from the high-end European and American markets to global household and commercial markets. The market size continues to expand. The pace of technology iteration continues to accelerate.
In the future, high torque density, high efficiency, low power consumption, high protection, high reliability, quiet and smooth operation, and intelligent load-adaptive control will become the core development directions of smart lawn mower robot mowing drive systems.
We will continue to focus on drive technology upgrades for intelligent outdoor equipment. We will keep optimizing the integration performance of metal planetary geared motors. We will continue to improve our customized product system and global technical service network. We will strictly follow international quality management standards.
We will launch mowing drive solutions that better meet the needs of next-generation smart lawn mower robots. We will provide continuous and stable power support for the intelligent upgrade of global yard care equipment.
Conclusion
The TSL-42GP-775 series planetary geared motor uses a metal planetary gearbox with a brushed DC 775 motor as its core configuration. It can perfectly meet the full working requirements of blade disc drives for all types of smart lawn mower robots, from entry-level household models to high-end commercial models.
While ensuring mowing accuracy, operating efficiency, battery life, and long-term reliability of smart lawn mower robots, this series also effectively reduces development, integration, and supporting costs for complete machine manufacturers. It is an ideal choice for the drive system of smart lawn mower robot mowing actuators.
As global smart home and intelligent yard care continue to develop rapidly, we will keep focusing on the field of high-precision miniature drives for outdoor smart equipment. We will strictly follow international quality standards. We will provide stable and reliable drive support for the upgrading and development of the global smart equipment industry.
FAQ
Q1:Can this motor withstand hitting hidden obstacles like stones or thick tree roots?
Yes. Traditional spur gearboxes easily crack or strip teeth under sudden impacts. The multi-point load sharing design of a metal planetary gearbox provides superior impact resistance, allowing the gear train to absorb sudden shock loads from debris without mechanical failure.
Q2:How does the motor help maximize the robot’s battery runtime per charge?
The blade disc consumes the vast majority of a robotic mower’s battery power. The TSL-42GP-775 features exceptional transmission efficiency, significantly minimizing internal frictional losses compared to worm or spur gear alternatives. This preserves battery capacity and maximizes acreage coverage per charge.
Q3:How does the motor handle harsh outdoor conditions like mud, moisture, and grass clippings?
The motor assembly is designed to be embedded seamlessly into the mower’s specialized cutting cavity. It supports high-grade waterproof and dustproof sealing enclosures to prevent fine grass dust, moisture, and corrosive sap from penetrating the internal electronics or bearings.
