The global smart sanitary ware industry is moving faster toward intelligence, comfort, and energy efficiency. Smart toilets are a core product category. Their key functions include waterway switching, water temperature adjustment, and water pressure control. These functions rely heavily on the performance of the diverter valve drive unit.

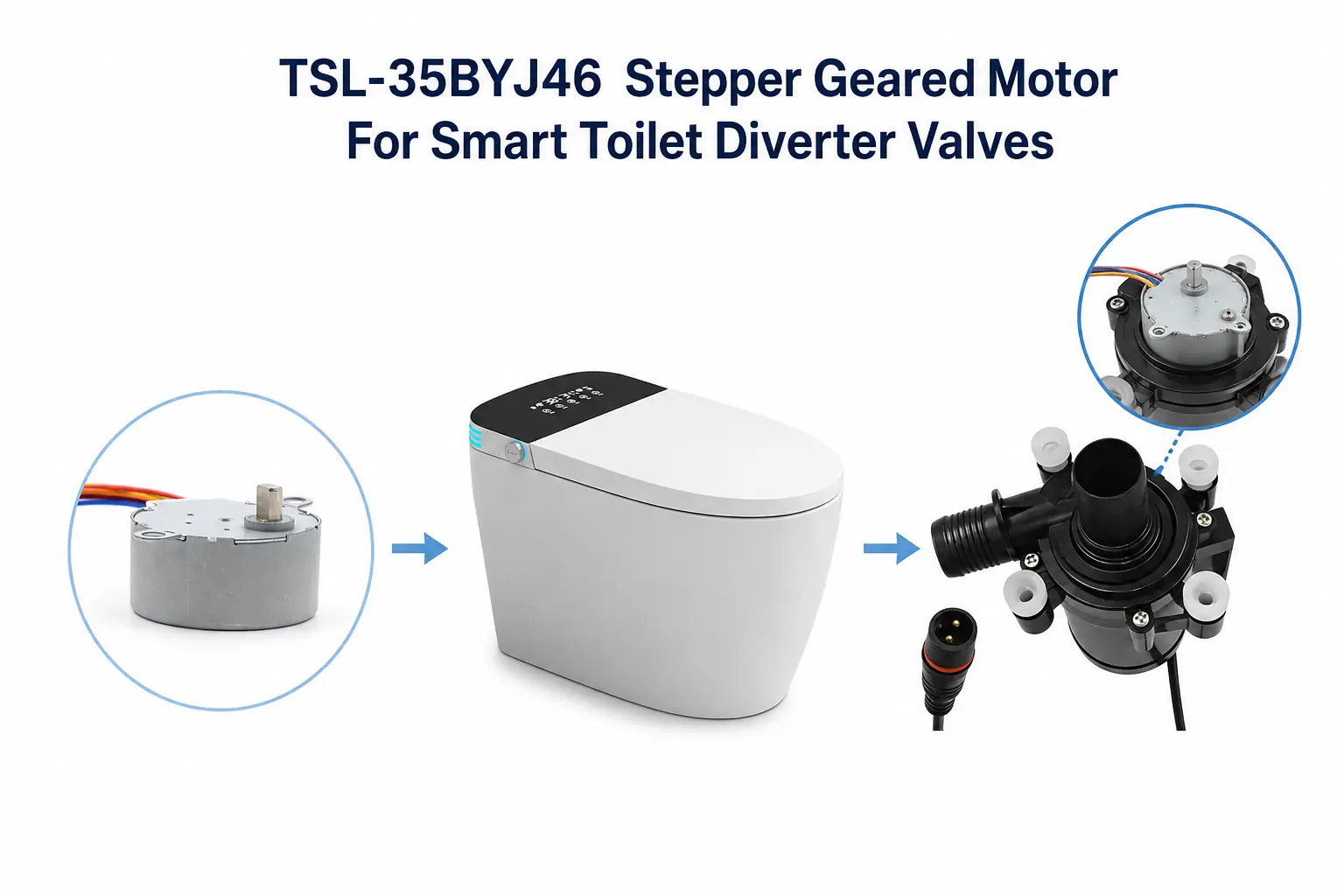

The TSL-35BYJ46 stepper geared motor features precise positioning, low-noise operation, high reliability, and high integration. It perfectly meets the full operating requirements of smart toilet diverter valves. It provides a mature and reliable dedicated drive solution for global smart sanitary ware manufacturers.

Key Takeaways

1. The TSL-35BYJ46 motor integrates a 35 mm stepper frame with an internal 85:1 reduction gearbox.
2. Micron-level angular step control guarantees zero-offset switching across multiple water channels.
3. A holding torque of ≥98 mNm easily overcomes municipal water pressure spikes and valve friction.
4. The compact 35 mm cylindrical footprint embeds effortlessly into space-constrained diverter valve assemblies.
5. A brush-free stepping architecture completely eliminates mechanical wear to support over 1,000,000 cycles.
6. An optimized moisture-sealed housing protects electrical components from dense bathroom condensation.
7. Low standby power draw perfectly aligns with global energy efficiency standards for green smart homes.

Working Principle of the Smart Toilet Diverter Valve

The smart toilet diverter valve is the core control unit of the waterway system. It handles multi-channel water switching, on-off control, flow adjustment, and hot-cold water mixing ratio control. It directly affects the user experience of rear wash, feminine wash, massage wash, water temperature adjustment, and water pressure adjustment.

The core action of the diverter valve is driven by a stepper geared motor. Its complete working logic is as follows:

The smart toilet main control board sends pulse signals to the drive motor according to the user’s command. After receiving the signal, the stepper geared motor rotates precisely by the set angle. The integrated reduction gearbox increases the output torque. It then drives the internal valve core of the diverter valve to rotate or move linearly with precision.

The position change of the valve core corresponds to the opening status and flow area of different water channels inside the valve body. This enables waterway switching for different cleaning modes. It also enables stepless water flow adjustment and precise hot-cold water mixing. Finally, it delivers the water function required by the user.

The stepping accuracy, response speed, and stable torque output of the motor directly determine the accuracy of waterway switching. They also determine the smoothness of water temperature and water pressure control. The motor is the core actuator of the smart toilet waterway system.

Core Requirements of Smart Toilet Diverter Valves for Drive Motors

Smart toilets are frequently used durable household products. They stay for a long time in humid bathroom environments. These environments are prone to condensation and temperature fluctuations. Smart toilets also have high requirements for comfort, safety, and service life. Therefore, they set strict performance standards for core drive motors:

The motor must precisely control the rotation angle of the valve core. It must achieve zero-deviation switching of multiple water channels. It must also precisely adjust the opening degree of the valve core.

Household bathroom scenarios are highly sensitive to noise. This is especially true during nighttime use. The motor must run and start-stop smoothly without impact. Its operating noise must meet household environmental standards.

The internal installation space of smart toilets is very compact. Diverter valve bodies are becoming smaller. The motor must have a compact body. It must also provide enough torque.

The motor must withstand tens of thousands of frequent starts and stops. It must meet the full lifecycle requirements of the product.

The motor must comply with energy efficiency standards for household smart products in global regions. It must have high operating efficiency and low standby power consumption. It must suit household low-power supply systems.

The control logic must be simple. It should quickly adapt to mainstream smart toilet control systems.

The motor must also have excellent electromagnetic anti-interference capability. This prevents false actions caused by interference from other electrical devices in the bathroom. It ensures safe use.

The motor should use a standardized mounting structure. It should quickly adapt to diverter valve bodies of different specifications.

Why Choose a Stepper Geared Motor

In smart toilet diverter valve applications, high-performance stepper geared motors represented by the TSL-35BYJ46 offer key advantages. These include precise open-loop positioning, high torque density, low-noise operation, long service life, and easy integration. They have become a preferred core solution for mass-produced models from global smart sanitary ware manufacturers.

Pain Points of Brushed DC Geared Motors

Brushed DC geared motors use carbon brushes for commutation. Their structure is simple. Their basic cost is low. However, they have clear shortcomings in diverter valve applications. In open-loop operation, they cannot achieve precise position control.

Carbon brushes are wearing parts. They wear easily under frequent long-term start-stop operation. This leads to short service life and a high failure rate. Brush friction can also cause abnormal operating noise and sparks. Start-stop smoothness is poor.

Pain Points of Worm Gear Motors

Worm gear motors are usually used with DC motors. They offer a large reduction ratio and self-locking ability. However, their adaptability is very poor. They are large in size. Their structure is not compact.

They cannot meet the miniaturized installation needs of diverter valves. After long-term use, the worm gear is prone to wear. Transmission backlash keeps increasing. Positioning accuracy drops quickly. This causes waterway switching deviation.

Pain Points of Brushless DC Planetary Geared Motors

Brushless DC planetary geared motors have brushless commutation, long service life, and high efficiency. However, they have obvious disadvantages in mass-production adaptation. They must use a dedicated drive controller and a position feedback system to achieve precise valve core positioning. The development threshold is high.

Under the same specifications, their hardware cost is more than 40% higher than that of stepper geared motors. This creates high cost pressure for mass-produced models.

Their drive electronic components are sensitive to humid and condensing bathroom environments. Drive board failure can easily occur. Maintenance costs are high. Their structure is complex. Their size is relatively large.

They cannot meet the installation needs of ultra-small diverter valves. Their start-stop control logic is complex. Their response speed is also lower than that of stepper motors.

Core Advantages of the TSL-35BYJ46 Stepper Geared Motor

The TSL-35BYJ46 is a high-performance permanent magnet stepper geared motor. It is designed for smart bathroom applications. It is fully optimized for the operating conditions of smart toilet diverter valves. It fully enhances the inherent advantages of stepper geared motors.

High Positioning Accuracy

It uses a 4-phase permanent magnet stepper structure. The original step angle is 7.5°. It is matched with an 85:1 high-precision reduction gearbox. The final output step angle is 7.5°/85. Open-loop control can achieve micron-level angular precision.

There is no step loss and no accumulated error. It can precisely drive the valve core to complete multi-channel water switching.

High Torque Density

It uses a 35 mm standard diameter body. The reduction gearbox is integrated into one unit. It achieves a holding torque of ≥98 mNm in a compact size. It can easily overcome the valve core rotation resistance caused by municipal water pressure.

Even under fluctuating water pressure, it ensures smooth valve core movement and stable start-stop operation. It perfectly fits the highly compact internal space of smart toilets.

Ultra-Low Noise

It uses a high-precision gear meshing design and a permanent magnet stepper drive structure. There is no brush friction noise. The transmission is smooth during operation. There is no impact and no abnormal noise. No-load operating noise is far below household bathroom environmental standards. Even in a quiet nighttime environment, it does not cause noise disturbance.

Long Service Life

It uses a brushless commutation structure. There are no wearing parts such as carbon brushes. The core transmission gears use high-strength wear-resistant materials. The motor can withstand more than one million frequent starts and stops. It meets the high-frequency use requirements of smart toilets.

The motor body uses an optimized sealing design. It can withstand humid, condensing, and temperature-fluctuating bathroom environments. It effectively prevents water vapor intrusion. It avoids short circuits and rust failures. It greatly reduces after-sales failure rates for end products.

Easy Integration

It uses a 12 V DC household safety voltage supply. It adopts a 4-wire unipolar drive design. It is compatible with mainstream smart toilet control systems on the market. Pulse signals directly control the rotation angle and speed.

No additional position feedback components are required. The control logic is simple. It can quickly adapt to diverter valve bodies and complete machine control systems from different manufacturers. This accelerates mass-production launch.

Low Power Consumption

The high magnetic energy product permanent magnet structure brings excellent energy conversion efficiency. Operating power consumption is low. In standby mode, there is almost no energy consumption. It fully meets energy efficiency standards for household smart products in global regions. It also supports the green and low-carbon product development trend.

Overview of the TSL-35BYJ46 Stepper Geared Motor

The TSL-35BYJ46 is a 35 mm permanent magnet geared stepper motor designed for smart bathroom applications. It uses an integrated reduction gearbox design and a unipolar drive mode. It can quickly adapt to various smart toilet diverter valve control systems. Its performance fully covers all operating requirements of waterway switching and flow adjustment in diverter valves.

Customization Services and Technical Support

For global smart sanitary ware manufacturers, we provide one-stop customization services and full-cycle technical support. Our support covers the full process of smart toilet diverter valve product development, prototype testing, and mass-production launch:

Parameter customization: We can adjust key motor parameters according to customer operating requirements. These include rated voltage, reduction ratio, output torque, step angle, and operating speed.

Structural customization: We can customize mounting hole positions, motor body length, wire length, wire outlet interface type, and terminal specifications.

Environmental reinforcement: We can provide reliability optimization for moisture resistance, waterproofing, corrosion resistance, and wide-temperature operation.

Full-process technical support: We provide solution selection, valve body structure adaptation design, prototype debugging, drive matching, mass-production launch, and after-sales maintenance support. A dedicated engineering team provides one-to-one service.

Flexible supply chain support: We can provide rapid sample prototyping. Sample fees can be fully refunded in formal mass-production orders. We support small-batch trial production and large-scale supply. We also provide global logistics delivery services. This meets customer production needs at different stages.

Industry Development Trends and Future Outlook

The global smart sanitary ware industry is developing rapidly toward intelligence, comfort, energy efficiency, high reliability, and miniaturization. Smart toilets are a core product category. Their global market penetration continues to rise. Demand in emerging markets is growing quickly. As the core drive unit of diverter valves, motor products show the following key development trends:

Integrated drive and control: Motors, drives, sensors, and controls are becoming highly integrated.

Quiet and comfortable operation: Low-noise and smooth-running stepper geared motor solutions will fully replace traditional brushed solutions.

High reliability and long service life: Smart toilets are durable consumer products. Requirements for full-lifecycle reliability continue to increase.

Standardization and generalization: Standardized stepper geared motor modules are becoming mainstream in the industry. They can effectively reduce the development threshold for smart sanitary ware manufacturers.

Energy saving and low carbon: Low-power and high-efficiency motor solutions are fully replacing traditional high-energy-consumption solutions.

In the future, we will continue to optimize the performance and structure of stepper geared motors. We will keep iterating product technologies. We will balance high performance, high reliability, and high cost-effectiveness.

We will provide more precise, quieter, more reliable, and more market-adapted diverter valve drive solutions for global smart sanitary ware manufacturers. We will help upgrade the technology and high-quality development of the global smart sanitary ware industry.

Conclusion

The TSL-35BYJ46 high-performance stepper geared motor offers ultra-high positioning control accuracy. It runs smoothly with low noise. It has high torque in a small size. It provides long service life and high reliability. It is easy to integrate and highly cost-effective. It perfectly matches the full operating requirements of smart toilet diverter valves.

This product effectively solves industry pain points found in traditional brushed DC motors, worm gear motors, and brushless planetary geared motors. These pain points include positioning accuracy, operating noise, service life, and overall cost. It provides a mature, reliable, and scalable mass-production drive solution dedicated to diverter valves for global smart sanitary ware manufacturers.

The TSL-35BYJ46 stepper geared motor can fully support smart toilet functions such as multi-channel water switching, stepless water pressure adjustment, and hot-cold water mixing control. It helps upgrade product performance and user experience. It also promotes the global adoption and application of high-quality smart sanitary ware products.

FAQ

Q1:Why use a stepper geared motor for a toilet diverter valve instead of a cheap DC brushed motor?

Brushed DC motors run open-loop without angle awareness, meaning they cannot precisely position a valve core to align with multiple tiny water channels. The TSL-35BYJ46 moves in exact step increments, ensuring zero-deviation water path switching without needing expensive external tracking sensors.

Q2:Can this motor handle internal resistance caused by fluctuating home water pressure?

Yes. While the motor itself is compact, its internal 85:1 reduction gearbox scales up the output force, achieving a holding torque of ≥98 mNm. This allows it to easily overcome municipal water pressure fluctuations and smoothly turn tight rubber valve seals.

Q3:Will the humid, condensing environment of a bathroom cause the motor to fail?

No. Unlike exposed motor designs, the TSL-35BYJ46 features an optimized moisture-resistant sealing layout. It uses a brushless stepping design that completely eliminates sparking and carbon brush wear, effectively shielding internal windings from rust and humidity-induced short circuits.
