Portable electric garden tools and small logging equipment are moving toward lithium battery power and lightweight design. 6-inch / 8-inch electric chain saws are portable and flexible. They fit many scenarios. They have become core cutting tools for garden maintenance, home gardening, small wood processing, and emergency rescue.

The motor is the core power unit of an electric chain saw. Its performance directly affects work efficiency, user experience, safety, and service life.

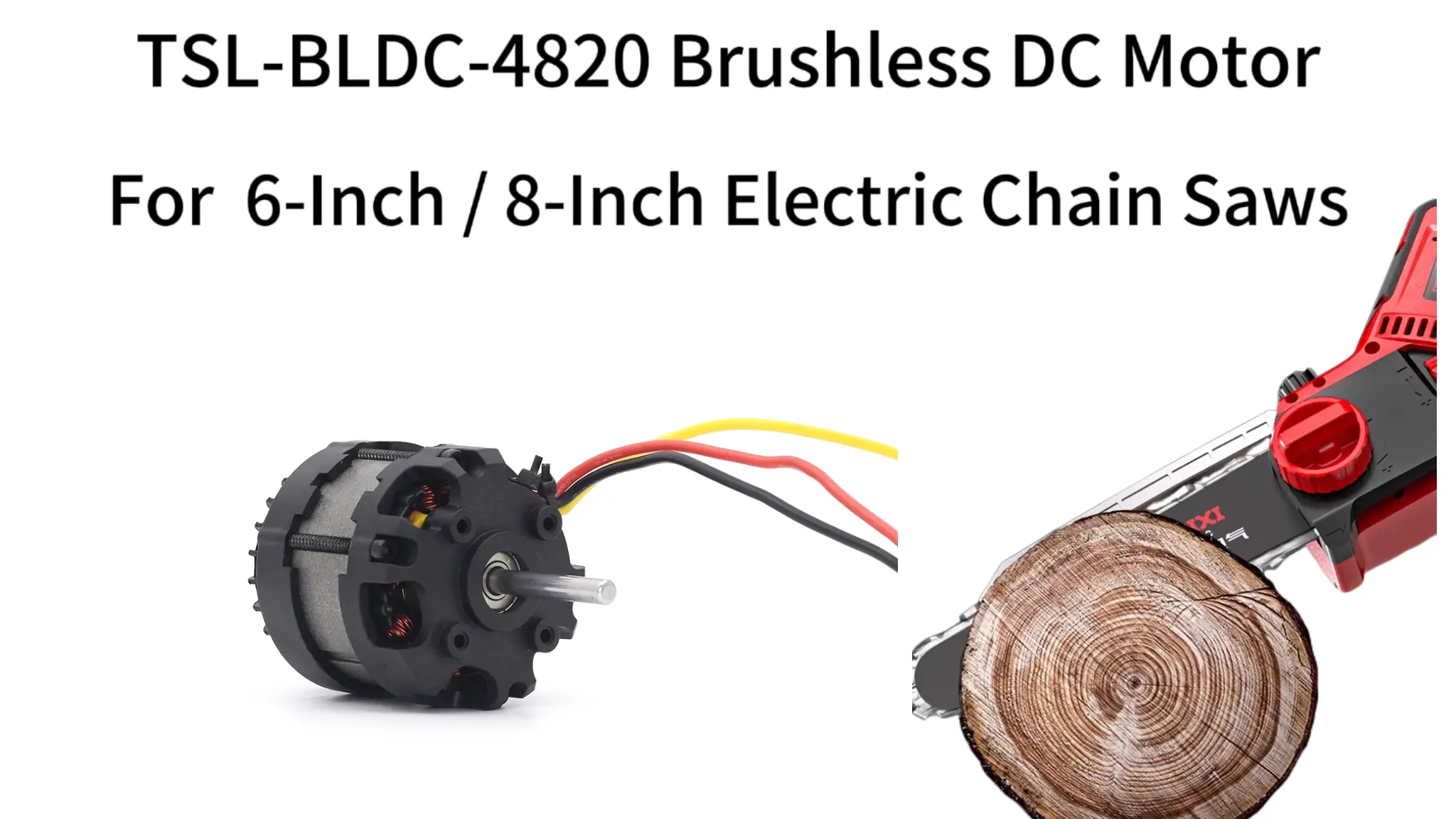

The TSL-BLDC-4820 brushless DC motor offers high power density, high efficiency, long life, and strong controllability. It is an ideal drive solution for 6-inch / 8-inch electric chain saws.

Key Takeaways

1. The TSL-BLDC-4820 is a high-torque brushless DC motor optimized for portable chain saws.
2. Peak output power of 493.57W ensures high cutting efficiency for hardwood and branches.
3. 90.81% maximum efficiency maximizes the number of cuts possible on a single battery charge.
4. A compact, lightweight design enables the creation of ergonomic, one-handed power tools.
5. Brushless technology eliminates carbon brush wear, providing a long, maintenance-free service life.
6. Rapid electronic braking (<180ms) significantly improves safety during emergency stops.
7. Low noise and vibration reduce hand fatigue for homeowners and professional landscapers.

Working Principle of an Electric Chain Saw

A 6-inch / 8-inch electric chain saw is a portable handheld lithium battery cutting tool. Its core function is to convert electrical energy into mechanical sawing power.

The motor acts as the main power source. After power-on, it outputs high-speed rotary power. This power first goes to the matching drive gear mechanism. The gear set reduces speed and increases torque. Then it transfers power steadily to the drive sprocket.

The sprocket meshes with the saw chain. It drives the chain to move at high speed along the guide bar track.

The hard cutting teeth on the chain move with the chain. They continuously apply high-frequency and high-impact cutting force to wood, branches, and other materials. The motor’s rotary power is finally converted into stable linear sawing action. This completes different cutting tasks.

Mainstream 6-inch / 8-inch electric chain saws usually include stepless speed control, emergency braking, anti-chain-jam protection, and overload protection. These functions place strict requirements on response speed, control accuracy, and operating stability of the power system.

Core Motor Requirements for 6-Inch / 8-Inch Electric Chain Saws

The working conditions of 6-inch / 8-inch electric chain saws are complex. They often face outdoor use without grid power, high load fluctuation, dust, moisture, and frequent start-stop operation. Therefore, the drive motor must meet several strict performance requirements. The core requirements are as follows:

High Power Density

The handheld body has limited space. The motor must provide high torque and high power in a very small size. It must handle high-load cutting of hardwood and wet wood. It should avoid speed loss and chain jamming. It should ensure stable cutting efficiency.

High Efficiency and Low Power Consumption

The tool is powered by a lithium battery. The motor must have high conversion efficiency. It should reduce current loss under no-load and rated working conditions. It should extend continuous operating time per charge. It should meet long outdoor use requirements.

Wide Speed Range

The motor must suit different materials and branch diameters. It should support stable stepless speed control over a wide range. It should also respond quickly during start, stop, and braking. Under abnormal conditions, it should trigger protection quickly to keep the operator safe.

Long Service Life

The tool often starts and stops. The load also changes sharply. The motor is often exposed to sawdust, dust, and moisture. Therefore, it needs good impact resistance, dust resistance, and wear resistance. It should have no easily worn parts. This reduces maintenance and supports long-term mass-market use.

Low Noise

In handheld operation, motor noise and vibration directly affect comfort. Noise and vibration must be strictly controlled. This reduces hand fatigue during long operation. It also helps meet global noise and ergonomic standards for power tools.

Compatibility

The matching driver should provide full protection functions. These include overcurrent, overload, overtemperature, locked-rotor, and undervoltage protection. The motor structure should also fit the handheld body. This simplifies assembly and product development.

Why Choose a Brushless DC Motor

For 6-inch / 8-inch electric chain saws, brushless DC motors offer clear advantages over conventional brushed DC motors, AC induction motors, and universal motors. These advantages match the core needs of portable handheld tools. The main comparison is shown below:

In summary, brushless DC motors outperform traditional drive options in key areas. These include size, torque, efficiency, life, runtime, controllability, and safety. For new-generation lithium battery portable chain saws, BLDC motors are the most suitable and mass-production-ready core power choice.

Advantages of the TSL-BLDC-4820 Brushless DC Motor

The TSL-BLDC-4820 is a high-performance brushless DC motor developed for 6-inch / 8-inch portable lithium battery chain saws. It can be paired with a dedicated driver to form an integrated motor-and-control solution. It matches the full working conditions of electric chain saws.

Ultra-High Power Density

The motor delivers industry-leading power in a compact body. At a rated voltage of 18V, the peak output power reaches 493.57W. The stall torque reaches 1041.601mN.m. It can stably support high-load cutting conditions in 6-inch / 8-inch electric chain saws.

When cutting difficult materials such as hardwood and wet wood, the motor speed remains stable. It does not lose speed. It does not jam the chain. This improves cutting efficiency and reduces operating failure risk. The torque constant reaches 10.991mN.m/A. Torque output is highly linear. This fits stepless speed control and different cutting materials.

Low Consumption and Long Runtime

The motor’s maximum efficiency reaches 90.81% under rated conditions. At a common working torque of 200mN.m, the efficiency still remains at 86.83%. This is much higher than traditional brushed motors.

Its no-load current is only 1.400A. Current control under rated conditions is also excellent. This greatly reduces total energy consumption of 6-inch / 8-inch lithium battery chain saws. It extends continuous operating time per charge. It fits outdoor use without grid power. It reduces charging frequency and improves user experience.

Stable Operation

The motor uses a brushless structure. It has no carbon brushes or similar wear parts. This solves the short-life problem caused by mechanical wear. It can handle frequent start-stop operation, forward-reverse switching, and sharp load fluctuation in chain saw applications. Long-term performance remains stable.

The motor also has strong impact resistance, dust resistance, and moisture resistance. It can maintain stable operation in harsh environments such as garden work and outdoor logging. This greatly reduces later maintenance costs and supports long product life in mass production.

Low Noise and Low Vibration

The brushless structure removes noise and vibration caused by carbon brush friction. With precise structural design and dynamic balancing, the motor runs smoothly. Noise and vibration are greatly reduced. This helps control total machine noise. It also reduces hand fatigue during long handheld operation. It improves comfort and helps meet global noise and ergonomic standards for power tools.

Integrated Motor and Controller Support

We can provide a dedicated high-performance driver for the TSL-BLDC-4820 motor. This enables an integrated motor-and-control design. It greatly reduces development difficulty for customers.

The matching controller has complete protection functions. These include overvoltage, undervoltage, overload, locked-rotor, short-circuit, and overtemperature protection. It can accurately identify motor status. Under chain-jam or overload conditions, it can trigger protection quickly and cut off power output. This improves tool safety.

It can also match braking and soft-start functions of electric chain saws. The soft-start time is less than 500ms. The braking time is less than 180ms. Response is fast and control is accurate.

Strong Structural Compatibility

The motor uses a standardized structural design. It can fit the installation space of 6-inch / 8-inch electric chain saws. The shaft end, mounting position, and lead-out method can be adjusted flexibly. It can connect directly with the drive gear mechanism. This simplifies transmission design and assembly. It shortens the customer’s development cycle and reduces mass production cost.

TSL-BLDC-4820 Brushless DC Motor Overview

The TSL-BLDC-4820 is a high-performance brushless DC motor developed for 6-inch / 8-inch portable lithium battery chain saws. It can be matched with a dedicated driver for integrated motor-and-control design. It can quickly fit the control systems of different portable chain saws. Its performance covers garden pruning, small logging, woodworking, and other cutting conditions.

Customization Services and Technical Support

For global power tool manufacturers, we provide one-stop customization services and full-cycle technical support. This covers solution selection, prototype development, mass production launch, and after-sales maintenance for 6-inch / 8-inch electric chain saw products.

• Core parameter customization: We can adjust working voltage, output torque, speed, power, and other core parameters according to the customer’s product design needs.
• Structural customization: We can customize the shaft end, mounting dimensions, lead wire length, interface type, motor outer diameter, and overall length.
• Integrated drive-control optimization: According to chain saw cutting conditions, we can optimize the motor and controller drive logic, speed control performance, and protection thresholds. We can also support the customer’s speed switch, braking system, safety lock, and other functional modules.
• Environmental and reliability enhancement: For outdoor power tool use, we can strengthen dust resistance, moisture resistance, corrosion resistance, and impact resistance.
• Full-process technical support: We provide one-to-one support from early solution selection, structure matching, prototype debugging and testing, to mass production and after-sales maintenance. Our R&D and engineering teams can respond quickly to customer needs. They help solve problems during product development and shorten the launch cycle.

Industry Trends and Future Outlook

Global portable electric garden tools are moving rapidly toward lithium battery power, brushless motors, intelligent control, lightweight design, and high reliability. As core cutting tools for garden maintenance, home DIY, and small engineering work, 6-inch / 8-inch electric chain saws show four key power system trends:

First, motor-and-controller integration. High integration of the motor, driver, and sensor feedback is becoming mainstream. It can further reduce machine size. It can improve weight balance and structural design of handheld tools. It lowers assembly difficulty and development cost. It also improves system reliability.

Second, intelligent control. Smart drive solutions with closed-loop control, load recognition, and adaptive working-condition adjustment are becoming the upgrade direction. They can automatically adjust speed and torque according to material hardness. This improves cutting efficiency, reduces energy consumption, extends runtime, and enables better safety protection.

Third, full adoption of brushless motors. As brushless motor technology matures and costs improve, BLDC motors are rapidly replacing traditional brushed motors. They are becoming the standard power solution for portable lithium battery chain saws. Cost-effective brushless motor solutions can help products expand in global markets, especially in emerging markets.

Fourth, high efficiency, energy saving, and environmental protection. Global markets are raising energy efficiency standards and environmental requirements for power tools. High-efficiency and low-power brushless motors can better meet local energy regulations. They also match high-capacity and long-cycle lithium battery technology. This drives products toward greener and more energy-saving designs.

In the future, we will continue to improve the performance and integration of brushless DC motors. We will provide more precise, reliable, and cost-effective drive solutions for global power tool manufacturers. We will support the technology upgrade and wider adoption of portable electric garden tools worldwide.

Conclusion

The TSL-BLDC-4820 brushless DC motor precisely matches the core needs of 6-inch / 8-inch portable electric chain saws. These needs include small size, high torque, high efficiency, long runtime, high reliability, and easy control. It effectively solves the common industry pain points of traditional brushed motors and AC motors in size, efficiency, life, and stability.

As a dedicated drive solution for portable power tools in the global market, this product offers mature standardized design and flexible customization capability. It can work with an integrated driver to achieve coordinated motor-control optimization.

It helps power tool manufacturers improve product performance, reduce development cost, and shorten time to market. It is an ideal core power unit for new-generation 6-inch / 8-inch lithium battery electric chain saws. It will continue to support the technical upgrade and brushless adoption of portable electric garden tools worldwide.
