In modern optical imaging devices, autofocus and optical zoom are no longer premium features. They have become basic standards for the user experience.

From handheld consumer digital cameras to professional DSLR and mirrorless cameras, and from street security cameras to machine-vision inspection systems in factories, every clear capture depends on a precise drive motor. Every smooth zoom also relies on a reliable motor.

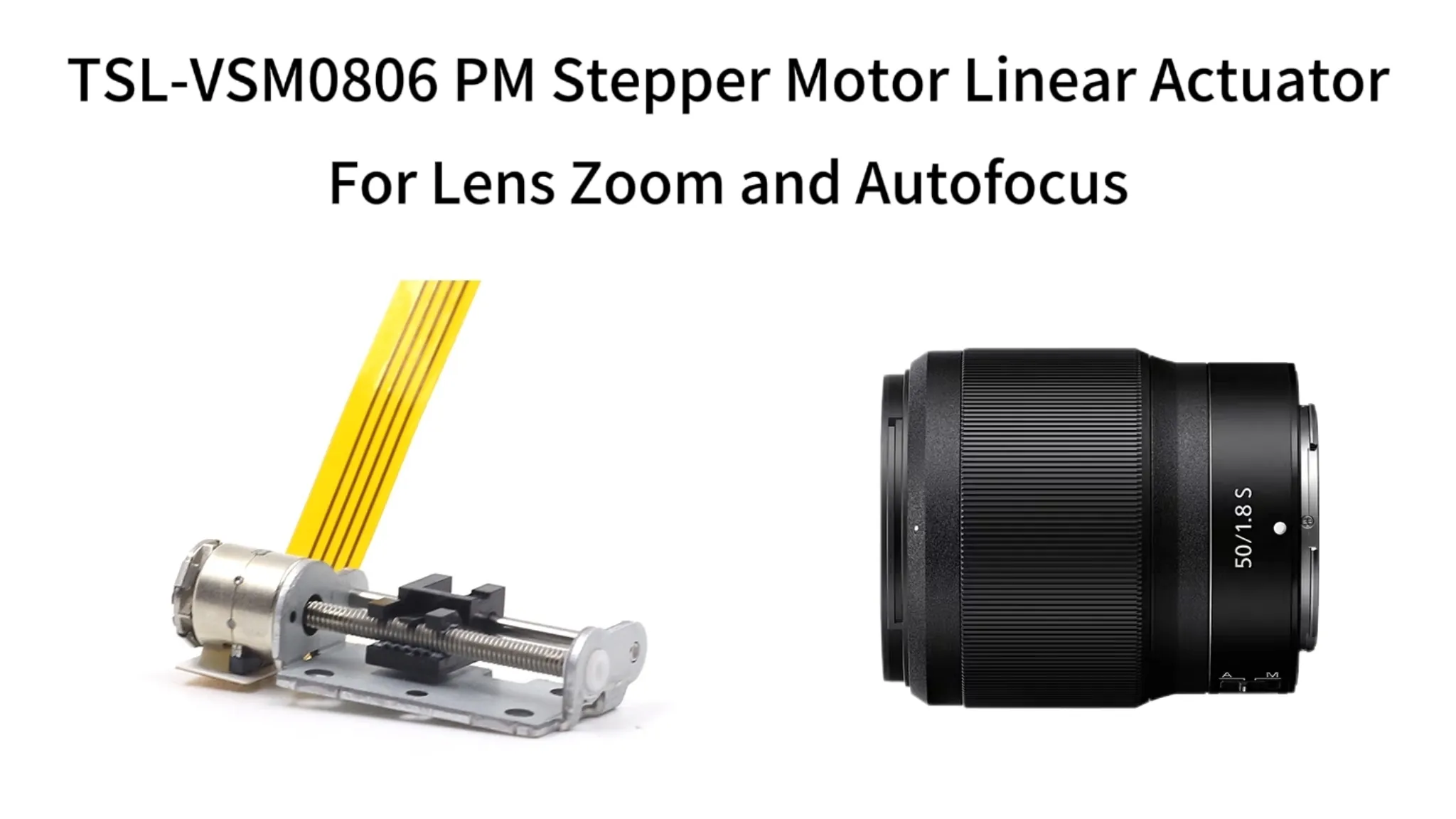

The TSL-VSM0806 slide permanent-magnet stepper motor was designed to solve the challenge of linear lens drive. With its native linear output structure and excellent performance, it redefines the industry standard for zoom and focus drive.

Key Takeaways

1. The TSL-VSM0806 motor provides a native linear output structure specifically for lens drive applications.
2. Integrated lead screws eliminate mechanical backlash and errors found in traditional gearbox designs.
3. Open-loop control allows for accurate positioning without the need for additional, complex sensors.
4. The miniature slide design integrates the motor, screw, and guide into a compact space for small devices.
5. Low-noise performance ensures that lens movements are not picked up by sensitive microphones during filming.
6. High-speed response frequencies allow imaging systems to lock onto subjects moving at high velocities.
7. Customization options include adjustable travel, thrust, and flexible cable interfaces for unique lens barrels.

How Lens Zoom and Autofocus Work

Autofocus works by driving one or more lens groups back and forth along the optical axis. This changes the convergence point of the light, so the subject is sharply imaged on the sensor.

This process requires extremely high precision. Even a position error of only a few microns can cause blur, often called defocus or focus drift.

Optical zoom works in a similar way, but it is more complex. It must drive several lens groups with different functions along specific paths at the same time.

While changing the focal length, the system must still maintain image clarity and optical performance. Compared with autofocus, optical zoom requires a longer travel range and more complex synchronized control.

Both zoom and focus place similar demands on the drive motor. The motor must offer high positioning accuracy, fast response, smooth low-noise operation, compact size, and a long service life.

The Role of the Motor in Zoom and Focus Systems

In a zoom and focus system, the motor drives one or more lens groups along the optical axis. Its job is to move the lens group to the exact position required.

If the lens is compared to the human eye, the motor is like the muscle that controls focusing. It receives electrical signals from the image processor and converts them into mechanical motion.

In the imaging chain, the motor is the bridge between the electronic system and the optical system. Its performance directly determines the final lens performance.

A high-quality drive motor makes focusing fast and decisive. It allows users to get a sharp image the moment they press the shutter.

If the motor lacks precision, the lens may hunt back and forth before focusing. If the response is too slow, the camera may miss important moments.

If the motor is too noisy, it may affect video sound recording. In this sense, the quality of the drive motor directly separates high-end lenses from lower-end products.

Why Choose a PM Stepper Linear Motor

Many motor types can be used for optical lens drive. However, for medium- and long-travel zoom and focus systems, a permanent-magnet stepper linear motor is the best overall choice.

A brushed DC motor is low in cost. But its brushes wear out, its life is short, and it cannot provide precise open-loop position control.

Voice coil motors are fast and quiet. But they have short travel, low thrust, and often require a complex closed-loop control system.

Rotary stepper motors offer good precision and long life. But they need extra transmission parts to convert rotary motion into linear motion.

By contrast, a permanent-magnet stepper linear motor combines high precision, long life, moderate cost, and simple control. It is well suited to most medium- and long-travel zoom and focus applications.

Its structure is compact. It outputs linear motion directly and does not need an extra transmission mechanism.Its control is simple. Accurate positioning can be achieved through open-loop control without an additional position sensor.Its service life is long. It has no brush wear and uses a non-contact magnetic drive principle.

It is also flexible. Thrust and travel can be customized according to application needs.

Performance Comparison of Main Lens Drive Motors

Core Advantages of TSL-VSM0806 in Zoom and Focus

The TSL-VSM0806 slide permanent-magnet stepper motor was designed to match the key needs of zoom and focus systems. Its structure and parameters have been optimized for these applications.

Integrated Design

Traditional zoom and focus drive solutions often use a separated structure. This usually includes a rotary motor, gearbox, and lead screw.This structure converts rotary motion into linear motion through several transmission stages. Each stage adds error, loss, and possible backlash over time.

The TSL-VSM0806 uses an integrated design. The motor rotor is directly connected to the precision lead screw.This converts motion in one step. It removes the errors caused by intermediate transmission parts.The slide can be directly fixed to the lens barrel. This simplifies module design and improves transmission efficiency and positioning accuracy.

Precise Step Control

The TSL-VSM0806 uses an integrated structure. The motor rotor is directly connected to the precision lead screw.This completes the motion conversion in one step. It removes intermediate transmission errors.

The slide can be directly fixed to the lens barrel. This greatly simplifies the module structure and improves position control accuracy.

Smooth and Low-Noise Operation

Video shooting has strict requirements for quiet operation. The TSL-VSM0806 addresses this through both structural design and process control.It uses high-precision micro bearings and a precision lead screw. This reduces friction and mechanical vibration during operation.

The motor drive current waveform is also specially optimized. This helps suppress electromagnetic noise.In actual tests, the TSL-VSM0806 produces very low noise over its full travel range. It is almost not picked up by the device microphone.

This makes it suitable for 4K and 8K video shooting. It is also well suited to live streaming and other noise-sensitive applications.

High-Speed Response

In sports, wildlife photography, and security monitoring, subjects often move quickly. The motor must complete full-travel movement in a very short time.The TSL-VSM0806 has a high starting frequency and operating frequency. It can respond instantly to commands from the control system.

It quickly moves the lens group to the target position. This helps the device lock onto fast-moving subjects and improves capture success.

Long Service Life

The lens is a core part of optical imaging equipment. Its service life directly affects the value of the whole device.The TSL-VSM0806 uses high-grade permanent-magnet materials and wear-resistant metal parts. Each production step is controlled through strict process and reliability testing.

Its slide guide structure is specially optimized. This reduces wear and sticking during long-term reciprocating motion.Test results show that the TSL-VSM0806 can withstand millions of focus and zoom operations. This extends the lens service life and helps equipment makers reduce after-sales repair costs.

Wide Range of Practical Applications

With its excellent overall performance, the TSL-VSM0806 slide permanent-magnet stepper motor is widely used in optical imaging devices. It has become a mainstream choice in the industry.

In consumer electronics, it is widely used in consumer digital cameras, compact cameras, and entry-level DSLR and mirrorless cameras. It provides fast, precise autofocus and multi-times optical zoom.

Whether used for daily landscape photography or portrait photography, the TSL-VSM0806 helps ensure clear imaging and smooth shooting.

In security monitoring, the TSL-VSM0806 is a preferred drive solution for HD network cameras and high-speed dome cameras. It can operate stably for long periods in outdoor environments with high or low temperatures, humidity, and dust.

It supports long-distance autofocus and zoom. This helps maintain clear monitoring images and supports public safety.

In industrial applications, the TSL-VSM0806 is widely used in machine-vision cameras and industrial inspection equipment. It is suitable for electronics inspection, barcode recognition, semiconductor manufacturing, and other high-precision scenarios.

It enables micron-level focal adjustment. This improves inspection accuracy and efficiency.

In medical applications, the TSL-VSM0806 is used in endoscopes, surgical microscopes, and pathology slide scanners. Its smooth low-noise operation and high-precision control help doctors obtain clear and stable medical images.

These images provide reliable support for diagnosis and treatment.

Customization Services and Technical Support

As a professional manufacturer of DC motors and stepper motors, we understand that customer needs vary widely. In addition to standard TSL-VSM0806 products, we also offer strong customization capabilities.

We can adjust key parameters according to customer needs. These include travel, thrust, and step angle.

We can also customize flexible flat cables with different lengths and interfaces. For customers with special structural requirements, we can provide one-stop service from product design and mold development to manufacturing.

We also have an experienced technical support team. The team can provide full guidance from model selection to debugging and help customers bring products to market faster.

Industry Trends and Future Outlook

As optical imaging technology continues to develop, users expect higher image quality. This creates new challenges for drive motors.

In the future, optical lens drive motors will become smaller, more precise, faster, and more energy efficient. At the same time, multi-camera systems and computational photography will make multi-motor cooperative control an industry trend.

As a leading company in the industry, we continue to follow the frontiers of technology. We keep increasing R&D investment and developing high-performance, high-reliability drive products.

With our technical expertise and deep understanding of customer needs, we can provide better drive solutions for global optical imaging equipment makers. Together, we can support the continued progress of imaging technology.

Conclusion

Autofocus and optical zoom are core functions of modern optical imaging devices. The drive motor is the heart of these functions.

With excellent performance and reliable quality, the TSL-VSM0806 slide permanent-magnet stepper motor shows what precision drive truly means. It solves many problems found in traditional drive solutions.

It also brings new momentum to the development of optical imaging technology. In the future, we will continue to focus on drive technology for optical imaging.

We will keep innovating and pursuing excellence. We look forward to working with more partners and using high-quality motor products to bring users a clearer and better visual experience.

FAQ

Q1:Why is the TSL-VSM0806 ideal for autofocus and optical zoom?

Autofocus and zoom require moving lens groups along the optical axis with micron-level precision. The TSL-VSM0806 provides the necessary high positioning accuracy, fast response, and smooth, low-noise operation required for these tasks.

Q2:How does the integrated design of the TSL-VSM0806 benefit lens modules?

Unlike traditional solutions that use separate gears and gearboxes, the TSL-VSM0806 integrates the motor rotor directly with a precision lead screw. This removes intermediate transmission errors, improves efficiency, and simplifies the overall module design.

Q3:Is this motor suitable for professional video recording?

Yes. The TSL-VSM0806 is designed for quiet operation using micro bearings and optimized drive current waveforms to suppress noise, making it suitable for 4K and 8K video shooting where microphone interference must be avoided.
